Listing #293736
ACR Liquid Filling Line Model DAM-3L / TA-2
Equipment Description:
AUTOMATIC FILLING LINE FOR LIQUID AND HALF-SOLID PRODUCTS
AUTOMATIC FILLING LINE FOR LIQUID and
HALF-SOLID PRODUCTS
AUTOMATIC FILLER with mass flow meter - mod. DAM-3-L
CAPPER MACHINE - mod. TA-2
DESCRIPTION:

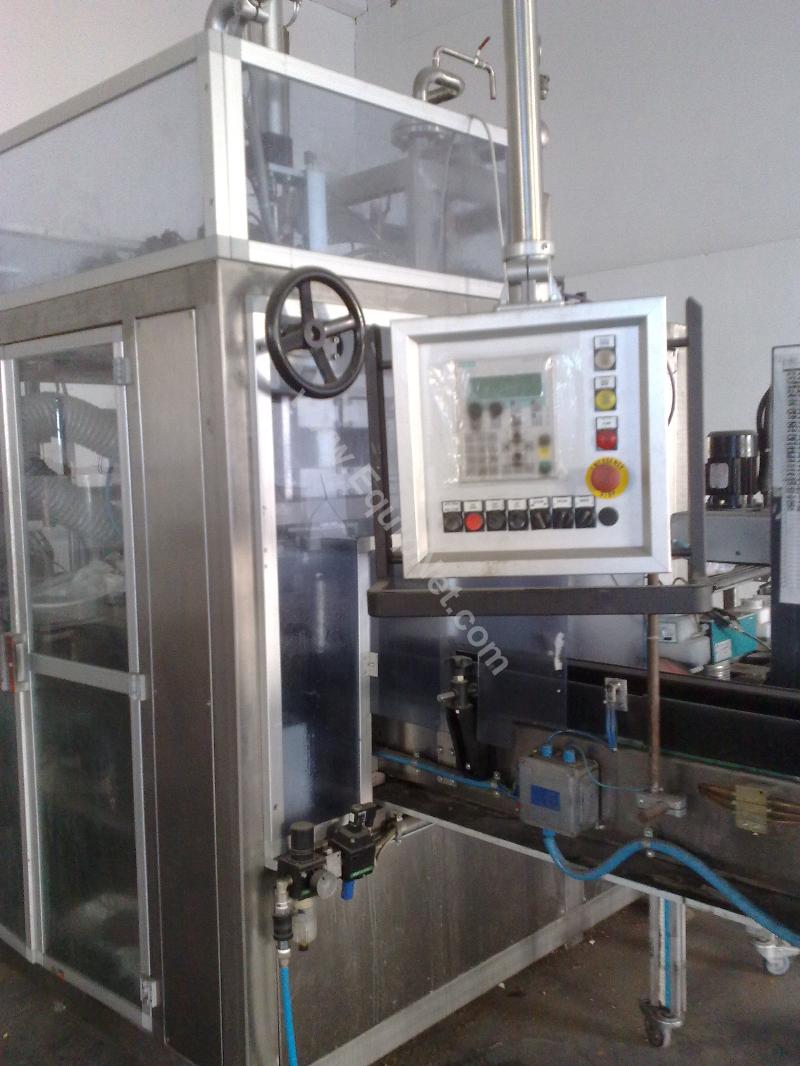

The DAM-3-L volumetric filler is an automatic machine able to measure chemical or alimentary liquid or half-solid products. It is planned and built to answer specific demands of a sector of the market, where the same kind of product is maufactured in various formats with different sizes.
The Capper TA2 was working with the DAM-3L Volumetric filler, but can be considered as an independent unit and inserted in line with different kinds of fillers also by simply connecting in the right way the containers output conveyor.
SECTORS OF USE:
Pharmaceutical, chemical, food, dietary, medical devices, manufacturing.
MAIN FEATURES:
In the DAM-3-L volumetric filler mass meters are installed to determine the right product metering in the required quantity.

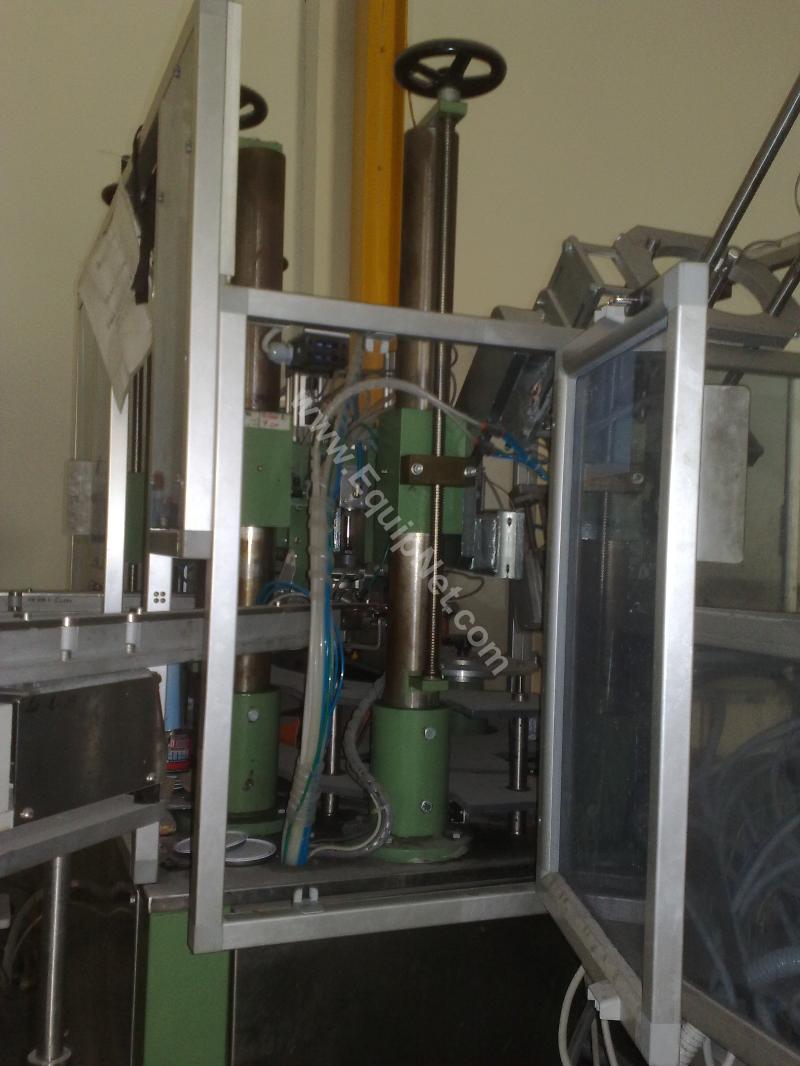

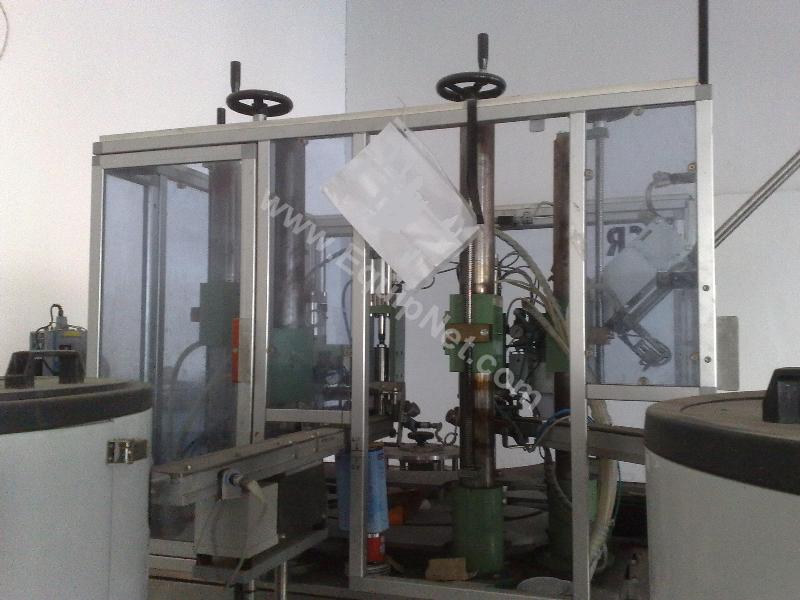

The Capper TA2, double head, is composed by a steel frame, four supporting corners and two motherboards, upper and lower and 4 height adjustable feet.
Features:
Quick container and cap size change.
High compatibility related to a very big number of different shape containers.
Low maintenance needs.

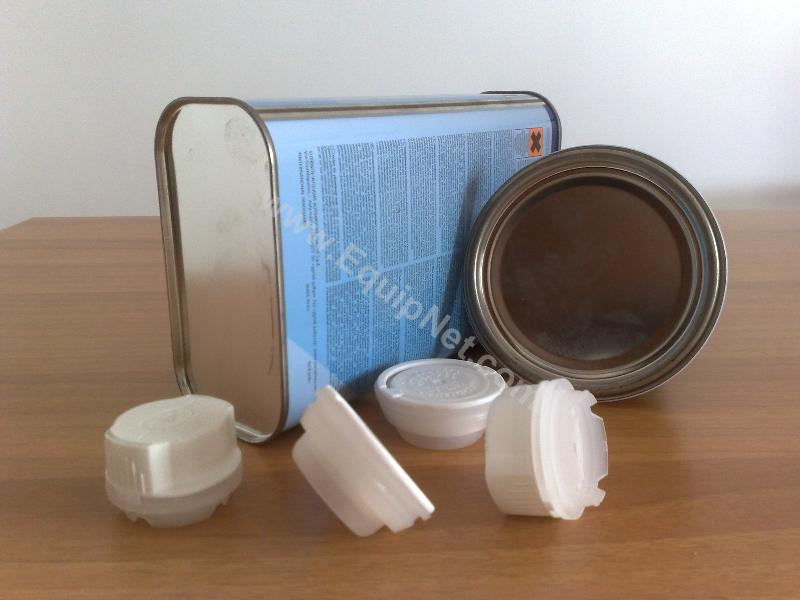

THE LINE IS ABLE TO FILL METAL OR PLASTIC CONTAINERS WITH RECTANGULAR OR ROUND BASE, OF SIZES 250 ml, 500 ml, 1000 ml, 2000 ml, 5000 ml COMPLETE WITH METAL OR PLASTIC CAPS.
Year of construction: 2003
Serial number: 270
MANUFACTURER: ACR s.r.l.
TECHNICAL DATA - CAPPER
Length mm 1200
Width mm 1000
Working panel height mm 800/1100
Net weight Kg 900
Installed Power Kw 1,5
Compressed air pressure Bar 6
Air consumption nl/min 200
Max speed pcs/hour 3000
TECHNICAL DATA - FILLER
Length mm 1750
Width mm 1680
Height mm 2800
Net weight Kg 1600
Installed Power Kw 2
Compressed air pressure Bar 6
Air consumption nl/min 250
Max. weighing ml 5500
Min. weighing ml 250
Metering precision % +/-5
Containers Ø min. mm 60
Containers Ø max. mm 200
Containers max. height mm 300 |
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Italy. |
|
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | ACR |
| Year | 2003 |
| Model | DAM-3L / TA-2 |
| Serial Number | 270 |
| Estimated Shipping Weight | 2500 KGS |
| Length | 3 M |
| Width | 1,680 M |
| Height | 2,8 M |
