You are making an offer on a Bosch Blister (Thermoforming) Line With Bosch Cartoner located in Spain. This lot is being sold "as is, where is." We recommend that you contact an EquipNet sales representative to set up your own inspection.
Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin.

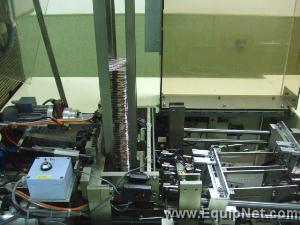

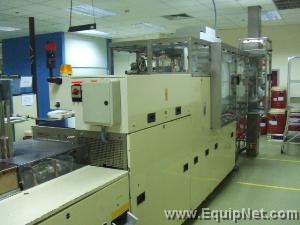

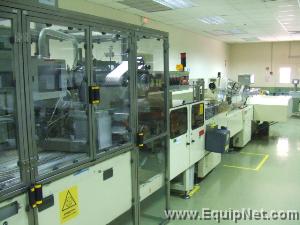

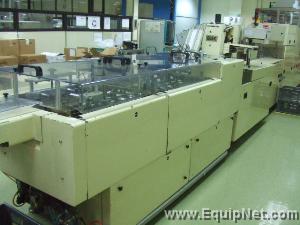

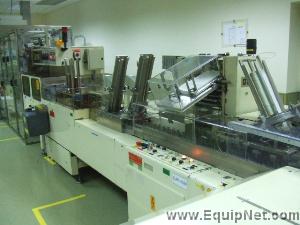

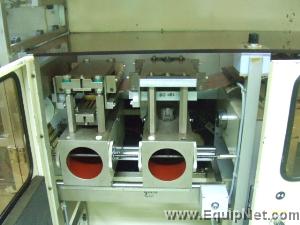

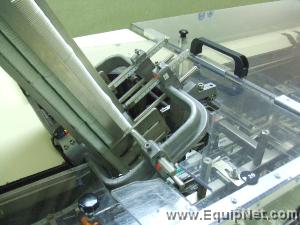

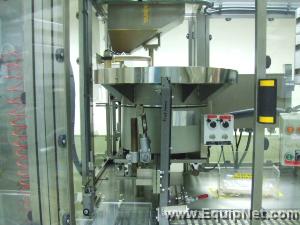

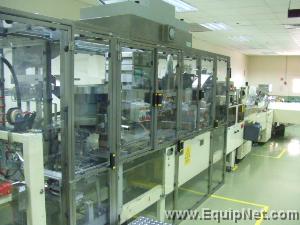

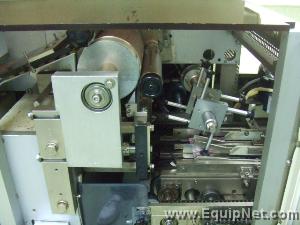

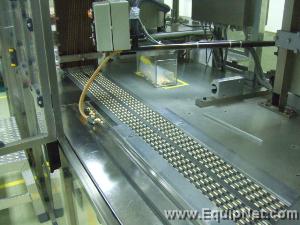

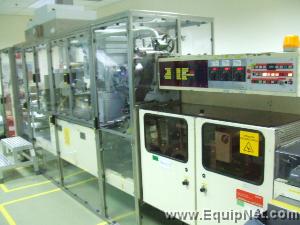

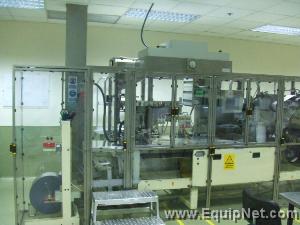

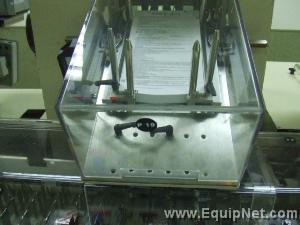

Bosch Blister (Thermoforming) Line With Bosch Cartoner

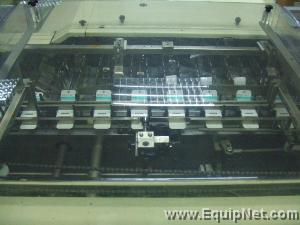

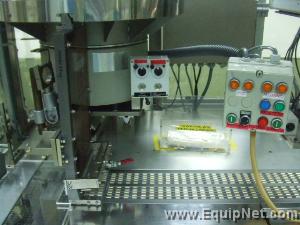

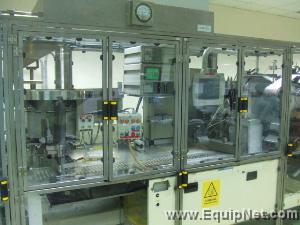

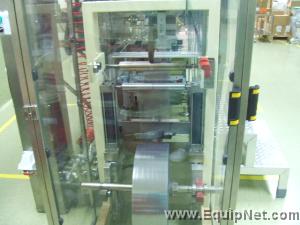

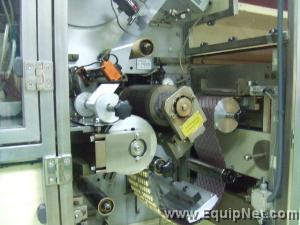

Thermoformer (blistering machine for PVC, PVdC, Aclar): Bosch SERVAC PH
Nr: 63.2921
Year: 1981
Speed: 200 blisters/min.
Length mm (aprox.): 4265X
Width mm (aprox): 960X
Height mm (aprox.): 1750
Weight kg. (aprox.): 2050
Water preasure: 3 bar
Air pressure: 8-10 bar
Compressed air consumption (aprox.): 15 m3/h Reel core diameter: 70 - 76 mm Thickness of the termoforming foil: up to 350 my maximum Thickness of the aluminum foil: up to 30 my maximum Useful width: up to 284 mm maximum Width of the foil: up to 300 mm maximum Width of the sealing roller: up to 210 mm maximum Diameter of the aluminum reel: up to 300 mm maximum Diameter of the
reel: up to 700 mm maximum

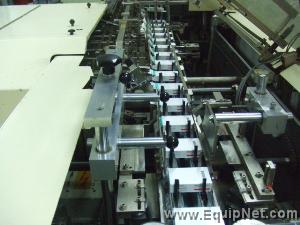

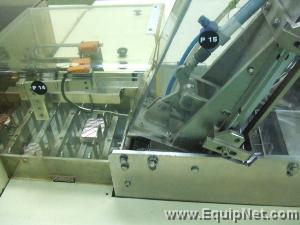

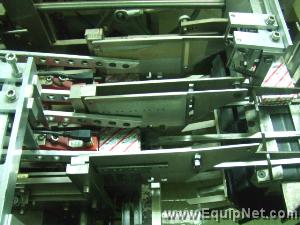

Cartoning machine: Bosch CONTINA 200 - 5"L
Nr: 622923
Year: 1982
Length mm (aprox.): 3810X
Width mm (aprox): 1350X
Height mm (aprox.): 1500
Weight kg. (aprox.): 1100
V: 3x380V;
f: 50Hz
Cartoning capacity: 200 units/minuteline not available until Dec. 2008- Manufacturer Bosch
- Year 1981
- Serial Number 63.2921
- Air Requirements 8 BAR
- Estimated Shipping Weight 4000 LBS
- Length 0 FT
- Width 0 FT
- Height 0 FT
- Voltage 380 VOLTS
- Frequency 50 HERTZ
- Phase 3
- Removal Difficulty MODERATE
- Feeder AUTOMATIC
- Product(s) UNKNOWN
- Requires rigging or removal YES
- Requires a flatbed truck NO
- Level of shipment preparation necessary STILL INSTALLED
Contact Information
If you need further information, please contact our Sales Department at 888.371.6555, outside USA at +1.781.821.3482, or click here to send us a message, or by email to sales@EquipNet.com
Payment Methods:
Certified Check, Bank Check, Company Check w/Bank Guarantee, or Wire Transfer
Crating, Rigging, and Shipping Info:
Buyer is responsible for all crating and shipping charges. EquipNet can furnish a quote upon request. Please contact sales@equipnet.com.
Location:
Spain
Dimensions: 0x0x0 FT
Disclaimer
Please note: All listing descriptions take precedence over what may be showing in the photo. If you have any questions at all on this listing, please contact EquipNet.
|
