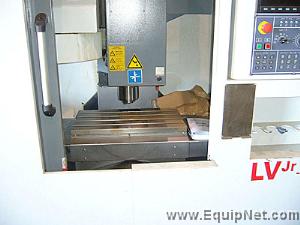

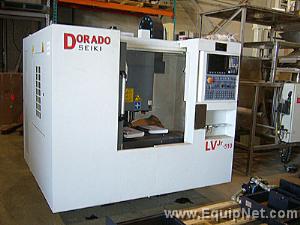

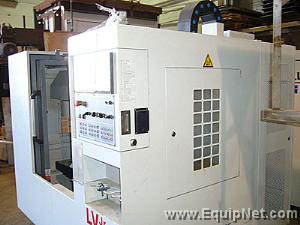

You are making an offer on a DORADO SEIKI CNC MACHINING CENTER located in Canada. PRE-OWNED DORADO SEIKI CNC MACHINING CENTER
SERIAL NUMBER: V050 60010 MODEL: LVjr 510 YEAR: 2006
CONTROL SYSTEM: Meldas Mi645 / Fanuc 0imc
SPECIFICATIONS:
AXIS TRAVEL RANGES (XYZ):
Longitudinal (table x axis) 20 in
Cross (saddle y axis) 16 in
Vertical (spindle z axis) 18 in
Spindle nose to table: 3 21
Spindle center to column 17
TABLE
Table size: 26 x 15
T-Slot: (4) 16mm x 80mm
Maxi loading: 1760 lbs
Std loading: 1056 lbs
SPINDLE
Max Motor power: 15 HP 600 Volts 3 PH
Speed: 20 9000 rpm
Taper size: CAT40
FEED
Rapid feed x/y/z: 1184 / 1184 / 945 IPM
Cutting feed: 394 / 394/ 394 IPM
ATC
Tool storage capacity: Armless type 16T
Tool Max Diameter: 3
Tool Max Length: 8
Tool Max Weight: 15.4 lbs
GENERAL
Tank capacity: 150 L
Chip Disposal: Drawer
Air source requirement: 7 kgs / cmē
Floor space occupied: 75 x 75 x 88.3
Weight : 7380 lbs
Inspection available upon request. Feel free to ask any question you may have. - Manufacturer DORADO SEIKI
- Year 2006
- Model LV jr 510
- Length 8 FT
- Width 8 FT
- Height 7 FT
- Removal Difficulty EASY
- Estimated Shipping Weight 4000 LBS
- Requires rigging or removal NO
- Requires a flatbed truck UNKNOWN
- Level of shipment preparation necessary UNCRATED/LOOSE
Contact Information
If you need further information, please contact our Sales Department at 888.371.6555, outside USA at +1.781.821.3482, or click here to send us a message, or by email to sales@EquipNet.com
Payment Methods:
Certified Check, Bank Check, Company Check w/Bank Guarantee, or Wire Transfer
Crating, Rigging, and Shipping Info:
Buyer is responsible for all crating and shipping charges. EquipNet can furnish a quote upon request. Please contact sales@equipnet.com.
Location:
Canada
Dimensions: 8x8x7 FT
Disclaimer
Please note: All listing descriptions take precedence over what may be showing in the photo. If you have any questions at all on this listing, please contact EquipNet.
|
