You are making an offer on a DeDietrich 100 Gallon Glass Lined Reactor located in the USA. This lot is being sold "as is, where is." We recommend that you contact an EquipNet sales representative to set up your own inspection.
Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin.

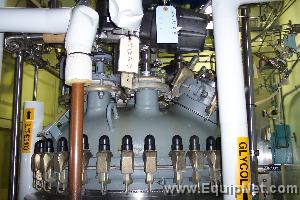

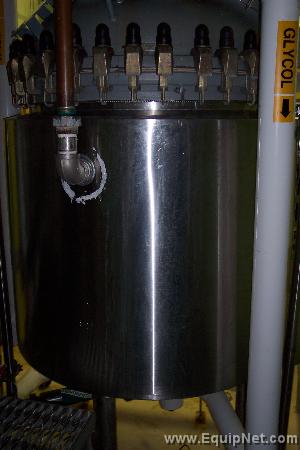

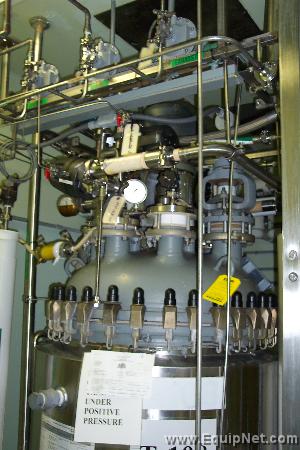

DeDietrich 100 Gallon Glass Lined Reactor National Board # 632Clamp Down Dome TopSight GlassSeveral Inlets on TopTop Mounted MixerMounted on Load CellsDigital Read OutVessel MAWP 150/FV psi @ 500 Degrees FVessel MDMT -20 Degrees F @ 150/FV psiJacket MAWP 115 psi @ 500 FJacket MAWP 100 psi @ IMT/FVJacket MDMT -20 Degrees F @ 115 psi - Manufacturer DeDietrich
- Year 1996
- Serial Number 5263481 / 1724
- Capacity Size 100 GALS
- Internal Pressure Rating 150 PSI
- Internal Temperature Rating 500 DEG F
- Jacket Pressure Rating 115 PSI
- Jacket Temperature Rating 500 DEG C
- Voltage 120 VOLTS
- Top and Bottom Heads UNKNOWN
- Estimated Shipping Weight 1500 LBS
- Removal Difficulty MODERATE
- Requires rigging or removal YES
- Requires a flatbed truck YES
- Level of shipment preparation necessary STILL INSTALLED
- Height 9 FT
- Length 5 FT
- Width 5 FT
Contact Information
If you need further information, please contact our Sales Department at 888.371.6555, outside USA at +1.781.821.3482, or click here to send us a message, or by email to sales@EquipNet.com
Payment Methods:
Certified Check, Bank Check, Company Check w/Bank Guarantee, or Wire Transfer
Crating, Rigging, and Shipping Info:
Buyer is responsible for all crating and shipping charges. EquipNet can furnish a quote upon request. Please contact sales@equipnet.com.
Location:
Pennsylvania
Dimensions: 9x5x5 FT
