You are making an offer on a Donaldson Torit DCE DFO-4-48-R, 24 Filter unit, Twin Hopper Discharge, Floor Standing Dust Collector located in United Kingdom. This lot is being sold "as is, where is." We recommend that you contact an EquipNet sales representative to set up your own inspection.

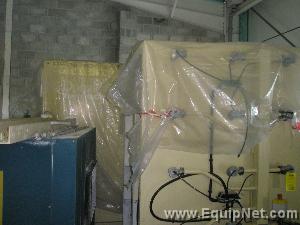

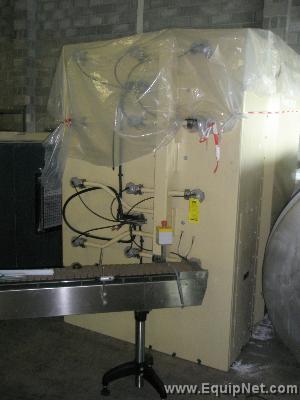

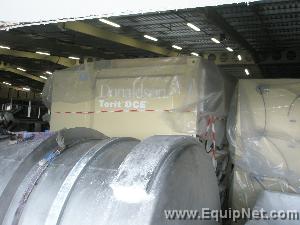

Donaldson Torit DCE DFO-4-48-R, 24 Filter unit, Twin Hopper Discharge, Floor Standing Dust Collector.
The unit is designed to operate between -30 and 150 degrees Celsius, with a Design Operating Pressure of 7 BarG, Test Pressure tested to 10 BarG.
The Compressed air requirement is 7 Bar pressure, and volume = 14.95?

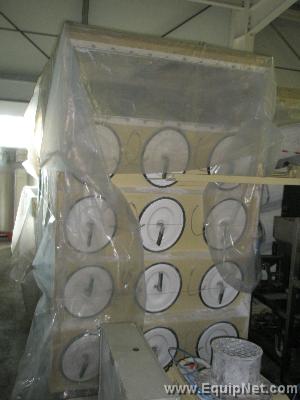

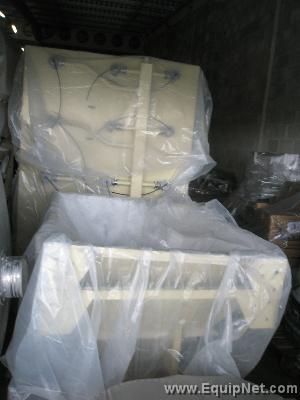

The Dust Collector is currently split / dismantled into 4 major parts, ie 2 x Filter sections, containing 12 filters each, 2 off Discharge Hoppers & Support steelwork, and the Dust Extraction fan & 45 Kw drive unit, and stored in an off site warehouse.
The stored component sizes are: 2 x Filters = 1.5m x 1.9m x 2.5m high, Hoppers = 1.55m x 1.3m x 0.8m High, and the Fan / Motor = 1.4m x 1.1m x 1.1m high.

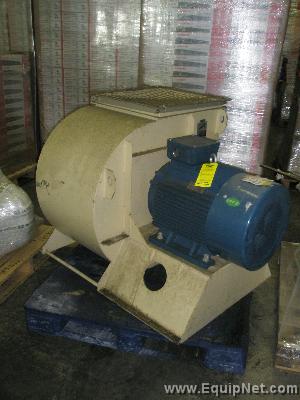

The Fan / 45 Kw Motor unit, was manufactured by Air Co Ltd, Fan Size = 575CBL, Serial No 1057 / 02197 - 01, 2690 RPM, 415v 3 Phase, 50 Hz, 78 Amps, weighs approx 500 Kgs.
- Manufacturer Donaldson-Torit
- Year 2003
- Model DFO 4-48-R
- Number of Bags 24
- Estimated Shipping Weight 4 Tonnes
- Purging Type Compressed Air manifold
- Number of Drive Motors 1
- Voltage 415 VOLTS
- Frequency 50 HERTZ
- Phase 3
- Length 3 M
- Width 1.9 M
- Height 3.3 M
- Air Requirements 7 BAR
- Material of Construction CARBON STEEL
- Removal Difficulty EASY
- Dust Collector Type BAGHOUSE
- Type of Discharge REVERSE AIR
- Requires rigging or removal NO
- Requires a flatbed truck YES
- Level of shipment preparation necessary UNCRATED/LOOSE
Contact Information
If you need further information, please contact our Sales Department at 888.371.6555, outside USA at +1.781.821.3482, or click here to send us a message, or by email to sales@EquipNet.com
Payment Methods:
Certified Check, Bank Check, Company Check w/Bank Guarantee, or Wire Transfer
Crating, Rigging, and Shipping Info:
Buyer is responsible for all crating and shipping charges. EquipNet can furnish a quote upon request. Please contact sales@equipnet.com.
Location:
United Kingdom
Dimensions: 3x1.9x3.3 M
