You are making an offer on a Compacting, Granulating, & Packing System located in the USA. Although an EquipNet Equipment Specialist has inspected this machine and collected all the photos and specifications available, this lot is still being sold "as is, where is." We recommend that you contact an EquipNet sales representative to set up your own inspection.
Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin.

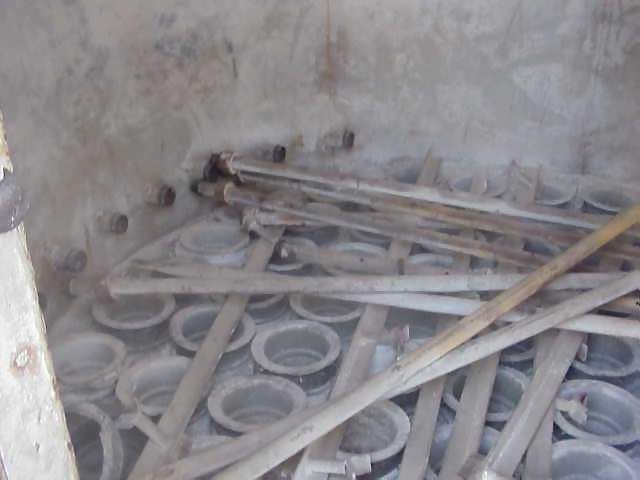

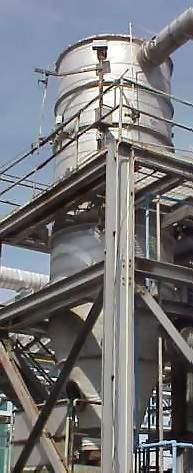

Barr & Murphy Emtrol Jet Filter, 304sst, 24'4"OAH x 7'0"Diameter, 4500CFM inlet gas volume, 936ft2 filter area, inlet gas temp 160-800F, uses 10ga (.135) cs epoxy coated bag cages for 16oz polypropylene bags, Cast aluminum venturi cups, 9 position Libra solid state timer, built 1981
Assets in this listing
Compacting, Granulating, & Packing System
Bucket Elevator Feeder, 304sst, Fitzpatrick, 1981
Dust Collector, Exijet, Model 115-12, sst
Fan, 1983 Phelps, W-170 x .75, Standard Duty
Feed Hopper, Cleveland Vibrator Co., GT-4750-200
Fitzpatrick Fitzmill, Model DKAS012, 304 SST
Filter, Barr & Murphy Emtrol Jet Filter, 304sst (now showing)
Product Bin, 8'6 DIA x 19' OAH, 304 SS
Scale/Vibrating Table
Screener, Fitzpatrick, 60'' diameter, 304 sst
Surge Hopper 3'0 x 4'0, 304 sst
Vibrating Discharger, Barr & Murphy, 1981
Vibrating Feeder, Vibranetics, 7ft length
1980 Fitzpatrick Compactor Rolls
- Manufacturer Barr & Murphy
- Year 1981
- Model 78C 936 CWP
- Capacity Size 936 SQ FT
- Estimated Shipping Weight 6000 LBS
- Length 0 FT
- Width 0 FT
- Height 24.3 FT
- Diameter 7 FT
- Material of Construction STAINLESS STEEL
- Removal Difficulty MODERATE
- Requires rigging or removal YES
- Requires a flatbed truck UNKNOWN
- Level of shipment preparation necessary STILL INSTALLED
Contact Information
If you need further information, please contact our Sales Department at 888.371.6555, outside USA at +1.781.821.3482, or click here to send us a message, or by email to sales@EquipNet.comPlease note: If you are purchasing this item from within the United States, EquipNet, Inc. is required by this seller to apply state sales tax where applicable. Please contact an EquipNet, Inc. sales representative with questions.
Payment Methods:
Certified Check, Bank Check, Company Check w/Bank Guarantee, or Wire Transfer
Crating, Rigging, and Shipping Info:
Buyer is responsible for all crating and shipping charges. EquipNet can furnish a quote upon request. Please contact sales@equipnet.com.
Location:
Tennessee
Dimensions: 0x0x24.3 FT
