Gardner complete automated powder with pellet blending and distribution system
Listing #220971
EquipNet Tag #220971-1-1

Part of multi-equipment listing: Gardner, Complete automated powder & pellet blending, batch weighing & distribution system
Listing Price:$40,000.00Seller's Acceptable Currency
All offers are submitted in Seller's Acceptable Currency



This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in United Kingdom.

Gardner, Complete automated powder & pellet blending, batch weighing & distribution system

Please Note: The seller of this equipment requires the buyer to accept a sales agreement. Click here to view the sales agreement.


Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin

Equipment Specifications
ManufacturerGardner Denver
Year1976
Capacity Size1.6 CU M
Voltage415 / 240 VOLTS
Frequency50 HERTZ
Phase3+1
Current32 Amp fused
Length5 M
Width4 M
Height3.1 M
Estimated Shipping Weight17.5 Tonnes LBS
Recommended Packaging FormCUSTOM PALLET

1 Lot of 2 off Stainless Steel Cone bottomed 750 Litre Vacuum Transfer vessels

1 Lot of 2 off Stainless Steel, Cone bottomed, 750 litre, Blended Product, Vacuum Transfer Holding vessels, which were previously used for the vacuum transfer of the Blended product from the Mezzanine mounted vessel to its identical sister receiving 750 litre Vacuum Transfer Holding vessel, supported from the ceiling, over the Zanasi Nigris Capsule Packing machine
  • These 2 off Stainless Steel, Cone bottomed, 750 Litre, Transfer Holding vessels, are both fitted with a central top mounted Stainless steel 3" flexible vacuum inlet hose spigot, together with a top 250mm wide quadrant shaped, clamped access hatch, and a 100mm raised 200mm x 200mm mesh guarded top inspection hatch, and they were discharged via 200mm flanged outlet, into the 3" OD Vacuum transfer pipework with the assistance of a pneumatically operated vibrator unit, the brackets for which still exist.
  • The Mezzanine mounted vessel is supported on 4 legs, which are supported off the main Gardner Mezzanine floor, and its sister ceiling mounted vessel is supported off 4 ceiling support legs attached to ceiling brackets.
  • The control of the Vacuum filling & transfer between these 2 vessels was automatically controlled from the main Gardner Operator Control Panel, mounted on the Ground below.
    • Equipment Specifications
    Year1976
    ModelConed Vacuum Transfer Hopper
    Capacity Size750 L
    Product SizingBlended Pellet & Powder mix
    Material of Construction304L STAINLESS STEEL
    Inlet Size3 IN
    Outside Diameter1000mm
    Overall Height1500mm
    Inside Diameter994mm
    Straight Side (T/T)750mm
    Voltage VOLTS
    Estimated Shipping Weight600 Kgs
    Top and Bottom HeadsFLAT TOP/DISHED BOTTOM
    Legs/Stand Mezzanine Floor Mounted
    Recommended Packaging FormCUSTOM PALLET

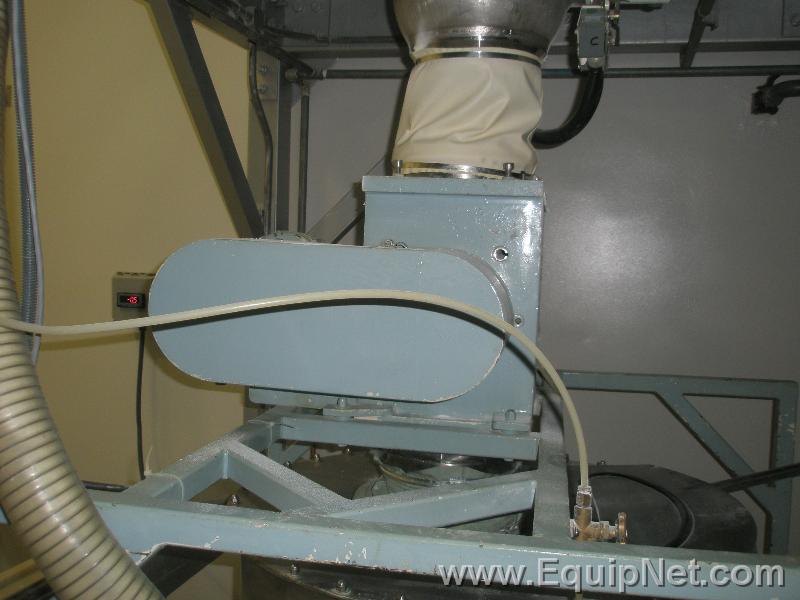

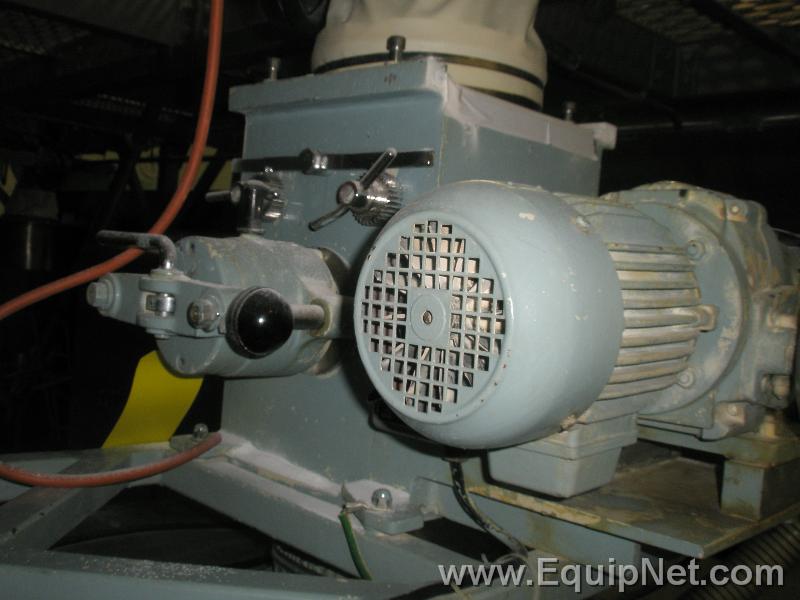

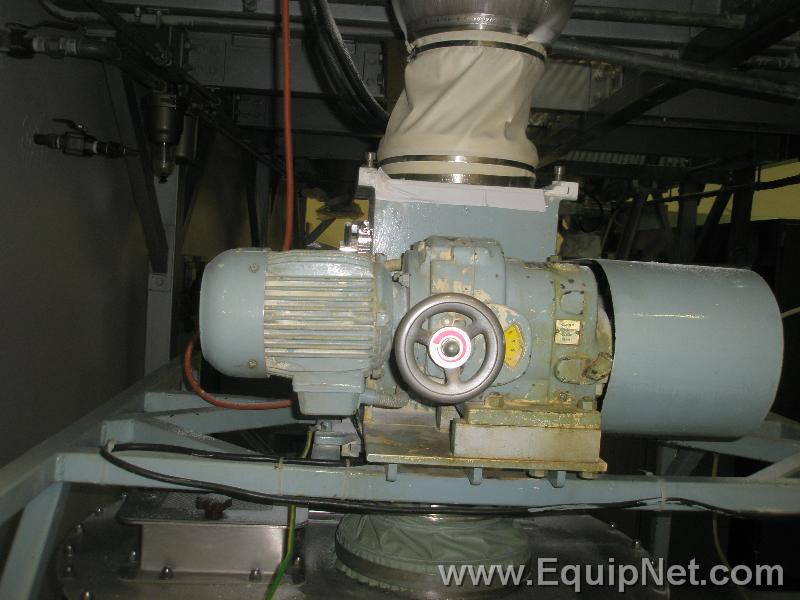

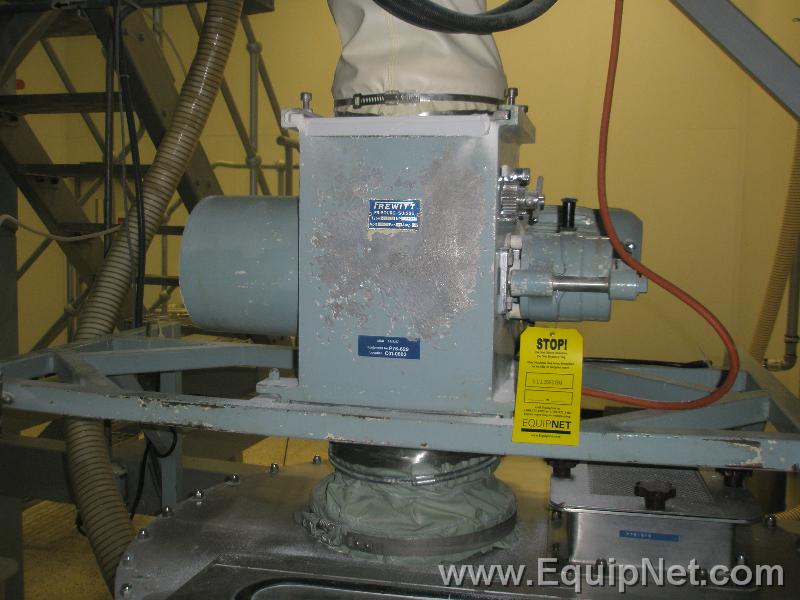

    Frewitt MGI 312 Granulator unit

    Frewitt, MGI 312, Granulator unit, fitted with a manually Variable Speed Drive, Mobile frame mounted, which is supported on the Ground floor, by 4 castors, 2 of which are swivel / lockable.
  • The flexible sock spigot Granulator Inlet is 240mm diameter, and the flexible sock spigot Granulator Outlet is also 240mm diameter.
  • The Granulator is automatically controlled from the Main Control Panel, also on the Ground Floor.
  • The grey painted support frame measures 1.25m x 1.25m x 1.5m high, and weighs 100 Kgs.
    • Equipment Specifications
    Year1976
    ModelMGI 312
    Serial Number1.754
    Estimated Shipping Weight300 Kgs
    Length0.67 M
    Width0.6 M
    Height0.5 M
    Voltage400 VOLTS
    Frequency50 HERTZ
    Phase3
    Current1.42 Amps
    Material of Construction304L STAINLESS STEEL
    Recommended Packaging FormCUSTOM PALLET

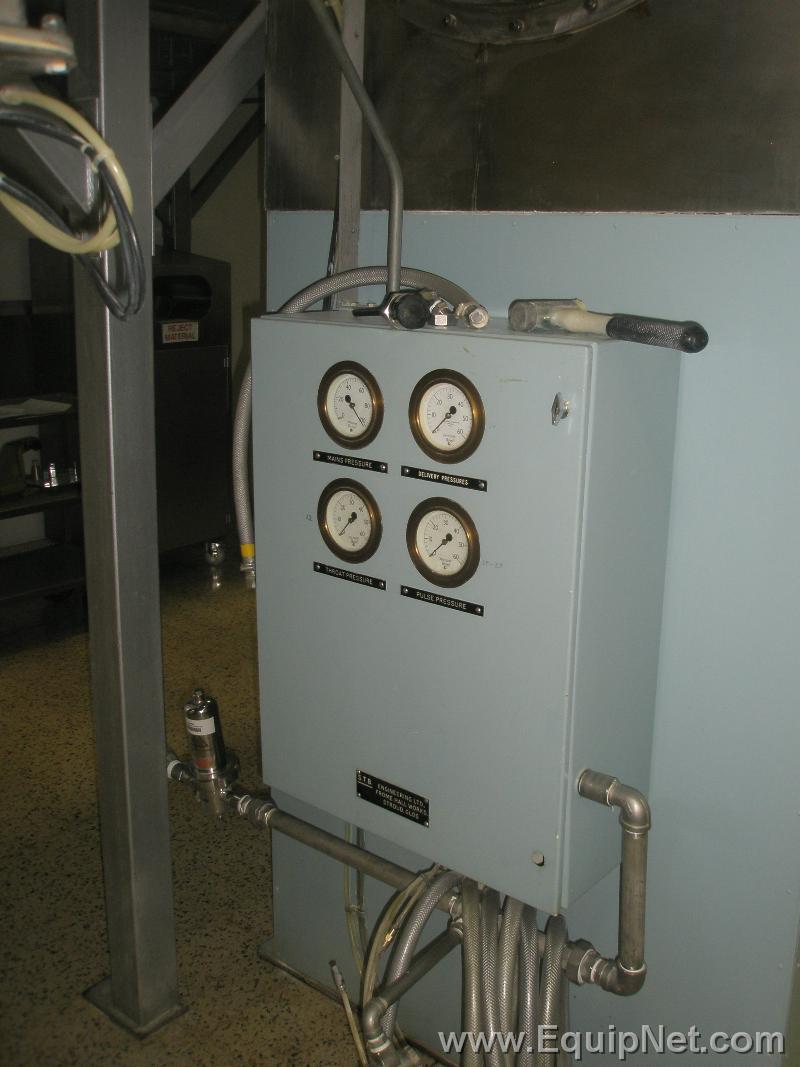

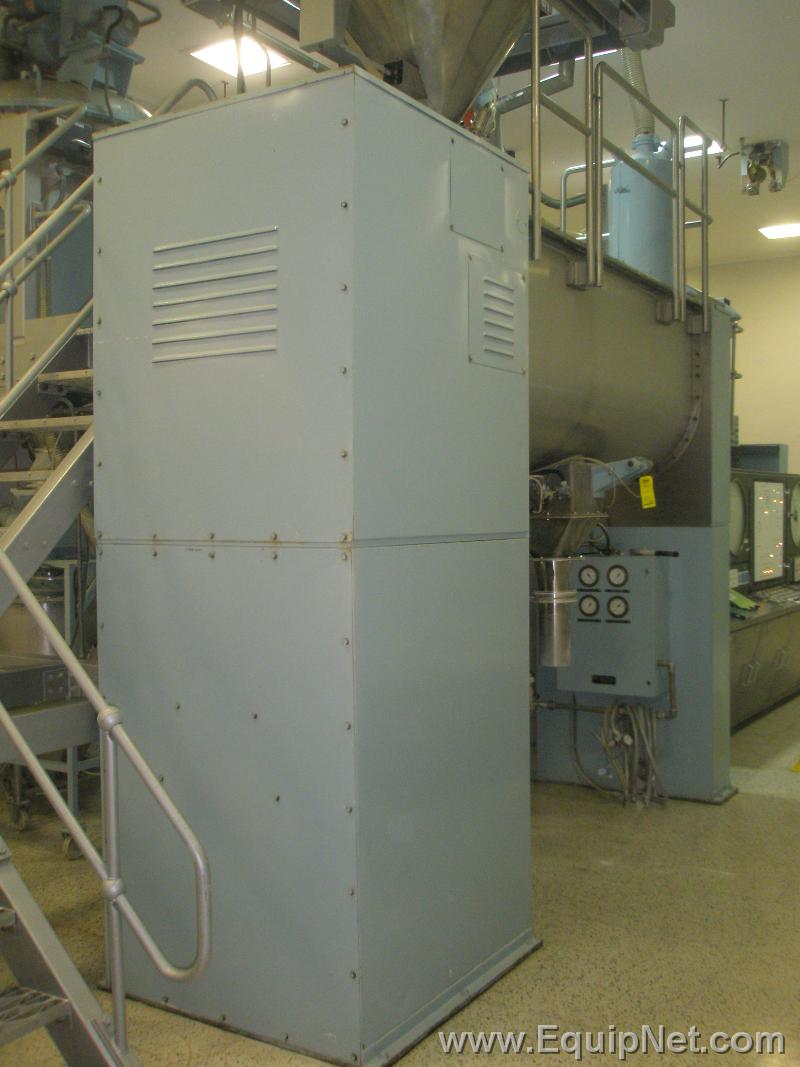

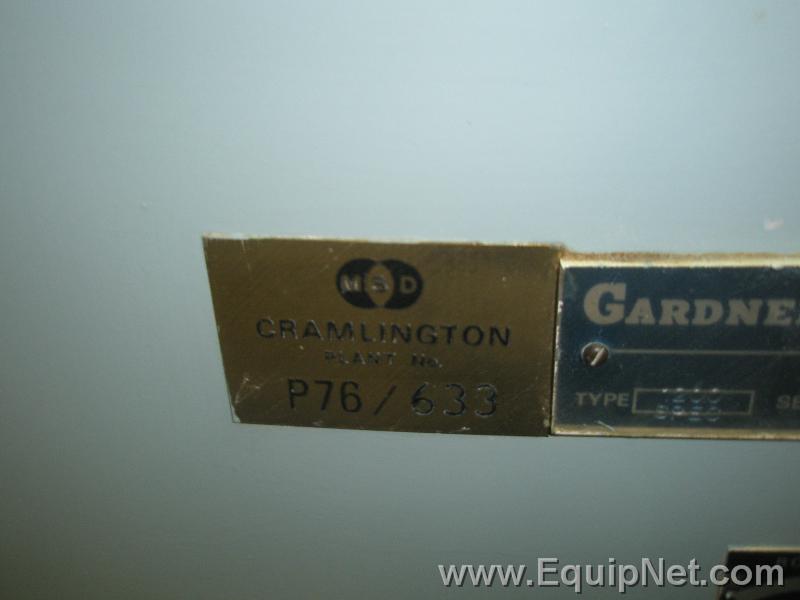

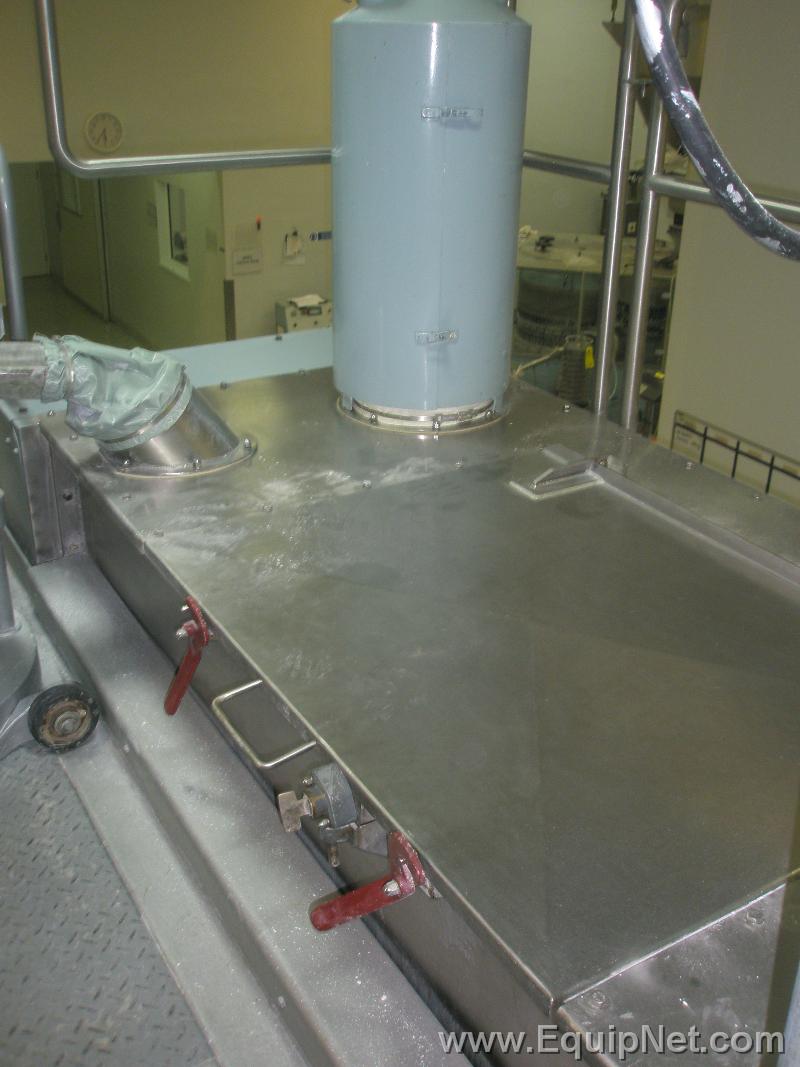

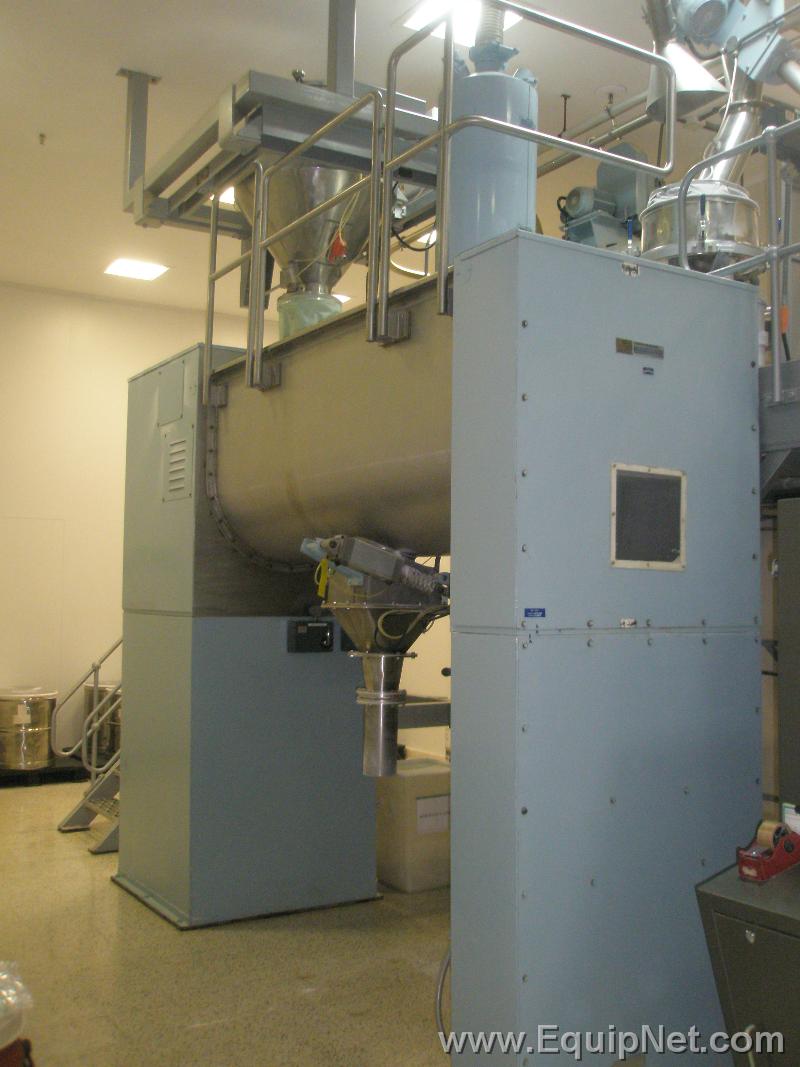

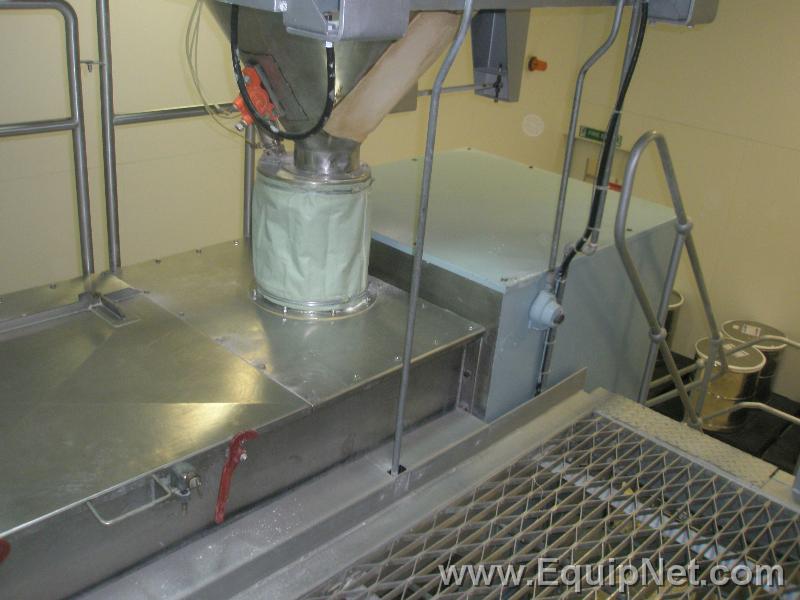

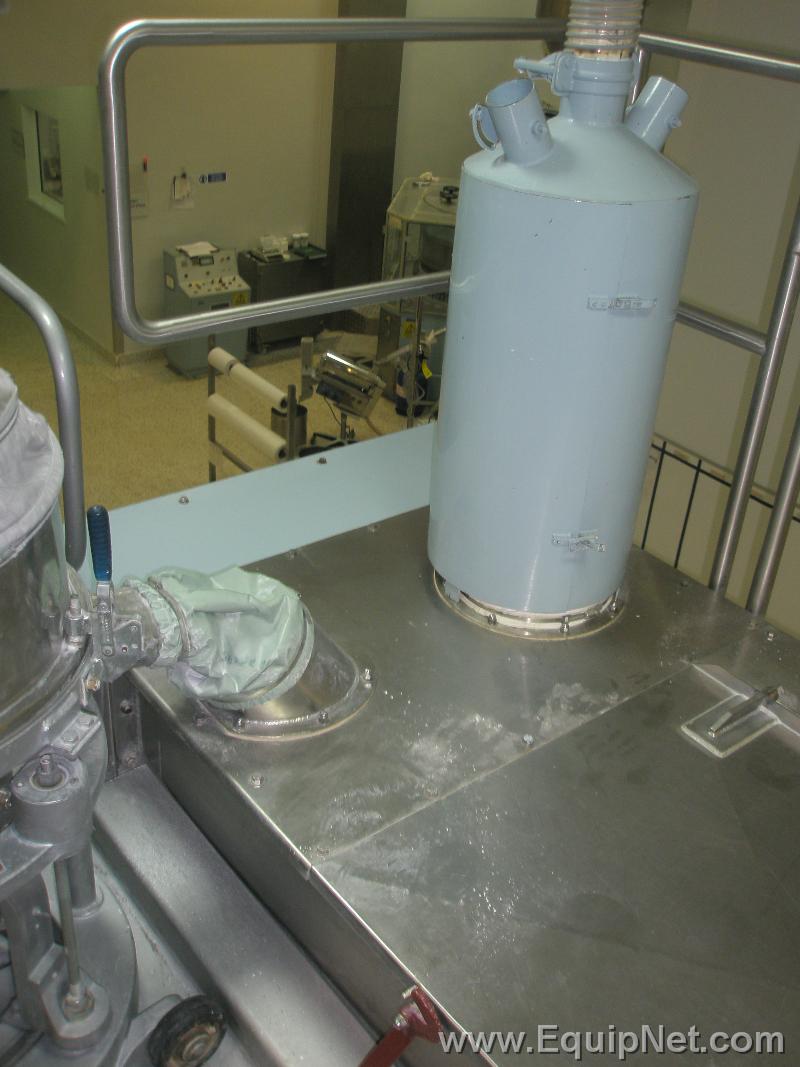

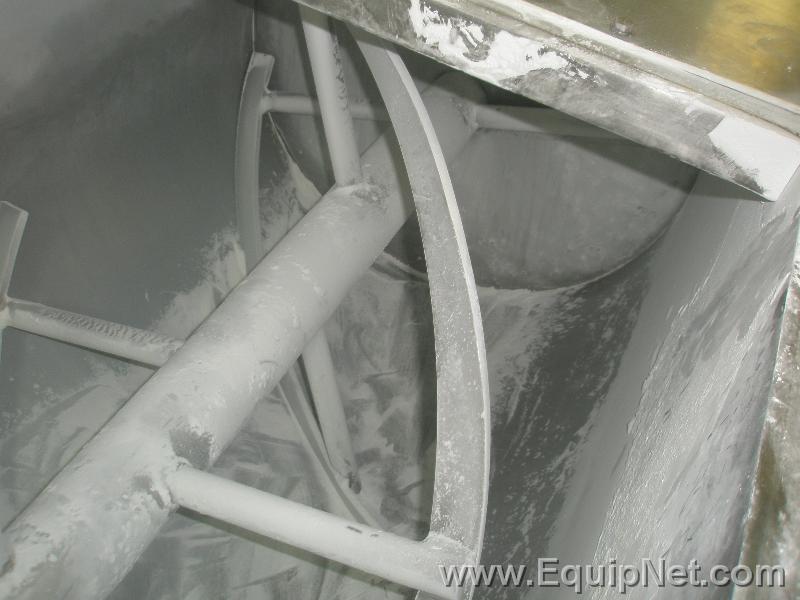

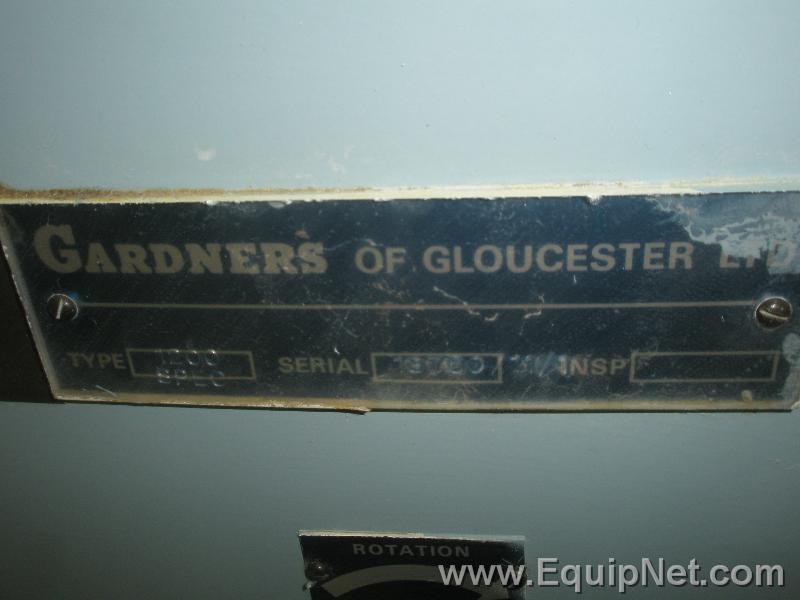

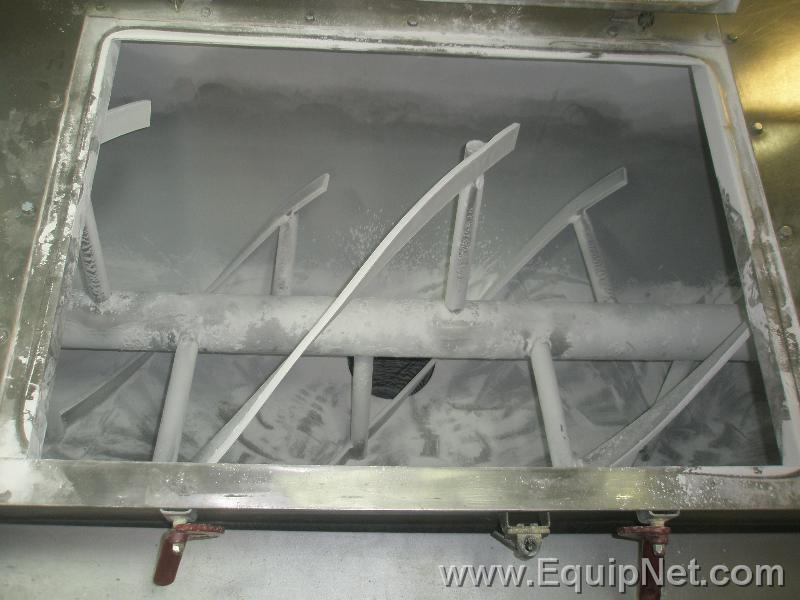

    Gardner 1200 Special Horizontal Ribbon Blending Mixer

    Gardner, 1200 Special, Stainless Steel, Horizontal Ribbon Blending Mixer, 1200 litre capacity, which is fitted with a 890 diameter x 2500mm long Stainless Steel horizontal spiral mixing blade, mounted within the Stainless steel 900mm diameter x 1m deep x 2,53m long trough.
  • The Mixer top is fitted with a Stainless steel 1.07m long x 0.8m wide hinged, interlocked top inspection lid, together with a 350mm diameter top Inlet pelletised product feed spigot, at the drive end of the machine for connecting up the flexible pelletised product feed sock, plus a 180mm diameter feed spigot at the other end of the mixer for connecting up the sieved filling product powder feed sock, plus a 350mm diameter outlet for the top mounted included, dust extraction ventilation filter unit.

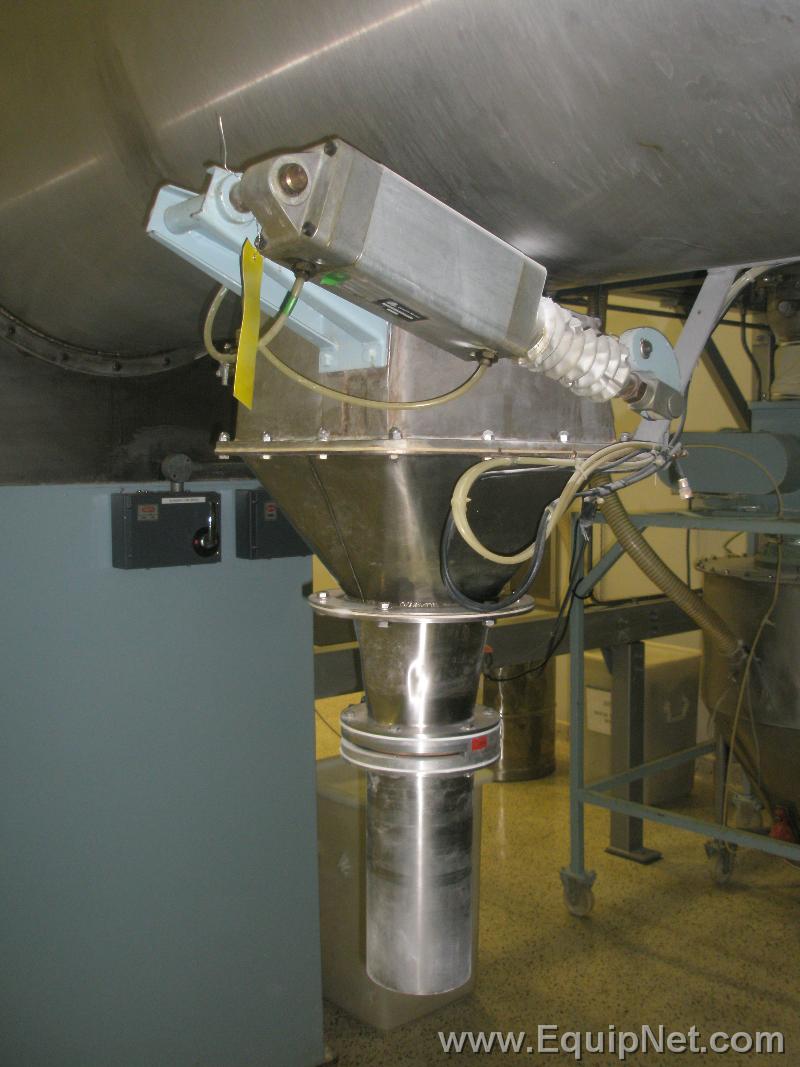

  • The Mixer is discharged via a bottom positioned central flap mounted pneumatically operated 300mm diameter dump valve, that reduces to 150mm diameter to a connected manual 150mm diameter shut-off valve.
  • The Mixer, and its feeding / discharging operations are all automatically controlled from the Main Operator Control Panel, mounted adjacent to the mixer on the Ground floor.
    • Equipment Specifications
    Year1976
    Model1200 Special
    Serial Number10760/11
    Capacity Size1200 L
    Air Requirements6 BAR
    Estimated Shipping Weight7 Tonnes
    Length4.05 M
    Width1.15 M
    Height3.1 M
    Diameter0.9 M
    Depth1 M
    Voltage415 / 240 VOLTS
    Frequency50 HERTZ
    Phase3+1
    Current32 Amps
    Material of Construction304L STAINLESS STEEL
    Recommended Packaging FormCUSTOM PALLET

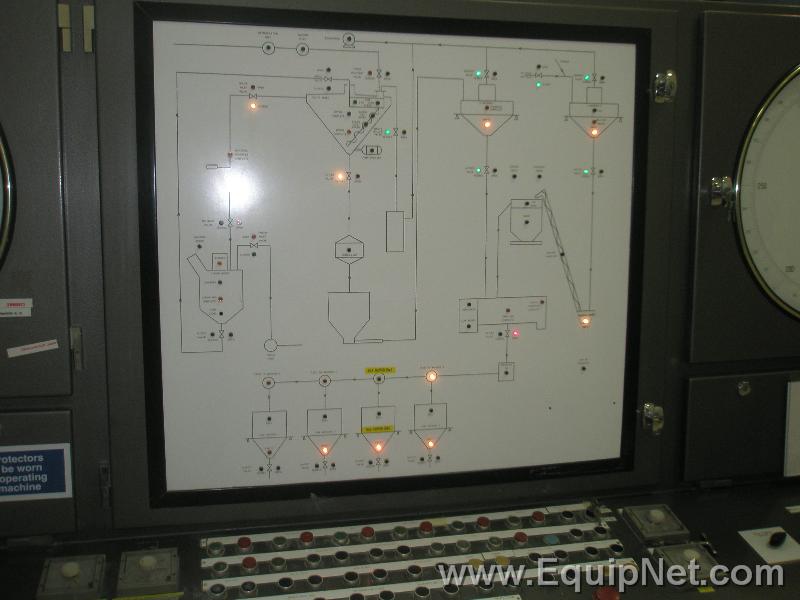

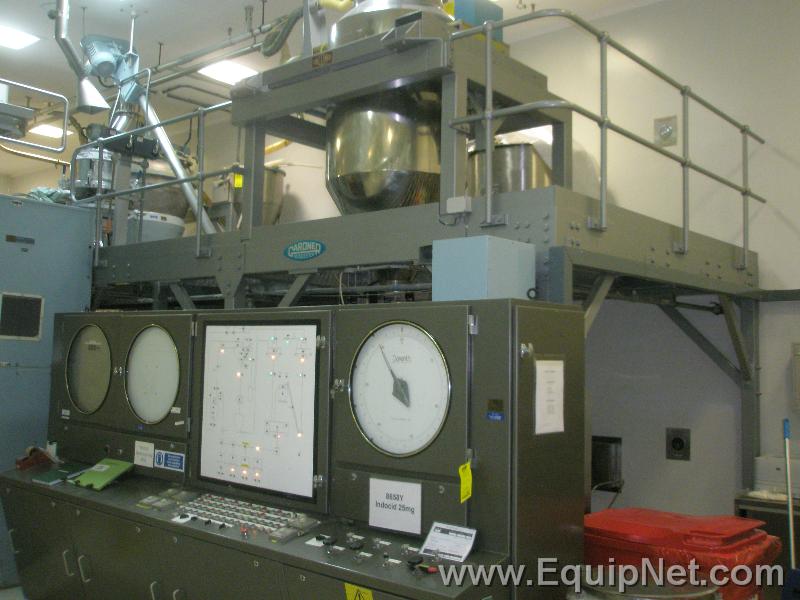

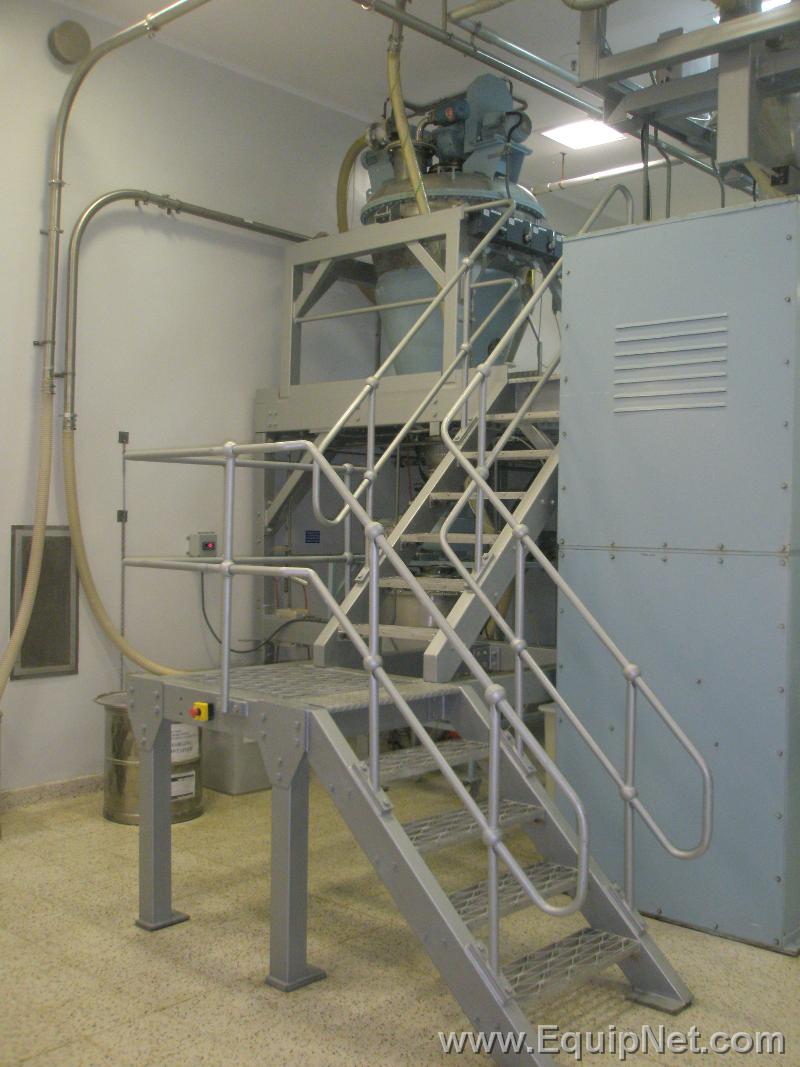

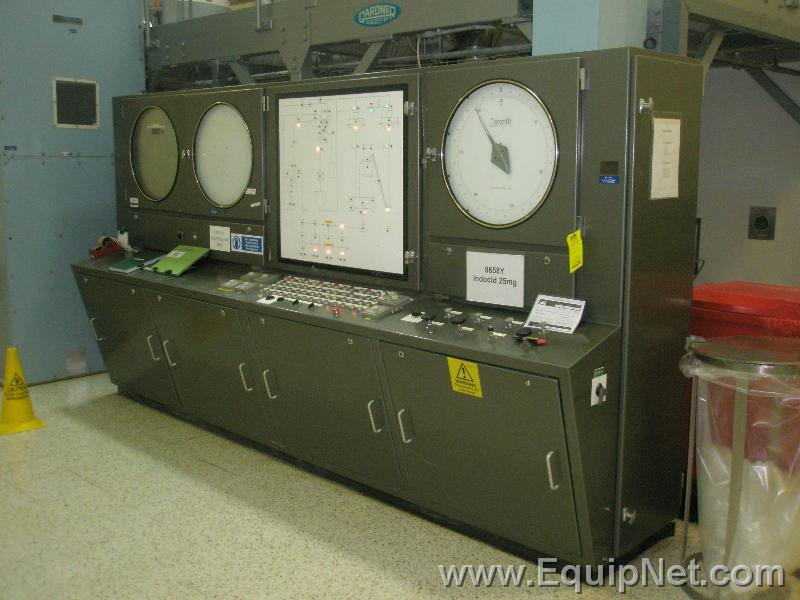

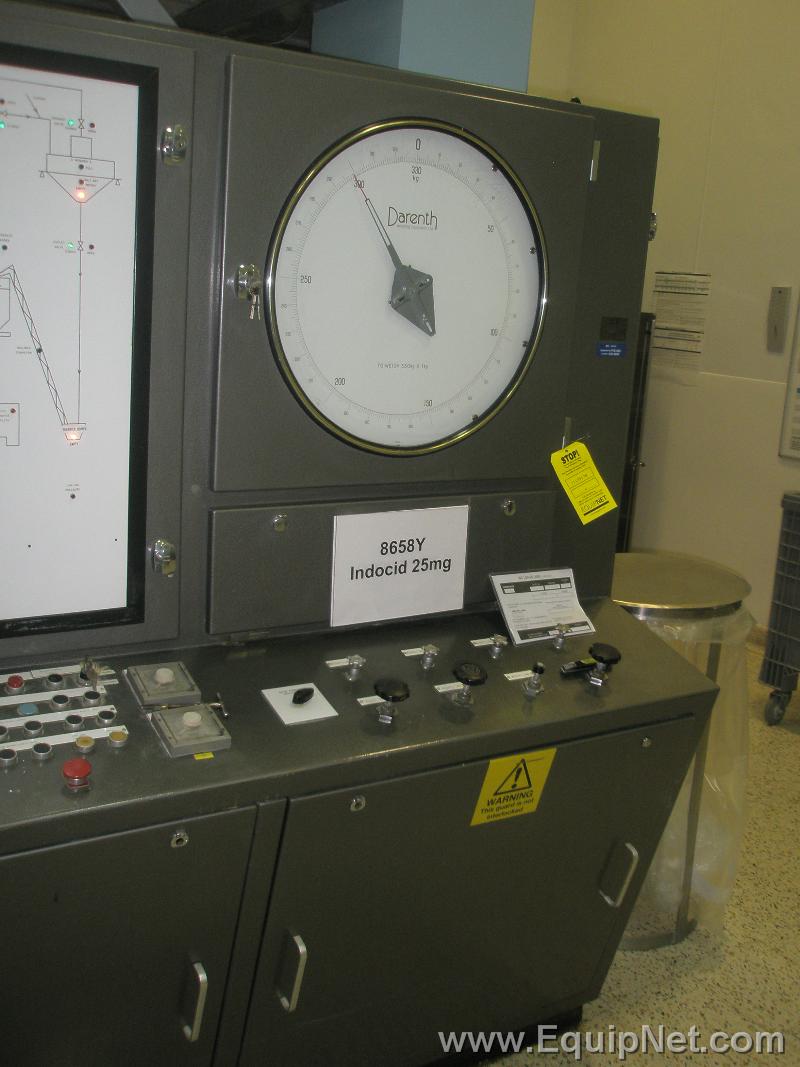

    Gardner blending Mezzanine and Darenth batch weighing Control system

    Gardner, automated powder & pellet blending Mezzanine, & Darenth batch weighing & distribution control system.
  • The Gardner manufactured Blending & Weighing mezzanine, is a grey painted sectionally bolted mezzanine, complete with a partially grey painted chequer plated & remainder galvanised heavy duty mesh floor, which is surrounded by galvanised handrails & kickstrips, and measures 9m long x 3.5m wide x 2.5m high, and is accessed by means of a two level 1m wide pedestrian stairway, fitted with galvanised handrails and heavy duty mesh floor treads. The total weight of the complete Mezzanine = approx 6 Tonnes. The stairway first rise platform is 5 steps high, followed by a further 7 steps rise onto the Mezzanine.
  • The Automated Gardner powder & pellet Blending, Weighing & Distribution floor mounted, Main Control panel, makes use of Darenth Weighing systems, and Dial Indicators, together with a process illuminated mimic board, to show the operator how the blending, weighing & distribution process is proceeding.


    • Equipment Specifications
    Year1976
    Voltage415/240 VOLTS
    Frequency50 HERTZ
    Phase3+1
    Current16 Amps
    Length3.9 M
    Width0.9 M
    Height2.1 M
    Estimated Shipping Weight7 Tonnes
    Recommended Packaging FormCUSTOM PALLET

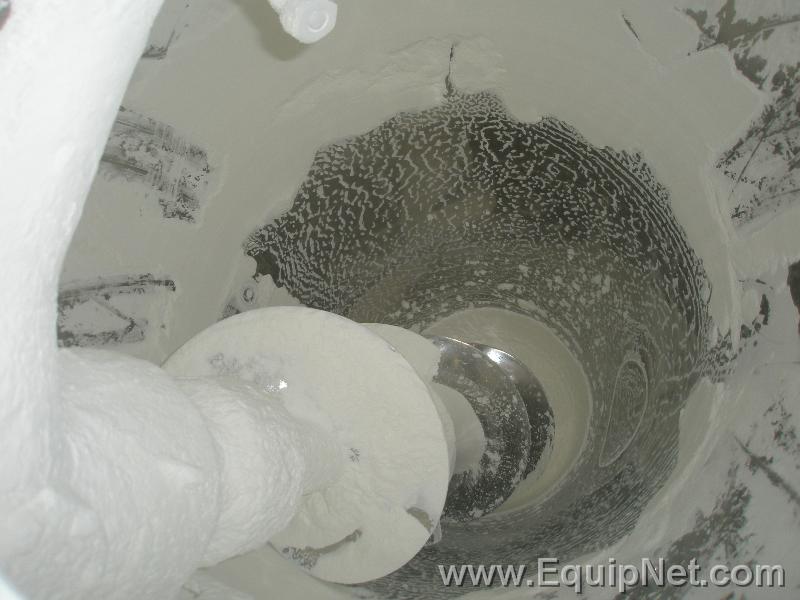

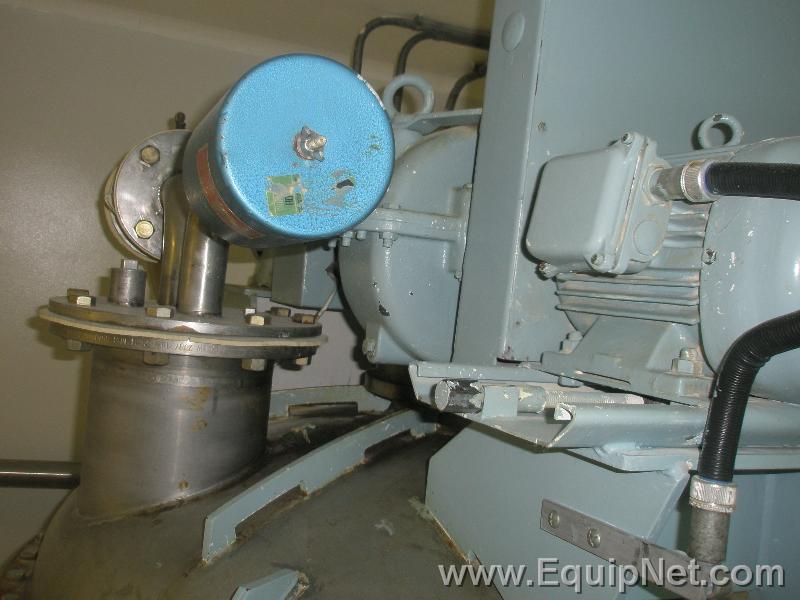

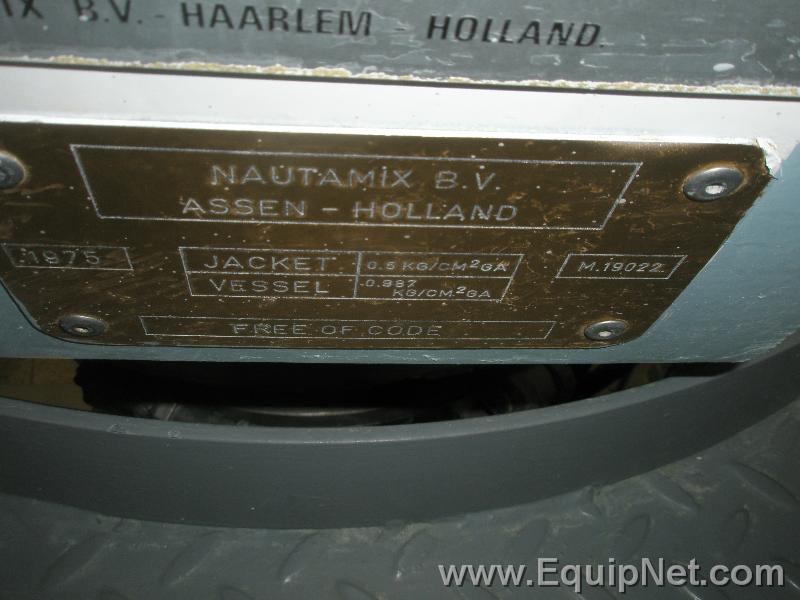

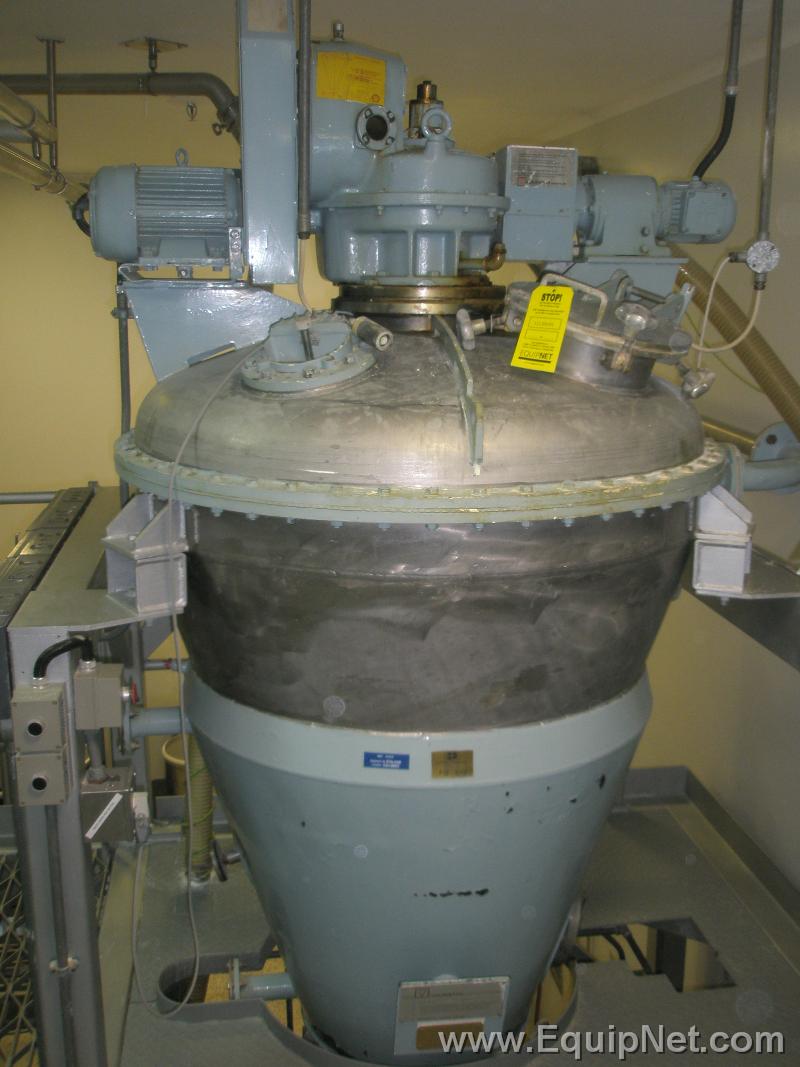

    Nautamix Stainless Steel 2000 Litre Coned Jacketed Mixing Vessel

    Nautamix, Stainless Steel, 2000 Litre Coned Jacketed Vessel, fitted with a tangentially mounted rotating Screw Mixer unit.
  • The Nautamixer drive unit is fitted to the domed top of the Stainless Steel coned jacketted, (but not used jacket), vessel, which is Pressure Tested to 0.987 Kg/cm2 GA on Vessel, 0.5 Kg/cm2 GA on the jacket, and is supported on a 3 sided framework, which measures 1.7m x 1.5m x 1.1m, which is in turn supported off the main Gardner Mixer Mezzanine.
  • The domed top of the vessel is fitted with a 200mm diameter flanged inlet onto which is fitted the Vacuum 3" OD Flexible powder transfer discharge pipework & venting system, in addition to a 160mm diameter Flanged mounted Inspection window, and a 250mm diameter, hinged and clamped access hatch.
  • The Natamix coned vessel discharges into the Frewitt Granulator below, via a central 240mm diameter Stainless steel flexible sock connection spigot.
  • The Nautamix is automatically controlled by the Main Gardner Operator Control Panel, mounted on the Ground floor below.
    • Equipment Specifications
    Year1976
    Model2000 Litre Cone Mixer
    Serial NumberM 19022
    Capacity Size2000 L
    Air Requirements6 BAR
    Estimated Shipping Weight1 Tonne
    Length1.7 M
    Width1.5 M
    Height2.6 M
    Diameter1.15 M
    Depth2 M
    Voltage415 VOLTS
    Frequency50 HERTZ
    Phase3
    Current32 Amps
    Recommended Packaging FormCUSTOM PALLET

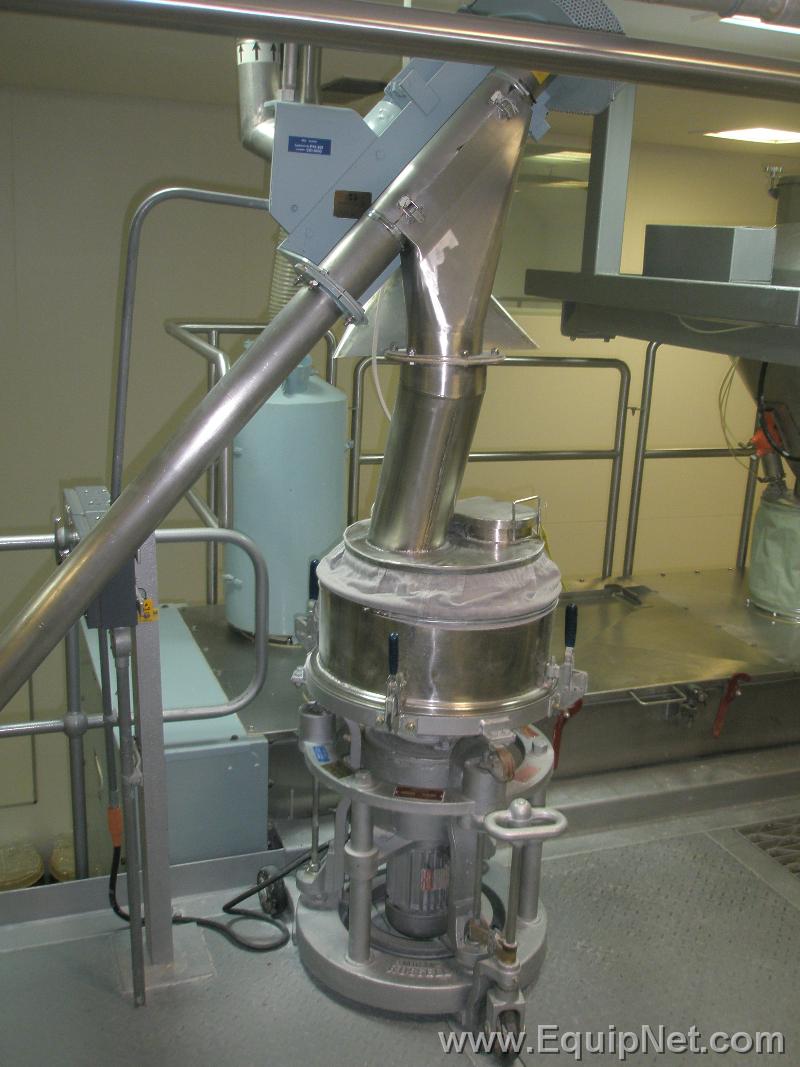

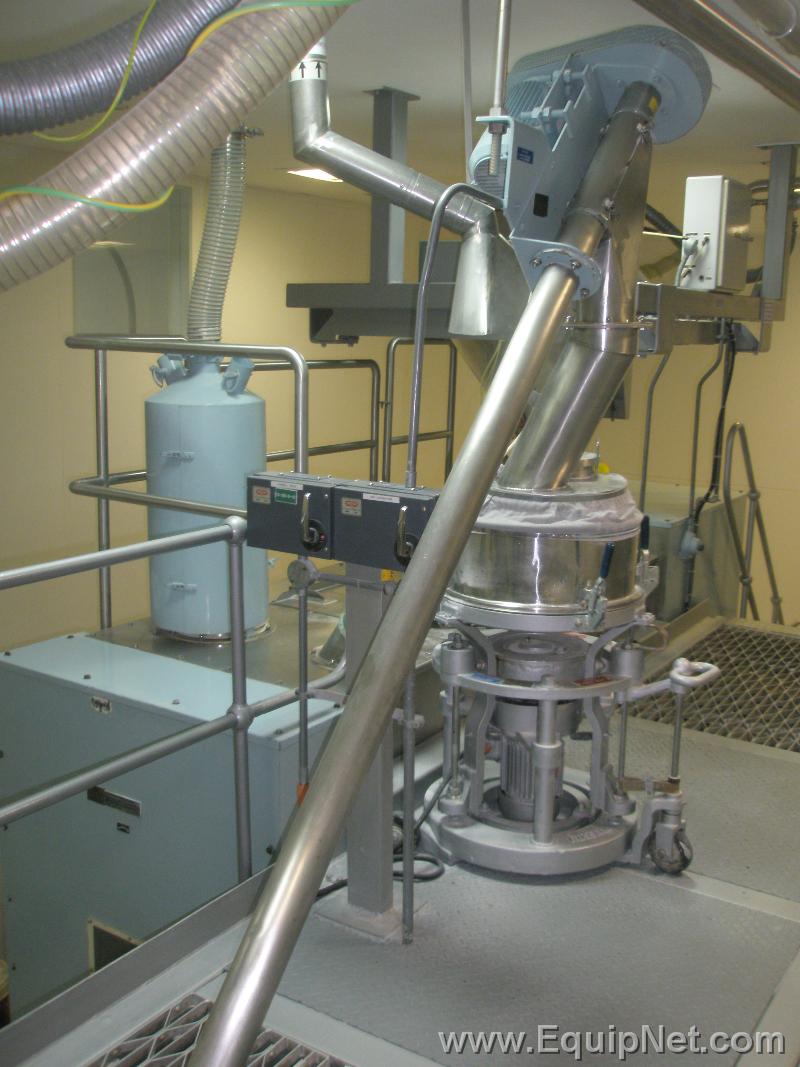

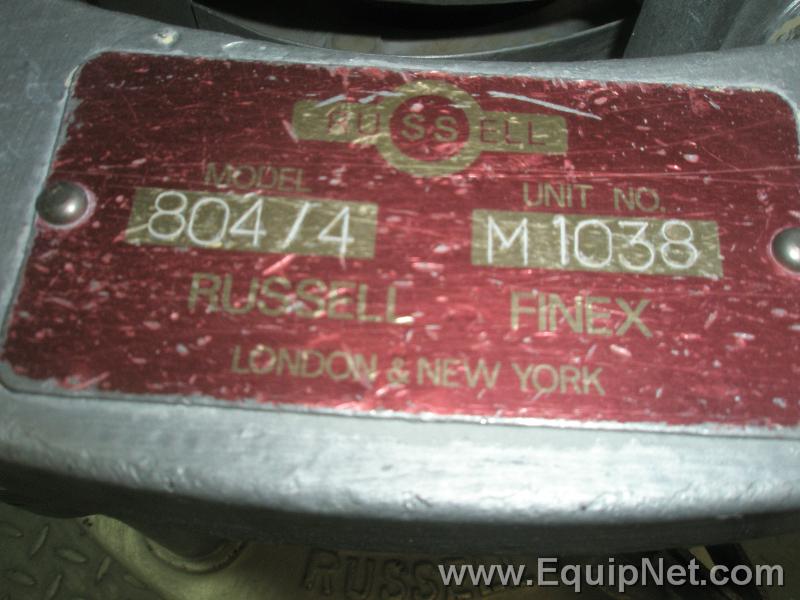

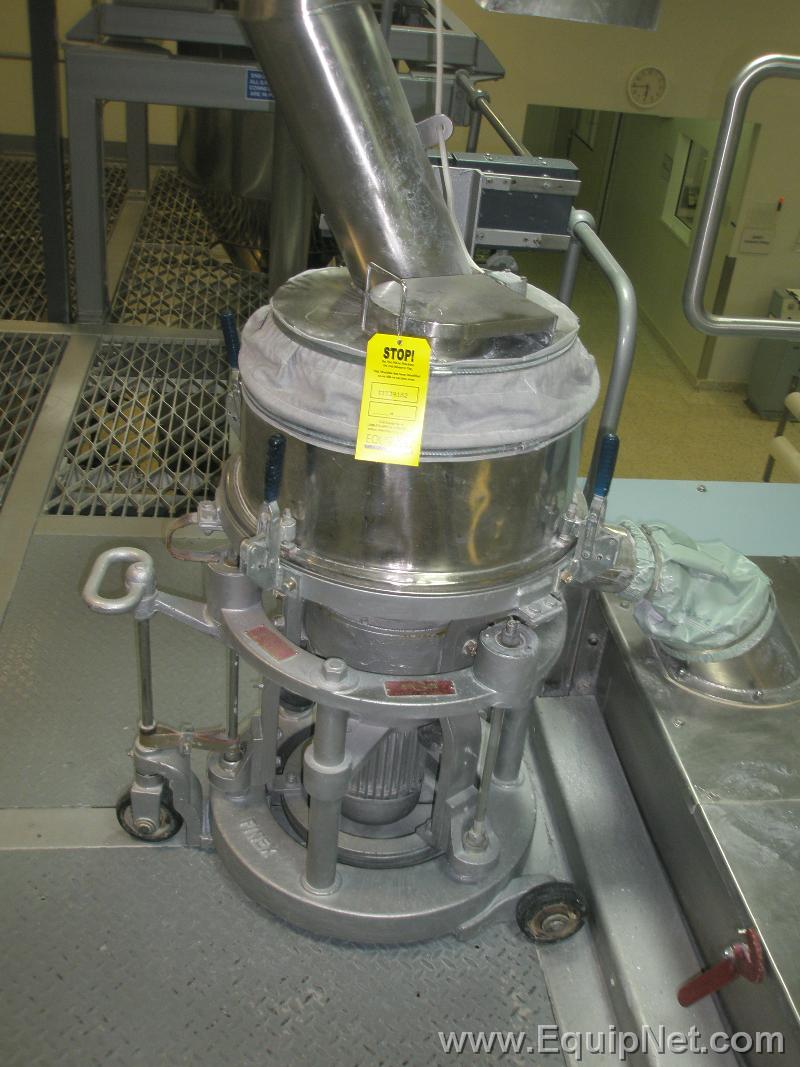

    Russel Sieve Model 804 4 complete with Stainless Steel Sieve

    Russel Sieve, Model 804-4, complete with Stainless Steel 530mm diameter x 200mm high Sieve, mounted on the Gardner mixer feed Mezzanine.
  • The powder product is feed onto the 530mm diameter sieve via a 200mm Stainless steel shute from the Stainless Steel 3.5" Tangential Screwfeeder conveyor unit.
  • The Sieve discharges the sieved powder into the Gardner 1200 Special mixer on demand through its 180mm diameter Stainless Steel flexible sock spigot outlet.
  • The Sieve is mounted on 3 wheels, one being a manually steerable swivel wheel.
  • The Russel sieving operation is automatically controlled from the Main Operator Control Panel, mounted on the ground floor below.
    • Equipment Specifications
    Year1976
    Model804/4
    Serial NumberM 1038
    Capacity Size200 LBS/HR
    Estimated Shipping Weight300 Kgs
    Length0.8 M
    Width0.6 M
    Height1.05 M
    Voltage415 VOLTS
    Frequency50 HERTZ
    Phase3
    Current16 Amps
    Recommended Packaging FormCUSTOM PALLET

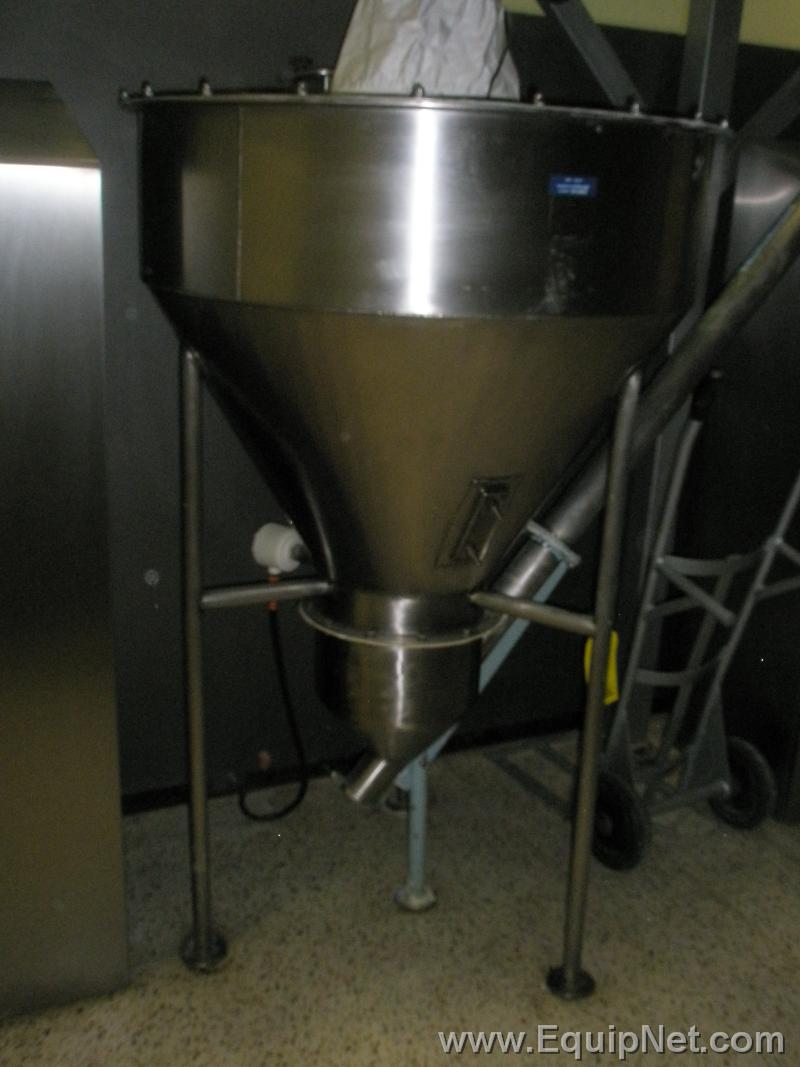

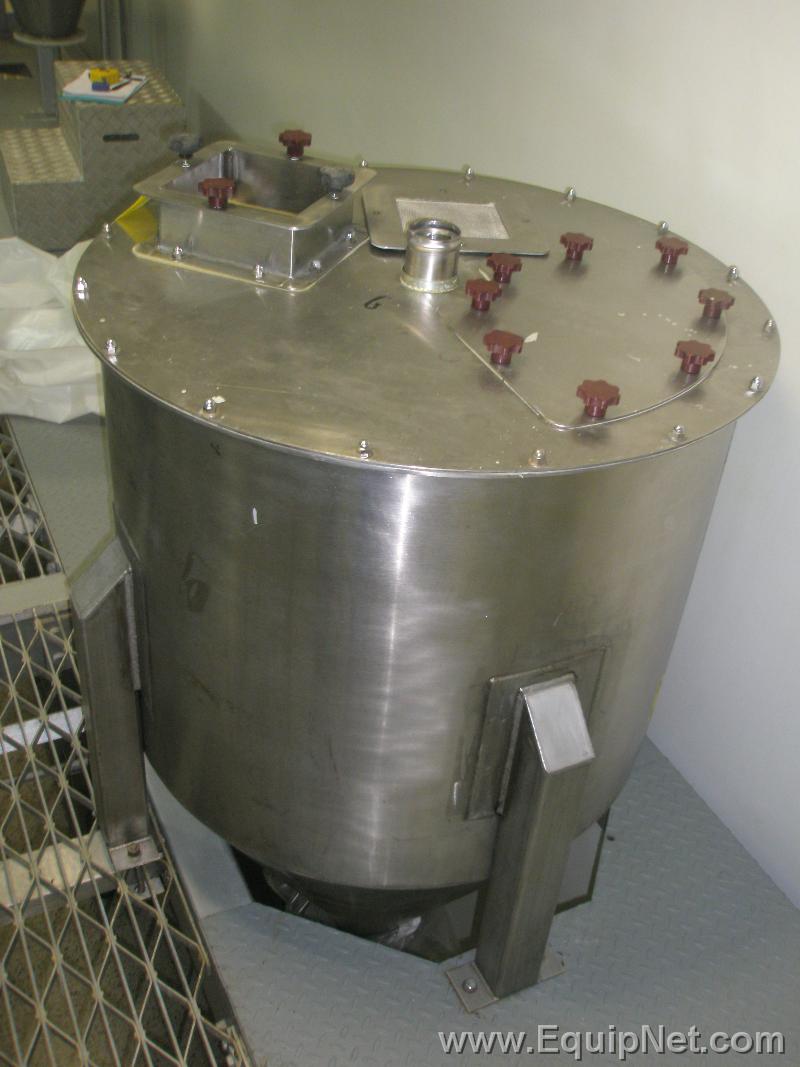

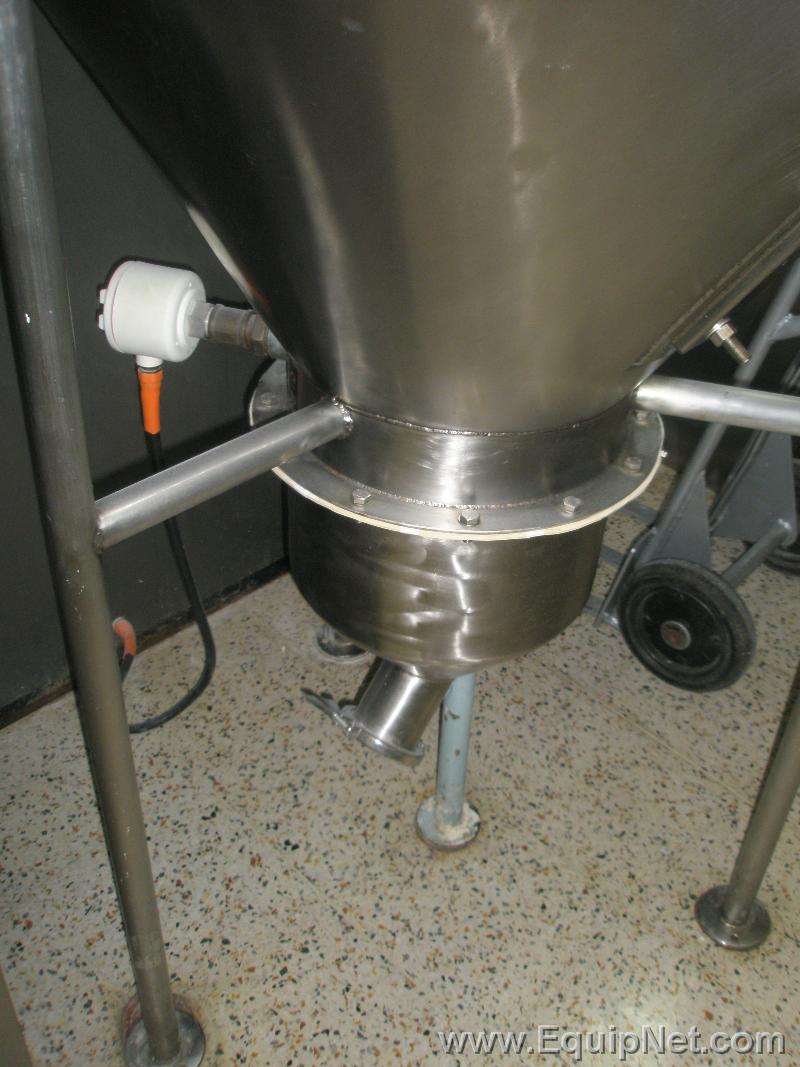

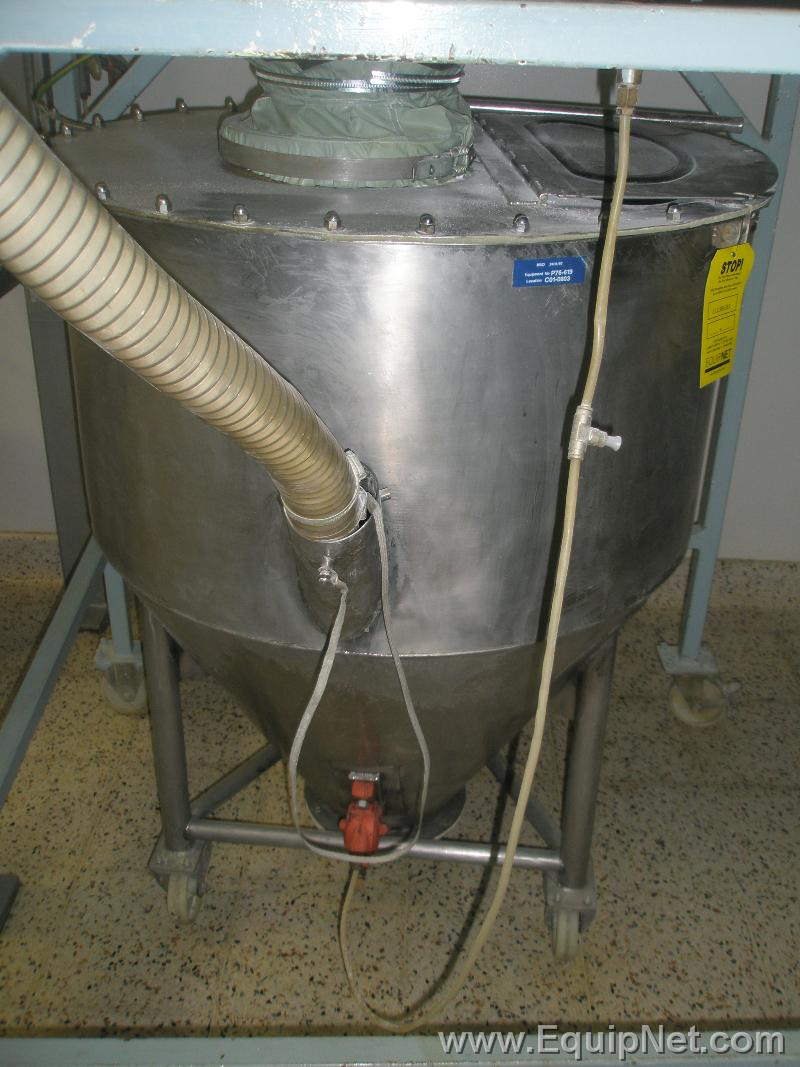

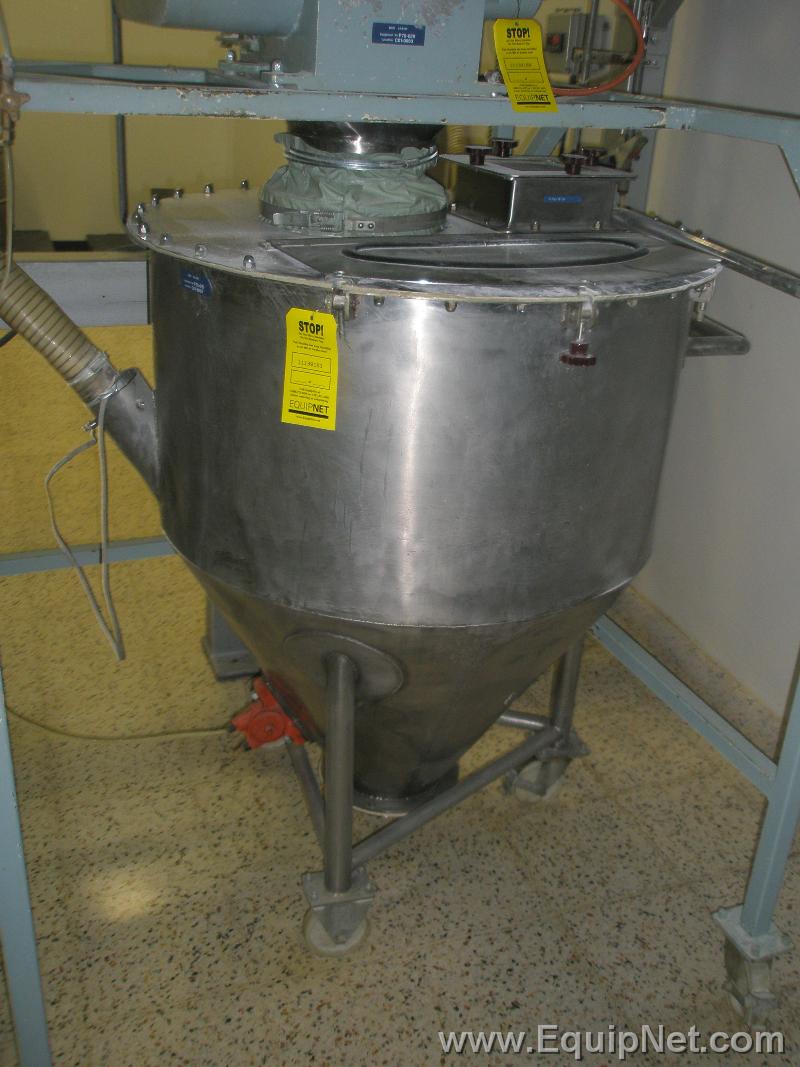

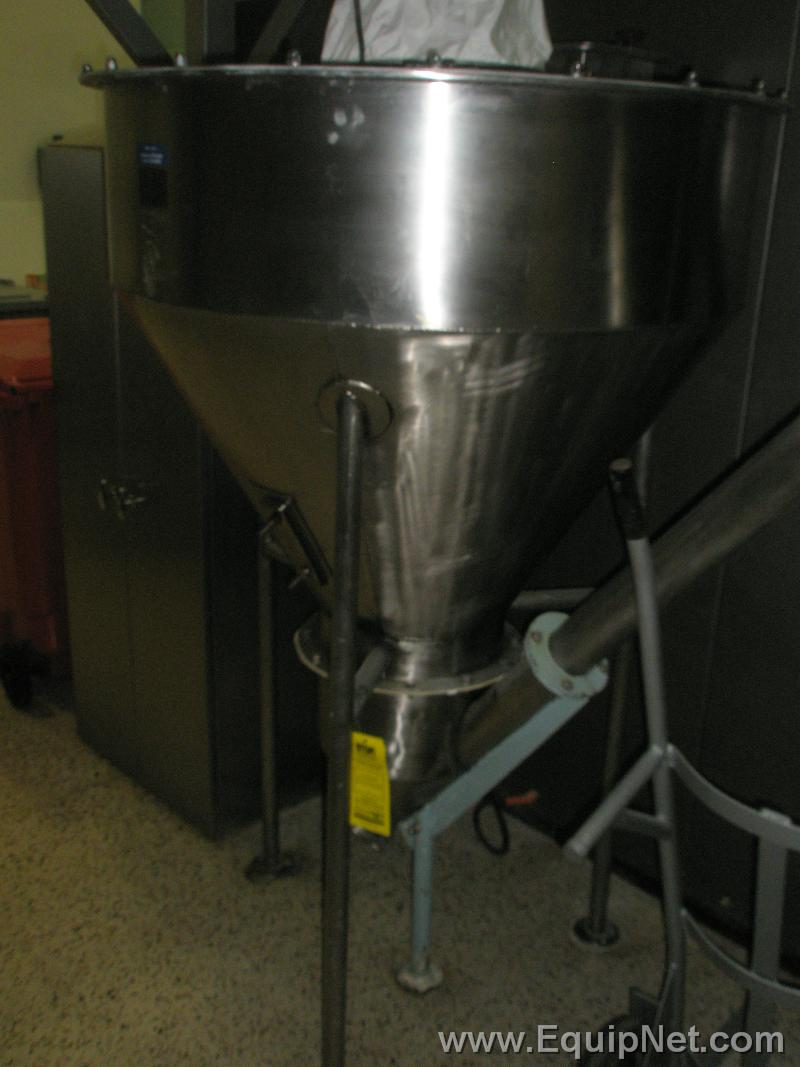

    Stainless Steel Cone bottomed 1000 Litre holding vessel with tangential Screwconveyor discharge

    Stainless Steel, Cone bottomed, 1000 Litre holding vessel, fitted with a tangential Stainless Steel Screwconveyor discharge unit.
  • This ground floor Vessel is mounted on a triangular Stainless Steel frame, supported on 3 legs.
  • The flat top of the vessel is fitted with a 300mm diameter flexible Inlet Sock connection spigot for the discharged product.
  • The coned base of the vessel is fitted with a 350mm diameter bottom discharge pot, into which the infeed end of the Stainless steel 3.5" OD x 5.5m long product discharging / lifting tangential screwconveyor fits, together with a vibrating level control probe.
  • Above this discharge pot, at the base of cone is a bracket for fitting a pneumatically operated vibrator unit.
  • The 415v 3 Phase 50 Hz 6 Amp drive unit for the Stainless steel 3.5" OD x 5.5m long product discharging / lifting tangential screwconveyor, which weighs 200 Kgs, is mounted above the overhead Mezzanine mounted Russel Sieve unit, into which it discharges via 200mm diameter Stainless steel shute. It is supported by an overhead ceiling bracket.
  • The loading and discharging of this vessel is automatically controlled from the adjacent Main Operator Control Panel.
    • Equipment Specifications
    Year1976
    Model700 Litre
    Capacity Size700 L
    Material of Construction304L STAINLESS STEEL
    Inlet Size240 MM
    Outside Diameter960mm
    Overall Height1270mm
    Inside Diameter950mm
    Straight Side (T/T)500mm
    Voltage415 / 240 VOLTS
    Frequency50 HERTZ
    Phase3+1
    Air Requirements6 BAR
    Estimated Shipping Weight400 Kgs
    Top and Bottom HeadsFLAT TOP/DISHED BOTTOM
    Legs/Stand 3 Legs
    Recommended Packaging FormCUSTOM PALLET

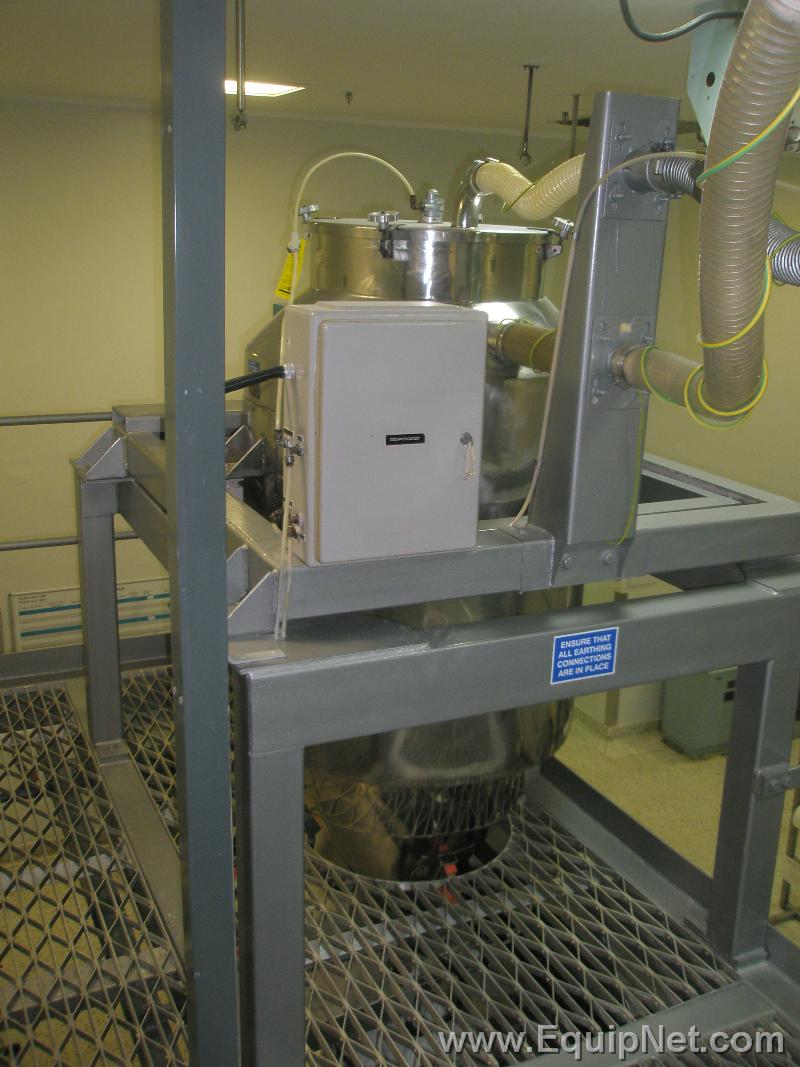

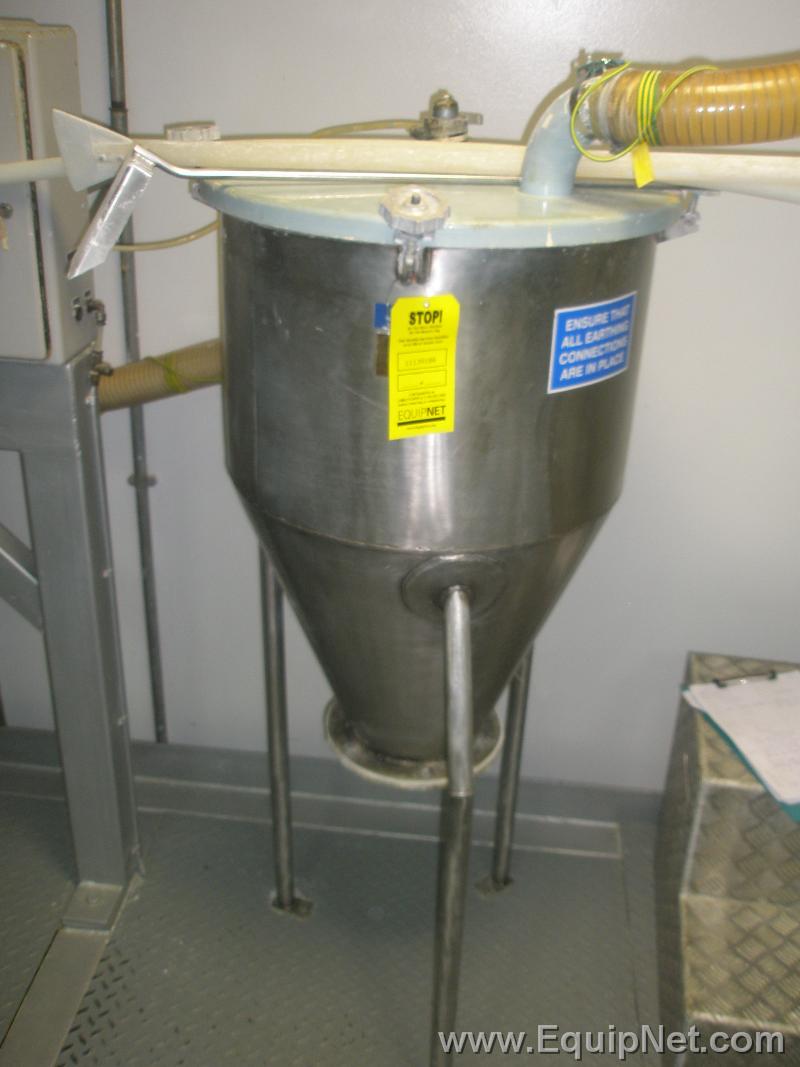

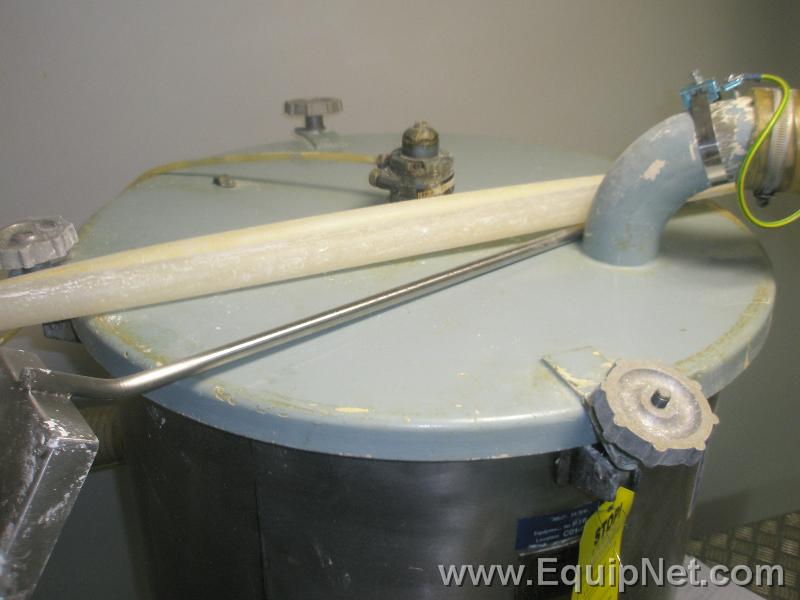

    Stainless Steel Cone bottomed 200 Litre Centralised Vacuum Dust Collection Vessel

    Stainless Steel, Cone bottomed, 200 Litre, Centralised Vacuum Filtered Dust Collection Vessel
  • This vessel is fitted with 600mm diameter, clamped with 4 clamps, glass fibre 3" vacuum pipework inlet connection top lid, which is fitted with a centrally fitted, pneumatically operated filter shaker unit, and is discharged via 200mm flanged outlet, which is 500mm off the floor, into the dust collection bin.
  • This Mezzanine mounted vessel is supported on 3 legs, which are supported off the main Gardner Mezzanine floor.
  • The control of the automatic operation of this Stainless Steel, Cone bottomed, 200 Litre, Centralised Vacuum Filtered Dust Collection Vessel was from the main Gardner Operator Control Panel, mounted on the Ground below.
    • Equipment Specifications
    Year1976
    ModelConed Vacuum Filtered Dust Hopper
    Capacity Size200 BAR
    Product SizingDust
    Material of Construction304L STAINLESS STEEL
    Inlet Size3 FT
    Outside Diameter600mm
    Overall Height1380mm
    Inside Diameter594mm
    Straight Side (T/T)400mm
    Air Requirements6 BAR
    Estimated Shipping Weight100 Kgs
    Top and Bottom HeadsFLAT TOP/DISHED BOTTOM
    Legs/Stand Mezzanine Floor Mounted
    Recommended Packaging FormCUSTOM PALLET

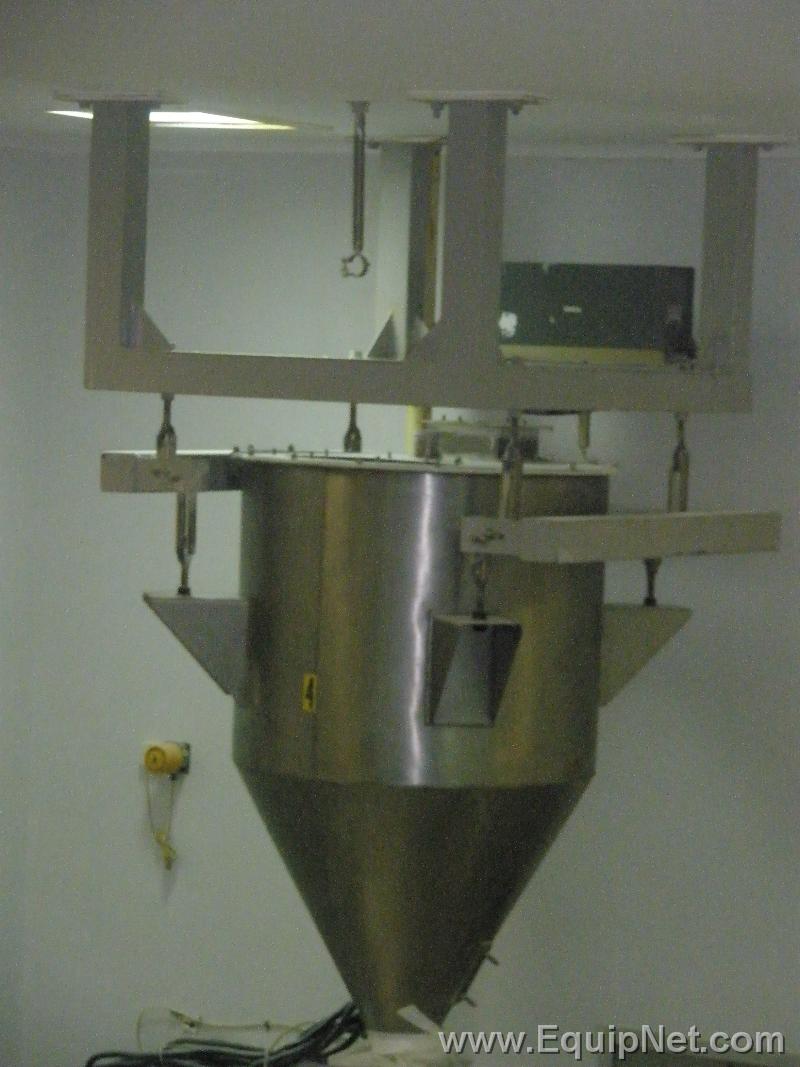

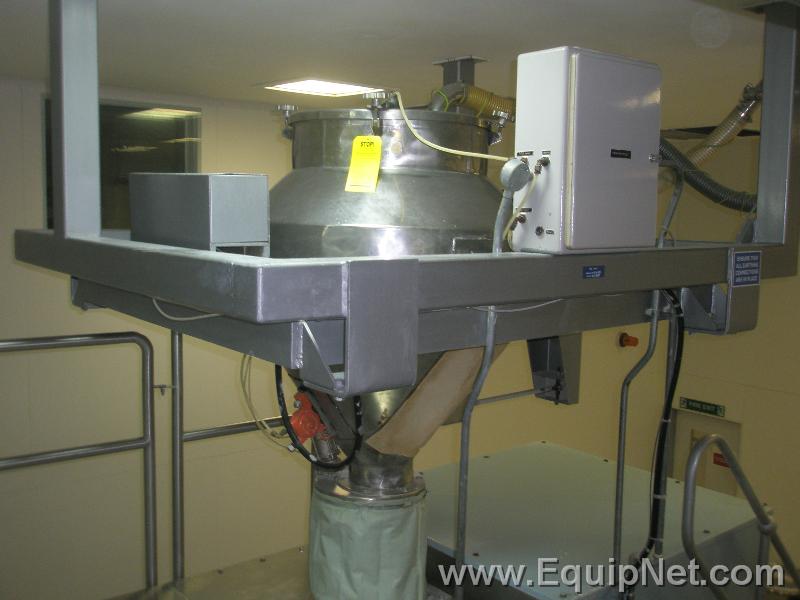

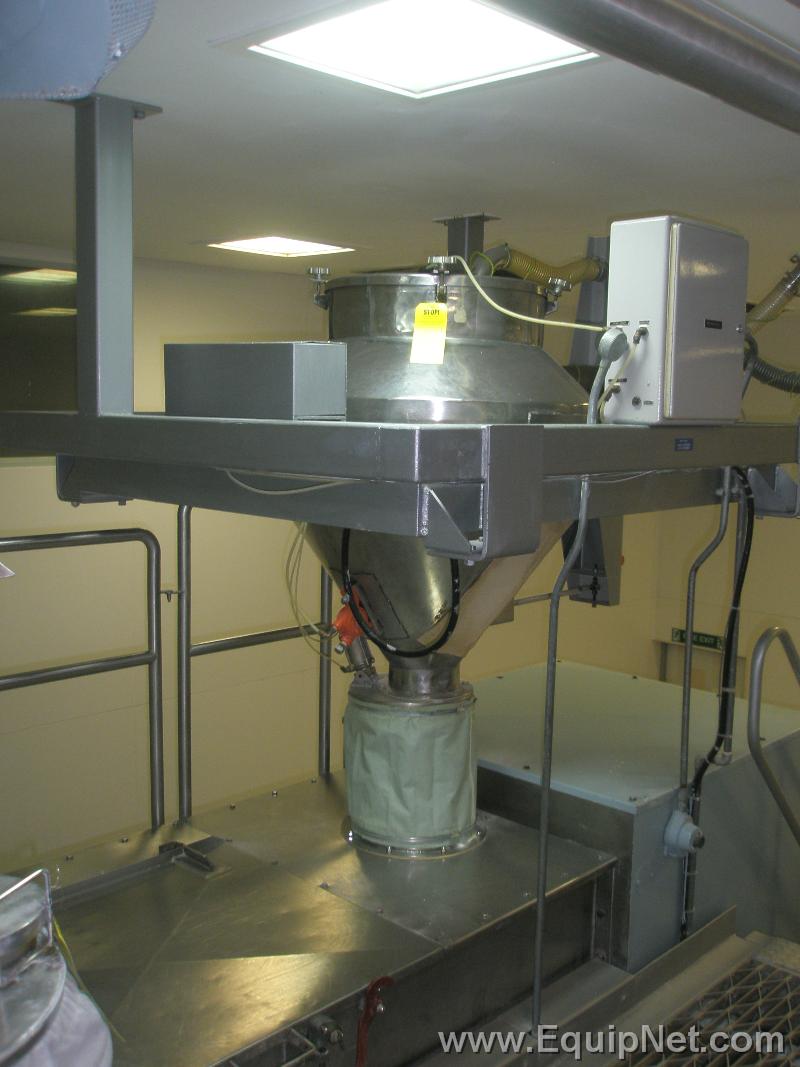

    Stainless Steel Cone bottomed 300 Litre Weighing vessel

    Stainless Steel, Cone bottomed, 300 Litre, Weighing vessel, mounted on a Single Load Cell Frame, which measures 1.6m x 1.9m x 1m high, and is supported by brackets off the ceiling.
  • The Stainless Steel coned Weighing vessel is fitted with a 4 clamped 600mm diameter Top Lid, into which feeds the 3" Vacuum pelleted product flexible feed pipe, and vent unit.
  • The Weigh hopper discharges on demand via 200mm pneumatically operated discharge flap valve & flexible sock into the top of the Gardner Ribbon Blender unit.
  • The hopper lower discharge cone is fitted with a pneumatically operated vibrator discharge assist unit.
  • The Stainless Steel, Cone bottomed, 300 Litre, Weighing vessel, mounted on a Single Load Cell Frame, is automatically controlled from the Main Gardner Control Panel, mounted on the Ground Floor below.
    • Equipment Specifications
    Year1976
    ModelS/s Double Cone Weigh Hopper
    Capacity Size300 L
    Product SizingSperical 1mm pellets
    Material of Construction304L STAINLESS STEEL
    Inlet Size600 MM
    Outside Diameter800mm
    Overall Height1200mm
    Inside Diameter794mm
    Straight Side (T/T)250mm
    Voltage220 VOLTS
    Frequency50 HERTZ
    Phase1
    Air Requirements6 BAR
    Estimated Shipping Weight400 Kgs
    Top and Bottom HeadsFLAT TOP/DISHED BOTTOM
    Legs/Stand Roof Mounted
    Recommended Packaging FormCUSTOM PALLET

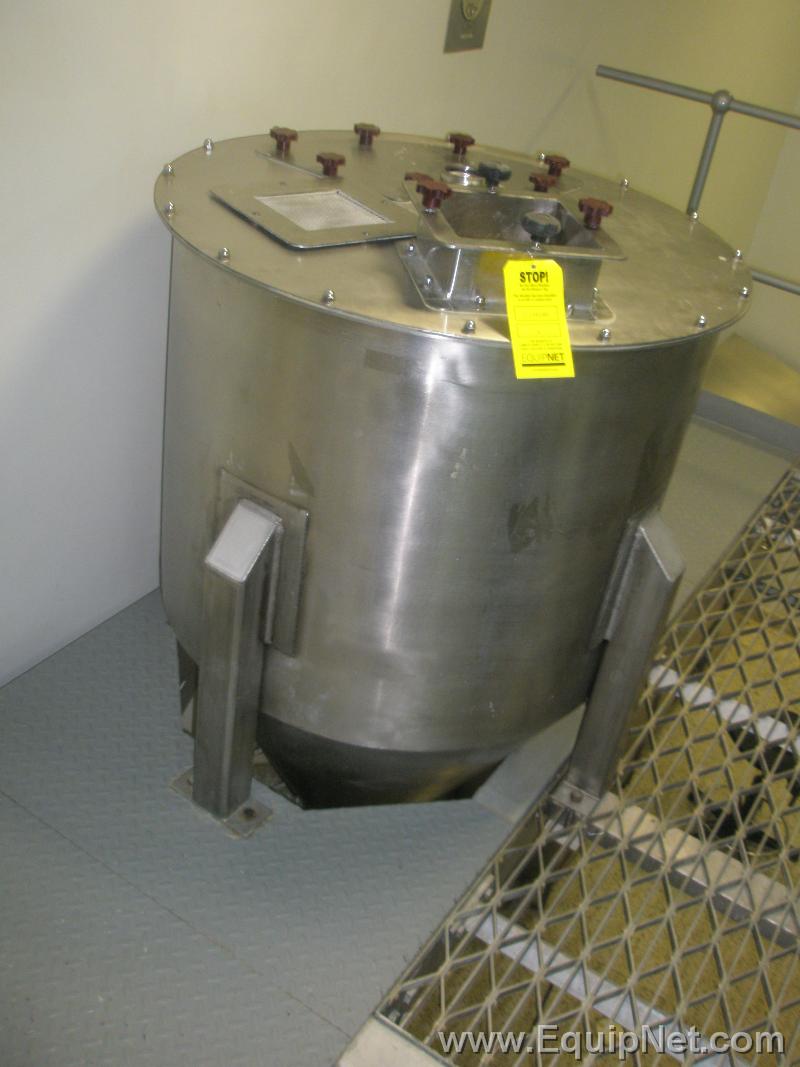

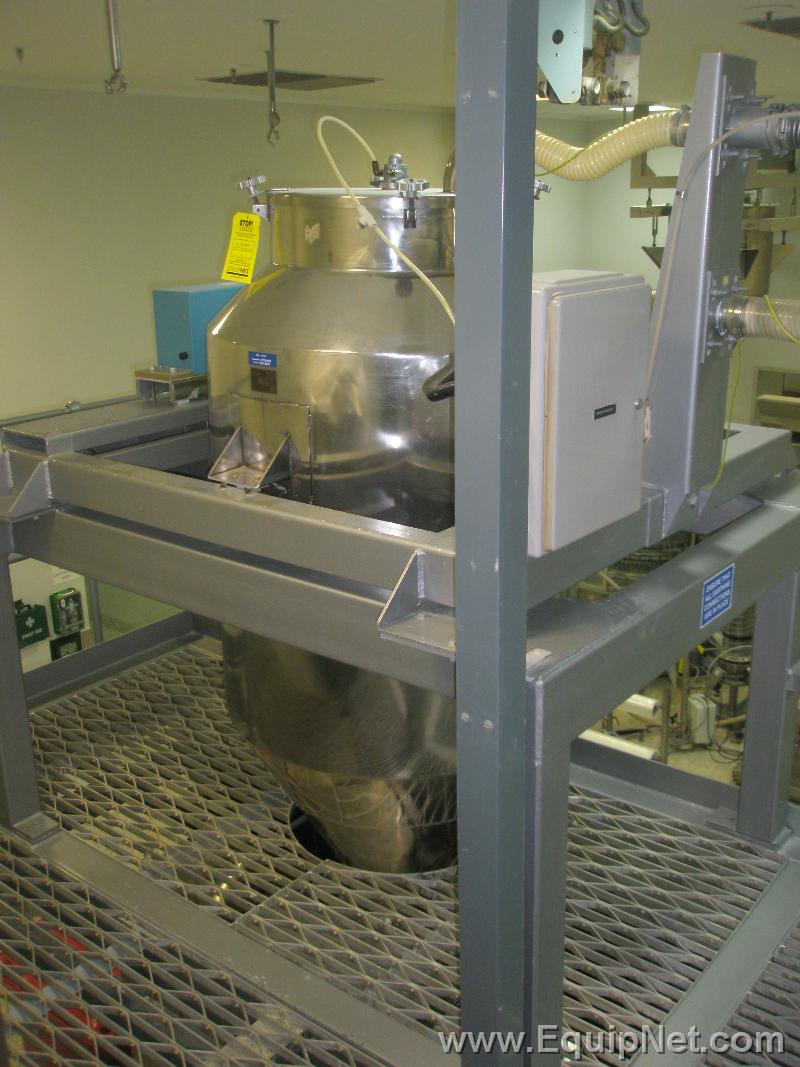

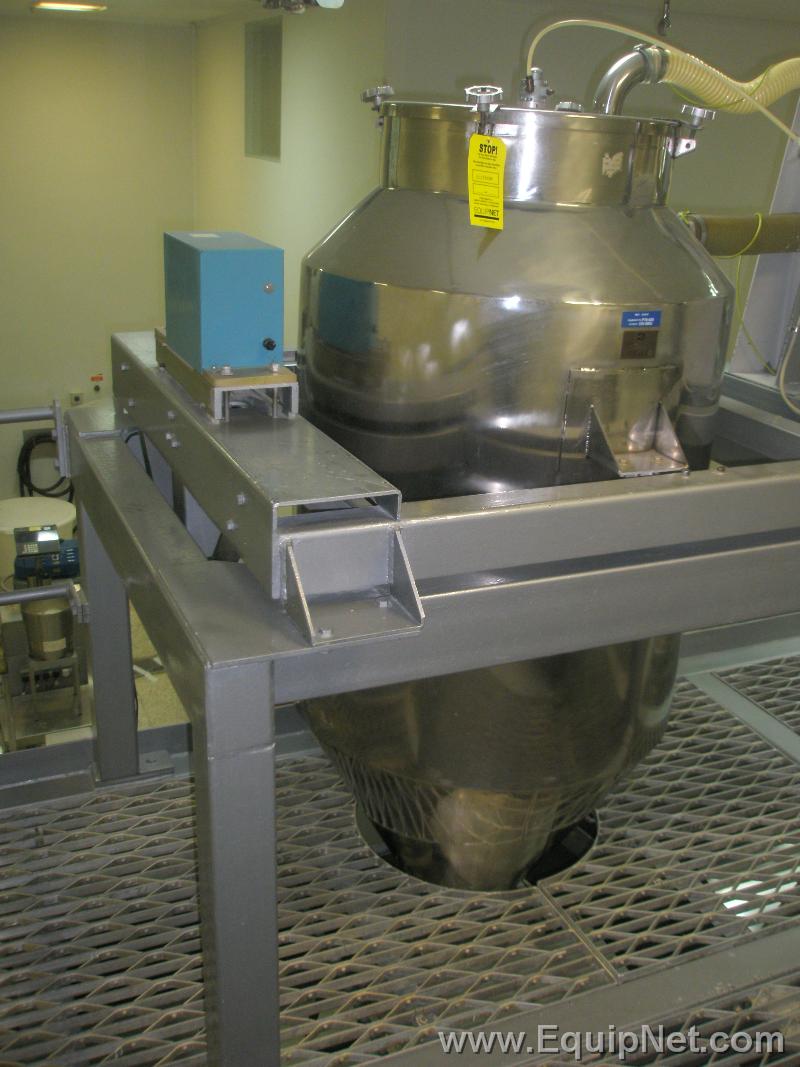

    Stainless Steel Cone bottomed 750 Litre Weighing vessel

    Stainless Steel, Cone bottomed, 750 Litre, Weighing vessel, mounted on a Single Load Cell Frame, which measures 1.55m x 1.8m x 1.6m high, and is supported off the Gardner main Mezzanine floor.
  • The Stainless Steel coned Weighing vessel is fitted with a 4 clamped 600mm diameter Top Lid, into which feeds the 3" Vacuum powdered product flexible feed pipe, and vent unit.
  • The Weigh hopper discharges on demand via 250mm pneumatically operated discharge flap valve & flexible sock into the top of the 700 litre Stainless Steel Coned Tank below.
  • The hopper lower discharge cone is fitted with a pneumatically operated vibrator discharge assist unit.
  • The Stainless Steel, Cone bottomed, 750 Litre, Weighing vessel, mounted on a Single Load Cell Frame, is automatically controlled from the Main Gardner Control Panel, mounted on the Ground Floor below.
    • Equipment Specifications
    Year1976
    ModelS/s Double Cone Weigh Hopper
    Capacity Size750 L
    Product SizingPowder
    Material of Construction304L STAINLESS STEEL
    Inlet Size600 MM
    Outside Diameter850mm
    Overall Height2000mm
    Inside Diameter844mm
    Straight Side (T/T)200mm
    Voltage220 VOLTS
    Frequency50 HERTZ
    Phase1
    Air Requirements6 BAR
    Estimated Shipping Weight400 Kgs
    Top and Bottom HeadsFLAT TOP/DISHED BOTTOM
    Legs/Stand Mezzanine Floor Mounted
    Recommended Packaging FormCUSTOM PALLET

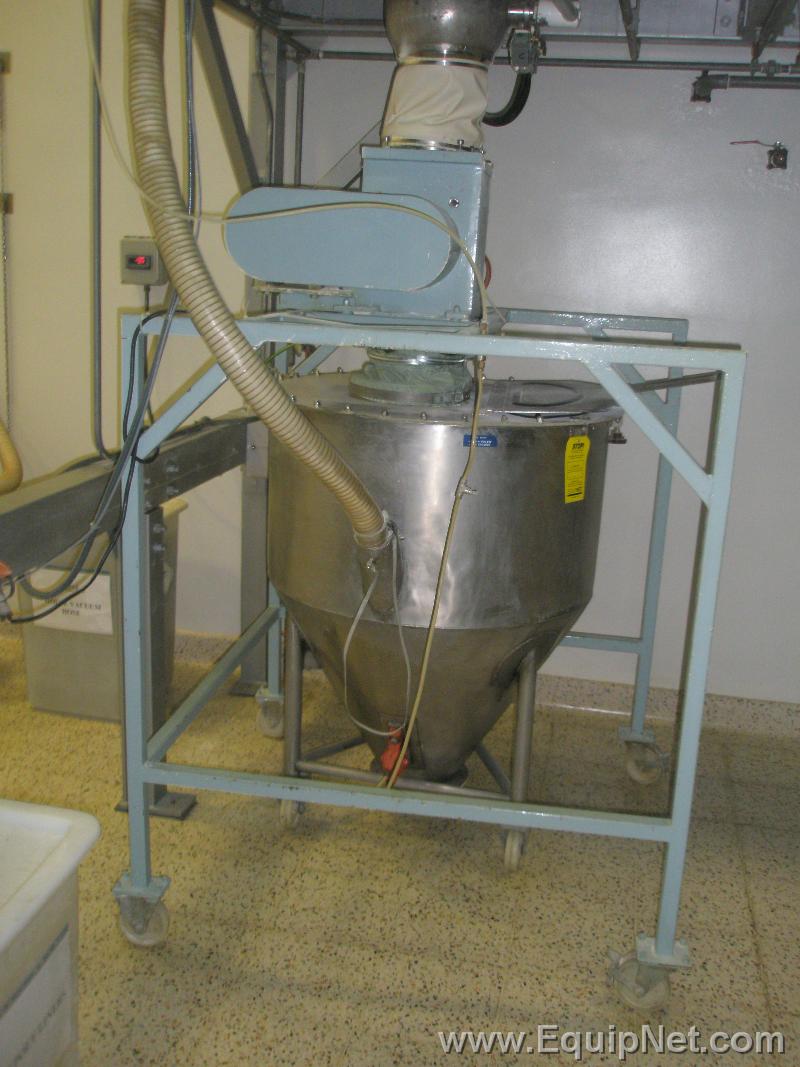

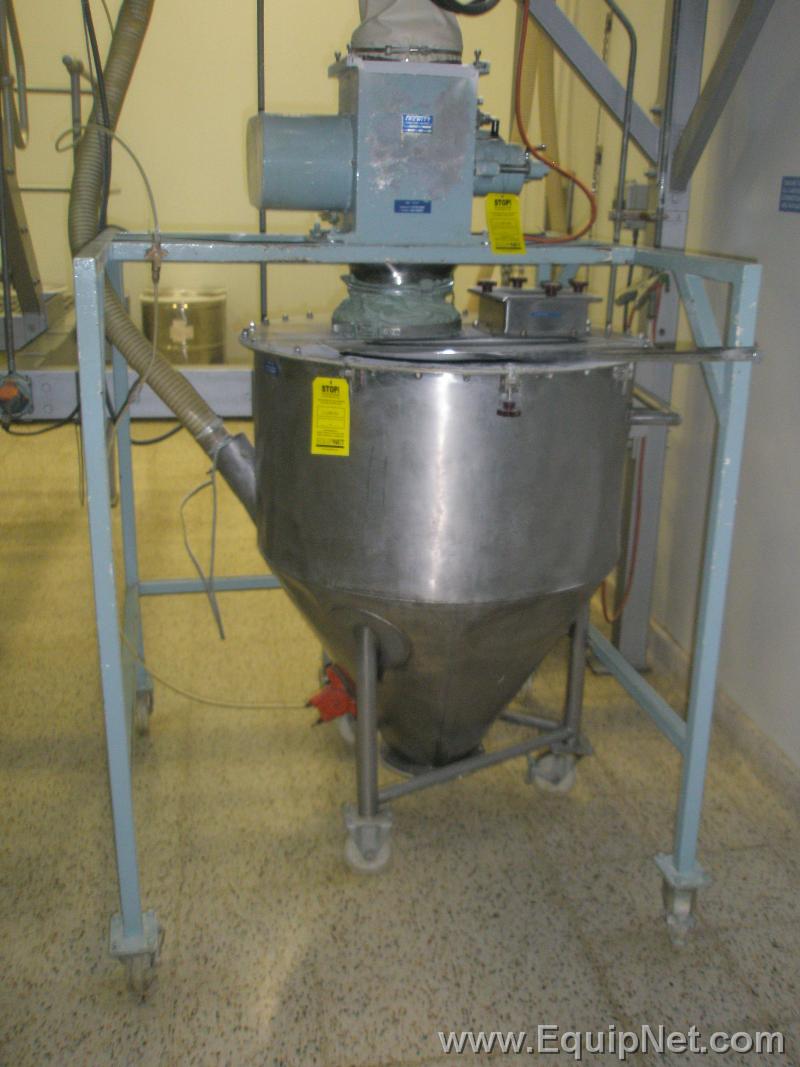

    Stainless Steel Cone bottomed Mobile 700 Litre holding vessel with tangential suction discharge

    Stainless Steel, Cone bottomed, Mobile, 700 Litre holding vessel, with tangential suction discharge
  • This ground floor Vessel is mounted on a triangular Stainless Steel frame, supported on 3 castors, 1 being a swivel/lockable castor.
  • The flat top of the vessel is fitted with a 240mm flexible Inlet Sock connection spigot for the discharged granulated product, plus a Hinged Inspection door that measures 230mm x 600mm.
  • The coned base of the vessel is fitted with a 200mm dia flanged sealing plate, which is 120mm off floor level.
  • The side of the vessel is fitted with a 100mm diameter tangentially welded Stainless steel sleeve, through which the 3" OD flexible vacuum suction discharge pipe passes. Below this discharge point is fitted an pneumatically operated vibrator unit.
  • The loading and discharging of this vessel is automatically controlled from the adjacent Main Operator Control Panel.
    • Equipment Specifications
    Year1976
    Model700 Litre
    Capacity Size700 L
    Material of Construction304L STAINLESS STEEL
    Inlet Size240 MM
    Outside Diameter960mm
    Overall Height1270mm
    Inside Diameter950mm
    Straight Side (T/T)500mm
    Air Requirements6 BAR
    Estimated Shipping Weight300 Kgs
    Top and Bottom HeadsFLAT TOP/DISHED BOTTOM
    Legs/Stand 3 Legs
    Recommended Packaging FormCUSTOM PALLET



    Congratulations! You have an opportunity to purchase equipment from Johnson and Johnson, one of the largest healthcare companies. Please understand that in order to purchase equipment from this company, you will need to meet certain criteria. The criteria that all buyers need to meet are as follows:
    1. You must be the end user of the equipment being purchased and have intentions to install it for your own use.
    2. You must agree to Johnson & Johnson’s terms of sale, by submitting a signed sale agreement (paper, not electronic). To See The Sales Agreement Click Here
    3. You will need to submit an insurance certificate which reflects certain insurance information outlined below:
    1. Insurance Certificate in name of buyer; buyer is an end user
    2. General/product liability meets limits required for assets being purchased
    3. Worker’s compensation liability meets required limit
    4. It is agreed that JJSI, Merck - MMD - Cramlington (MSD) and its affiliates are included as Additional Named Insureds
    5. Waiver of subrogation applies in favor of JJSI, Merck - MMD - Cramlington (MSD), and its affiliates with respects to General Liability, Product Liability and Workers Compensation where agreed to by contract prior to date of loss
    6. Policy is effective at time of transaction and should be valid for at least one year
    7. Certificate holder is JJSI and Merck - MMD - Cramlington (MSD)
    8. Policy includes language that J&J will be notified upon cancellation or expiration
    EquipNet recognizes that these requirements may be different to previous transactions with EquipNet. We are here to help with any questions you may have as you complete this purchase. Please feel free to contact your EquipNet Sales Representative or the Johnson and Johnson Project Manager, Jeff Turok. Jeff’s number is +1.888.371.6555 x2121 and email is jturok@EquipNet.com.
    Congratulations! You have an opportunity to purchase equipment from Johnson and Johnson, one of the largest healthcare companies. Please understand that in order to purchase equipment from this company, you will need to meet certain criteria. The criteria that all buyers need to meet are as follows:
    1. You must be the end user of the equipment being purchased and have intentions to install it for your own use.
    2. You must agree to Johnson &Johnson’s terms of sale, by submitting a signed sale agreement (paper, not electronic). To See The Sales Agreement Click Here
    3. You will need to submit an insurance certificate which reflects certain insurance information outlined below:
    1. Insurance Certificate in name of buyer; buyer is an end user
    2. General/product liability meets limits required for assets being purchased
    3. Worker’s compensation liability meets required limit
    4. It is agreed that JJSI, Merck - MMD - Cramlington (MSD) and its affiliates are included as Additional Named Insureds
    5. Waiver of subrogation applies in favor of JJSI, Merck - MMD - Cramlington (MSD), and its affiliates with respects to General Liability, Product Liability and Workers Compensation where agreed to by contract prior to date of loss
    6. Policy is effective at time of transaction and should be valid for at least one year
    7. Certificate holder is JJSI and Merck - MMD - Cramlington (MSD)
    8. Policy includes language that J&J will be notified upon cancellation or expiration
    EquipNet recognizes that these requirements may be different to previous transactions with EquipNet. We are here to help with any questions you may have as you complete this purchase. Please feel free to contact your EquipNet Sales Representative or the Johnson and Johnson Project Manager, Jeff Turok. Jeff’s number is +1.888.371.6555 x2121 and email is jturok@EquipNet.com.
    I acknowledge these conditions and would like to proceed with a preliminary offer

    Send us your feedback. We want to hear about your experience on EquipNet.com.
    Copyright© 1999 - 2012 EquipNet, Inc.
    All Rights Reserved.
    EquipNet is a service mark of EquipNet, Inc.
    Proud member of SOCMA Proud member of MDNA Proud member of NAA Proud member of ISPE Proud member of IRA Proud member of Biotechnology Industry Organization IAIATM
