You are making an offer on a Gasti (Dogatherm 41) Cup Filling Line located in the USA. This lot is being sold "as is, where is." We recommend that you contact an EquipNet sales representative to set up your own inspection.

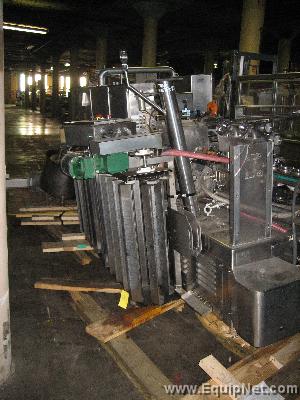

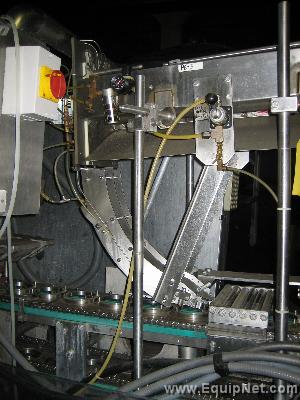

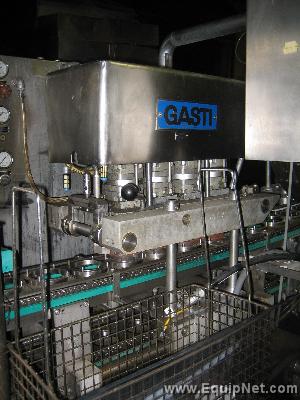

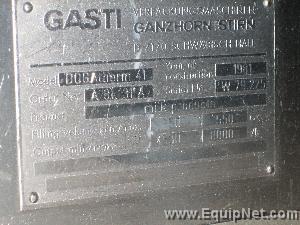

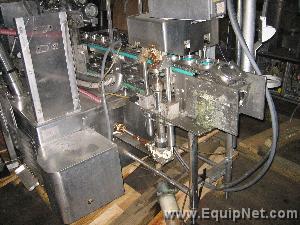

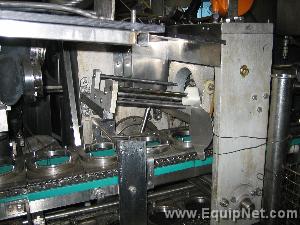

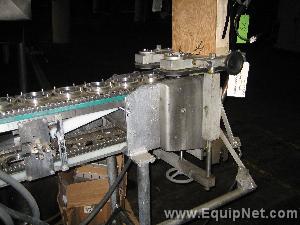

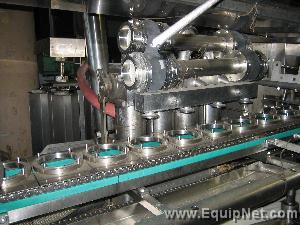

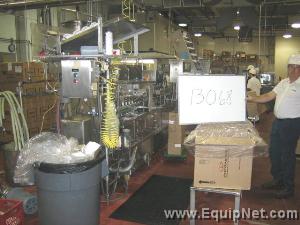

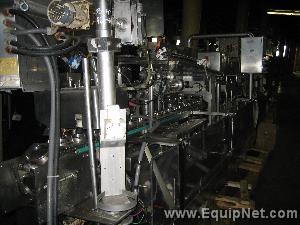

Gasti Dogatherm 41 Cup Filling Line, Model Dogatherm 41, S/N A81731 Whenever fresh products have to be filled at higher outputs, the Dogatherm
is the best solution. Liquid-to-pasty products as plain and fruited yoghurt can be filled in single and multi-layers, with or without particulates, in addition curd cheese, crème fraîche, processed and fresh cheese, sauces, jams, and honeyThe machine output is optimized due to the continuous motion system transporting the cups with constant speed and without "stop and go" through
the machine. This unique GASTI system offers the following advantagesDuring the filling process, the cups are not subject to permanent acceleration and deceleration forces. Even at high speeds, the product is filled in a gentle way, without spilling. The headspace in the cup between product surface and lid can be relatively smallClearly arranged machine stations and easy access to all functional modulesEase of operation and service in case of machine stoppages which are due to
deficient packaging materialOptimum design of mechanical drive and motion characteristicsThe
oscillating movements of the filling and closing stations are controlled by
precisely engineered, low-wear cams. Thanks to the continuous motion, acceleration and deceleration of the transport system are not necessaryIn case of high speeds, only one or two cup destackers are neededPackaging material can be fed automaticallyContinuous evacuation of the filled cups from the transport chain and troublefree transfer onto the off-conveyor
The 2 lane version offers filling of 2 different cup sizes at a timeThe Dogatherm uses stackable tubs or cups from plastic material (pp or ps), paper, and compounds which are closed by heatsealing of precut aluminium lids, compounds, paper or plastic. In addition, a snap-on lid may be appliedOn demand (optional), the Dogatherm is available in the hygienic standard
ultra clean with laminar airflow cabinet for sterile air application in the product zone, and highly intensive UV-C radiation for sterilization of the inner cup and lid surfaces. With a special machine execution, it is possible to fill de-hydrated soups, mueslis, confectionary, etc.41 CIP Specs:Nominal Output 9000 Cups Per HourFilling Volume Pre Filler 10 - 60 CC, Main Filler, 25 - 280 CC, 50 - 550 CC, Post Filler 10 - 60 CCCIP/SIPCup Dimensions, Maximum Diameter of Cup Rim 115 mm, Maximum Dimensions of Cup Rim 115 x 115 mm, Maximum Cup Height 130 MMProduct Range: Milk, Cavao, Flavored Milk, Fruit Juice, Soft Drinks, Plain Yogurt, Buttermilk, Curd Cheese, Sour Milk, Liquid & Whipped Cream, Desserts, Fruit Jelly, Jam, Fresh Cottage Cheese & Liquid Soups.
- Manufacturer Gasti
- Requires rigging or removal NO
- Requires a flatbed truck YES
- Level of shipment preparation necessary UNCRATED/LOOSE
