Although an EquipNet Equipment Specialist has inspected this machine and collected all the photos and specifications available, this lot is still being sold "as is, where is." We recommend that you contact an EquipNet sales representative to set up your own inspection.

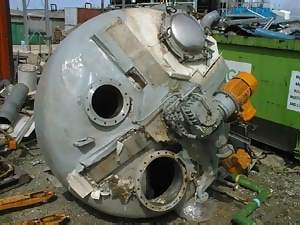

Type: T 30 VB-3, 3000 liter, MOC: All contacting parts made of stainless steel AISI 316. The orbit arm also in ss AISI 316, and the double jacket in mild steel. All seals contacting the product in PTFE.Design temp is 90 deg C and the operating temp is 22-90 deg. C. The vessel is equipped with a double jacket in mild steel and designed for an internal pressure of 0,5 bar. This jacket is made in two segments and has an internal spiral to ensure a good and equal heat transfer on the entire surface of this jacket. The inlet and outlet branch are 50 mm dia with flange. The total surface covered by this double jacket is 11,7 m2. Drive: The drive unit is located centrally on the machine top cover and has separated motors for screw and orbit arm. Screw motor: 5,5 KW, 1500 RPM, make Brook, type E132S, screw speed: 67 RPM. Orbit arm: 0,55 KW, 1500 RPM, make Brook, type S 90S, arm speed: 8 mtr./min. Agitator screw: Diameter: 300mm, screw flights thickness:3 mm, the bottom flight thickness:6 mm. Pitch 250 mm

• Manufacturer Hosokawa
• Year 1984
• Model T 30 VB-3
• Capacity Size 3000 L
• Voltage 415 VOLTS
• Frequency 50 HERTZ
• Phase 3
• Material of Construction STAINLESS STEEL
• Length 0 FT
• Width 0 FT
• Height 0 FT
• Removal Difficulty READY TO SHIP
• Estimated Shipping Weight 0 LBS
• Requires rigging or removal NO
• Requires a flatbed truck YES
• Level of shipment preparation necessary UNCRATED/LOOSE

Please note: If you are purchasing this item from within the United States, EquipNet, Inc. is required by this seller to apply state sales tax where applicable. Please contact an EquipNet, Inc. sales representative with questions.

Payment Methods:
Certified Check, Bank Check, Company Check w/Bank Guarantee, or Wire Transfer

Crating, Rigging, and Shipping Info:
Buyer is responsible for all crating and shipping charges. EquipNet can furnish a quote upon request. Please contact sales@equipnet.com.

Location: United Kingdom
Dimensions: 0x0x0 FT

Disclaimer
Please note: All listing descriptions take precedence over what may be showing in the photo. If you have any questions at all on this listing, please contact EquipNet.
