Listing #322729

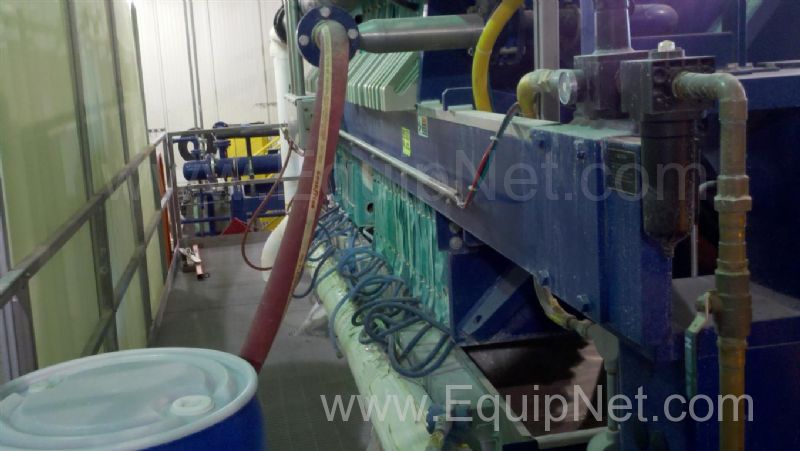

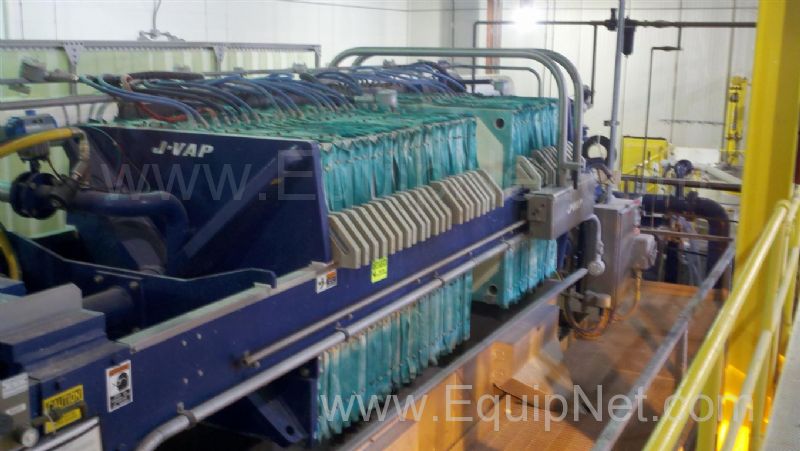

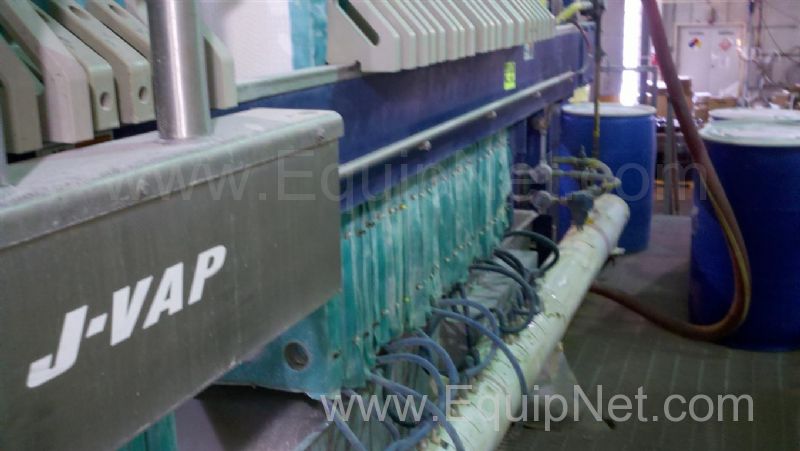

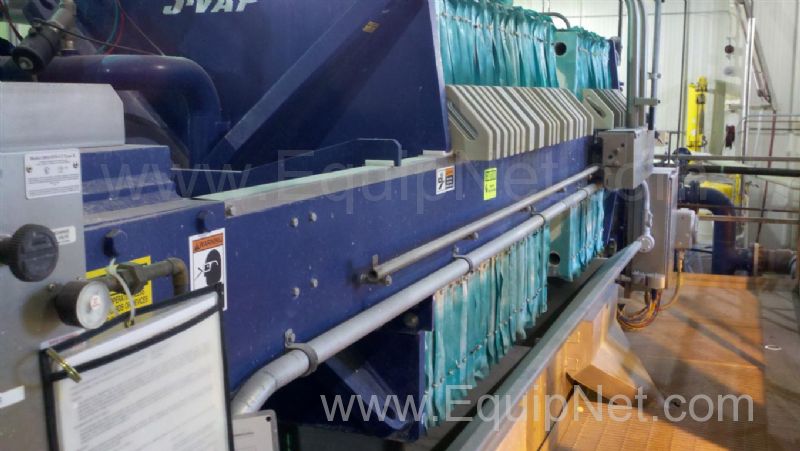

J Vap 1200 MM Filter Press Dewatering/Drying System
EquipNet Tag #322729-1
Equipment Description:

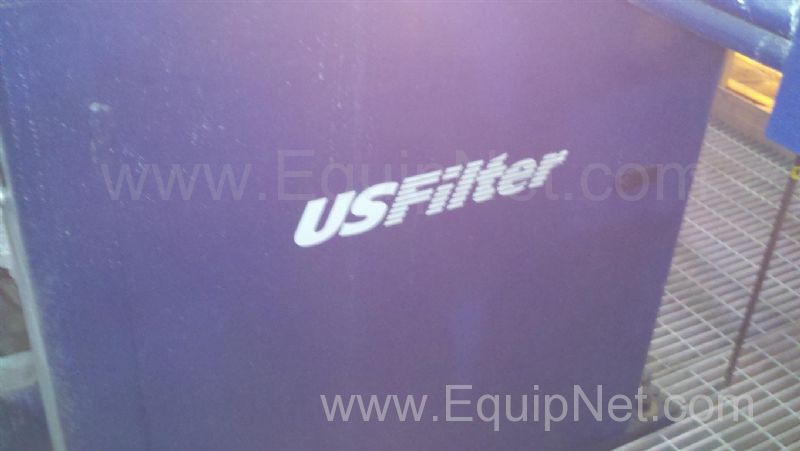

US Filter Dewatering Systems Group 40 cu. ft. J Vap Dewatering/Drying System
Info from mfgs. web site:
The J-VAP Dewatering/Drying System marries a specially-designed diaphragm plate filter press with a patented vacuum/evaporation technology. The result is a single-step process that can achieve a field-selectable moisture reduction of up to 99%. The technology consists of a set of reduction chambers in which the dewatering and drying of slurry occurs. The reduction chambers are clamped tightly together in a support module. The third component is the energy conversion module. This supplies heated water for the pressurization of the reduction chambers and also includes a vacuum system utilized during the drying stage of the cycle. During the first stage, slurry is pumped into the reduction chambers where the initial dewatering takes place and much of the free liquid is removed. Since cake density is not a critical factor, short feed cycle times can reduce the total cycle. After the initial filtration cycle, the vacuum/drying cycle begins. The reduction chambers are pressurized with 180°F water and a vacuum is pulled. This causes the water remaining in the cake to evaporate at a lower boiling point. The drying time can be adjusted to achieve the desired solids output. Virtually all the water in the cake can be removed. The same level of cake solids is easily duplicated during subsequent cycles. Once the drying cycle is complete, the press is opened, the reduction chambers are separated and the dried cakes are discharged. The low moisture content provides excellent cake release; in most cases the solids literally fall from the chambers as they are opened. Cake removal from the system is clean and efficient.
Components includeded in this system

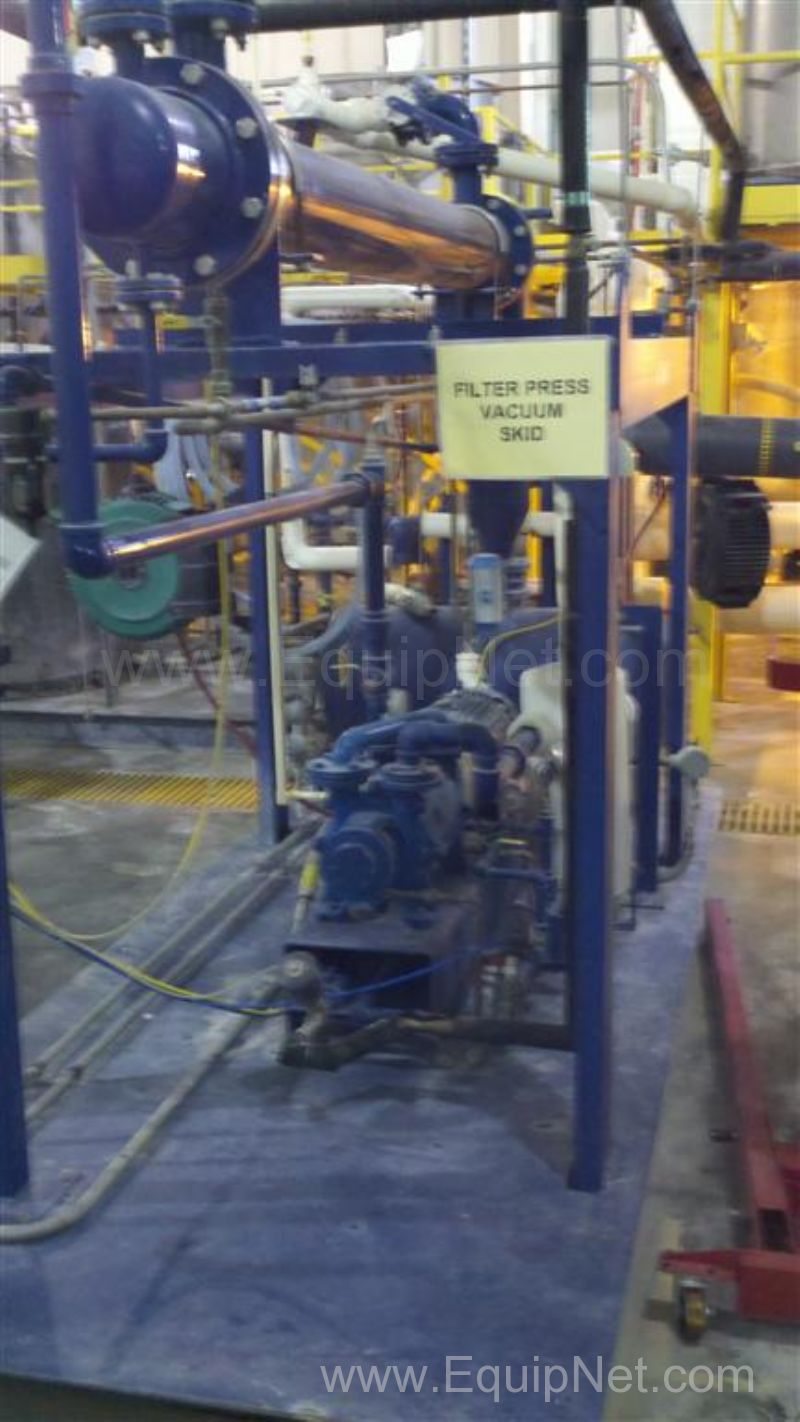

Vacuum Skid – Skid mounted 7.5 HP X Proof Vacuum Pump
Power requirements – 460V, 3 Ph, 20 A

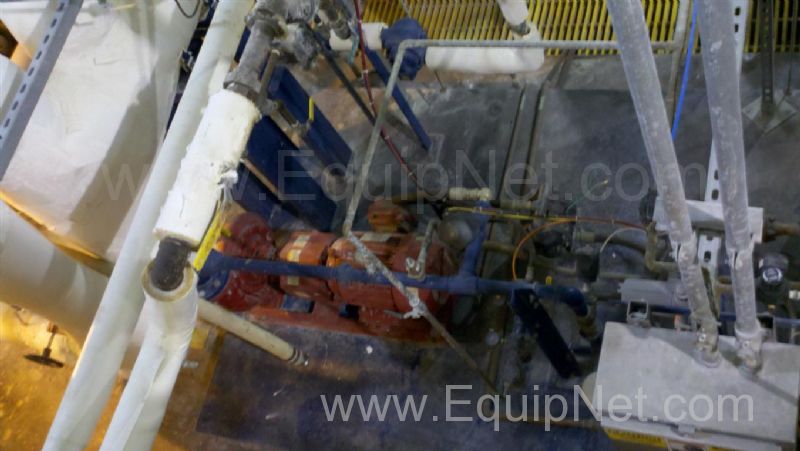

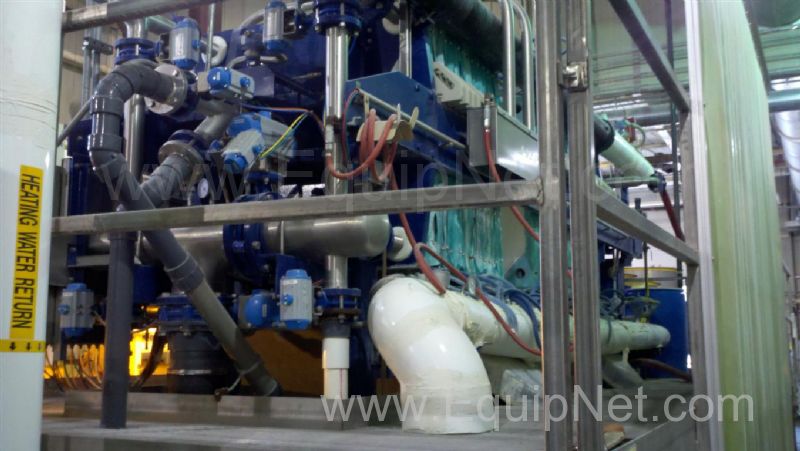

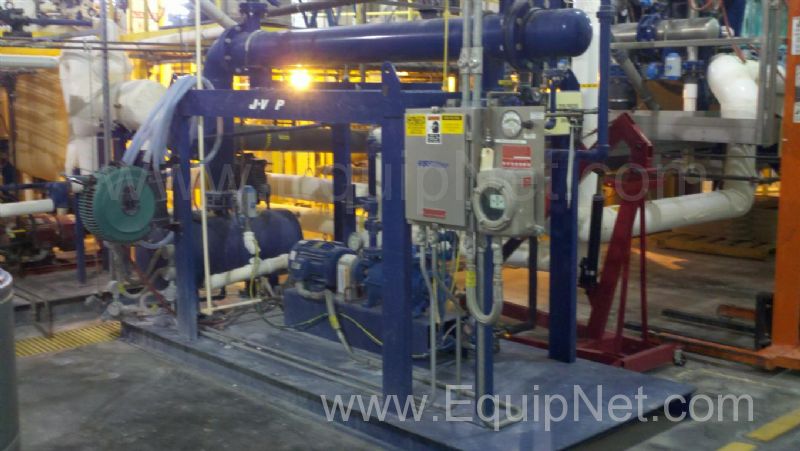

Hot Water Skid – Skid mounted hot water generating system, 10 HP X Proof Pump
Power requirements – 460V, 3 Ph, 30 A

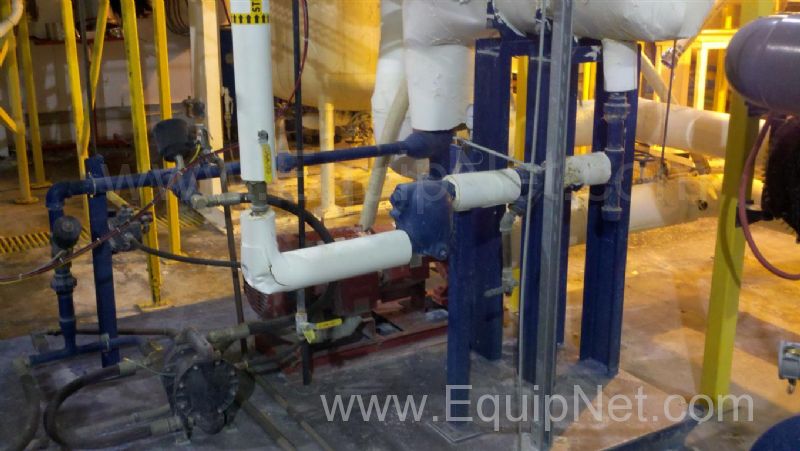

Transfer Pump – 3” Warren-Rupp DA7 Sandpiper Air Transfer Pump
Power source – 80 psi plant air pressure

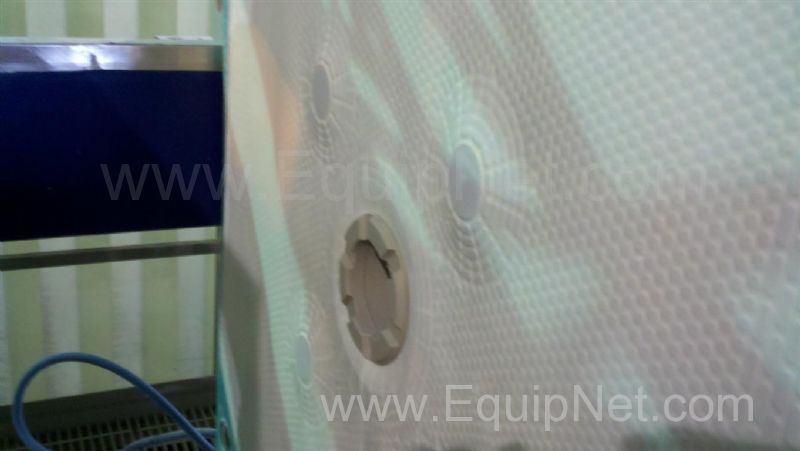

1200 MM plates
Head and tail plates
Center feed
Plate shifter

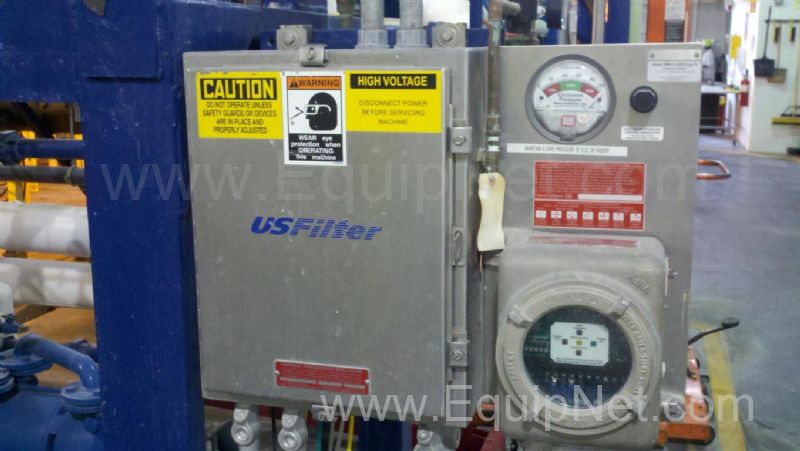

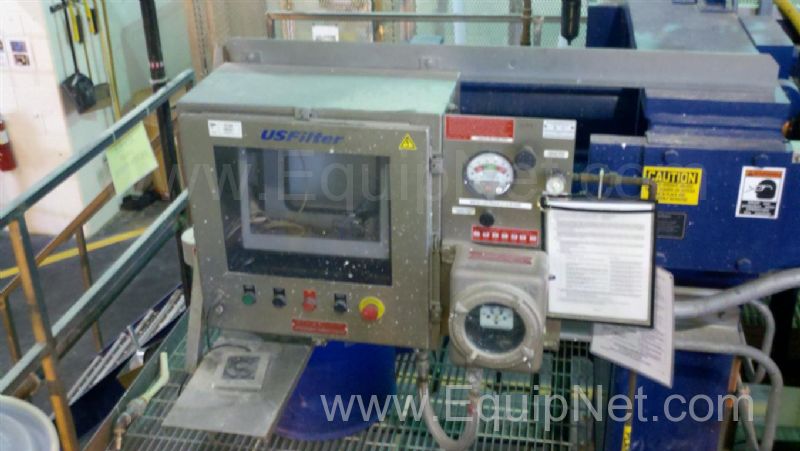

Control station |
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Delaware. |
|
Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | US Filter Dewatering Systems Group |
| Model | 1200V30-35/43-4050SYLC |
| Serial Number | JV0059 |
| Product Sizing | 40 Cu. Ft. |
| Air Requirements | 80 PSI |
| Estimated Shipping Weight | 0 LBS |
| Length | 0 IN |
| Width | 0 IN |
| Height | 0 IN |
| Chamber Size | 1200 MM |
| Voltage | 460 VOLTS |
| Frequency | 60 HERTZ |
| Phase | 3 |
| Material of Construction | POLY |
| Size of Cake | 40 CU FT |
| Recommended Packaging Form | CUSTOM |
