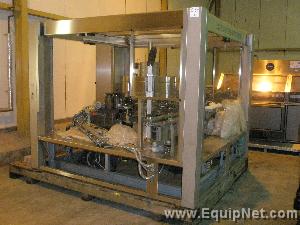

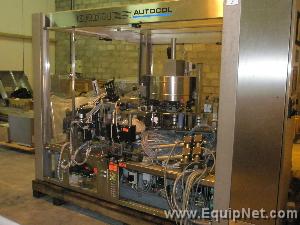

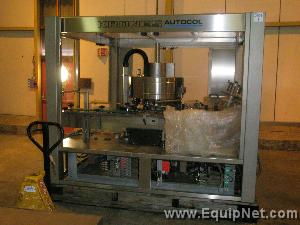

You are making an offer on a Krones K747 Autocol Labeler located in the UK. This lot is being sold "as is, where is." We recommend that you contact an EquipNet sales representative to set up your own inspection.
Model: Autocol K747-424, 12 Head Automated Labelling M/c.
Serial #: 424
Fully automatic labelling machine for self-adhesive label application, at a normal operating speed of 12,000 bph.
The Krones K747 variable machine drive can operate from a rate of 5,000 bottles/hour, upto a maximum of 13,000 bottles/hour.
Stainless steel construction
Helix style container infeed

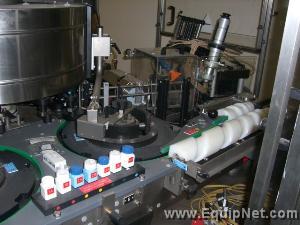

Unit was running square bottles with a three panel wrap and back outsert

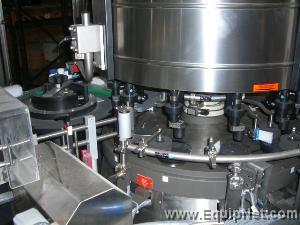

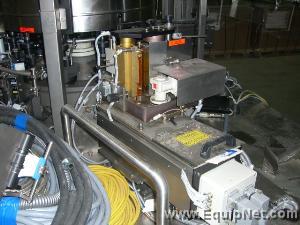

With two labelling heads, 1) Standard for self-adhesives labels. 2) For outsert labels (Hotmelt glue application)
Safety guarding with interlocked doors
Only bottles with a maximum diameter of 125mm can be handled. This maximum diameter cannot be changed due to the machine pitch
Containers with a height min of 50mm up to max. 250mm
The maximum label height regarding the dispenser is 75mm
For body and back labelling, two new dispensers would be necessary
Modification of the existing dispenser is not possible as it is a special construction, designer in conjunction with an automatic magazine basket outsert feed system
For body and back labelling, a new table cam will be necessary

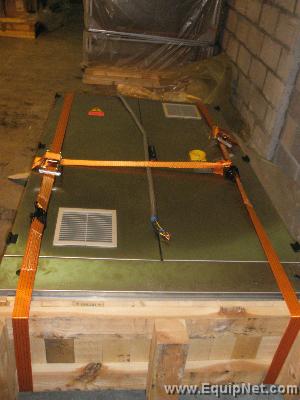

S/s Wardrobe Style Control panel contains Inverter Drives, measures 1.2m x 0.4m deep x 2m high, weighs approx 500 kgs.

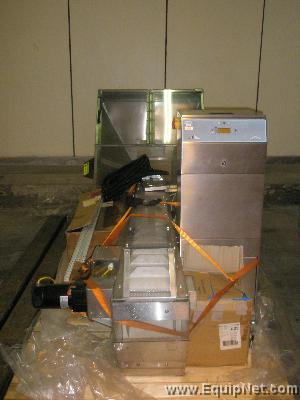

Pioneer Feeder Elevator unit, Model EP / 15, Serial No 180418, measures 3.5m long x 1.3m wide x 1.5 m high on pallet, and weighs appox 1000kgs
Purex Superflow vacuum unit, Part No 082210, Serial No AMK 4/100, M/c No 8000 210 PF, 230v 50Hz, Year 1999, measures 450mm x 450mm x 1200mm high, weighs 200 Kgs.

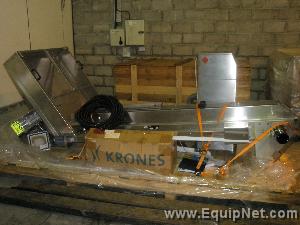

Aluminium framed Inlet Conveying Macralon Guarding enclosure, measures 1.9m x 1.5m x 1.3m, weighs 250 Kgs.
- Manufacturer Krones
- Year 2000
- Model Autocol 720-12
- Serial Number K 747-424
- Products Run Square bottles, max size 125mm
- Air Requirements 6 BAR
- Manual Available Yes
- Estimated Shipping Weight 8000 Kgs
- Length 2.6 M
- Width 3 M
- Height 2.45 M
- Voltage 380 VOLTS
- Frequency 50 HERTZ
- Phase 3
- Removal Difficulty EASY
- Requires rigging or removal YES
- Requires a flatbed truck YES

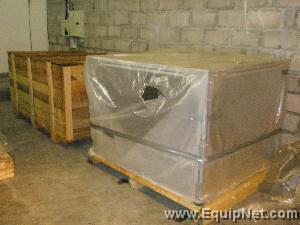

- Level of shipment preparation necessary UNCRATED/LOOSE
