Listing #246715

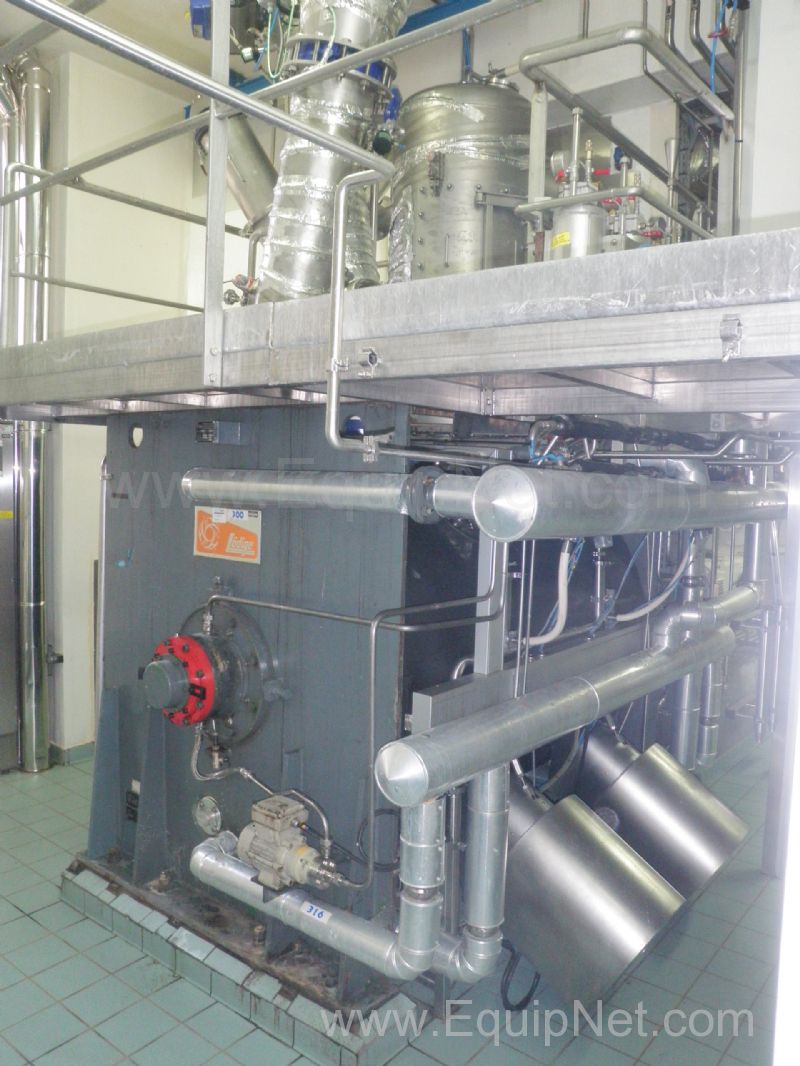

Lodige VT 3000 Litre Stainless Steel Horizontal Jacketted Homogenizing Mixer
EquipNet Tag #246715-1-3, 246715-2-3, 246715-3-3
Equipment Description:

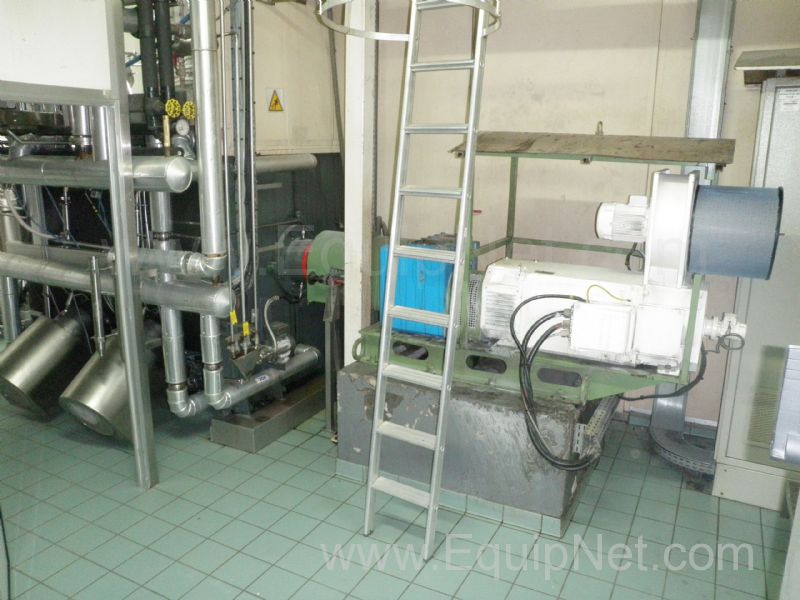

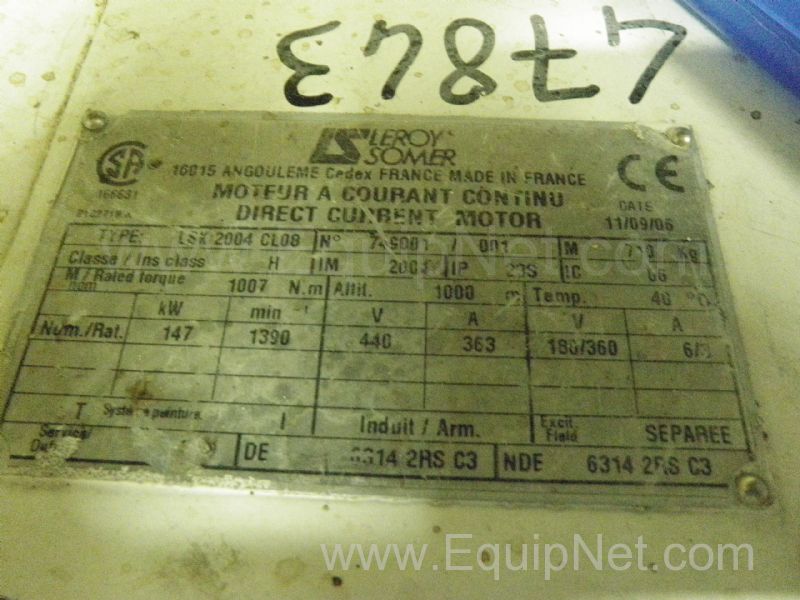

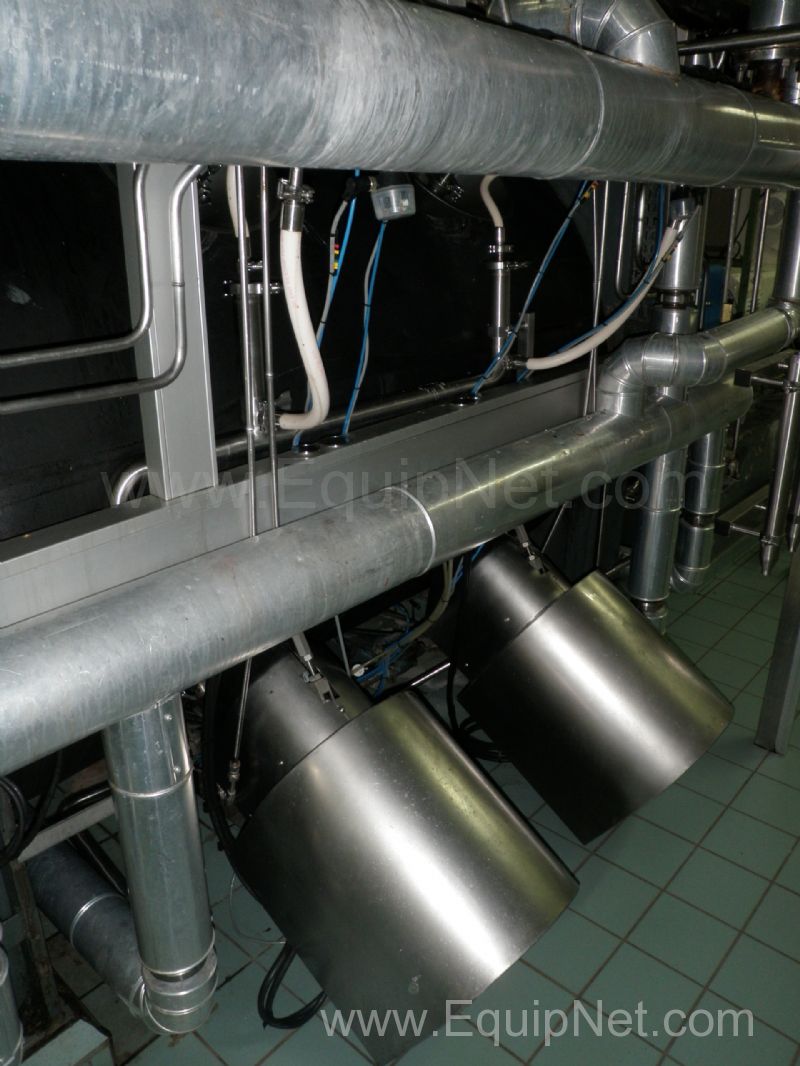

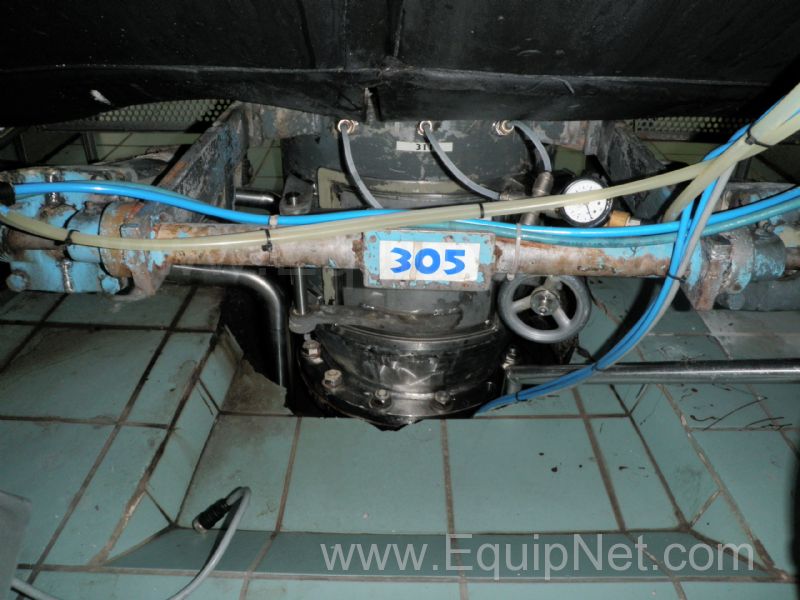

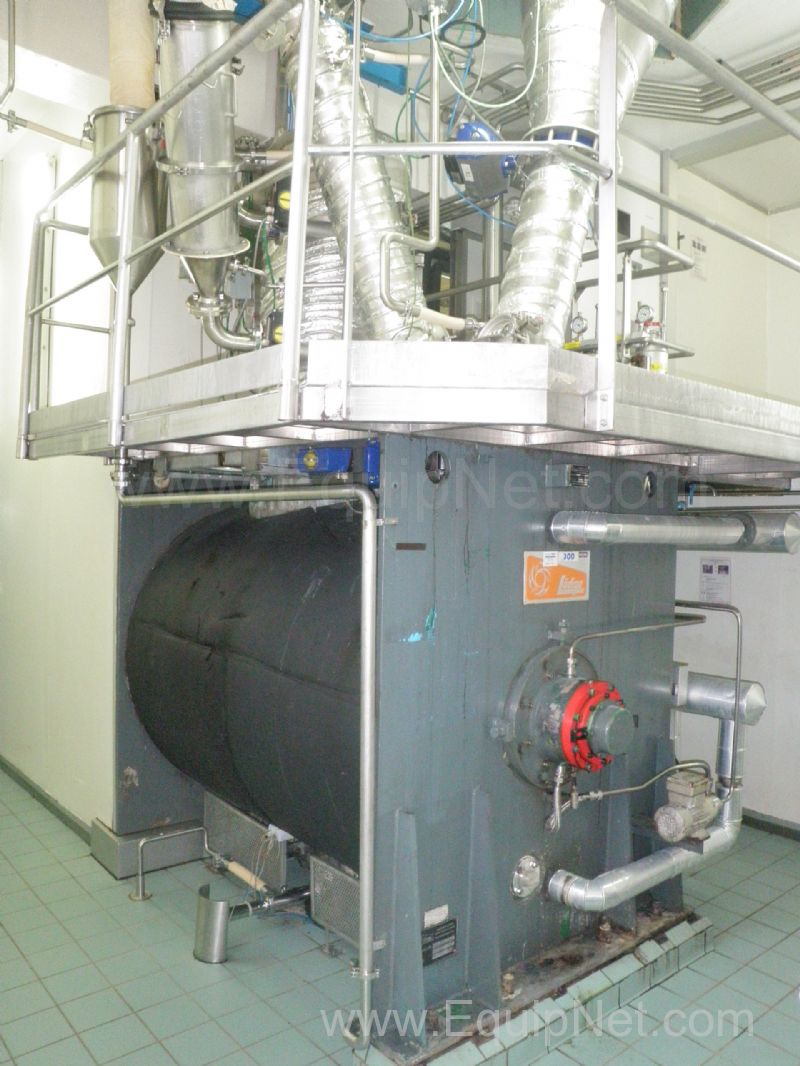

Lodige VT 3000 Stainless Steel 3000 Litre Horizontal Jacketted and Flexible Insulated Homomogenizing Mixer, fitted with a 147 Kw Inverter controlled Variable Speed upto 1390 RPM Main Drive motor, and 2 off 2.2 Kw? lower angle mounted Homogenizer Drives.
The Mixer is rated to operate at Pressures between -1 Bar Vaccum, and 0.5 Bar Pressure, and its jacket is heated with 60 degree C Water.

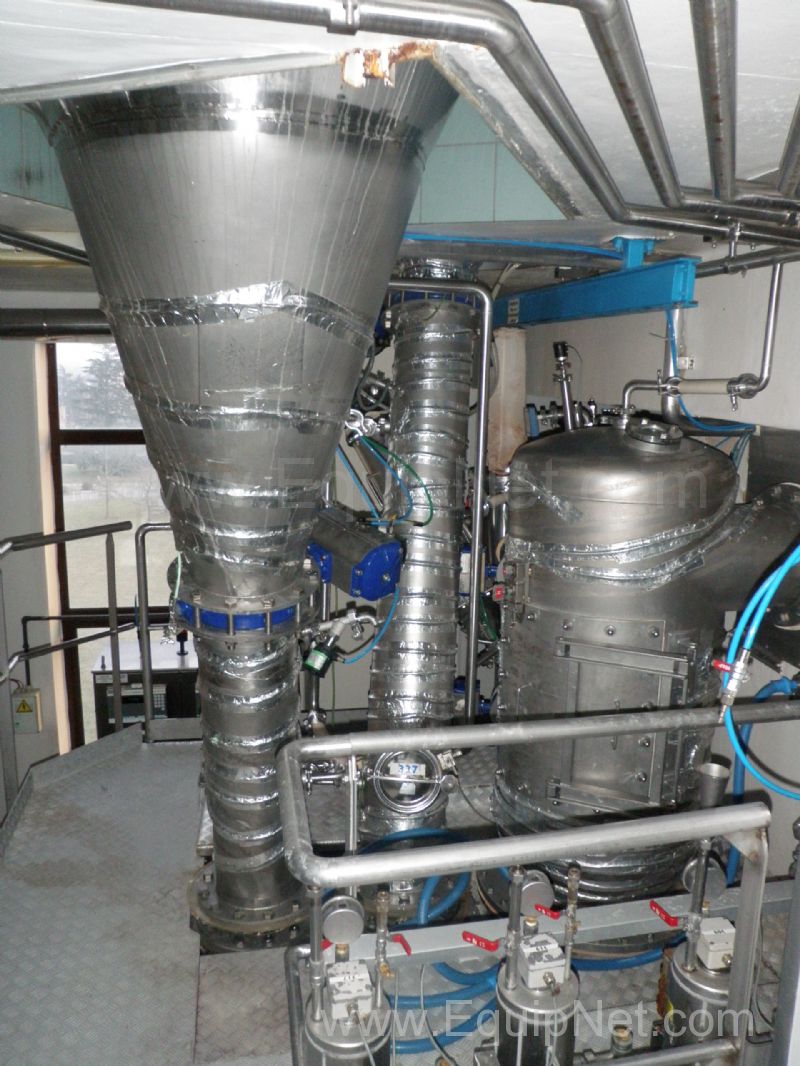

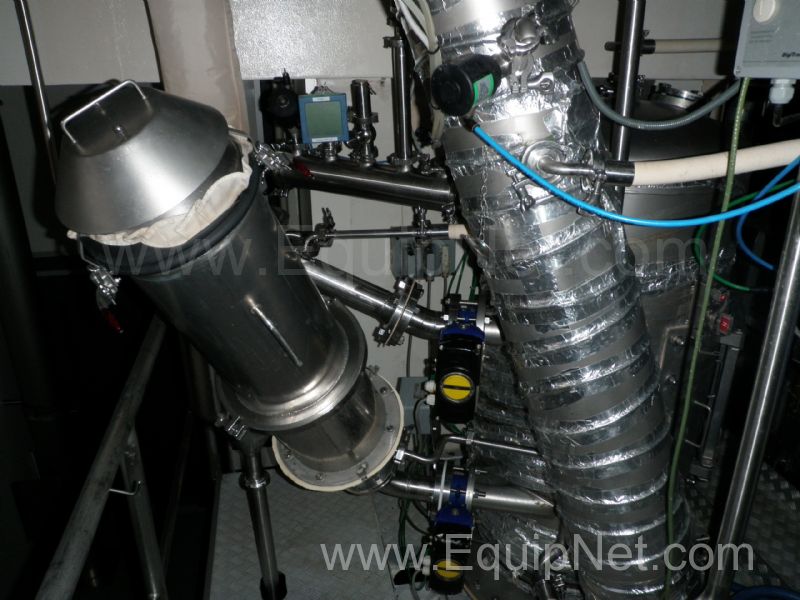

The Mixer is fitted with 3 large top Inlet ports, 2 off being 250mm diameter for the trace heated S/s Pre-mix powder ingredient pipes, and a 3rd 600mm diameter Inlet for the overhead mounted S/s trace heated 600mm diameter x 1500mm high top mounted Vacuum chamber.

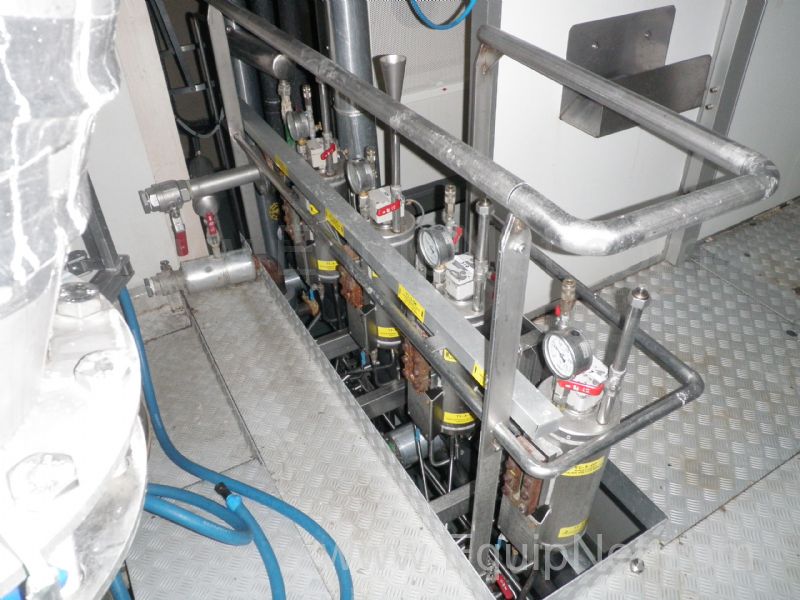

The Mixer top is also fitted with 4 off Side mounted S/s minor Liquid Ingredients pressurised injection pots, which meter into the mixer via 10mm diameter S/s tubing the minor ingredients from the adjacent Pulverisation pumped metering system

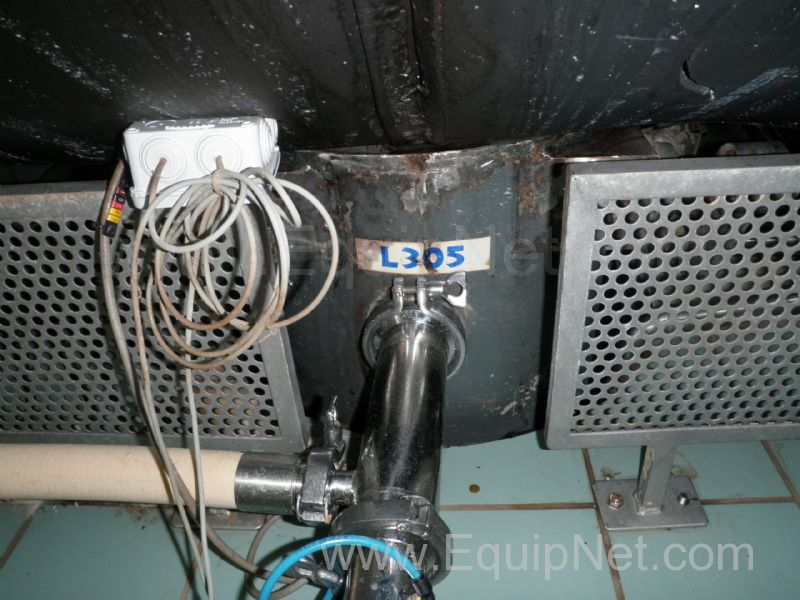

The Mixer discharges via a central 350 mm diameter actuated valved S/s outlet pipe, which reduces to 250mm diameter as it passes through the 3rd floor opening to the Cooling machine mounted on the 2nd floor below.
|
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in France. |
|
Please Note: The seller of this equipment requires the buyer to accept a sales agreement. Click here to view the sales agreement.
Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:

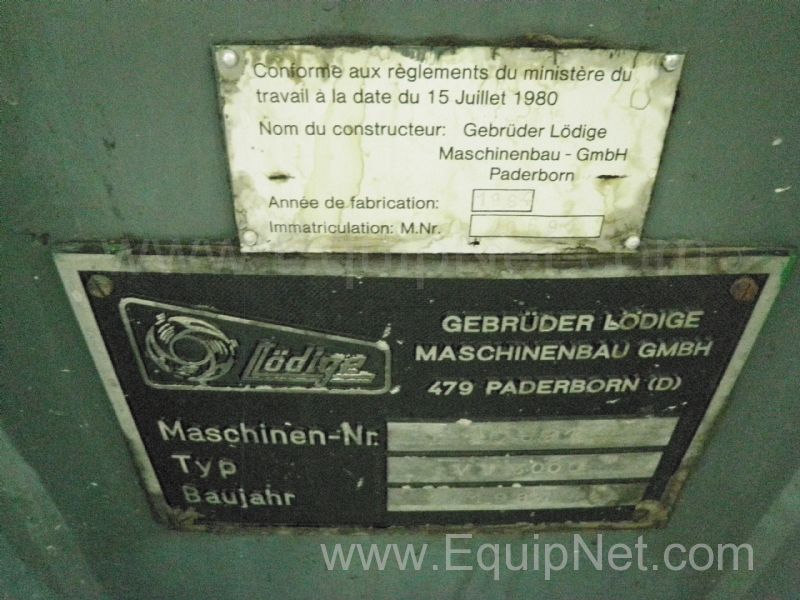

| Manufacturer | Lodige |
| Year | 1984 |
| Model | VT 3000 |

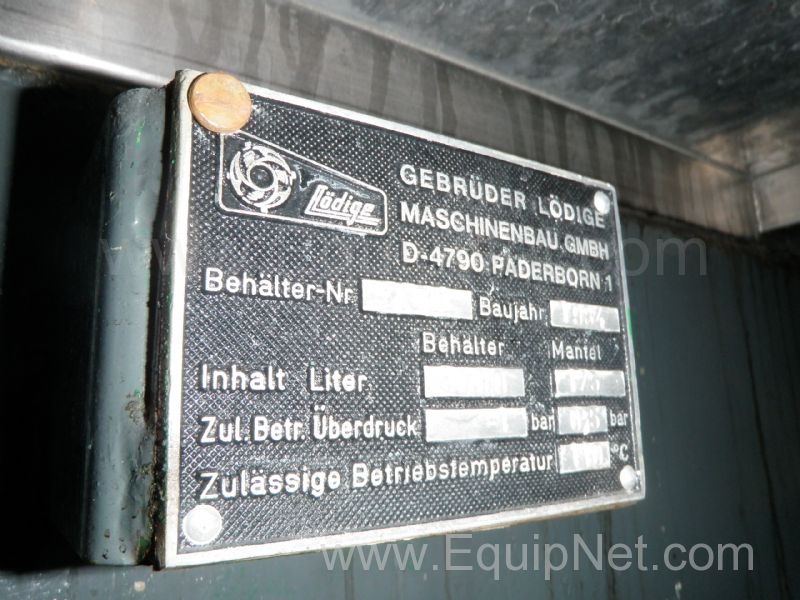

| Serial Number | Mantel 175, 2701/10691 |
| Capacity Size | 3000 L |
| Air Requirements | 6 BAR |
| Length | 7.6000000000000005 M |
| Width | 2.4 M |
| Height | 2.2 M |
| Diameter | 1.5 M |
| Depth | 2 M |
| Voltage | 440 VOLTS |
| Frequency | 50 HERTZ |
| Phase | 3+1 |
| Current | 147 Kw |
| Estimated Shipping Weight | 7600 KGS |
| Pallet Location | BMS Agen, Gascoyne, France |
| Recommended Packaging Form | CUSTOM PALLET |
