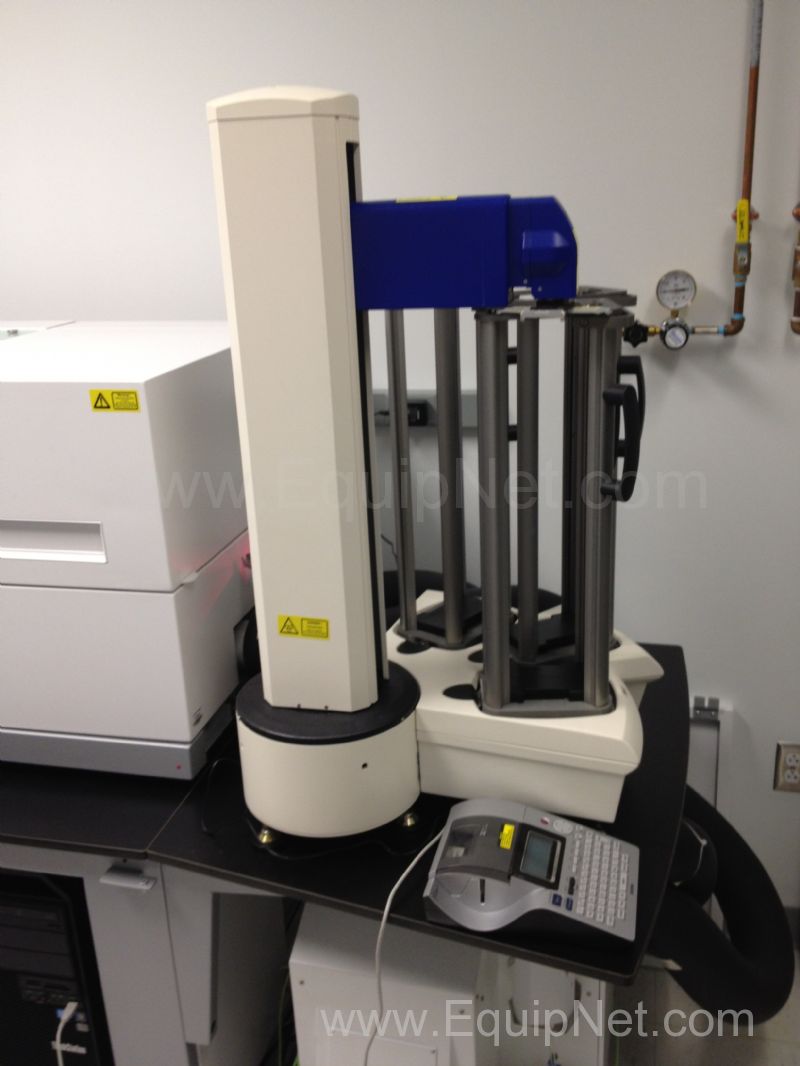

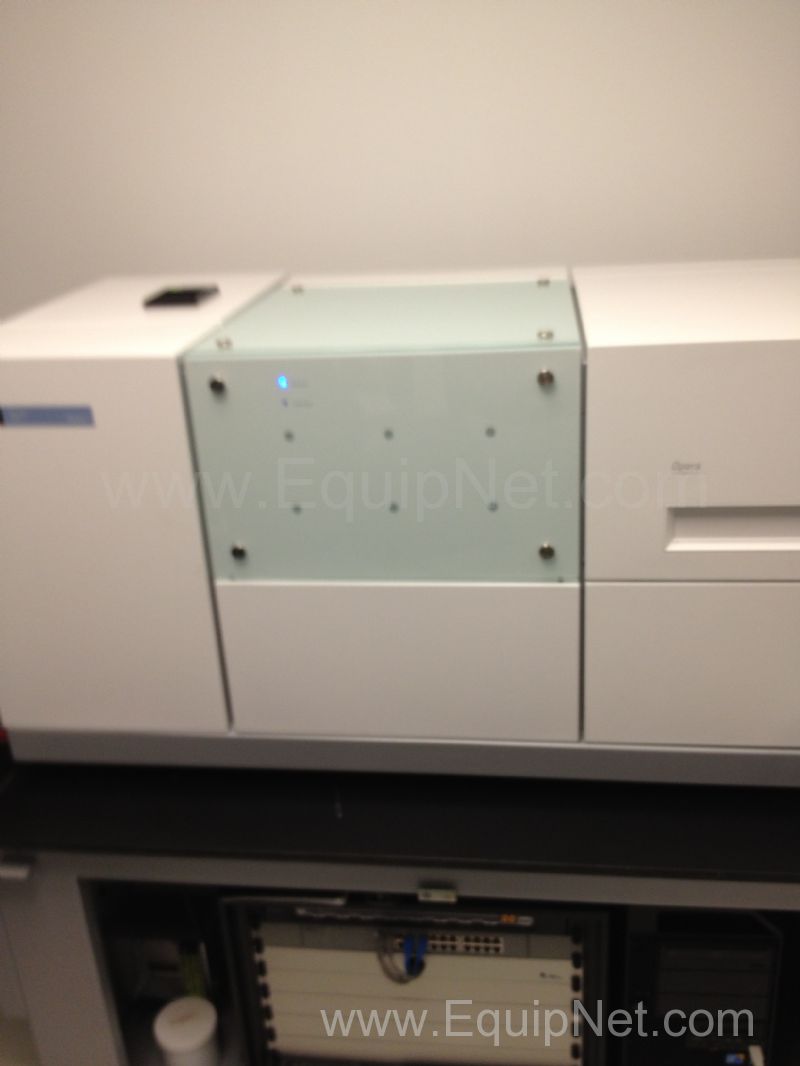

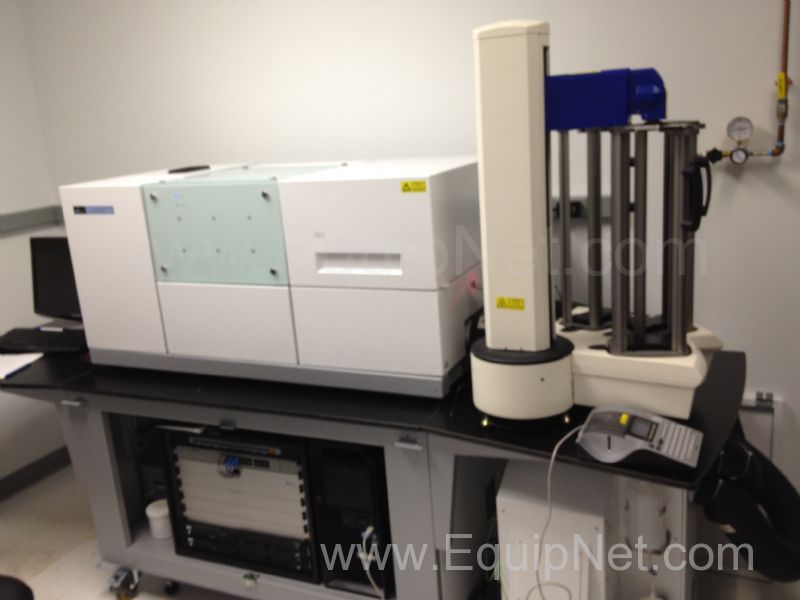

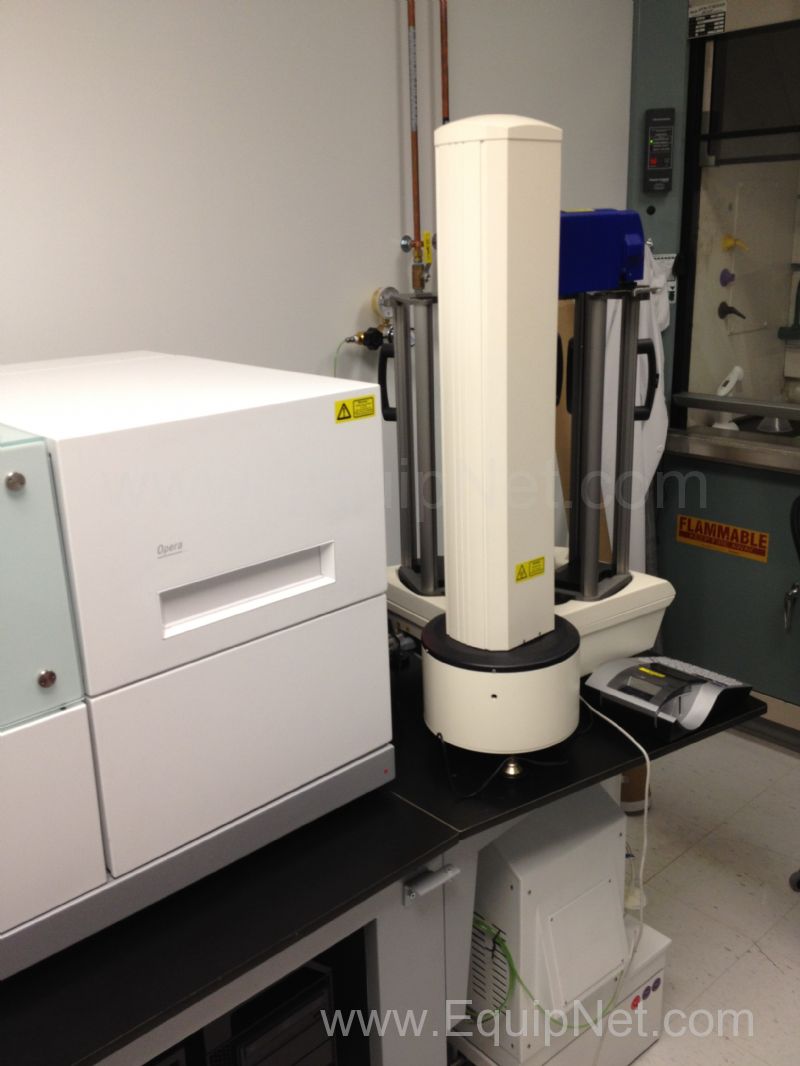

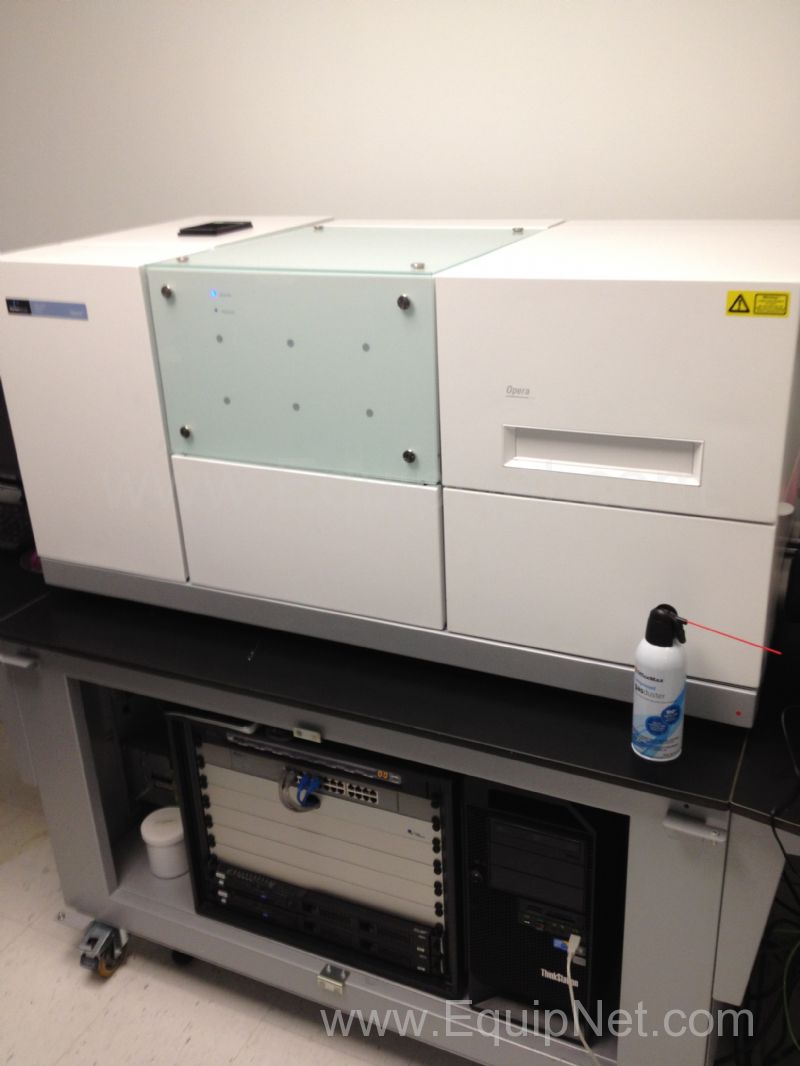

Perkin Elmer Opera Imaging and Analysis Instrument
OPERA 561 RED ECU PREP High Speed Laser Scanning Microscope Unit "Opera QEHS" Violet - Blue - Yellow - Far Red, far red dyes on CCD3, with preparation for Environmental Control Unit
Consisting of: Optical imaging unit "Opera QEHS", Point-scan confocal module, High speed high precision auto focus unit, Motorized four position changer for objective lenses, Environmental control chamber preparation enclosing sample carrier space and objectives, Excitation Laser: Violet, Solid state laser, wavelength 405 nm, power 50 mW, Excitation Laser: Blue
Solid state laser, wavelength 488 nm, power 200 mW, Excitation Laser: Yellow, Solid state laser, wavelength 561 nm, power 40 mW Excitation Laser: Red Solid state laser, wavelength 640 nm, power 80 mW
Camera dichroic mirror set for far red dyes on Detector 3
Three positions for dichroic mirrors between Detector 1 and 2
Automated change of dichroic mirrors
Dichroic mirrors between Detector 1 and 2: Short pass: 510, short pass: 568, one free position for maximum transmittance
One fixed dichroic mirror for Detector 3: long pass 650
Detector 1, Peltier cooled CCD camera, 1.3 mega pixel, 12 bit resolution, Emission band pass changer, six positions
Detector 2, Peltier cooled CCD camera, 1.3 mega pixel, 12 bit resolution, Emission band pass changer, six positions
Detector 3, Peltier cooled CCD camera, 1.3 mega pixel, 12 bit resolution, Fixed emission filter for far red dyes on Detector 3: 690/50

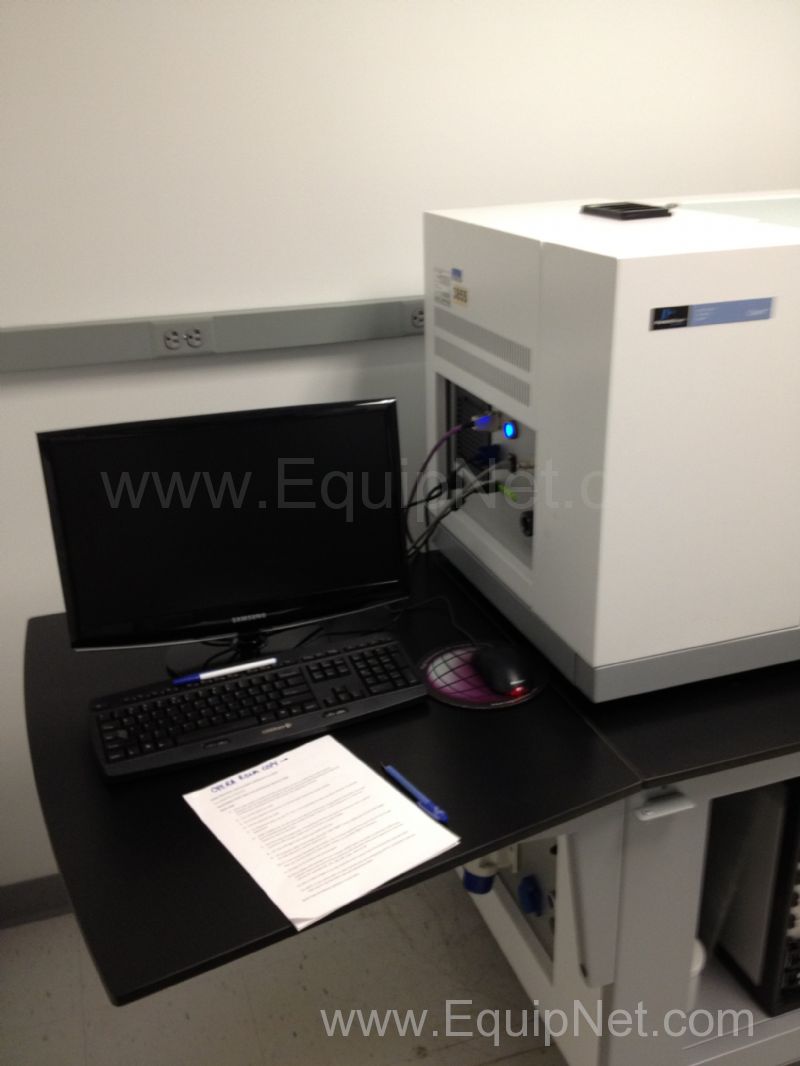

Control Computer System
Operating system: Microsoft(R) Windows(R) XP Professional, Processor: Intel(R) Pentium(R) M, 1.7 GHz (or faster), Memory: 1024 MByte, Hard drive: 80 GByte, Network interface: 1x1 GBit Ethernet, Monitor: 19.. LCD
Opera operating software, Computer controlled laser power, Single and double exposure multi color measurements, Predefined plate formats: 96, 384, 1536, User defined plate formats: free definition possible, Multiple image fields within single wells, z-stack measurements
Automated skew crop and flat field correction
Selectable data compression possibilities
Acapella Software, perpetual single user local license
Cellular Assay Libraries, local perpetual single user license |
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Massachusetts. |
| This equipment is subject to a removal and loading charge. |
|
