You are making an offer on a Ross S-45 Modified Atmosphere Tray Packaging Machine, MAP located in the USA. This lot is being sold "as is, where is." We recommend that you contact an EquipNet sales representative to set up your own inspection.

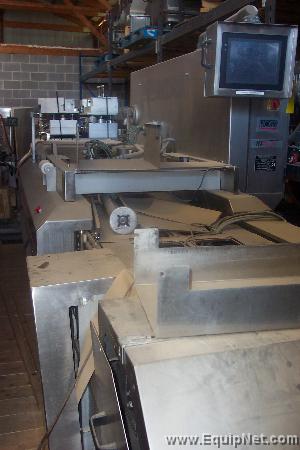

Ross S-45 Modified Atmosphere Tray Packaging Machine, MAP
Ross INPACK™ "S" Series
Modified Atmosphere Tray Packaging Machine
A robust, heavy duty, medium-to-high-speed modified atmosphere packaging machine offering exceptional flexibility in programming, tooling and product types packaged. Using preformed barrier trays and lidding films, the Ross INPACK™ "S" Series produces the industry’s ideal hermetically sealed, tamper-evident, leak-proof package.
Key Features of machine as set up by the mfgr. This machine's options may vary:

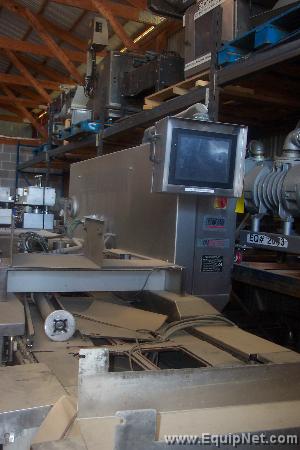

Full Color Programmable Touch-Screen Control Panel on a multiple position pivot arm
Servo-Driven Indexing System with fiber optic sensors

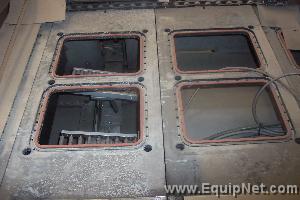

Unique Over-Center Toggle Die Lifting System and Totally Enclosed Evacuation and Gas Flushing Chamber
Contoured Filler Plates in Tool Chamber for minimizing evacuation times and gas consumption
Positive Positioning Tray Carrier System adaptable to any tray size or shape
Independent Lane Control Sealing/Cutting Heads
Heated Cutting Knives for optimum shrink-back control on Lid 1050 films
Integral Converger System for single lane discharge Easi-Load™ Film Facility
Stainless Steel Open-Frame Construction for ease of cleaning and maintenance
Meets NEMA 4X and IP65 standards for Wash Down environments
Fully compliant with USDA and European (CE) standards/regulations
Multiple Level Security to monitor and control packaging parameters
Storage of up to 10 custom programs for tray and/or product types
Specifications from mfgs. web site:
Machine Dimensions
Length: 188.8" (4,796 mm) to 338.8" (8,608 mm)
S-45 50.71" (1,288 mm)
Height: 78.75" (2,000 mm)
Utilities Requirements
Electrical 208-575V, 3Ph, 50/60Hz
Water 30 Gallons/Hour (114 Liters/Hour)
Air 20 CFM (566 Liters/Minute)
Film Details
Width Maximum of 30.4" (760mm)
Core Diameter 3" (75mm)
Film Type(s) Lid 1050 and other standards
Standard Configurations Optional Configurations
Three carrier loading area Automatic Loader
Shorter & Longer loading area
Touch Screen Controls Registration for printed film
Converger Date coders
Gas by pressure Labelers
Controls for heated knives
Online gas analyzer two (2) sets of tooling available with this machineCE compliant
- Manufacturer Ross Industries
- Year 2002
- Model S-45
- Capacity Speed
- Estimated Shipping Weight 5000
- Length 16 FT
- Width 6.5 FT
- Height 6.5 FT
- Removal Difficulty READY TO SHIP
- Film UNKNOWN
- Film Type UNKNOWN
- Seal Type UNKNOWN
- Wrapping Method SHRINK
- Requires rigging or removal NO
- Requires a flatbed truck NO
- Level of shipment preparation necessary UNCRATED/LOOSE
Contact Information
If you need further information, please contact our Sales Department at 888.371.6555, outside USA at +1.781.821.3482, or click here to send us a message, or by email to sales@EquipNet.com
Payment Methods:
Certified Check, Bank Check, Company Check w/Bank Guarantee, or Wire Transfer
Crating, Rigging, and Shipping Info:
Buyer is responsible for all crating and shipping charges. EquipNet can furnish a quote upon request. Please contact sales@equipnet.com.
Location:
USA
Dimensions: 16x6.5x6.5 FT
