Packaging Equipment    Filler Capper Combination    324212 Serac 45 Station Rotary Filler System Model DT45V19/1620
Serac 45 Station Rotary Filler System Model DT45V19/1620
Rate listing info and photo quality Why?

Not rated yet
Listing #324212

Serac 45 Station Rotary Filler System Model DT45V19/1620

EquipNet Tag #290533-1

$280,000.00 Seller's Acceptable Currency

All offers are submitted in Seller's Acceptable Currency

Equipment Description:

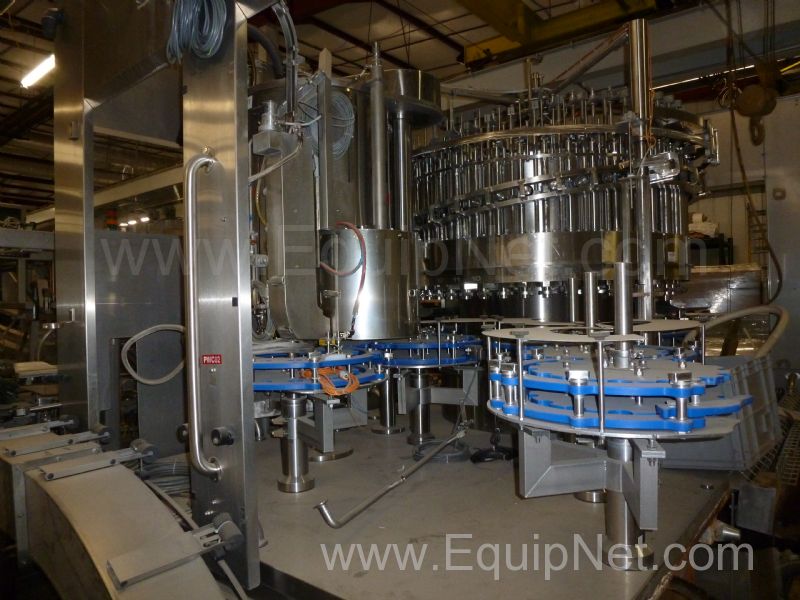

Serac 45 Station Rotary Filler System Model DT45V19/1620
  • System includes:

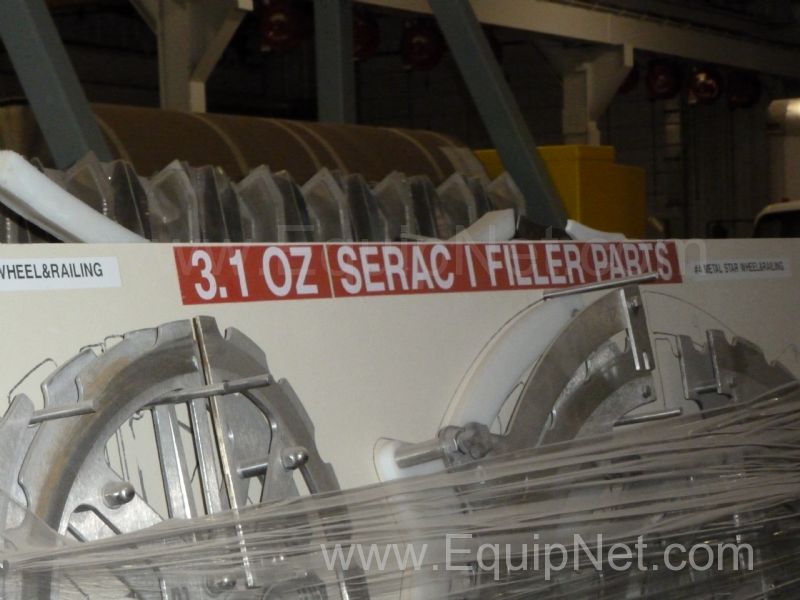

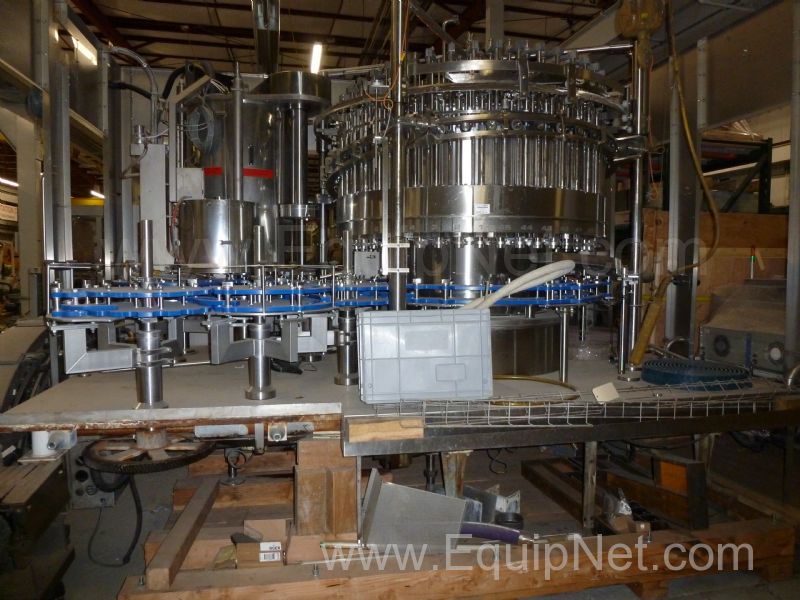

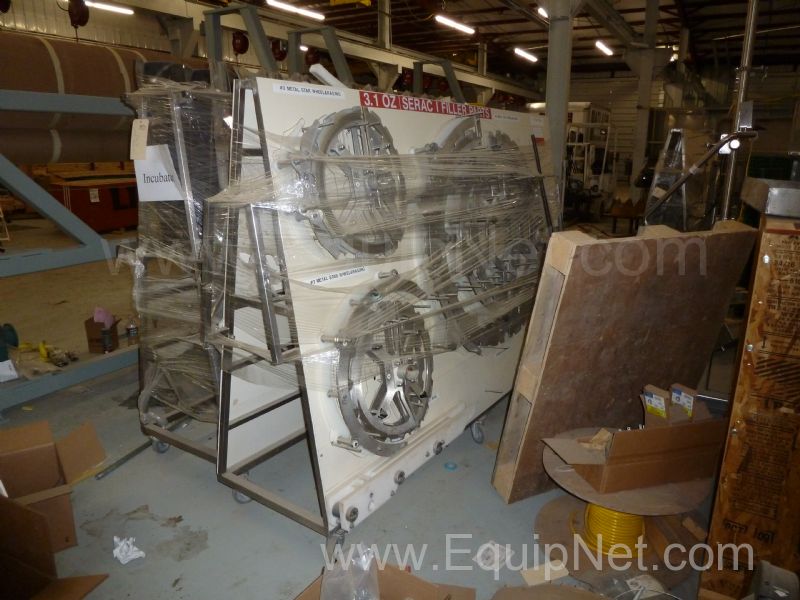

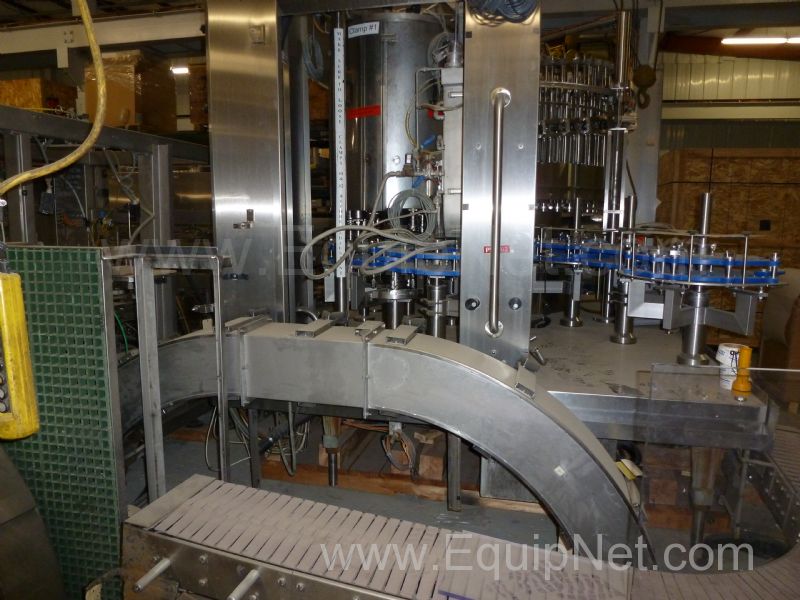

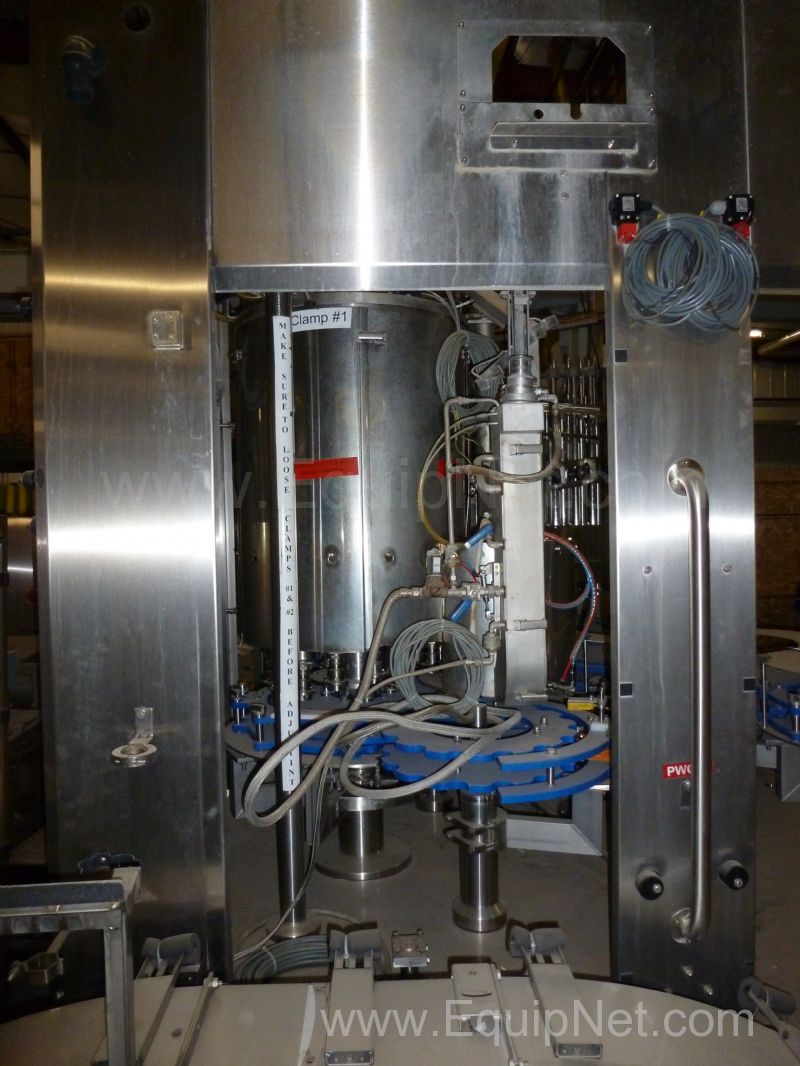

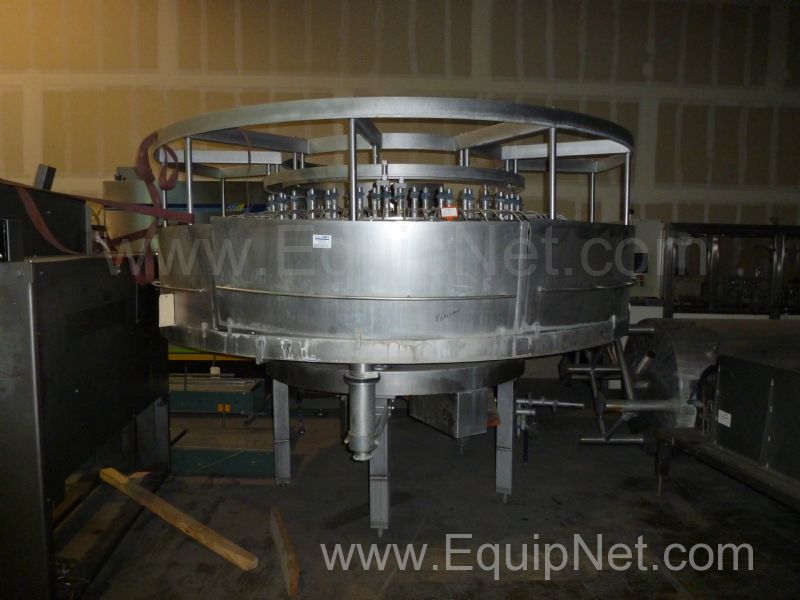

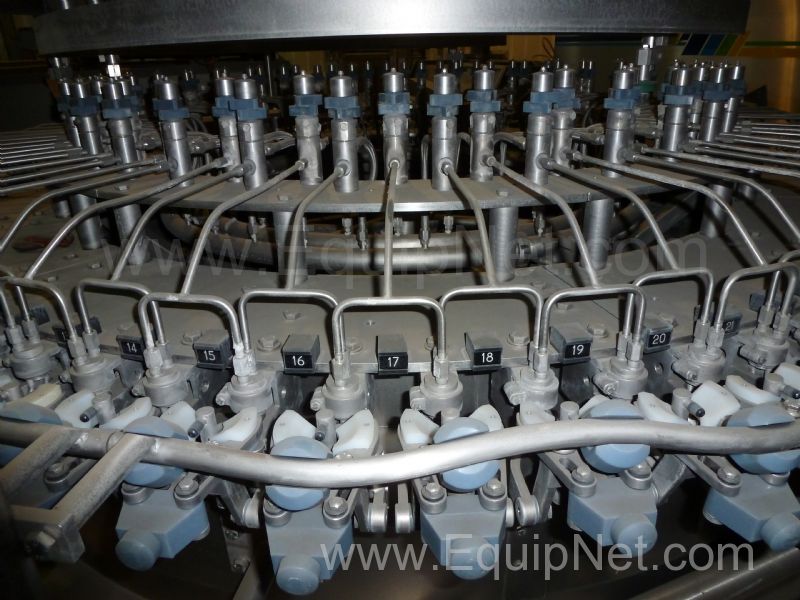

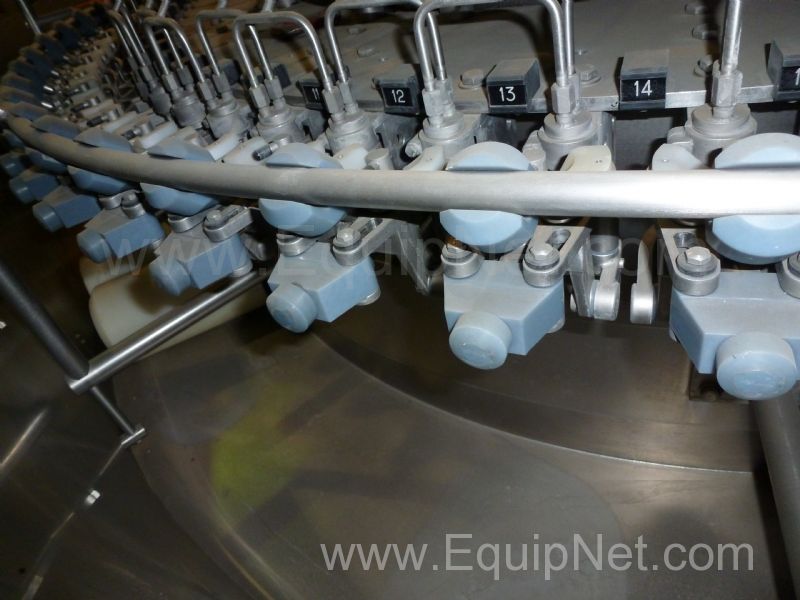

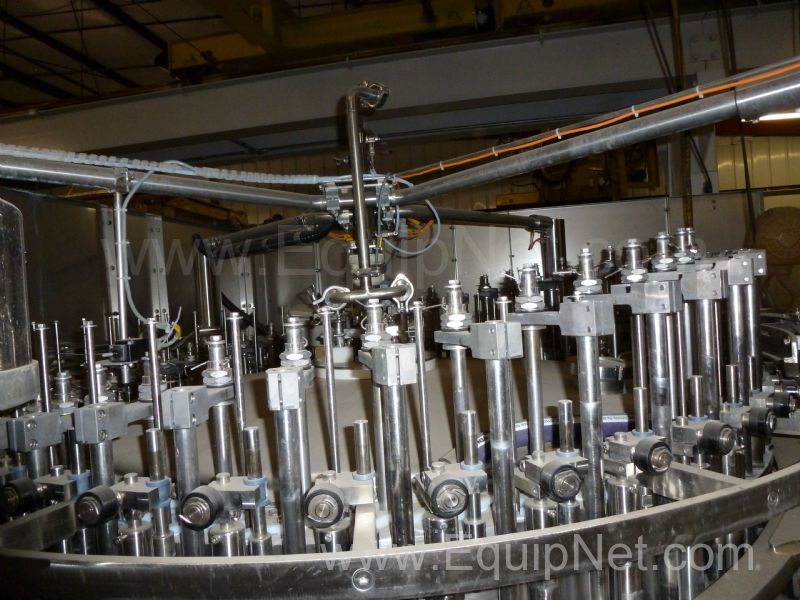

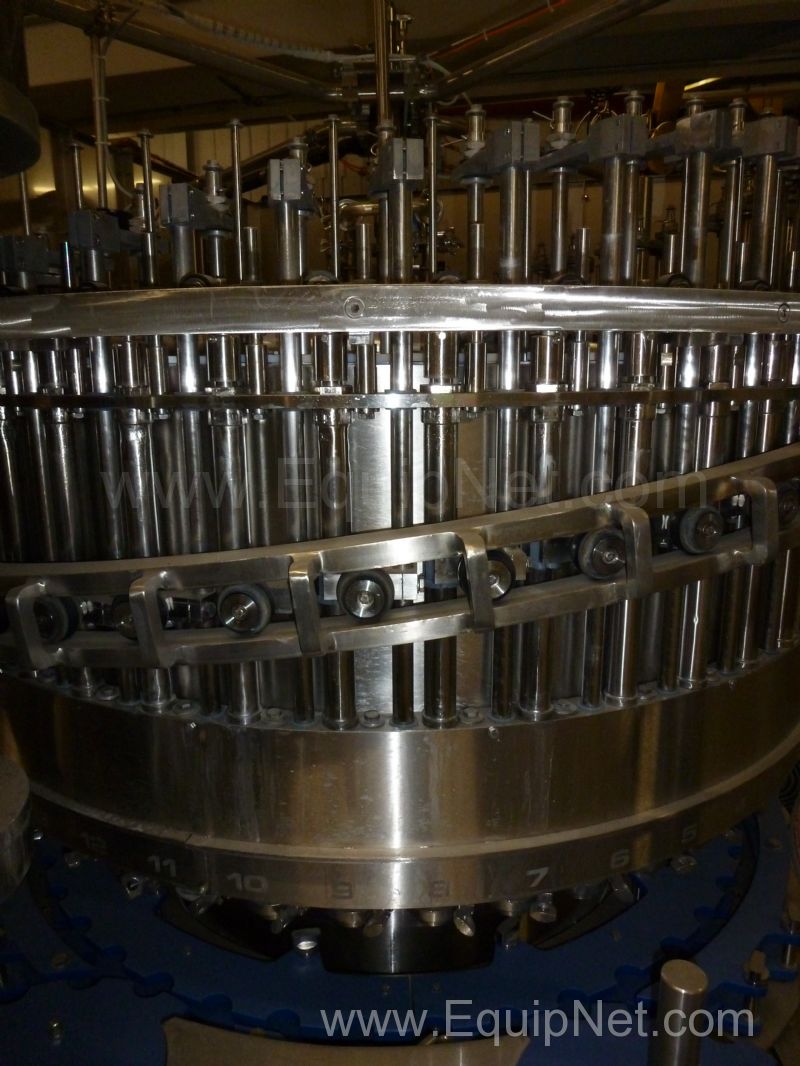

  • Serac rotary filler, 45 station, rated ~45,000 bottles per hour, 110MM centers on filling nozzles, tooling presently set up for a 7OZ fill, there is also misc tooling included for a 3.1 OZ fill, with misc. star wheels
  • Zalkin capping turret, presently set up for 38MM screw on caps

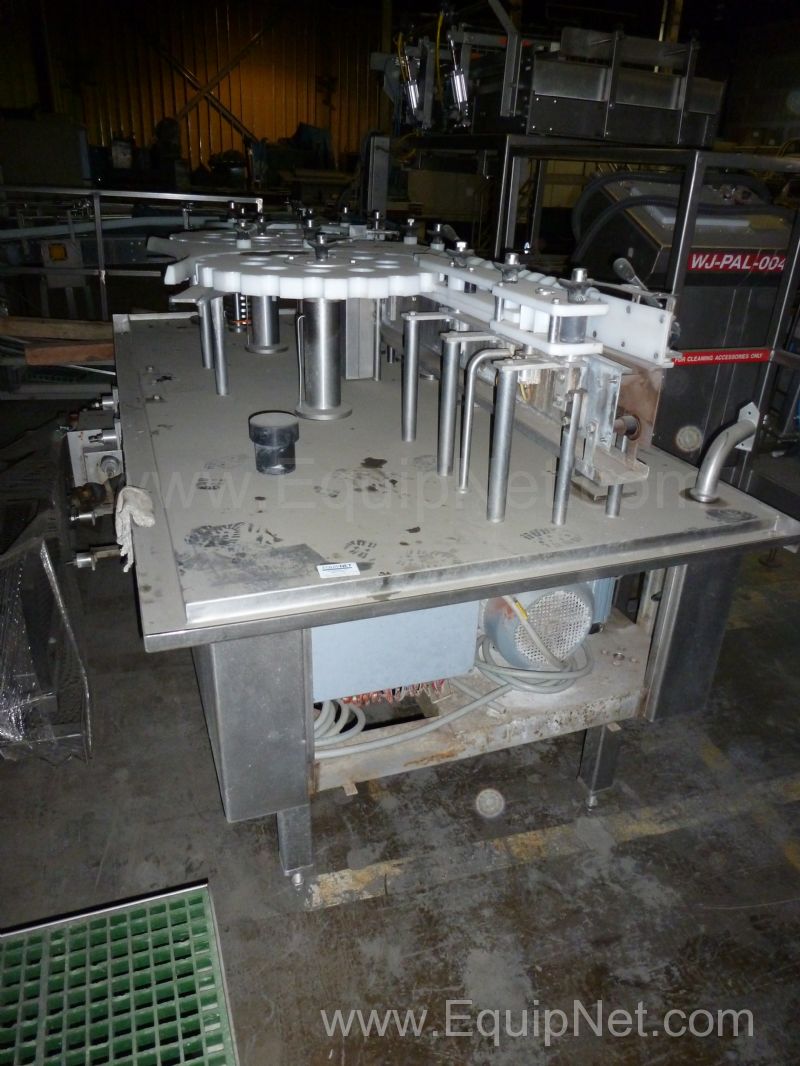

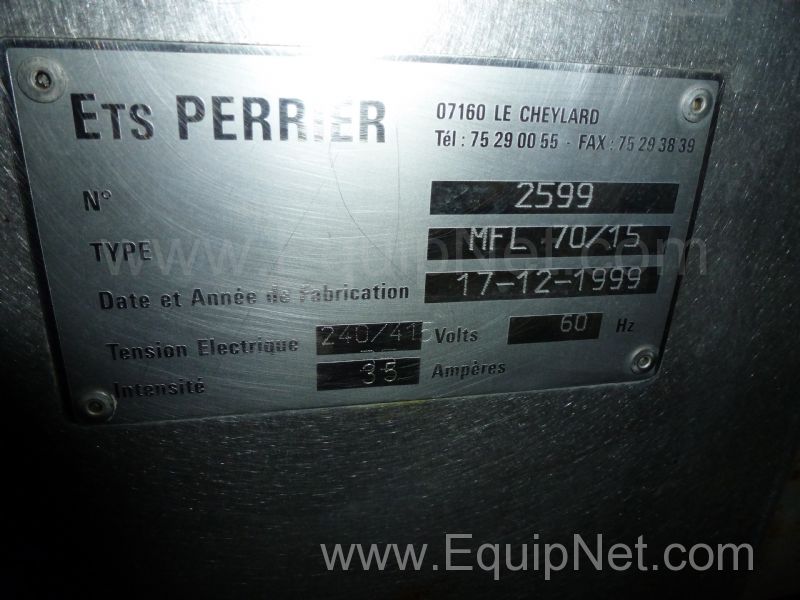

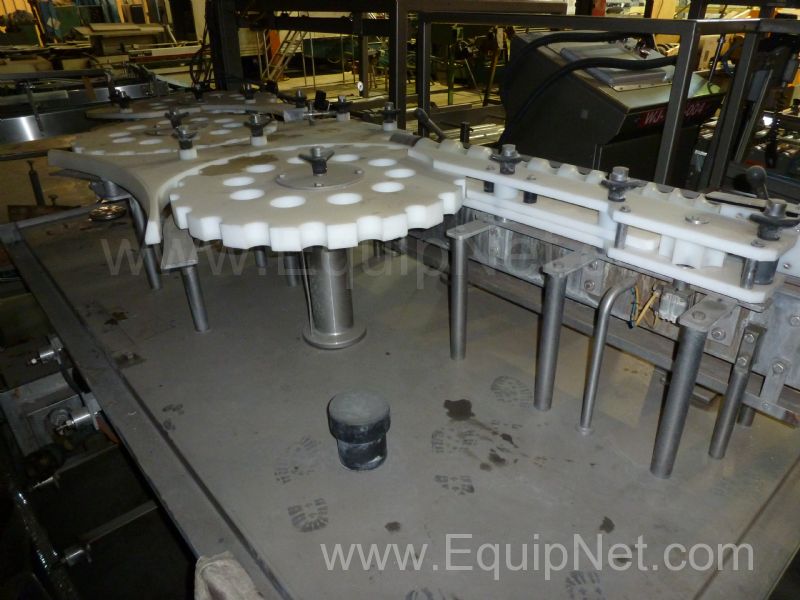

  • ETS Perrier filler table, model MFL 70/15, serial no. 2599, stainless steel table with star wheels set up for the 7 OZ fill, included is a spare Perrier filler table set up for the 3.1 OZ fill
  • ETS Perrier 70 head bottle rinser, model MFL 70/20, pitch: 113,08, the bottle is moved by conveyor and star wheel, inverted and rinsed with liquid or air, than returned to a vertical postion and discharged

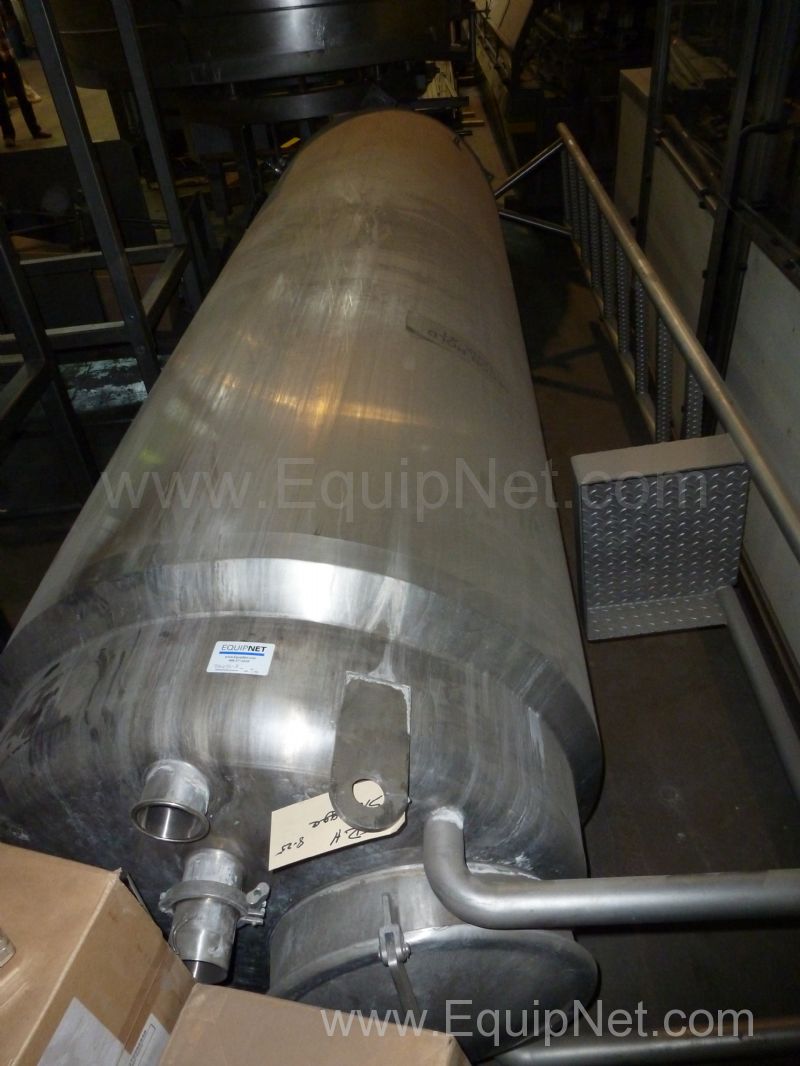

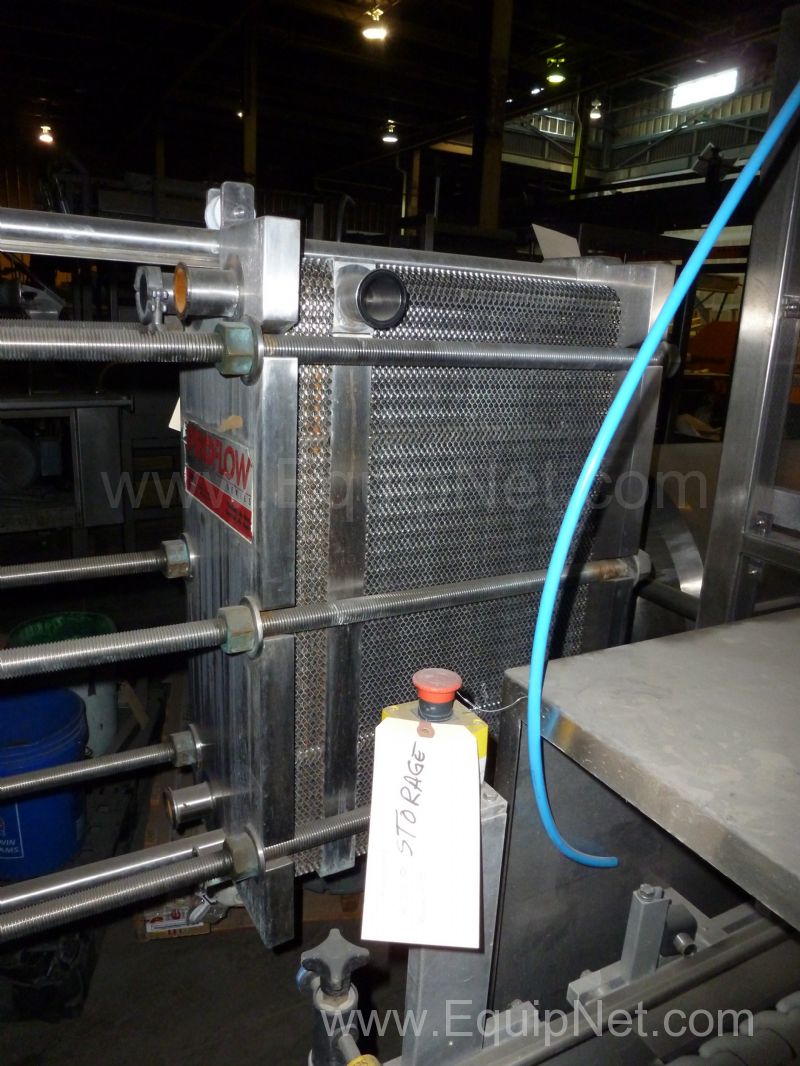

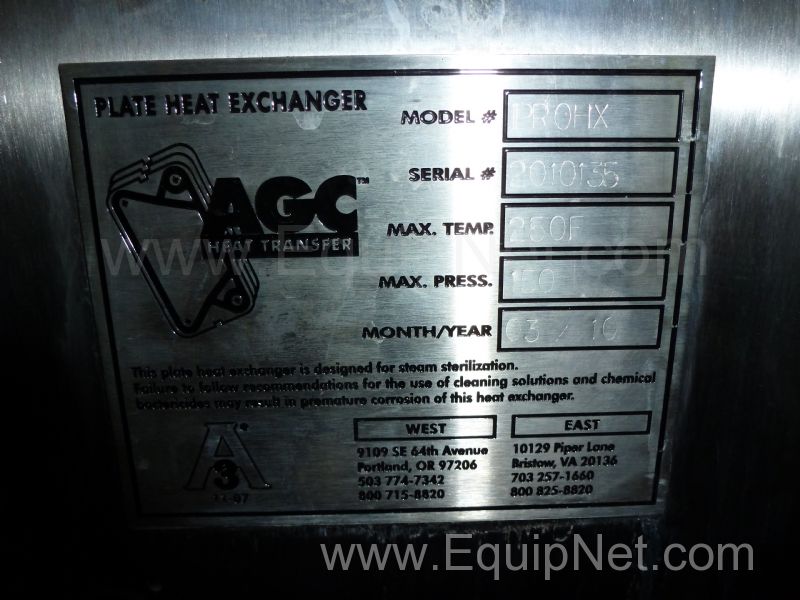

  • CIP system including CIP tanks, AGC stainless steel plate heat exchanger model PROHX, serial no. 2010135, rated 150 PSI @250 deg. F, Fristham stainless steel pump, new 2010
  • NTS Group Netra Systems overhead air veying system for empty bottles
  • MTC bottle dump hopper stainless steel with hydraulic pump
  • Cap elevator for filler, ~15' high
  • Rionde SA cap rinser system, model WAP4 #100, rated 33000-36000 CPH, used with H202 process
  • Roof mounted HEPA positive air filter system

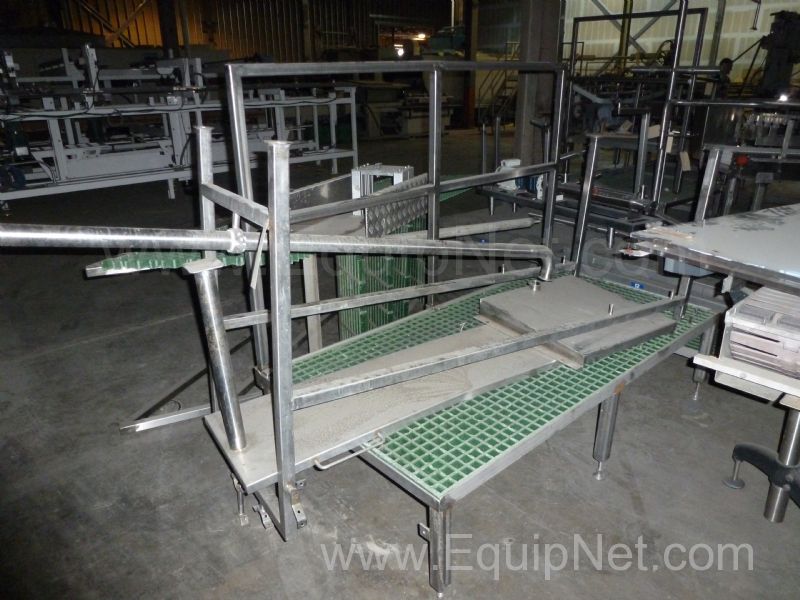

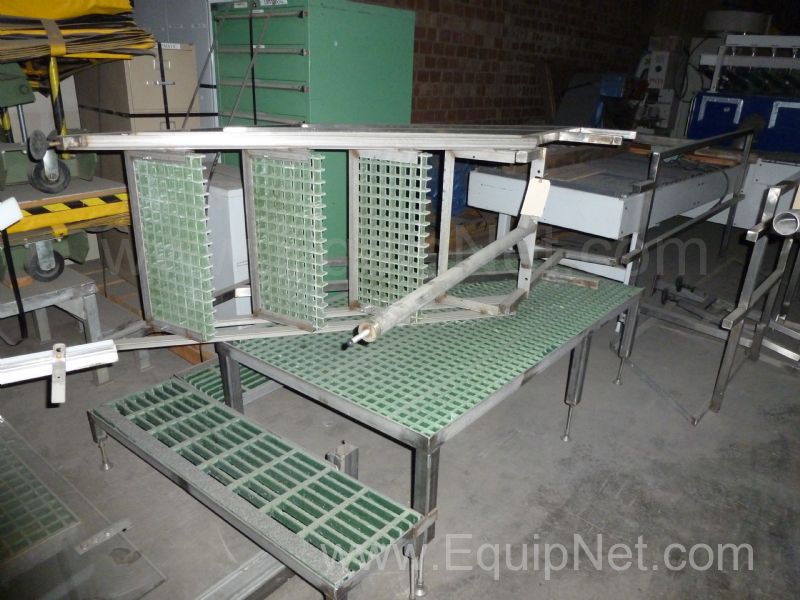

  • Misc. sections of mezzanines, stairs, crossover, bottle conveyors
  • Serac operators manual
  • Packaging equipment from this line is priced separately
  • More pictures available on request

    • Disclaimers:

    This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Utah.

    Please Note: The seller of this equipment requires the buyer to accept a sales agreement. Click here to view the sales agreement.


    The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

    Equipment Specifications:

    ManufacturerSerac
    Year2003
    ModelDT45V19/1620
    Serial Number221
    Capacity Size7 OZ
    Capacity Speed45000 BPH
    Products Rundrinkable yogurt
    Spare/Change PartsYES
    Air Requirements6 BAR
    Manual AvailableYES
    Estimated Shipping Weight0 LBS
    Maintenance Log/Records AvailableYES
    Length0 IN
    Width0 IN
    Height0 IN
    Voltage480 VOLTS
    Frequency60 HERTZ
    Phase3
    Type of CapSCREW
    Filling MethodVOLUMETRIC
    Recommended Packaging FormCUSTOM
