Lab & Analytical - Measuring Equipment - 130713 Unused ABB Liquid Flow Meter
Rate listing info and photo quality why?
Not rated yet
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Browse all Lab & Analytical

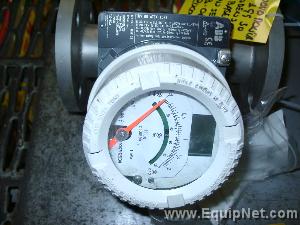

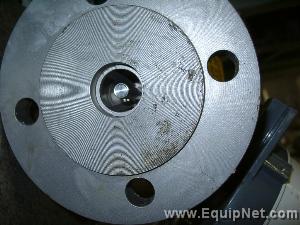

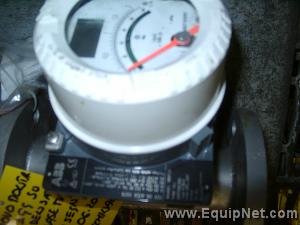

Unused ABB Liquid Flow Meter
Listing #130713
Listing Price:€1,050.00Seller's Acceptable Currency
All offers are submitted in Seller's Acceptable Currency



This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Italy.

  • This lot is an Unused ABB Liquid Flow Meter. The model number is AM54132. The meter is a DN50 2" size. The meter reads in l/H.
  • FAM5400-32 Indicator with electronic converter, output 4-20, flow totalizer with display
  • Technical Data - Converter
  • Protection Class: IP 67
  • Supply power: 14-28 V DC
  • Power: <1 W
  • Current output: 4…20 mA, load < 750 ½
  • Binary output: Function selected in the software:
  • Alarm: Min, Max, or Min-Max
  • Pulse output: fmax 100 Hz pulse width: 1…256 ms
  • Display: High contrast LC-Display for indicating the instantaneous flowrate and the totalized flow,
    clear text configuration. Magnet Stick operation without opening the housing
  • Multifunction-Floats
  • The Multifunction-Floats consist of a basic body whose geometry can be altered by adding various components.
  • Using appropriate supplementary weights the float can be optimally adjusted.
  • Using only three meter tubes in the 1”/DN25 size and one meter tube each in sizes 2”, 3” and 4”/DN 50,80 and 100 and the Multifunction-Floats maximum flexibility is achieved.
  • The significant advantages for the user are: Good matching to his required flow range
  • Flow ranges can be easily changed at any time
  • The minimum and maximum flow ranges possible are
    listed in the above tables. Any desired 10:1 flow range
    between these two limits is available.
  • Flow range: 1:10
  • Accuracy Class: 1.6 (VDI 3513)
  • Installation length: 250 mm (std. design)
  • Allowable fluid temperature:
  • Standard: - 40 to +400 °C
  • PTFE-Design: - 20 to +125 °C
  • Pressure ratings:
  • Flanges per DIN 2501, PN40, PN63 (DN100: PN16)
  • Flanges per ANSI B16.5, CL 150 RF CL 300 RF


    • Equipment Specifications
    ManufacturerUnknown
    ModelAM54132
    Product Sizing0
    Products Run0
    Spare/Change PartsUNKNOWN
    Estimated Shipping Weight0
    Length0 FT
    Width0 FT
    Height0 FT
    DiameterNO IN
    DepthNO IN
    VoltageUNCRATED/LOOSE VOLTS
    Recommended Packaging FormCUSTOM
