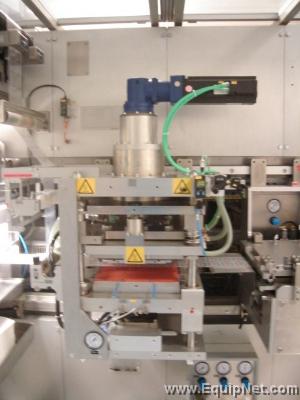

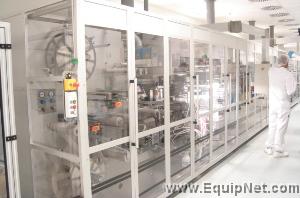

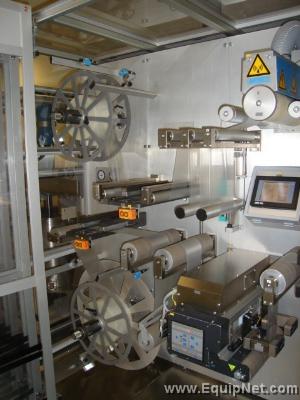

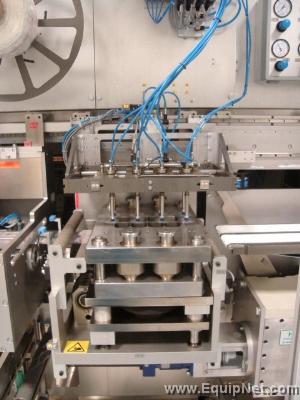

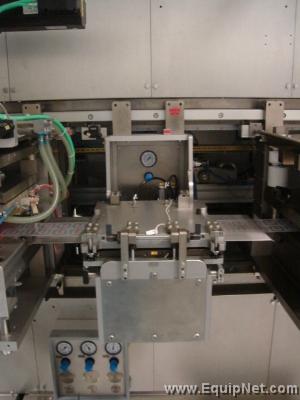

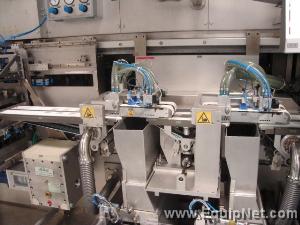

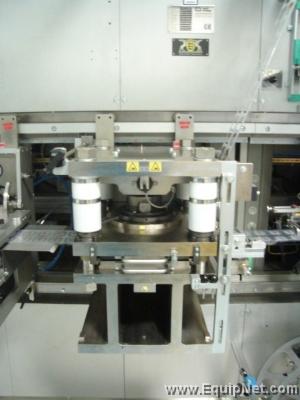

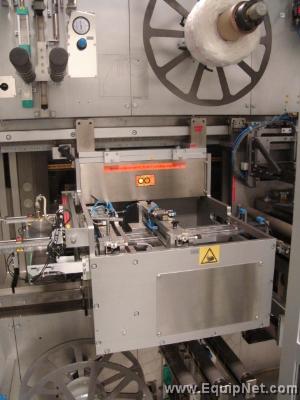

You are making an offer on an Unused Harro Hofliger PMT 350 Intermittent Patch Production Machine located in Belgium. This lot is being sold "as is, where is." We recommend that you contact an EquipNet sales representative to set up your own inspection.
Harro Hofliger PMT 350 Intermittent Patch Production Machine Servo controlled positioned and dosed amount of active substance through escorting dosing headsCamera control for checking the application of the active substanceInline imprinting of the film webs for patches and
bags with print pattern controlExactly fitting and product-conserving laminatingVacuum sealing of the carrier foil
Precise die-cutting of the interior and exterior contoursPick-and-place transfer to the outfeed conveyor with reject stationsDosing Heads for Application of the Active Gel Substance onto the Carrier FoilLamination of a Lidding Foil via the freshly dosed GelPick & Place Transfer of the Patches onto the Vacuum Transfer Belt to the Bag Packaging Station
Technical data
· 2-lane version
· Tools 6- or 8-up
· 30 Cycles/ Minute, up to 240 products/min.The machine was used for production of "reservoir" patches.No coating, but gel-filling/dosing - station. Please note that the product pumps are not included.Machine steps: Unwind upper and lower material, printing, filling, (vacuum)sealing, cooling, partial cut, waste rewinds, die-cut, outfeed.Web width: Used at site with film up to 8.4" width currently 2 lane configuration. Output: 240 products/minute, but speed is free adjustable(completely servo controlled) depending on different product steps.Functional analysis in attachment.Drawing attached. Please note that part 2 "pouch packaging machine" is also on the drawing, but is not included in the sale.
- Manufacturer Harro Hofliger
- Year 2003
- Model PMT 350
- Capacity Speed 240 PPM
- Products Run Out of Service
- Spare/Change Parts UNKNOWN
- Estimated Shipping Weight 15000 LBS
- Heating Cooling Requirements ELECTRICALLY HEATED
- Maintenance Log/Records Available N
- MSDS Available N
- Length 20 FT
- Width 4 FT
- Height 7 FT
- Voltage 230/460 VOLTS
- Frequency 60 HERTZ
- Phase 3
- Removal Difficulty READY TO SHIP
- Requires rigging or removal NO
- Requires a flatbed truck YES
- Level of shipment preparation necessary UNCRATED/LOOSE
