Complete lozenge manufacturing line consisting of the following:
Line is continious operation
Output the line was running at was approx. 356,000 per hour

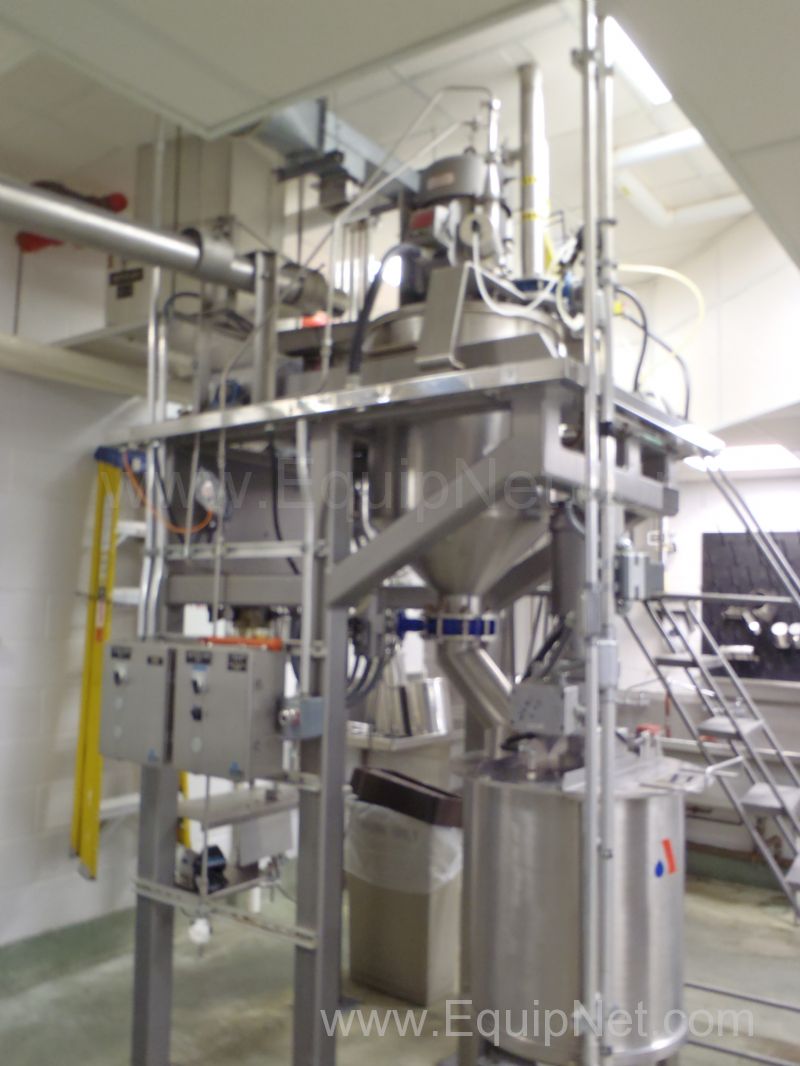

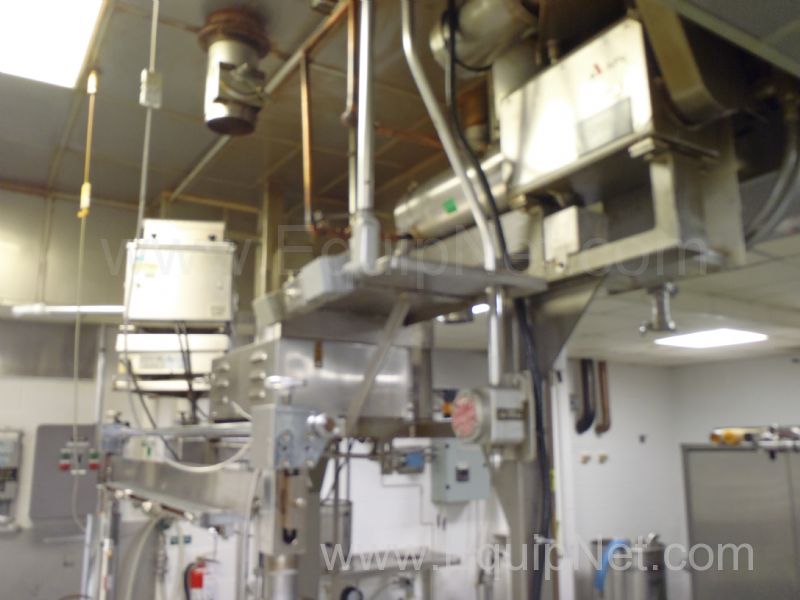

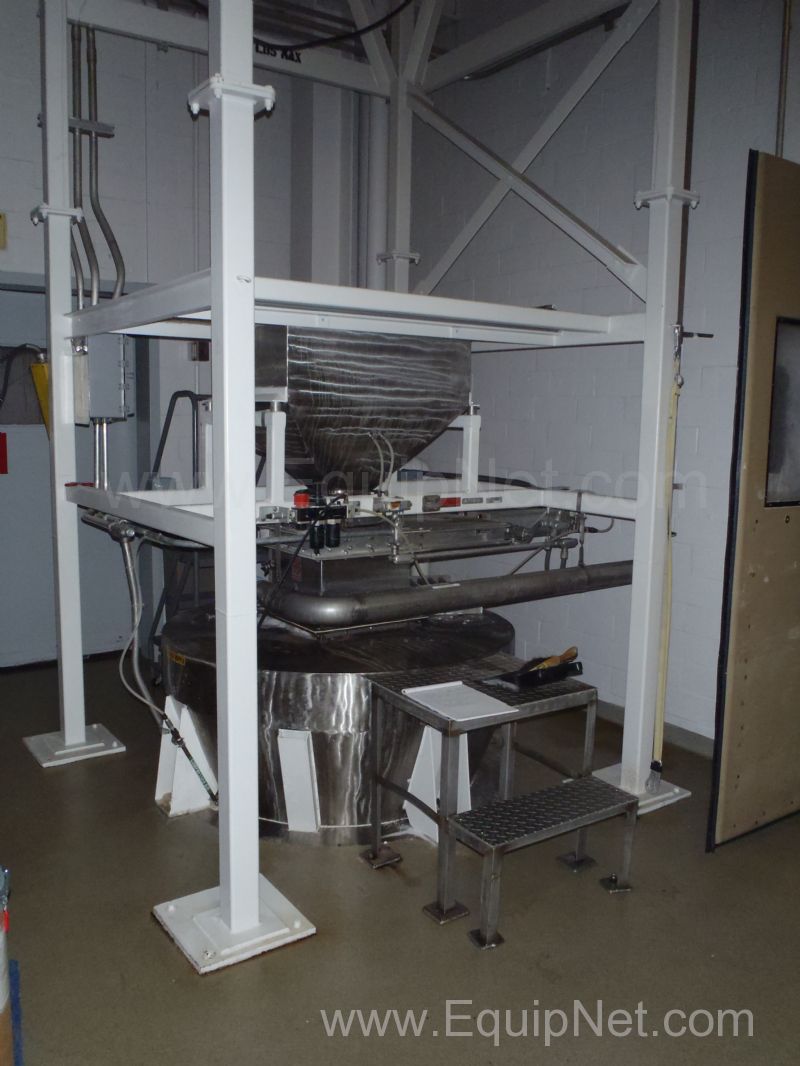

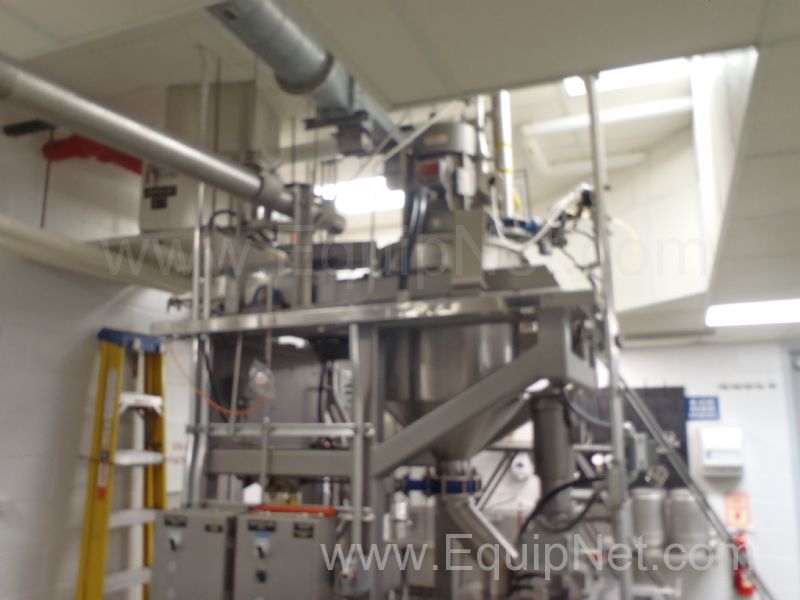

Ingredient feed and mixing system

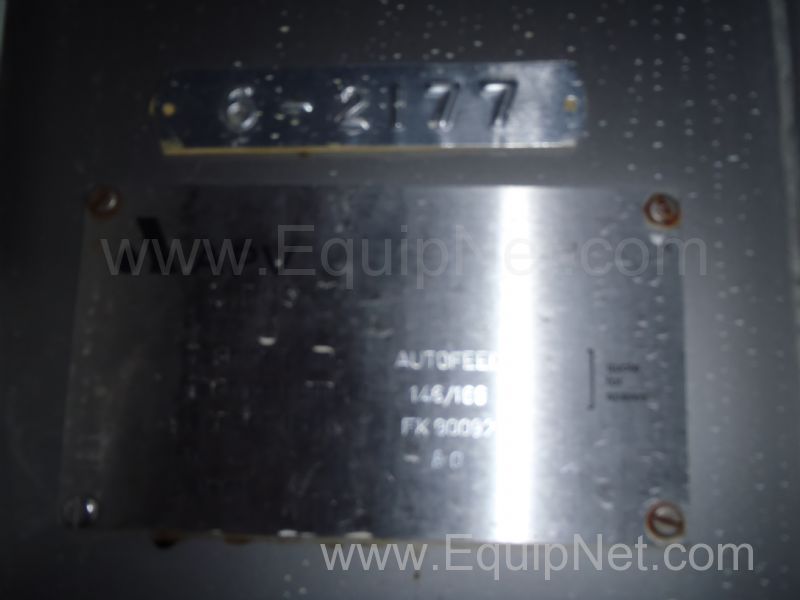

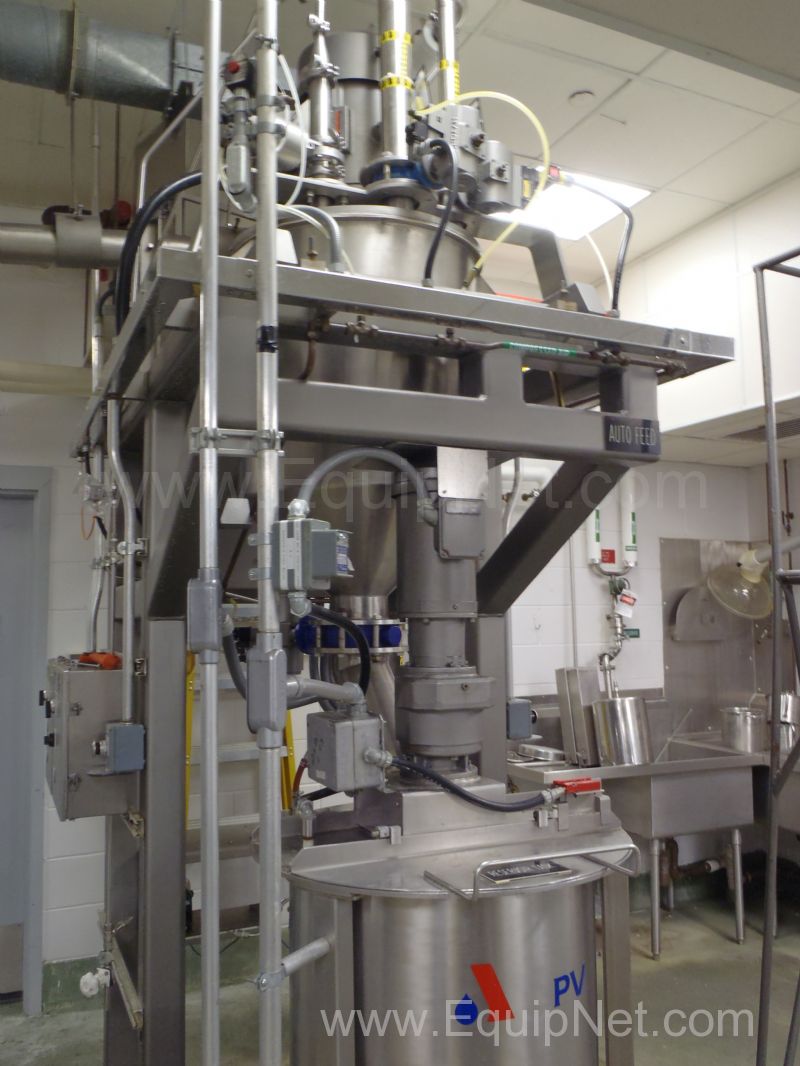

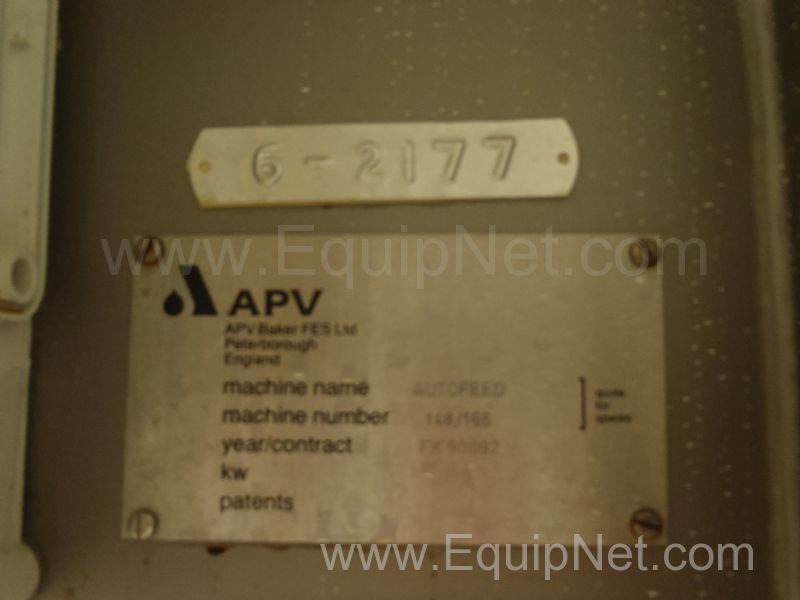

APV auto feed system
Serial #: 148/166
Contract #: FK90092

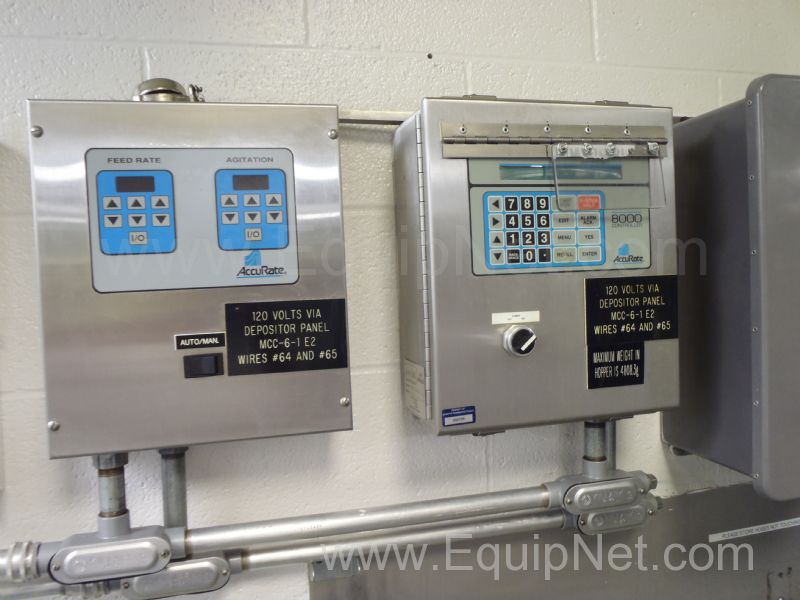

Accurate feed system for gum crystal

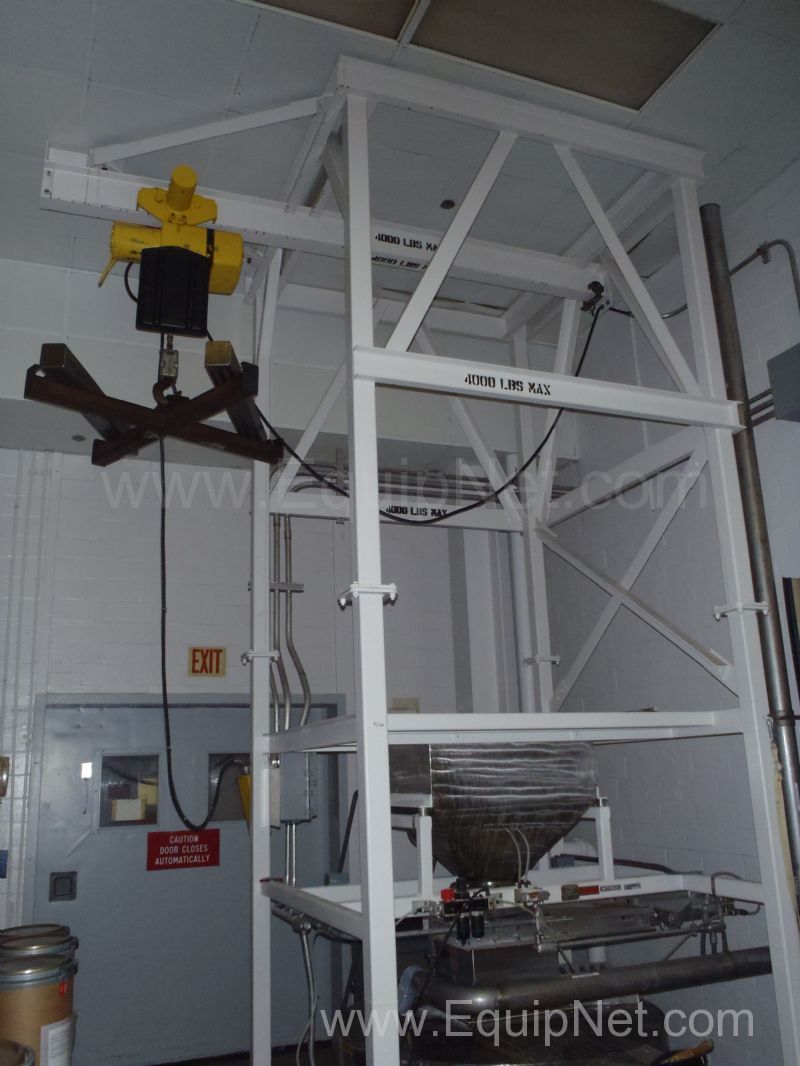

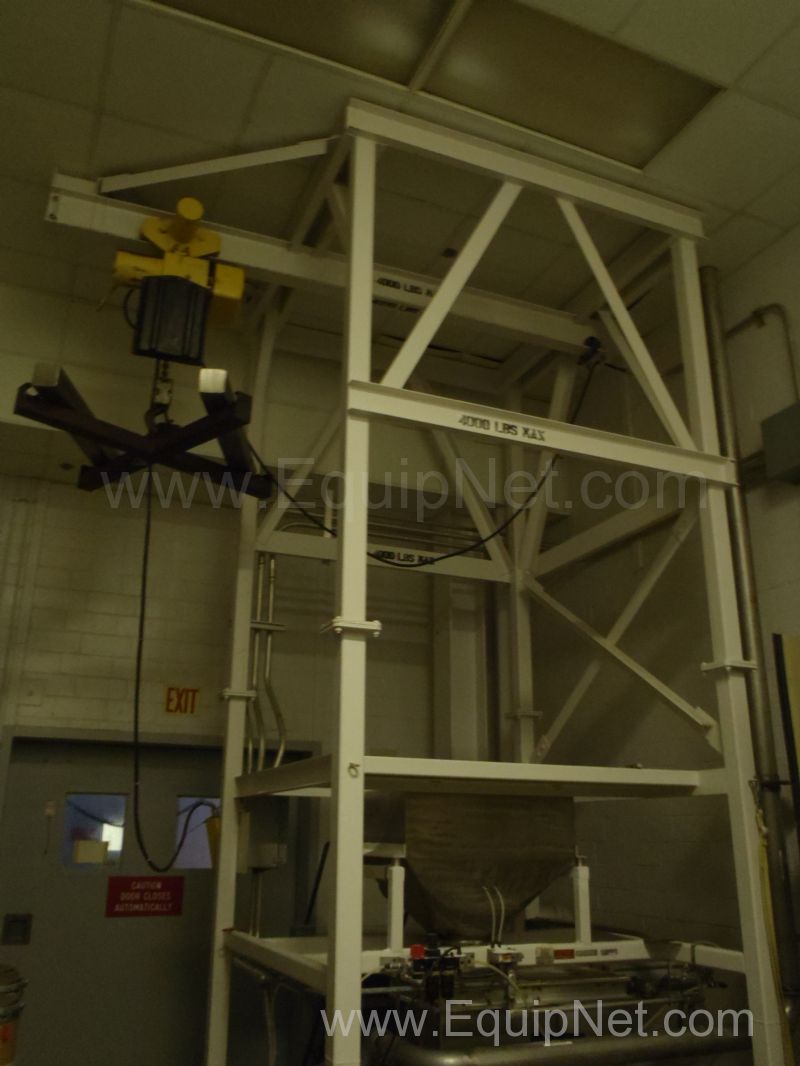

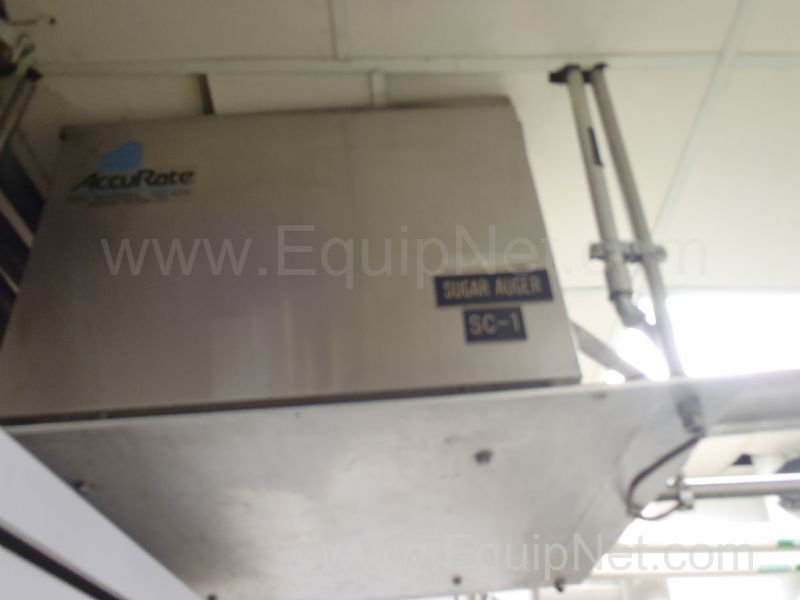

Accurate sugar auger - auger feeder (fed from super sack system on 2nd floor)

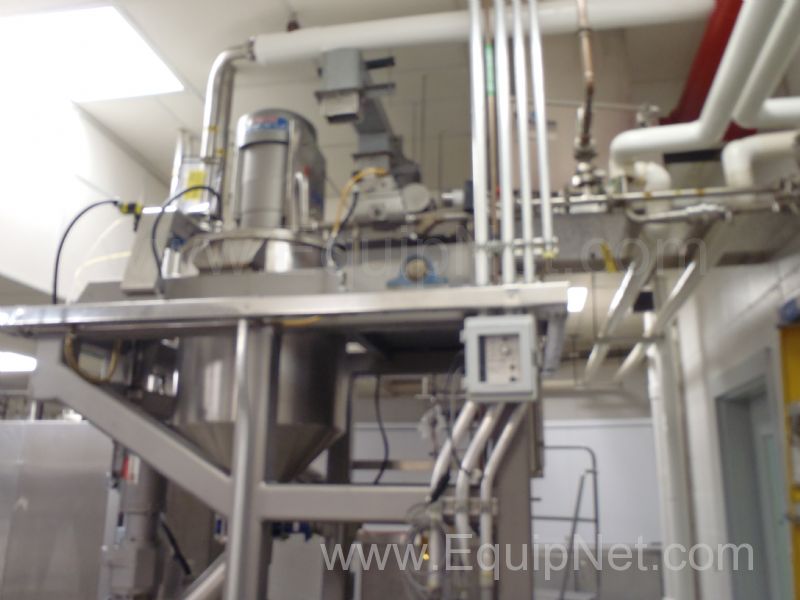

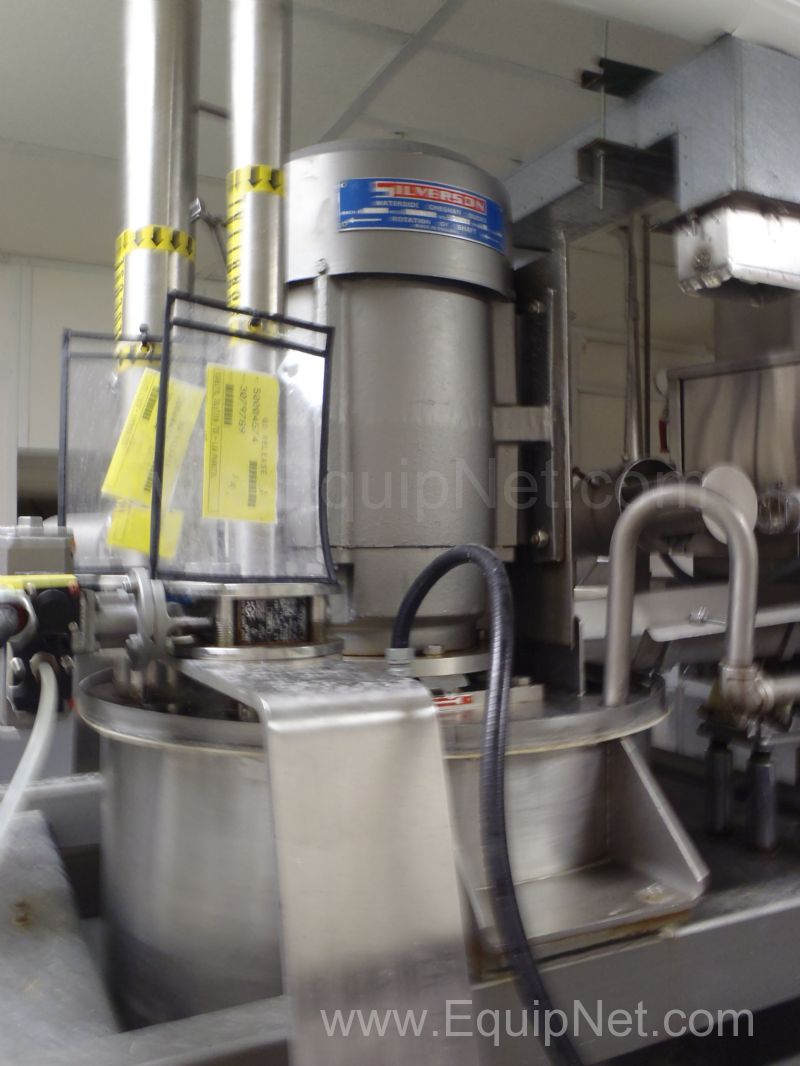

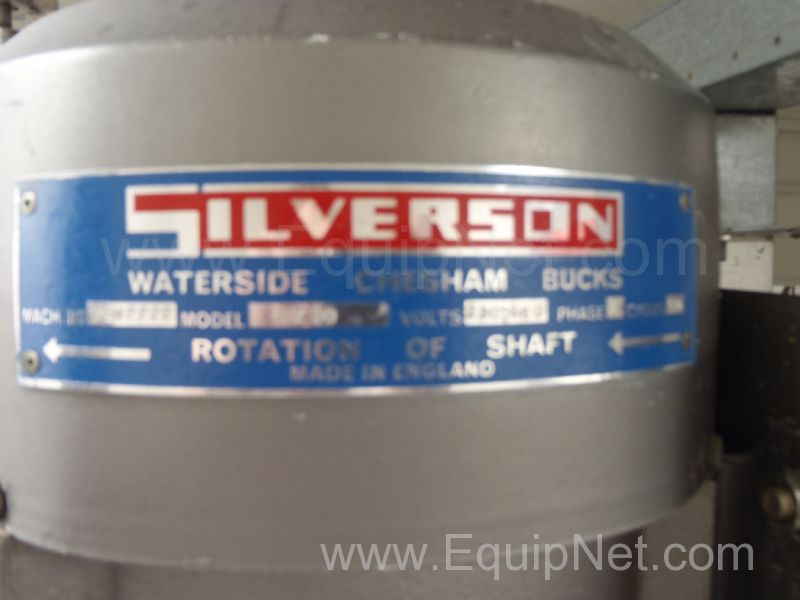

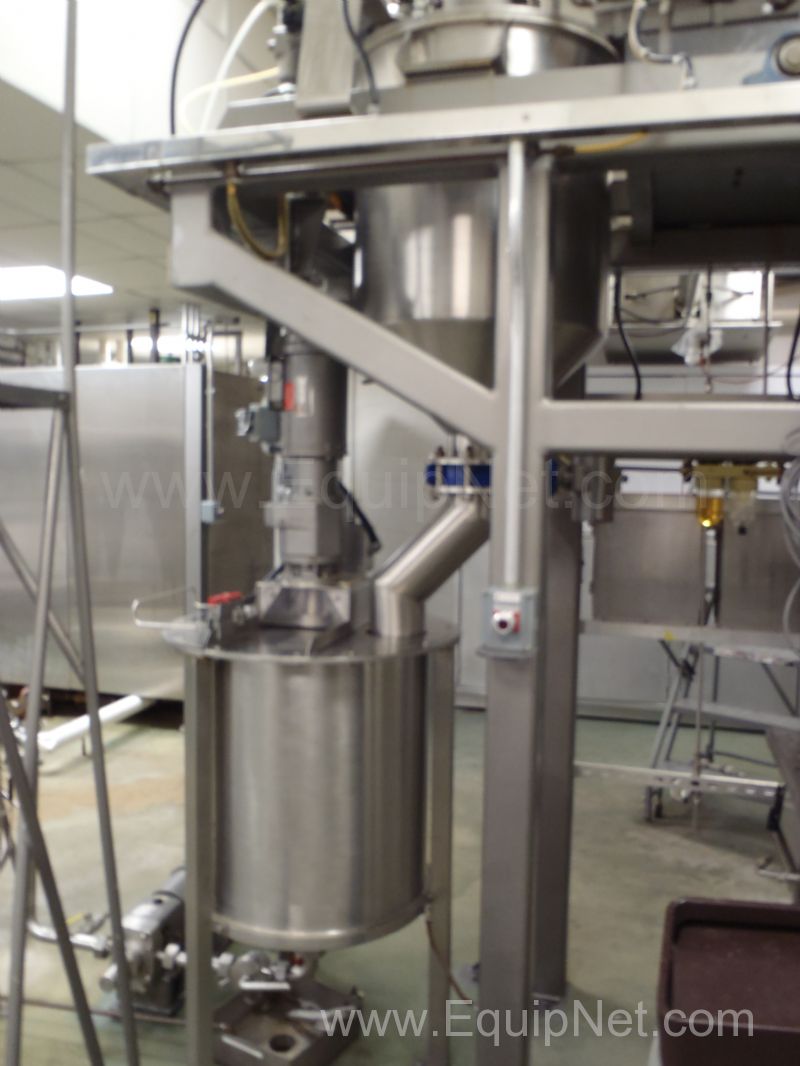

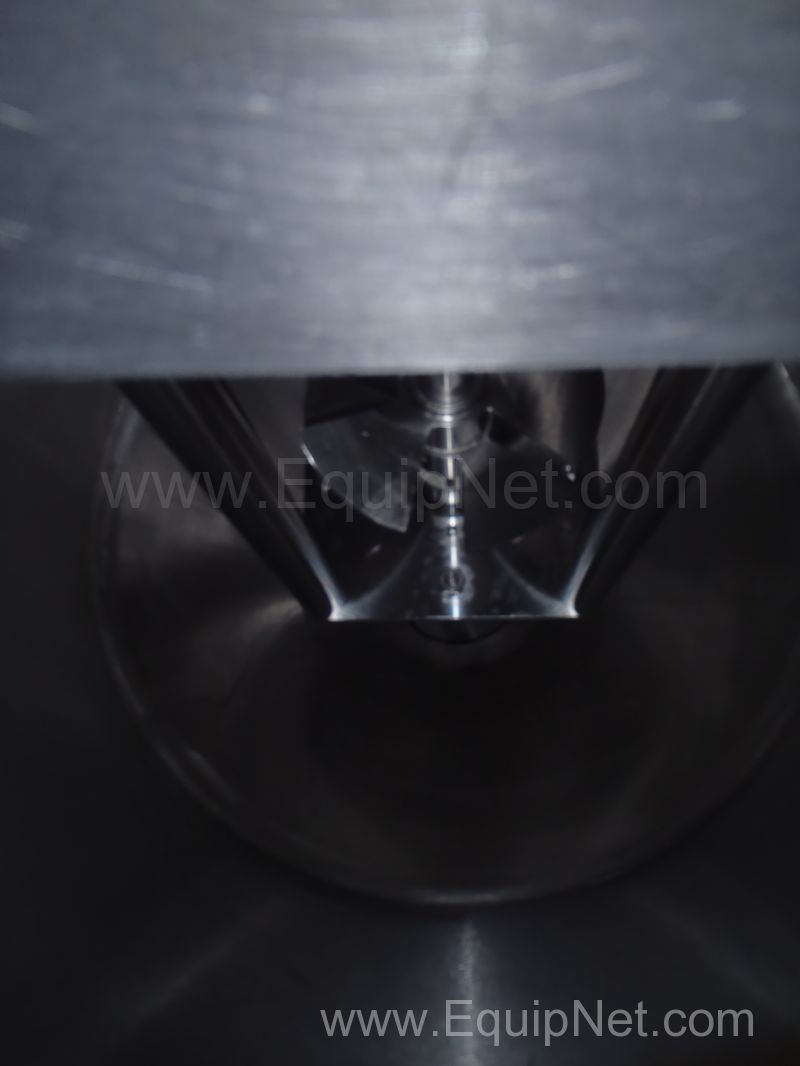

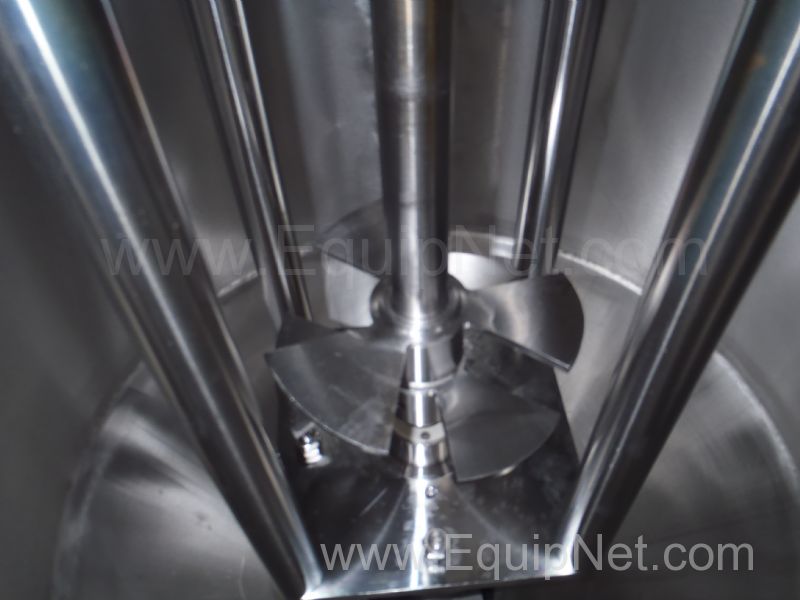

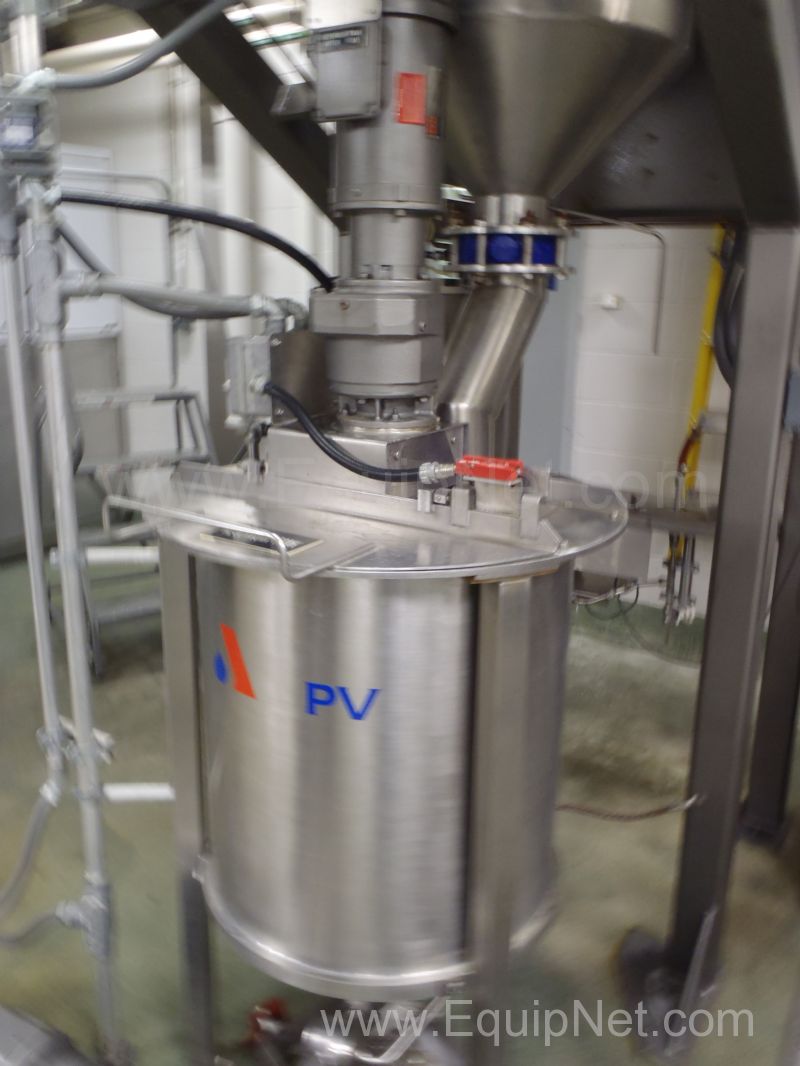

Feeds in to a batch mixing tank with a top mounted Silverson GX10 (serial #: 7CM2222 mixer - homogenizer)
System is used to batch dry and liquid ingredients (liquid sorbital, glucose and sugar)
Stand - mezzanine mounted

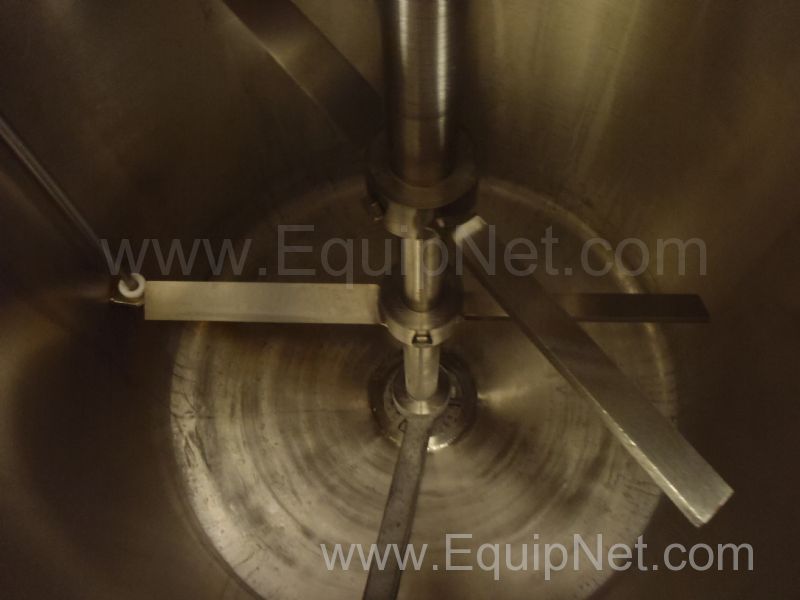

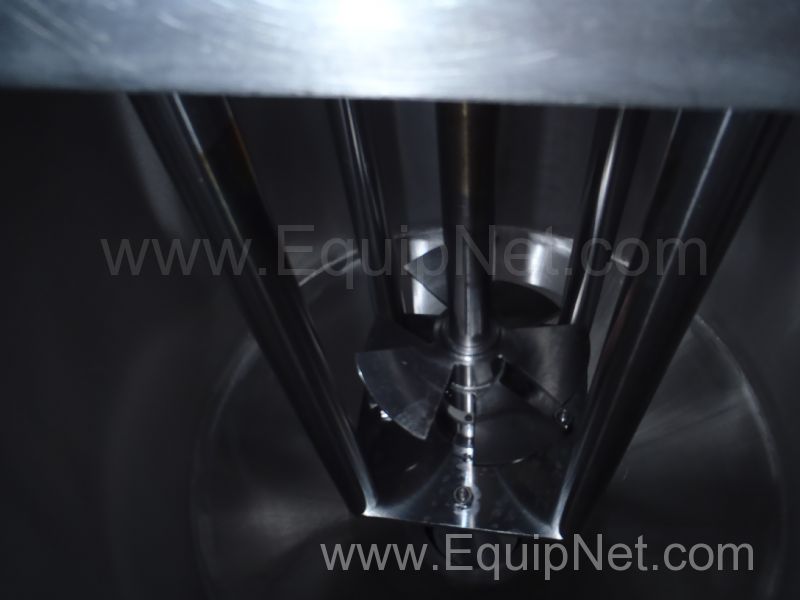

Bottom discharge in to approx. 30 gallon single wall hold tank with bottom discharge and top mounted single motion (with multiple blades) mixer
Cookers - Dissolver

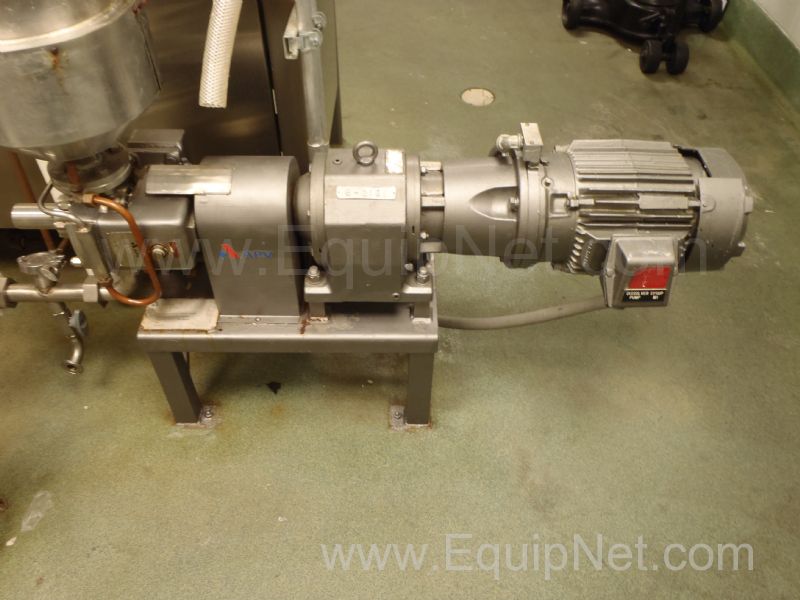

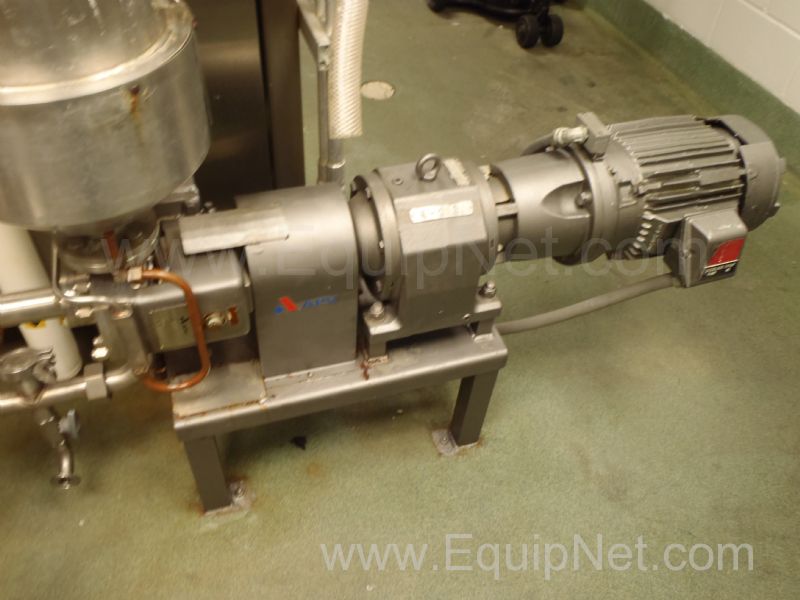

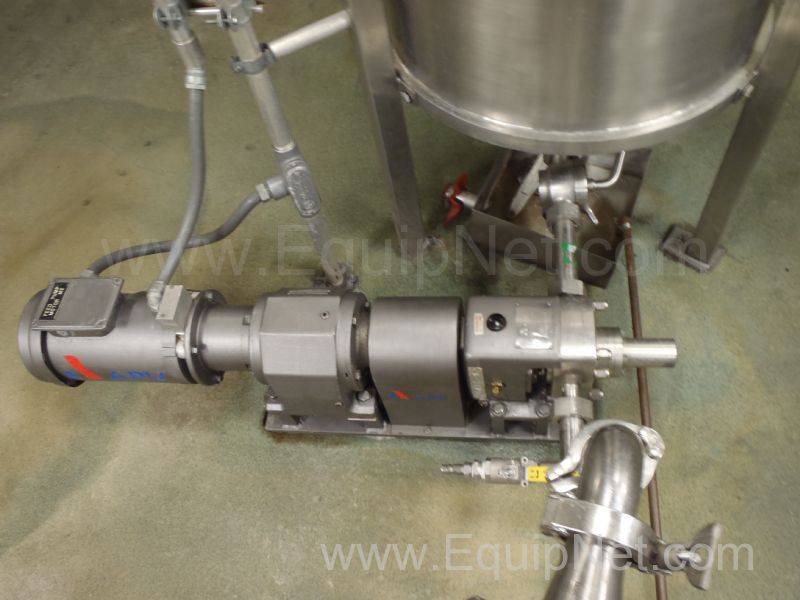

APV rotary lobe style transfer pump from tank to stainless steel filter housing (course mesh screen)
Pump model: CL/1H/012/20
Pump serial #: 17870

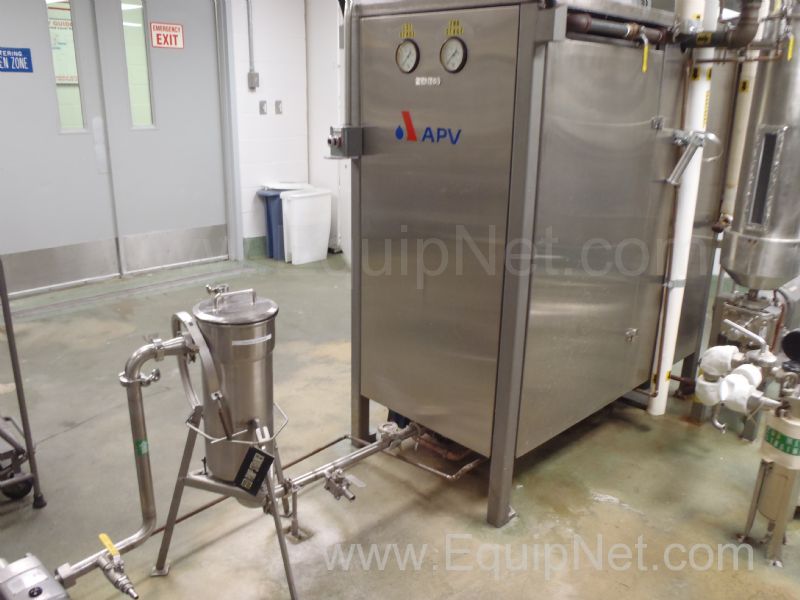

Product is then sent to an APV dissolver - cooker

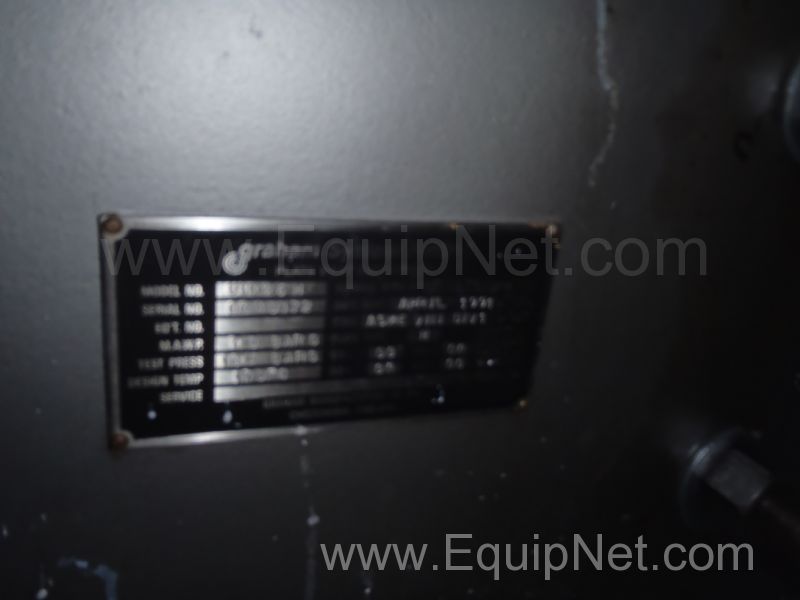

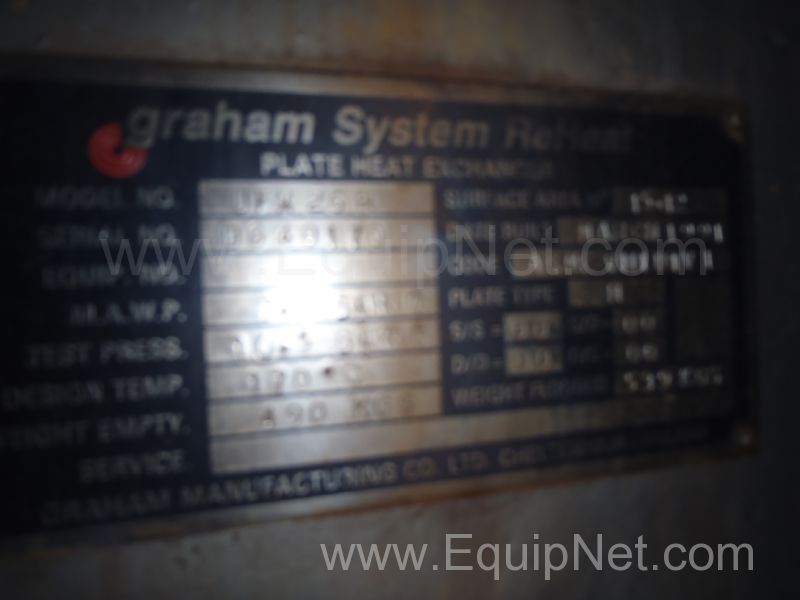

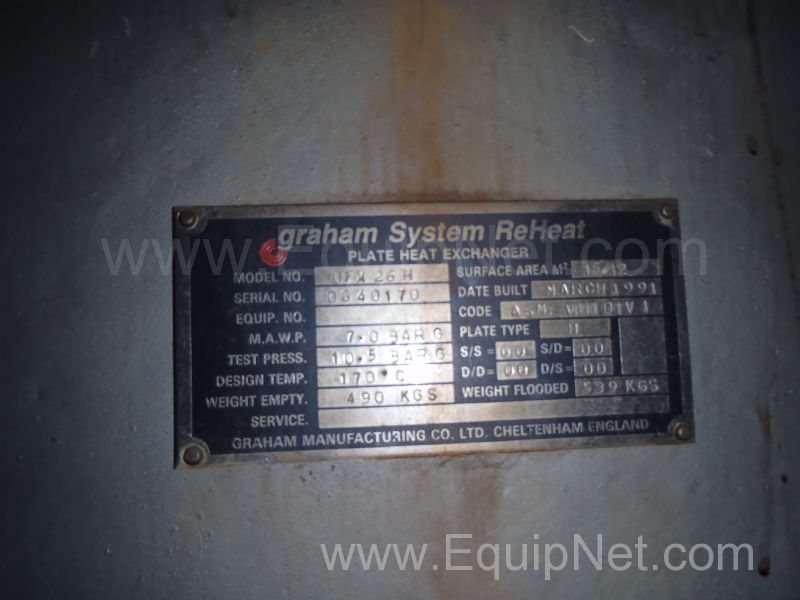

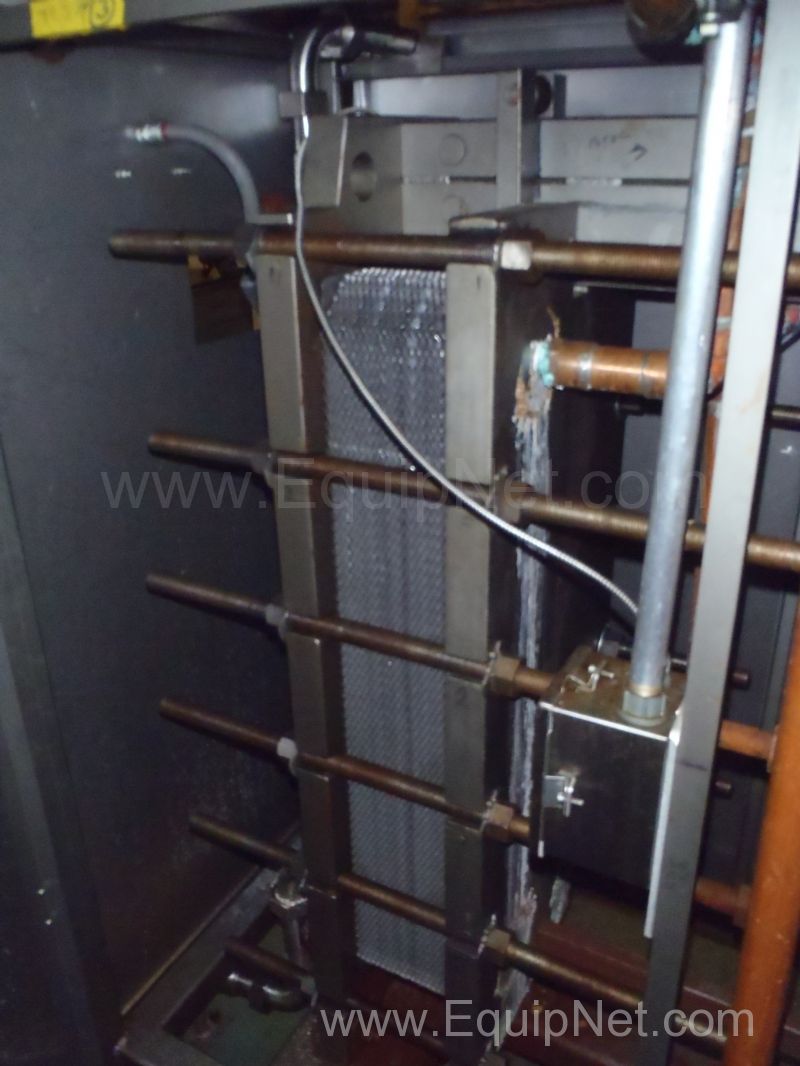

Graham Manufacturing plate and frame heat exchanger
Serial #: DC40170
MAWP: 7.0 bar @ 170 degrees C.
Built in 1991

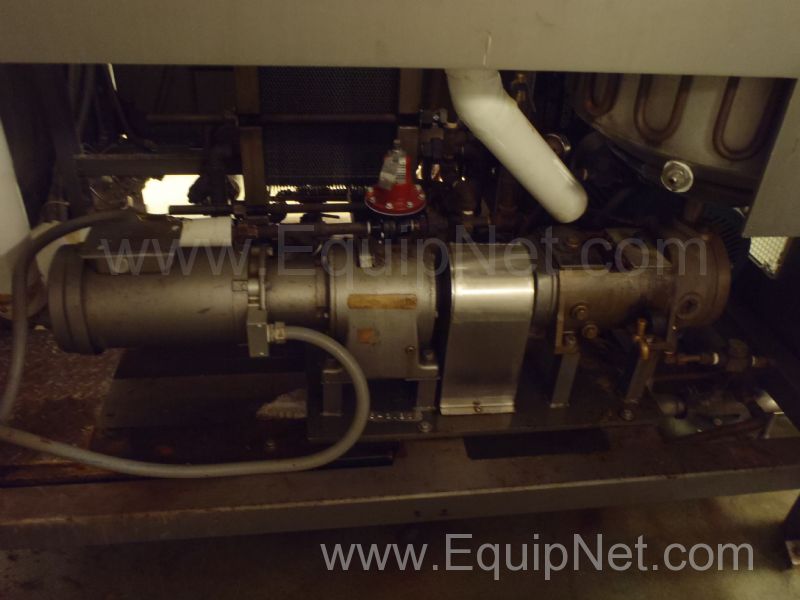

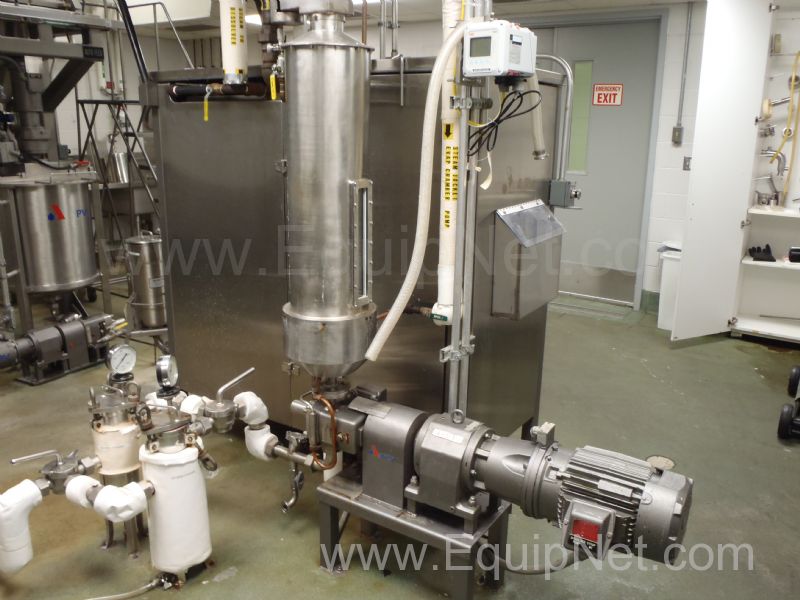

APV lobe style transfer pump
Model: CL/1H/012/20TJ
Serial #: 17899
Product is then transfered through a stainless filter housing (fine mesh screen)

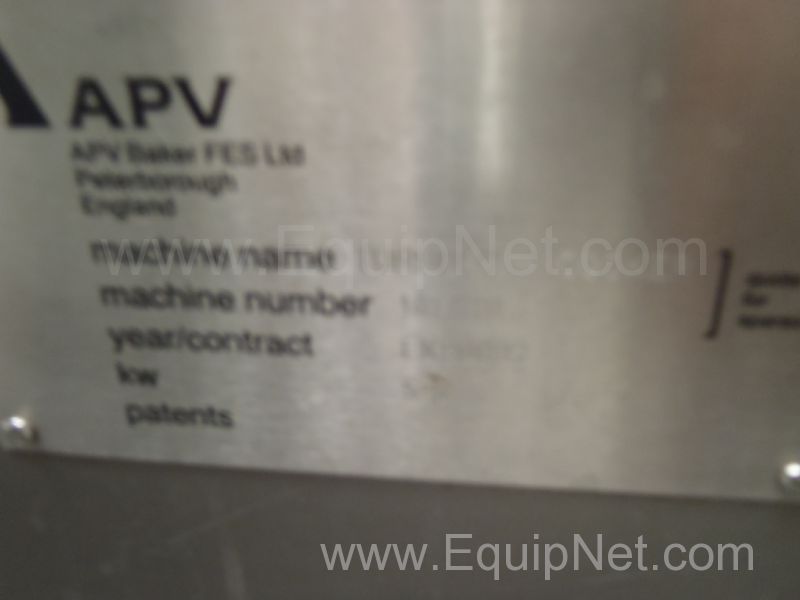

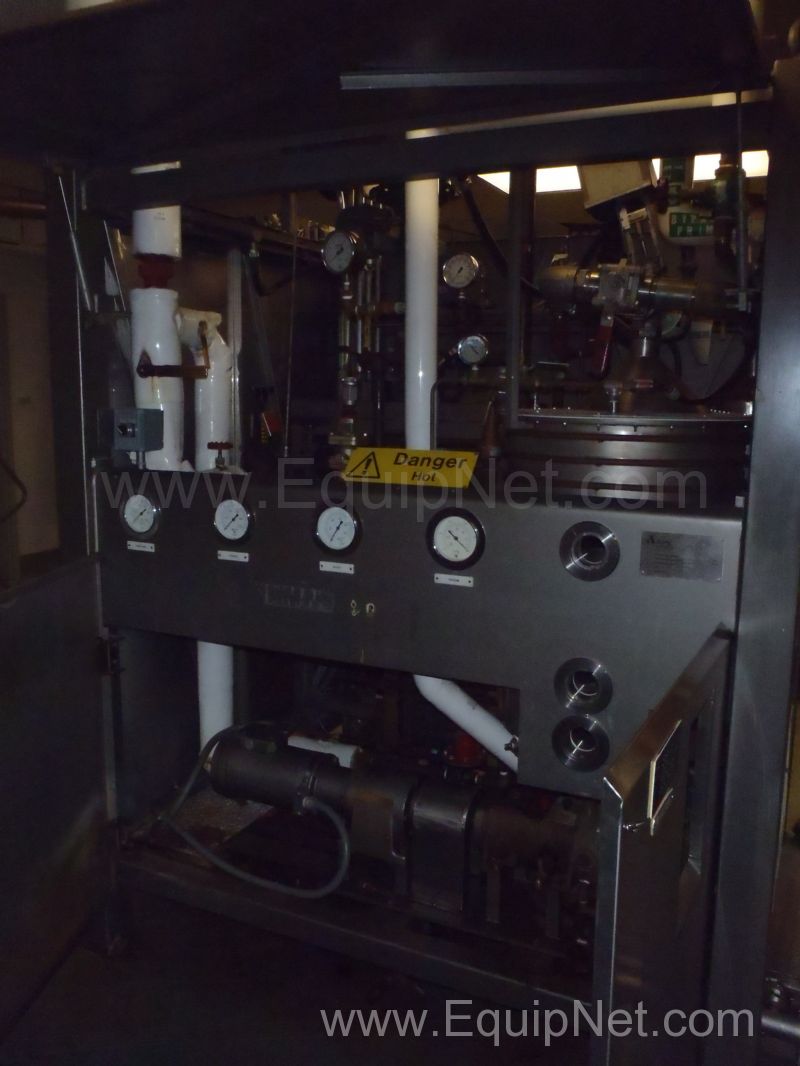

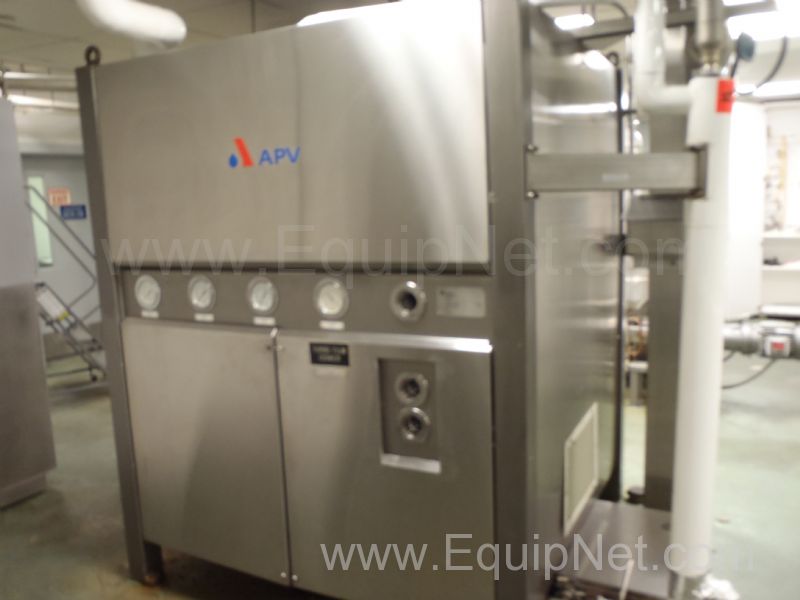

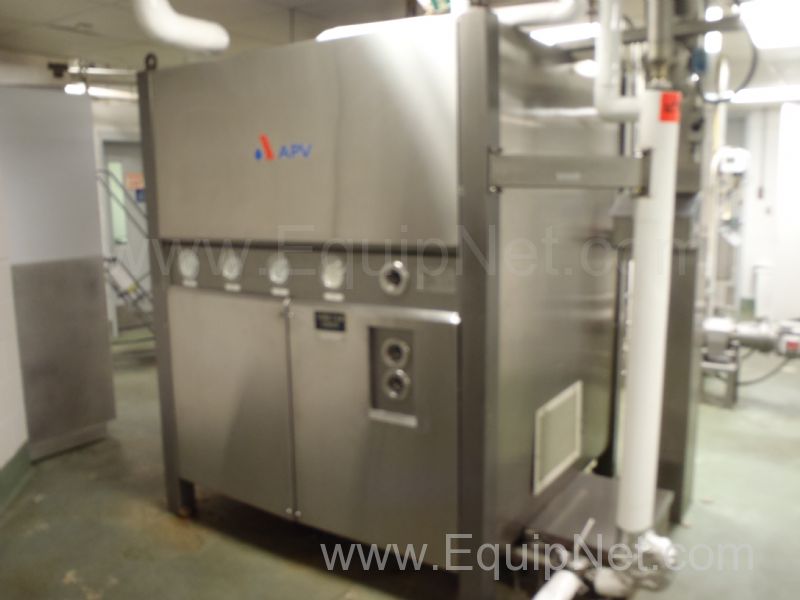

APV Turbo Film Cooker
Machine #: 101/110
Contract #: FK90092

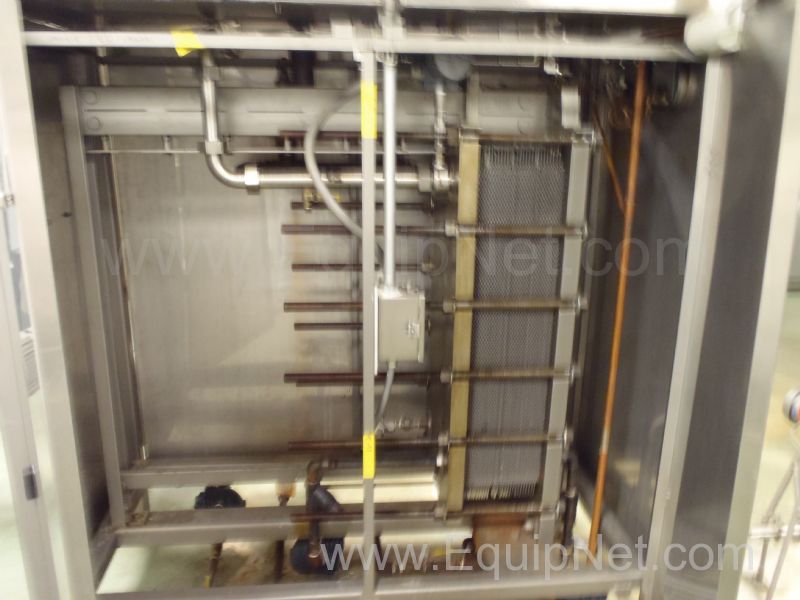

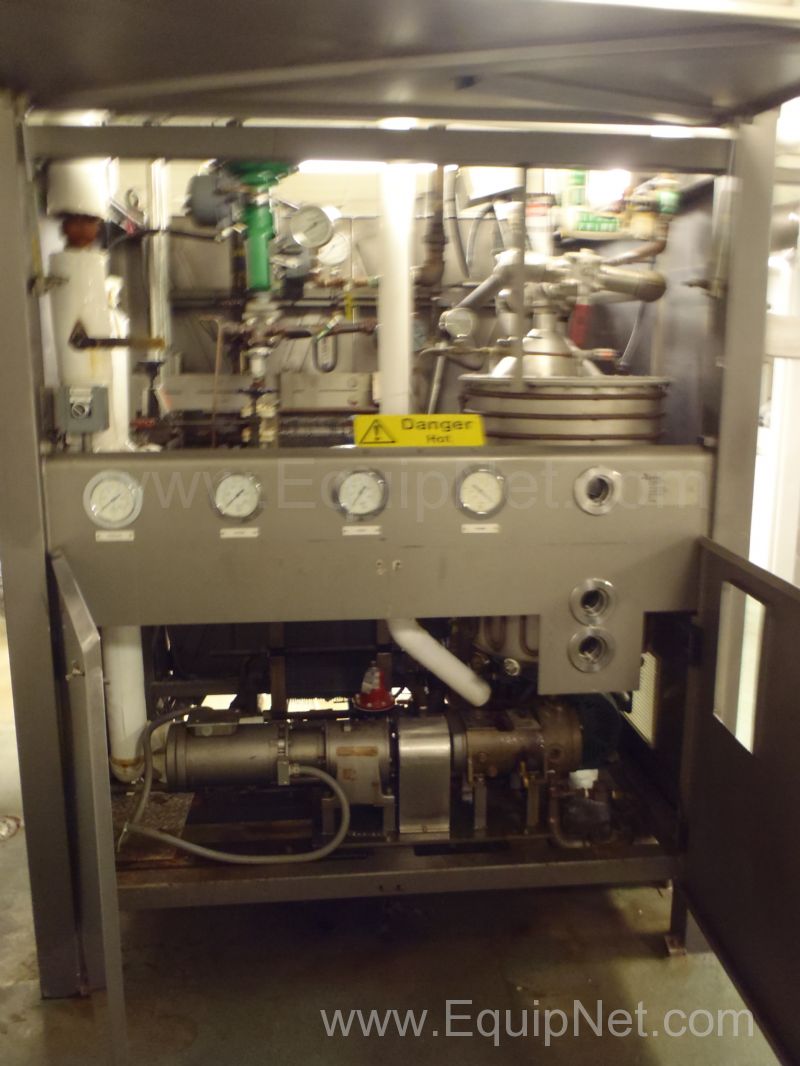

Consists of plate and frame heat exchanger, cook tank and vacuum pump
Pulling 22 lbs. of vacuum and product was at 155 degrees C.

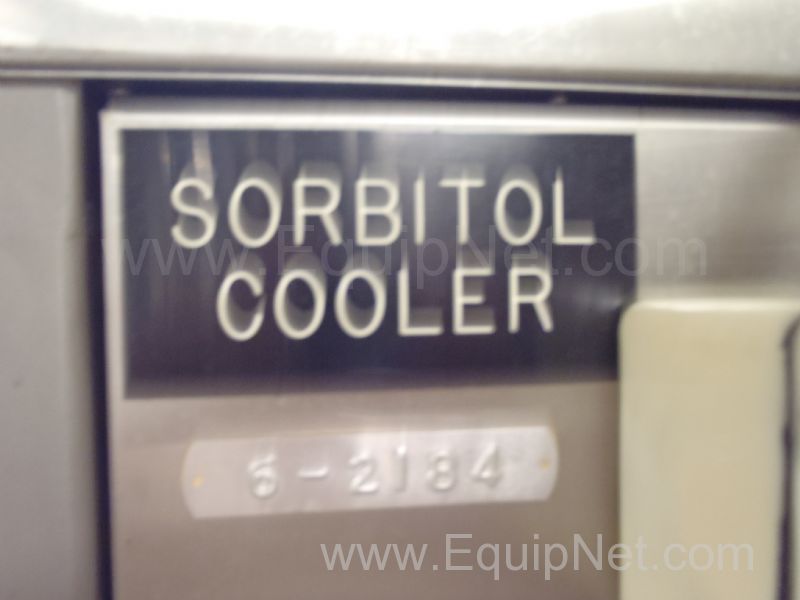

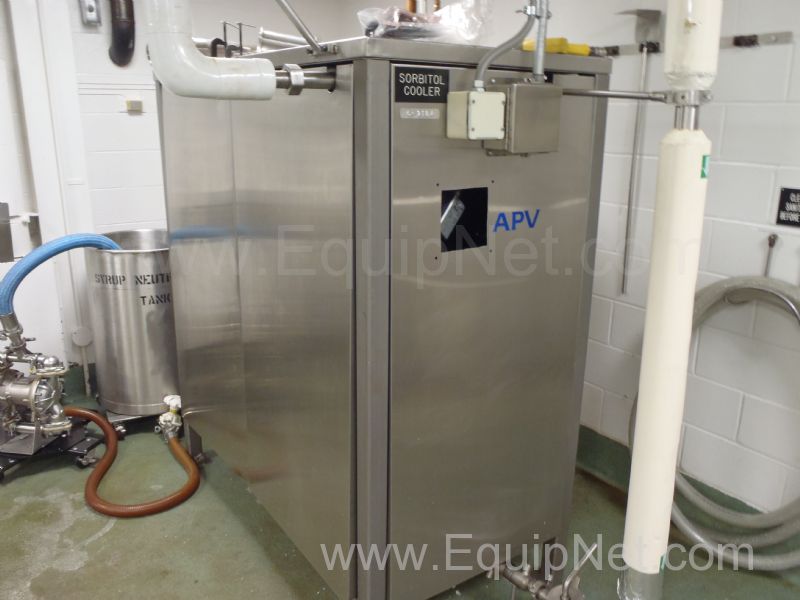

Product is then supplied to the sorbitol cooler (plate and frame heat exchanger)

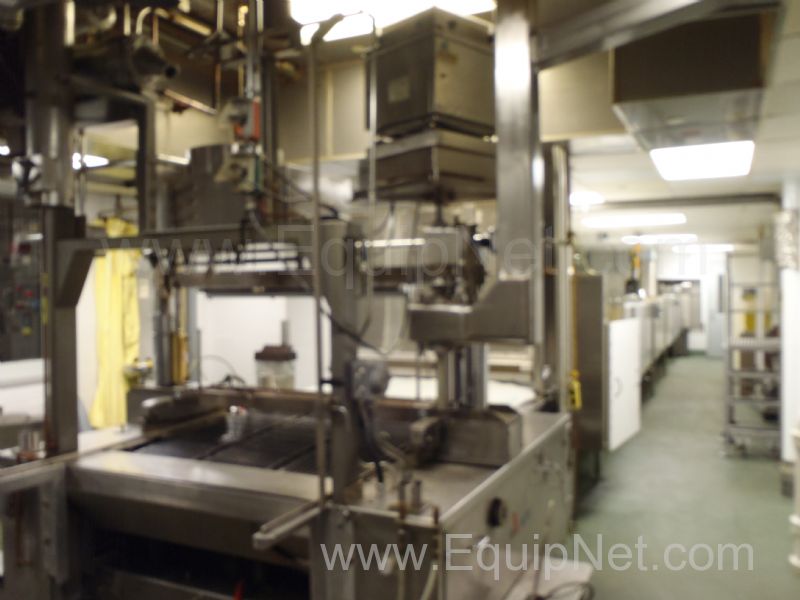

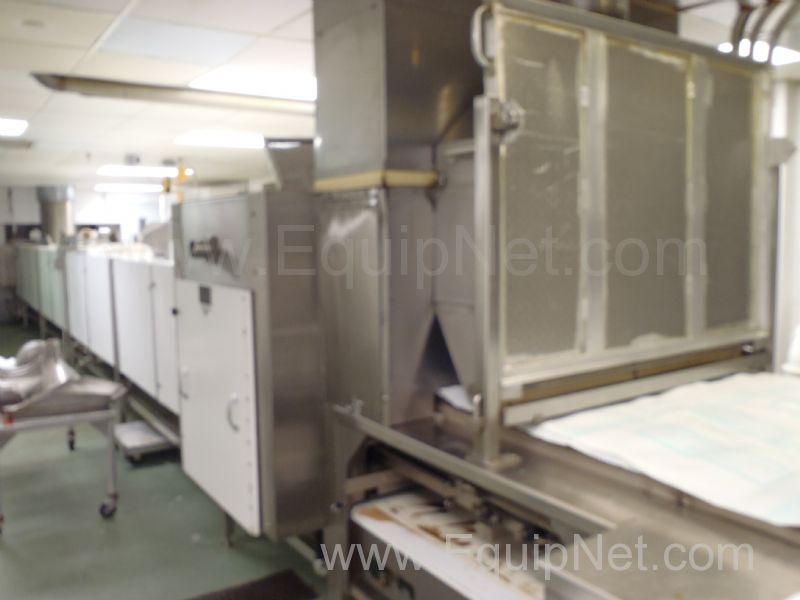

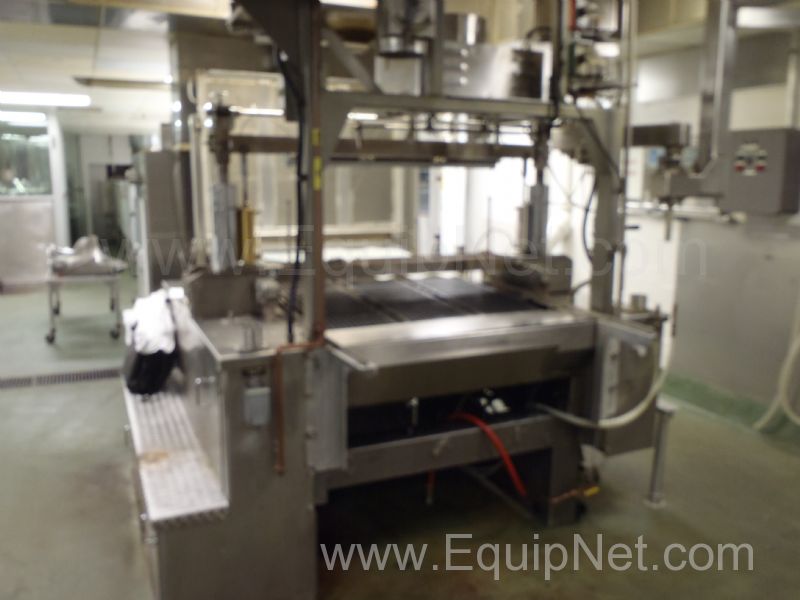

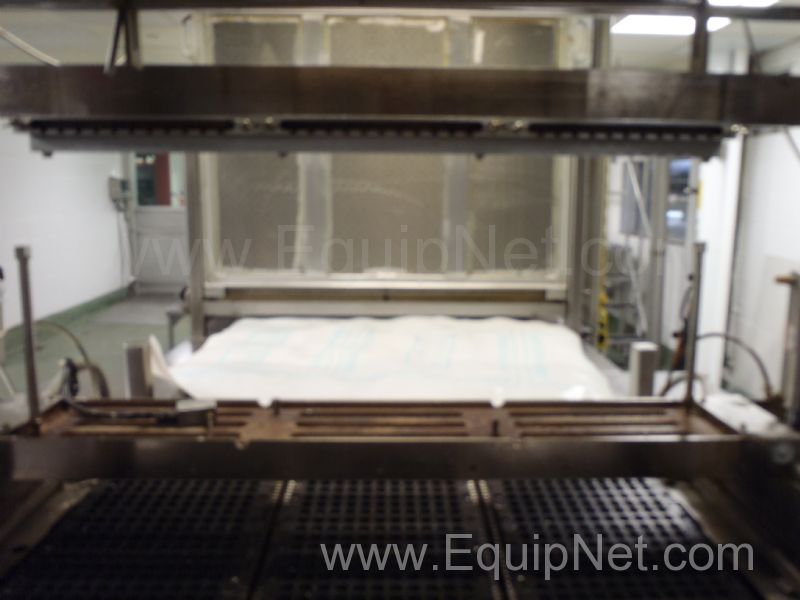

Depositer with Cooling Tunnel
Model: depositor
Serial #: 156/059
Contract #: FK90092
Stainless steel construction

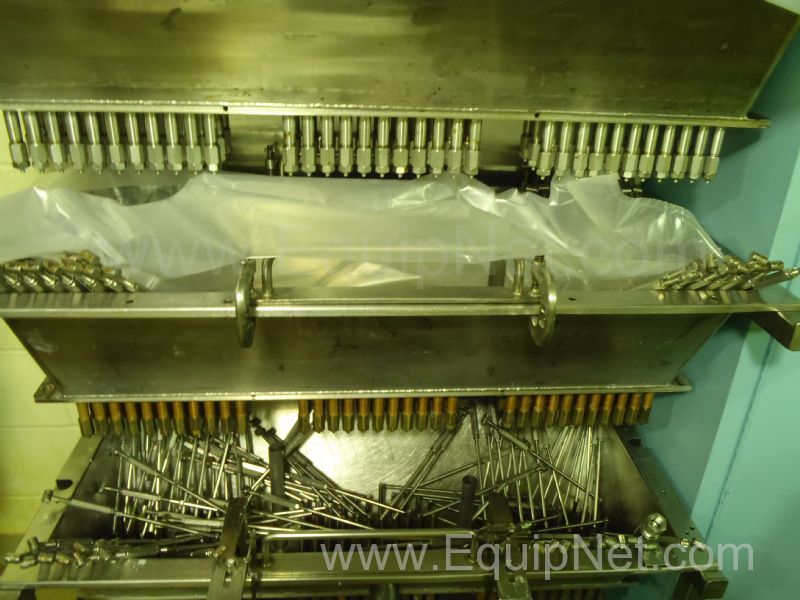

Three stations of eleven dosing pistons each (total of 33)

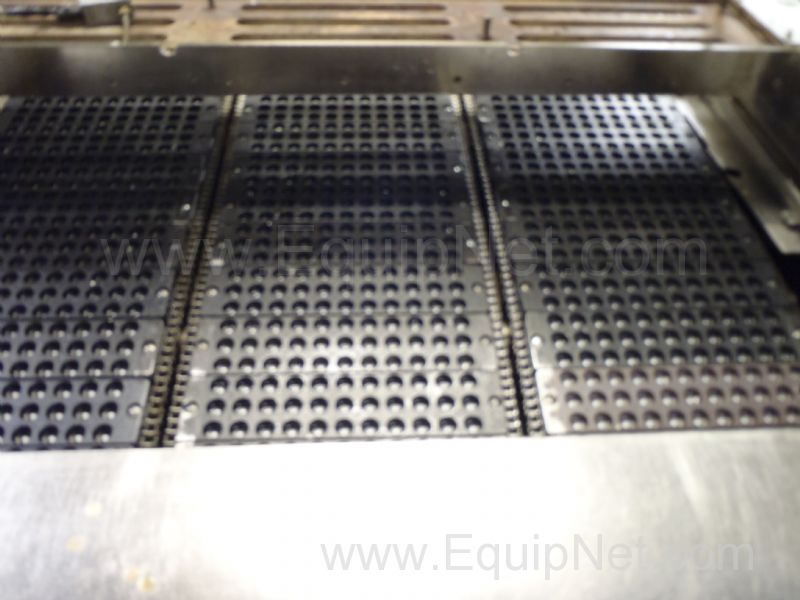

There are three rows of molds with a total of 33 cavities per mold
The molds are included and there are approx. 1,800 avail.

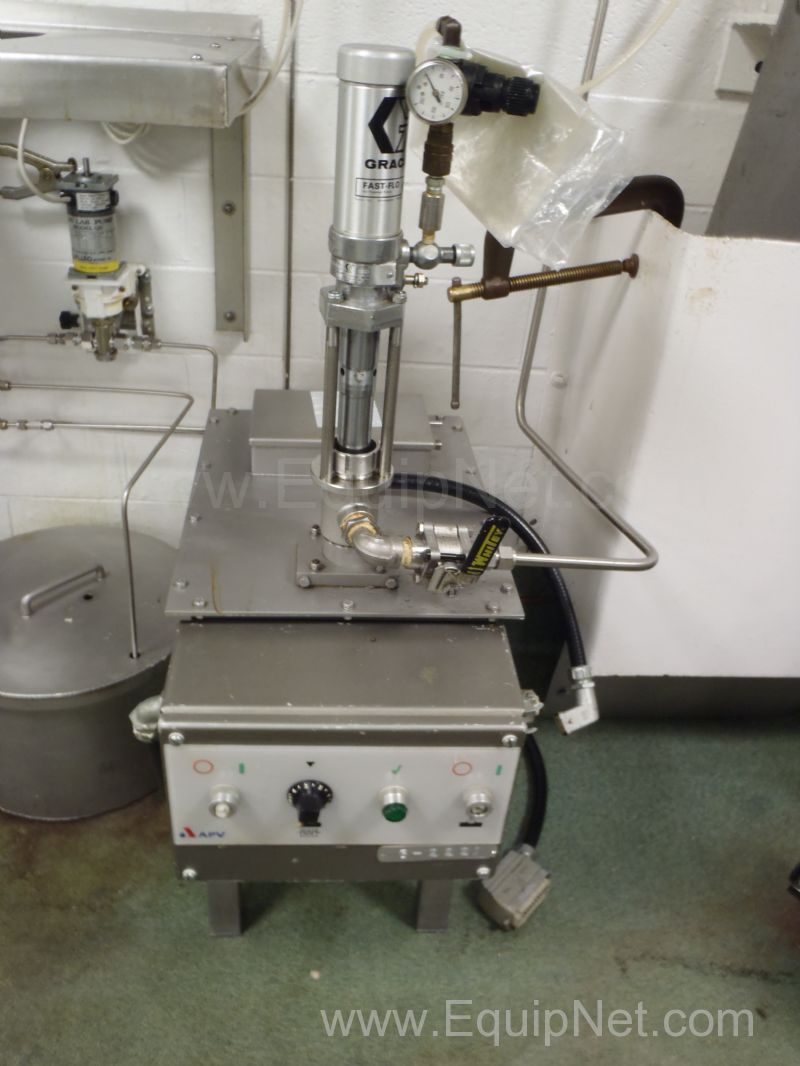

Above the dosator are feeders for both flavor and color

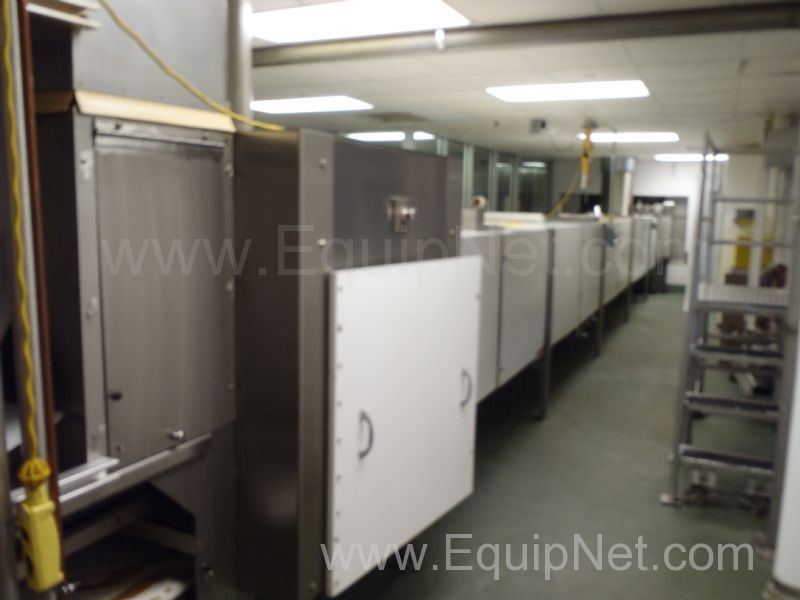

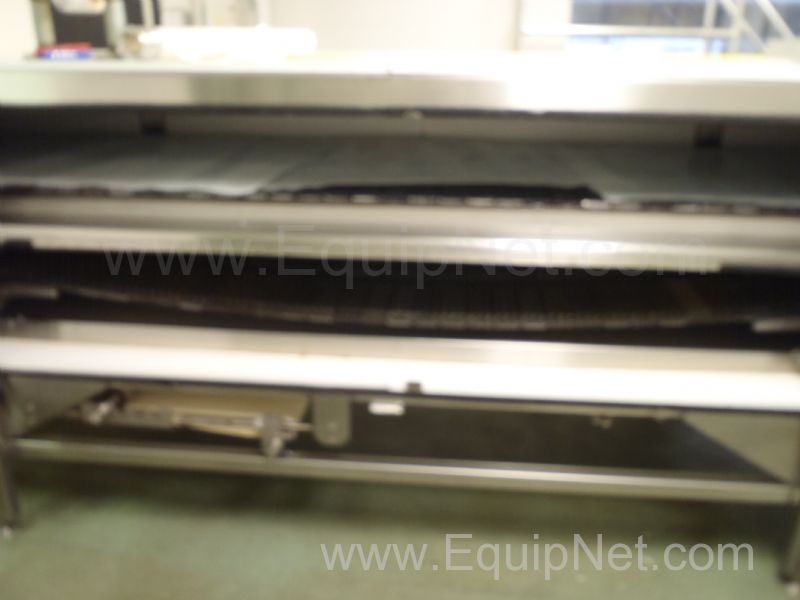

The filled molds then enter the cooling tunnel
The tunnel opening dimensions are approx. 41"wide x 2"high
The approximate overall dimensions of the tunnel are 50'long x 92"wide

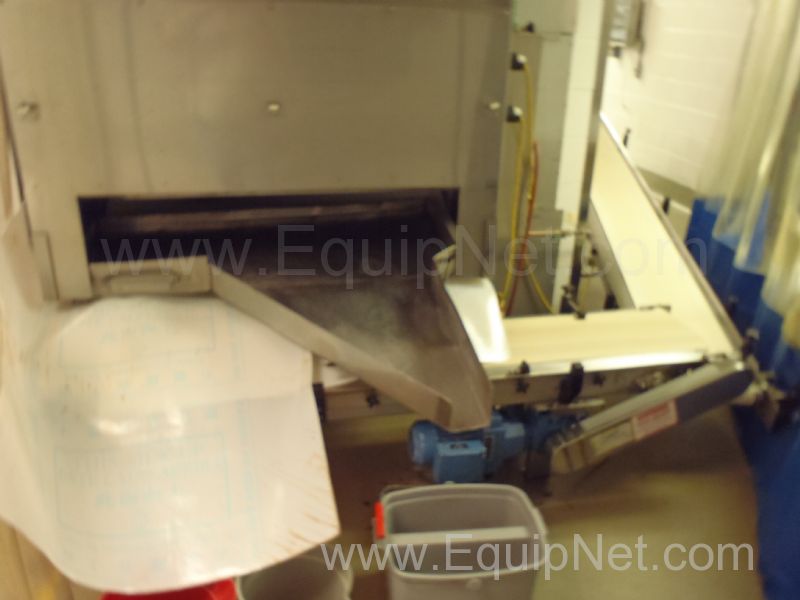

Discharge end has a diverting conveyor for product discharge
Includes a Vestil drum dumper (model: HDD-60-7 and serial #: 001069)
Painted 'Steel-It'

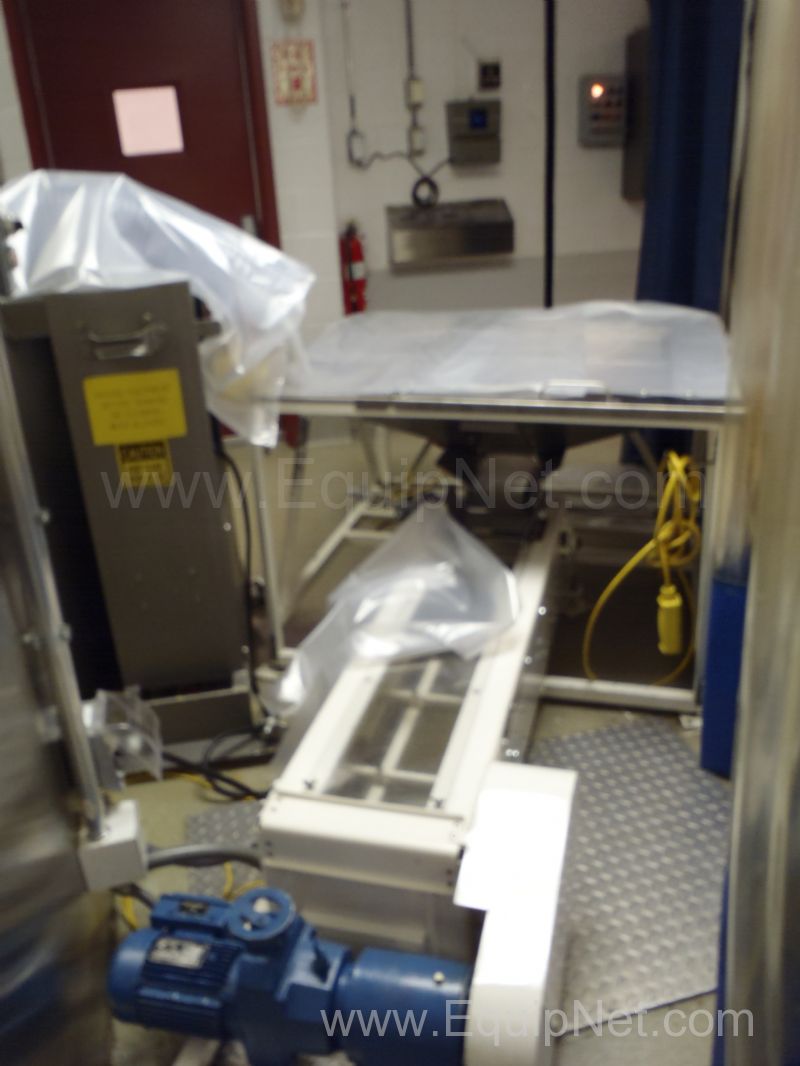

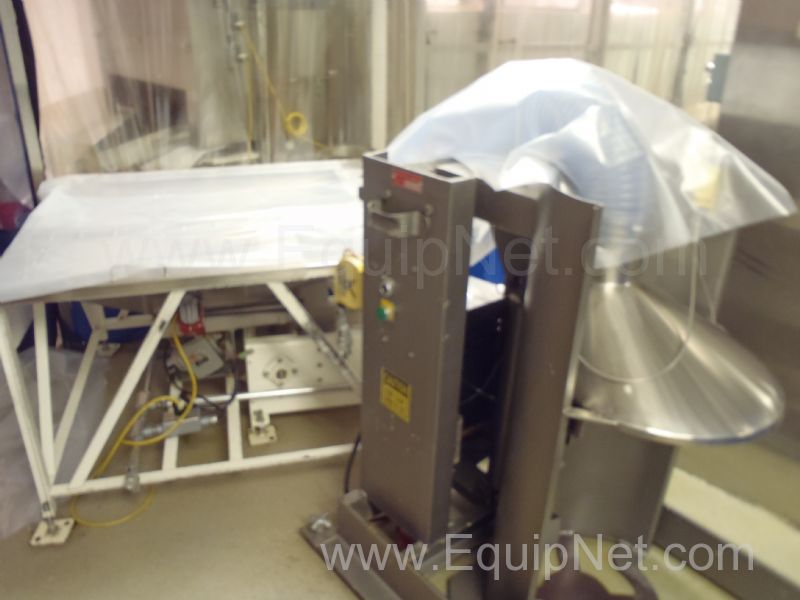

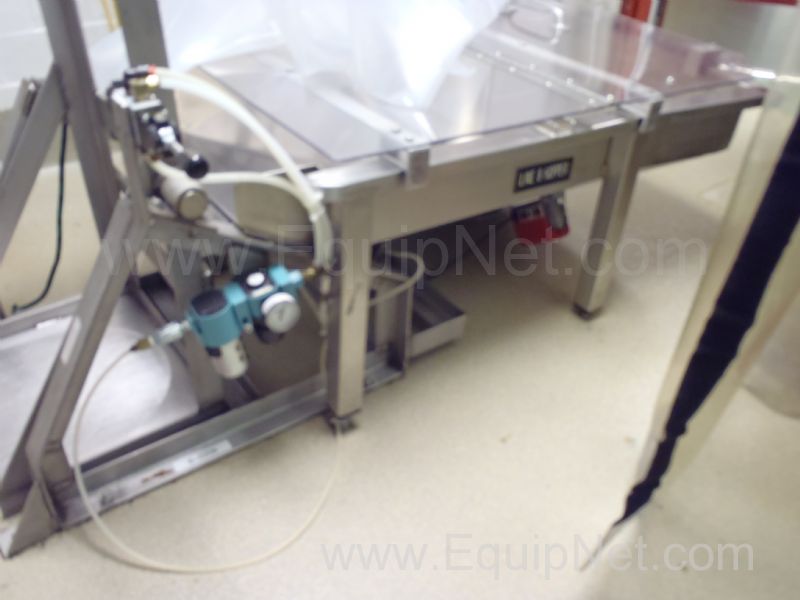

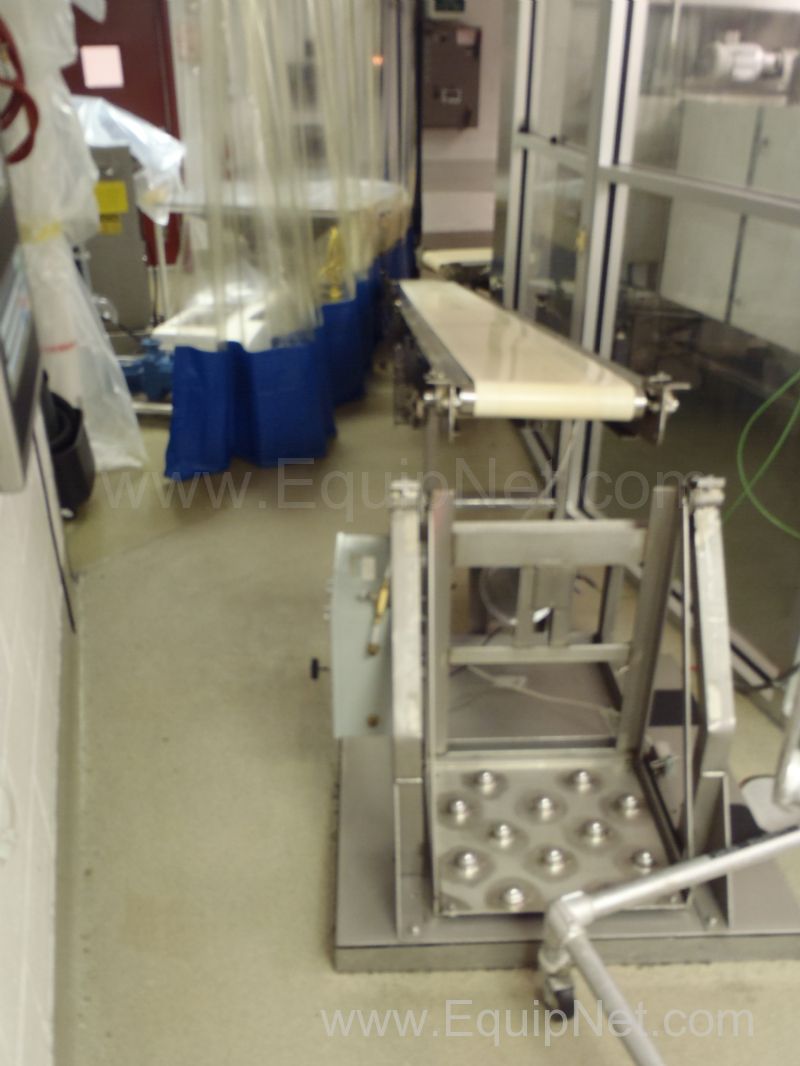

Misc. belt style transfer conveyors and vibratory feeders

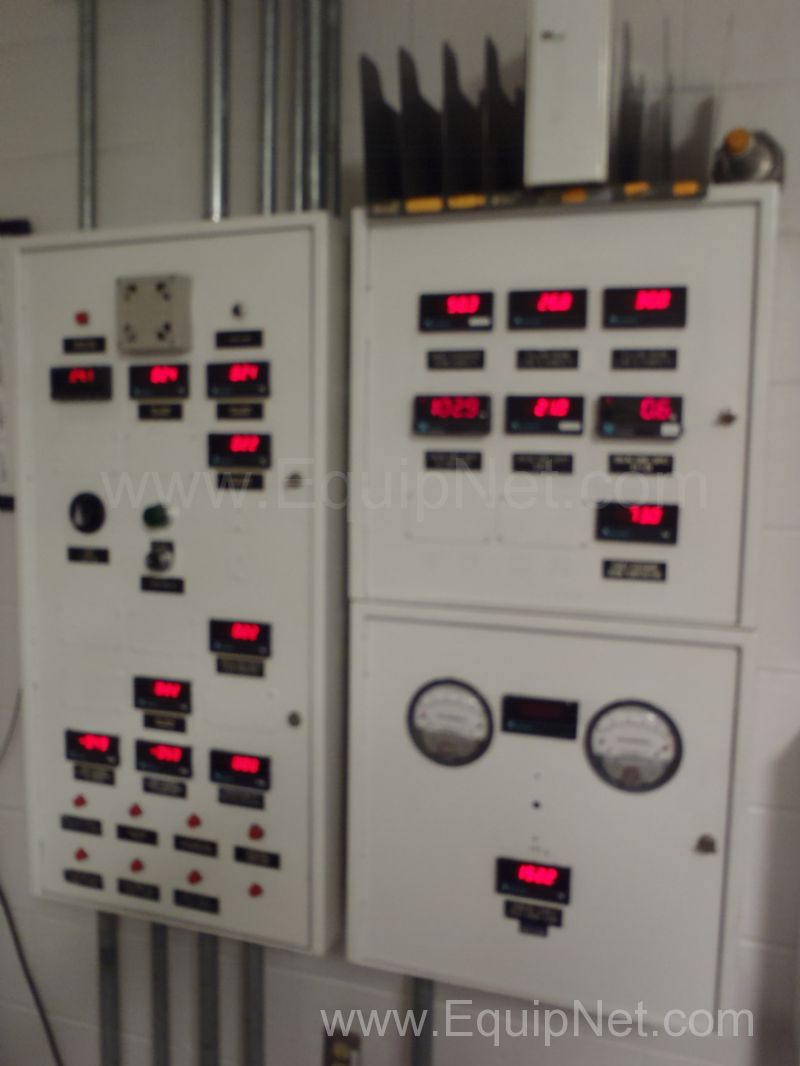

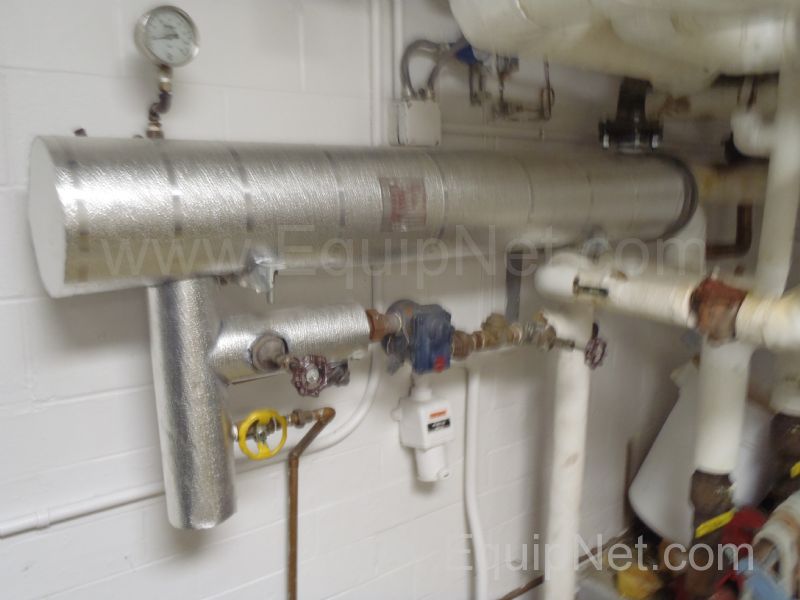

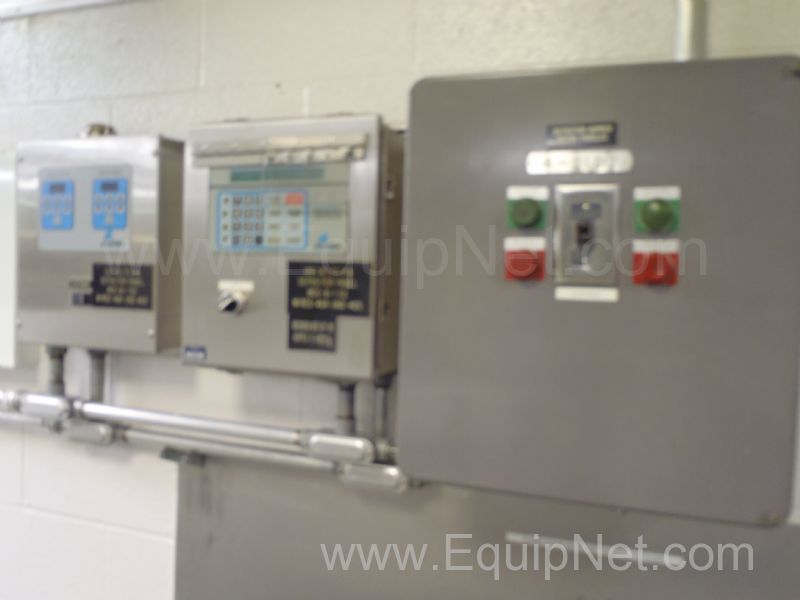

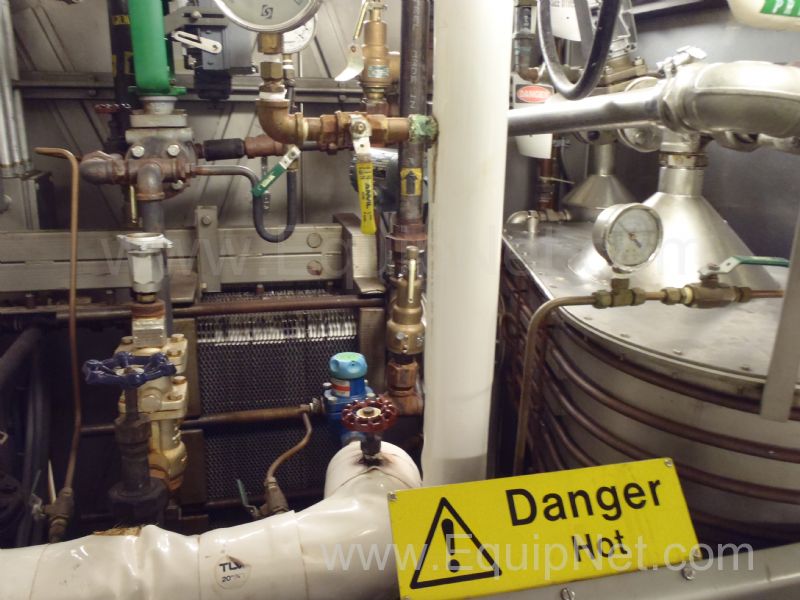

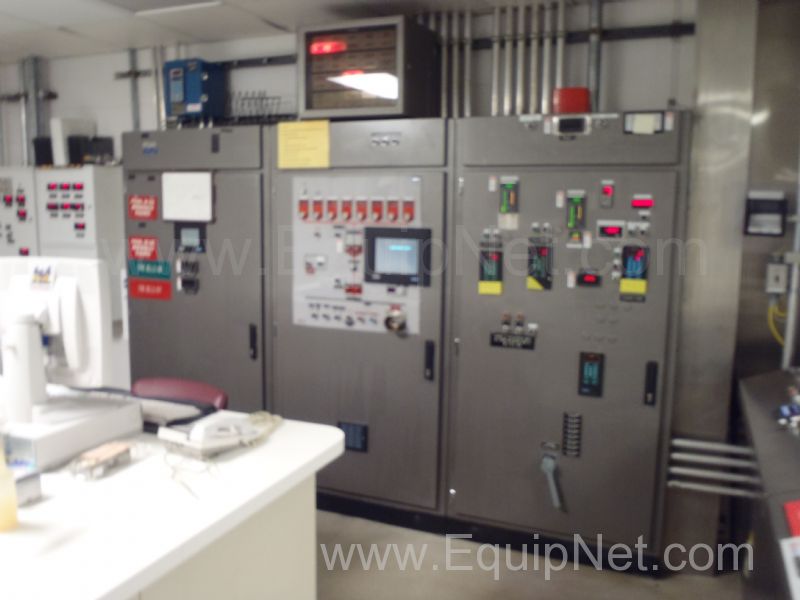

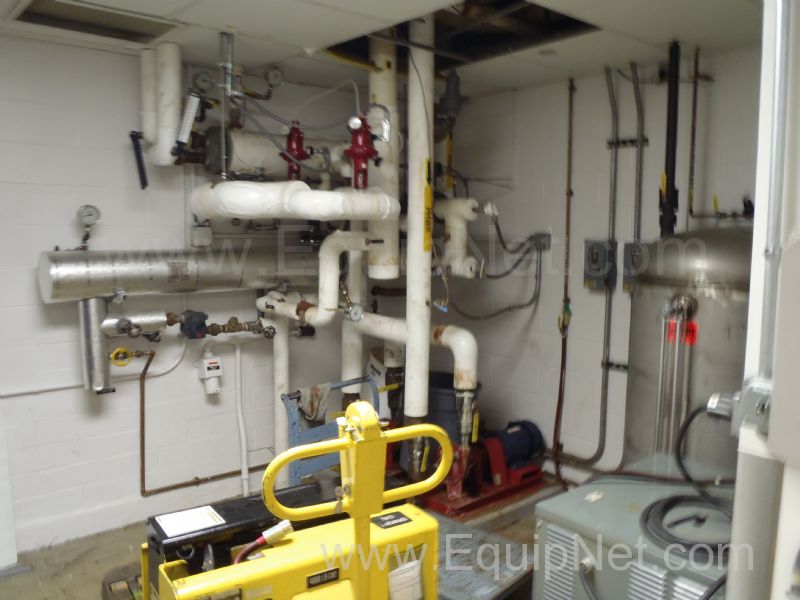

Temperature control system
Manufactured by Johnson Controls
Used to heat the product supply piping (to prevent the product from cooling and creating a 'plug' in the lines)

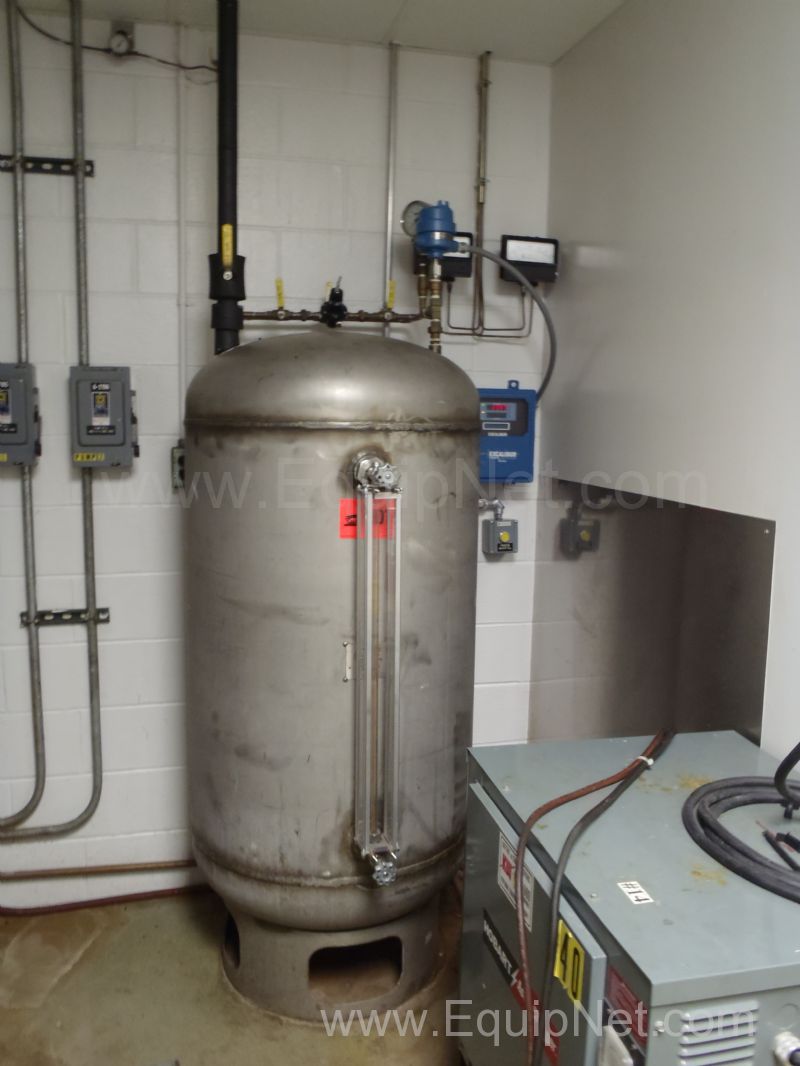

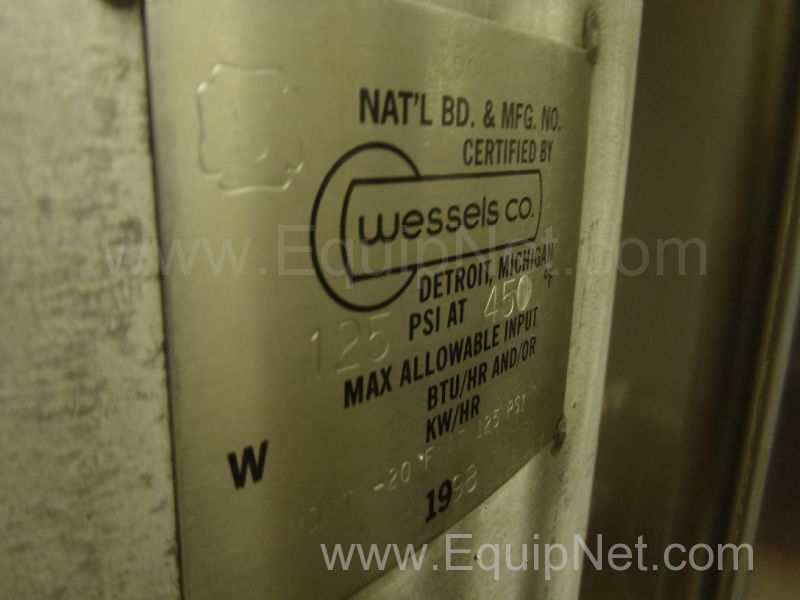

The buffer tank was used to keep pressure on the system with 60 psi of head pressure

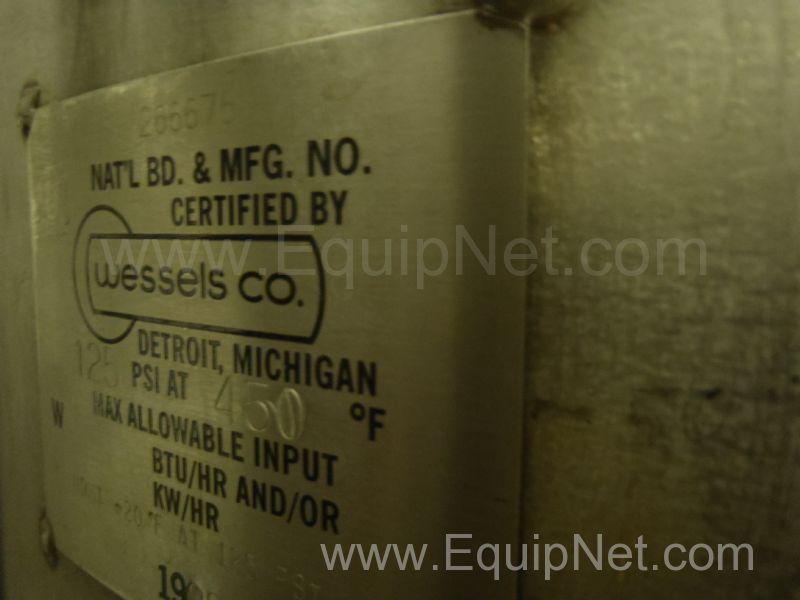

Tank was manufactured by Wessels Co.
National Board #: 266675
MAWP: 125 psi @ 450 degrees F.

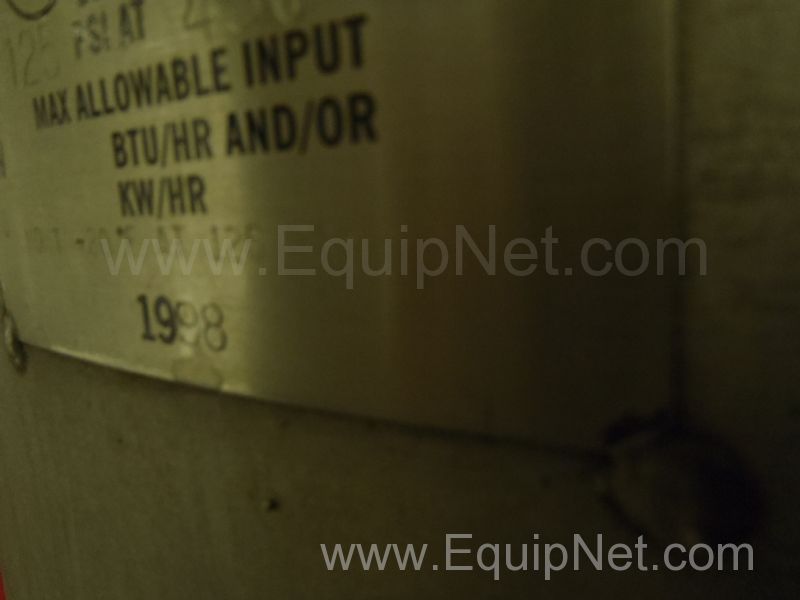

Year of manufacture: 1998
Stainless steel construction

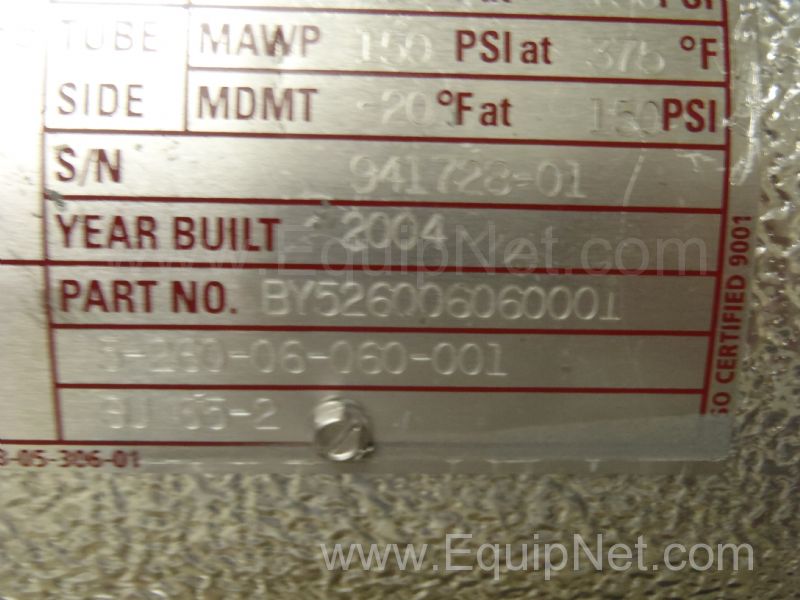

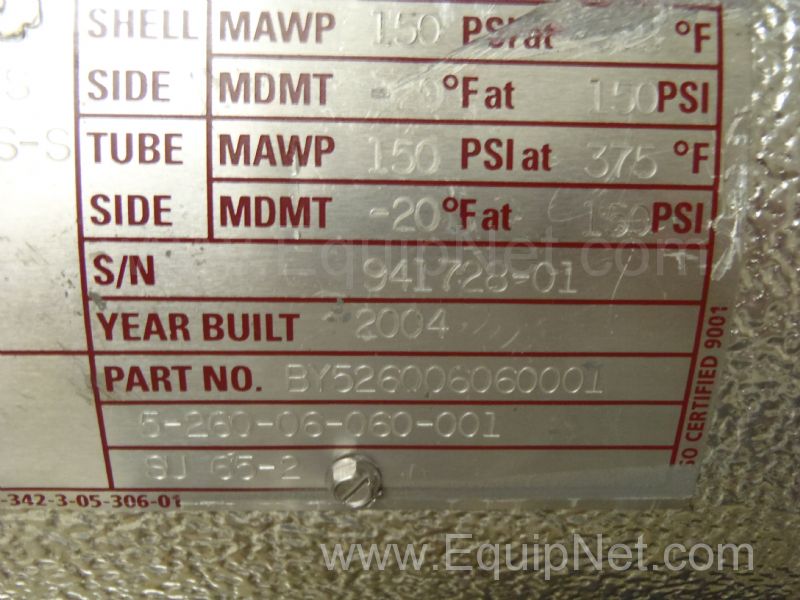

Bell & Gosset - ITT Industries Heat exchanger
Shell side MAWP: 150 psi @ 375 degrees F
Tube side MAWP: same as above
Serial #: 941728-01
National Board #: 125488
Year of manufacture: 2004
Part #: BY526006060001 / 5-260-06-060-001 / SU 65-2
Stainless steel construction
There is also a spare set of tubes for the heat exchanger included (they were used as a back up if needed)
|
