Listing# 907185

Atlanta S.p.A. ECOFARD 35F Shrink Wrapper Machine


Seller's Acceptable Currency:

$50,000.00 USD

Make An Offer

Location:  Australia

Level of Removal:  Special Decommissioning And Crating Required

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you





Equipment Description

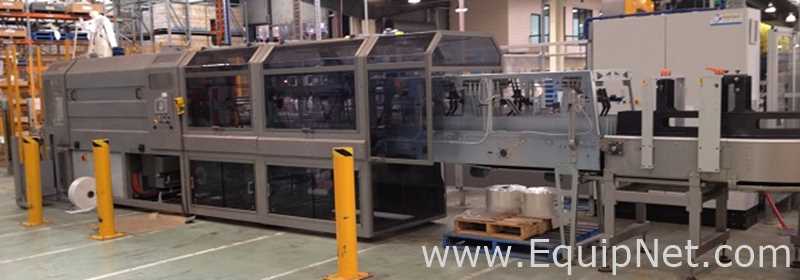

Atlanta S.p.A. ECOFARD 35F Shrink Wrapper Machine

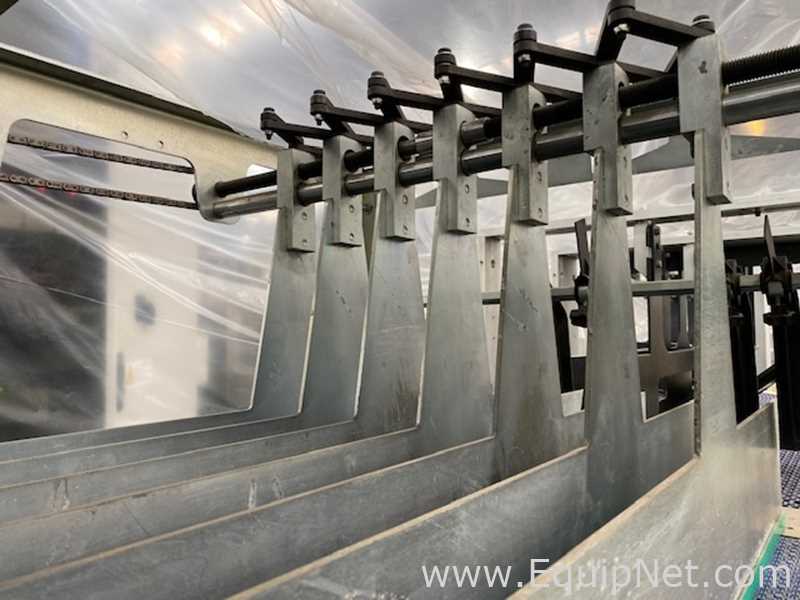

  • The machine can handle 6 lanes of product that can be positioned with a winder that moves all 7 of the guide rails to the width of the product. Rail width can range from 30mm to 100mm.
  • Rails can be removed and linkage bars can be increased in length to increase the lane width further and decrease the number of lanes with minimal cost and effort if required.
    Overall wrapping capability is as follows:
  • Minimum wrap size: L=75mm. W=150mm. H=60mm.
  • Maximum Wrap size: L=300mm. W=500mm. H=350mm.
  • Maximum Speed: 35-45 wraps per minute depending on wrap size
    Features:
  • Allen Bradley PLC & HMI.
  • Infeed Guide Rails Hand-Wheel Adjustment.
  • Manual central lubrication system.
  • Print Registration.
  • Reel change trolley.
  • Danfoss inverter.
  • SEW motor reducer.
  • Air conditioning for main electrical cabinet.

    Máquina Retráctil Atlanta S.p.A. ECOFARD 35F
  • La máquina puede manejar 6 carriles de producto que se pueden posicionar con un enrollador que mueve los 7 rieles guía al ancho del producto. El ancho del riel puede oscilar entre 30 mm y 100 mm.
    La capacidad general de embalaje es la siguiente:
  • Tamaño mínimo de envoltura: L=75mm. Ancho=150mm. Alto=60mm.
  • Tamaño máximo de envoltura: L=300mm. Ancho=500mm. Alto=350mm.
    Características:
  • PLC y HMI de Allen Bradley.
  • Ajuste del volante de los rieles guía de alimentación.
  • Sistema de lubricación central manual.
  • Imprimir registro.
  • Carro de cambio de bobina.
  • Inversor Danfoss.
  • Motorreductor SEW.
  • Aire acondicionado para armario eléctrico principal.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Atlanta S.p.A.


    Year:
    2009
    2009

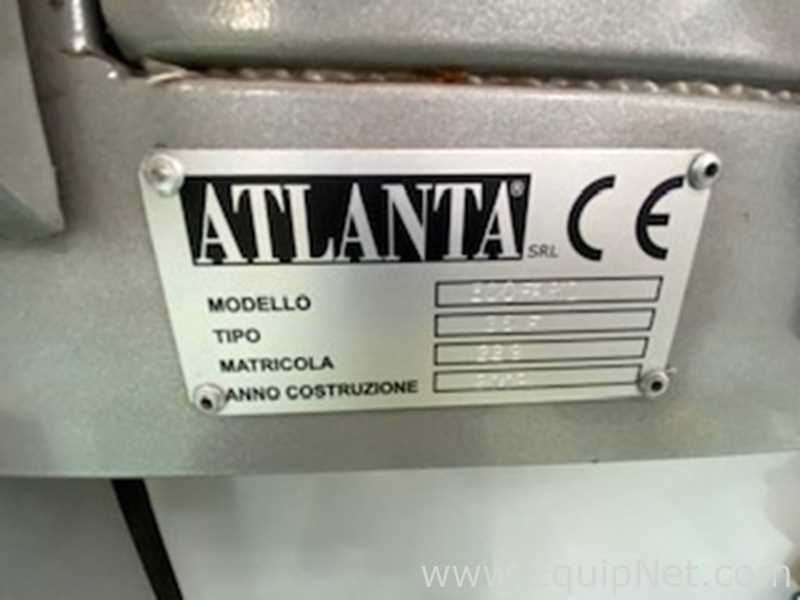

    Serial Number:
    229
    229

    CE Marked:
    YES
    YES

    Capacity Size:
    65.5 KW
    65.5 KW

    Model:
    ECOFARD 35f
    ECOFARD 35f

    Capacity Speed:
    35-45 U/MIN
    35-45 U/MIN

    Product Sizing:
    300mm x 500mm x 350mm
    300mm x 500mm x 350mm

    Air Requirements:
    6 BAR
    6 BAR

    Wrapped Packages/Minute:
    35-45
    35-45

    Wrapping Method:
    SHRINK
    SHRINK

    Voltage:
    415 VOLTS
    415 VOLTS

    Frequency:
    50 HERTZ
    50 HERTZ

    Phase:
    3
    3

    Current:
    81 AMPS
    81 AMPS

    Recommended Packaging Form:
    CRATE
    CRATE


    Dimensions:
    Standard
    Metric

    Overall:
    356.46 x 53.54 x 102.64 in - 11023.00 lb
    9054 x 1360 x 2607 MM - 5000 KGS

    Disclaimer

    This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

    East Asia/Pacific

    This equipment is subject to a removal and loading charge.


    The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

    Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

    Any license associated with this equipment is non-transferable.
