Online Auction #1312 Heineken Brewery Featuring Alken-Maes Brewing Equipment

Lot 41 Listing# 913788 Complete Meura 200HL Brew House System Rated 170bbl


You must be logged in to participate in auctions

Log in




Multi-Listing Includes:

  • Meura Stainless Steel 304 Kettle With 19000 Liter Of Capacity



  • Back to Top
    Multi-Listing #822794

    Meura Stainless Steel 304 Kettle With 19000 Liter Of Capacity



    Equipment Description
    Meura Stainless Steel 304 Kettle With 19000 Liter Of Capacity
  • Material: Vessel and jacket stainless steel 1.4306 (304).
  • Wort kettle 22500 litres maximum.
  • 19000 litres working volume.
  • Design temperature: Vessel 100C and Jacket 143C.
  • Min working temperature: Vessel 20C and Jacket 20C.
  • Max working temperature: Vessel 105C and Jacket 143C.
  • Test temperature: Vessel 20C and Jacket 20C.
  • Design pressure: Vessel ATM and Jacket 3 bar.
  • Min working pressure: Vessel ATM and Jacket ATM.
  • Max working pressure: Vessel ATM and Jacket 3 bar.
  • Test pressure: Vessel Full tight and Jacket 4.5 bar.
  • Steam jacket and internal boiler 309 litres volume.
  • Mounted on 4 stainless steel tubular legs.
  • 3000mm T/T.
  • Top cone 400mm high.
  • Bottom cone 700mm.

    Marmita Meura De Acero Inoxidable 304 Con Capacidad De 19000 Litros
  • Material: Recipiente y camisa de acero inoxidable 1.4306 (304).
  • Marmita 22500 litros máximo.
  • Volumen de trabajo de 19000 litros.
  • Temperatura de diseño: Recipiente 100C y chaqueta 143C.
  • Temperatura mínima de trabajo: Recipiente 20C y Chaqueta 20C
  • Temperatura máxima de trabajo: Recipiente 105C y Chaqueta 143C.
  • Temperatura de prueba: Recipiente 20C y Chaqueta 20C.
  • Presión de diseño: recipiente ATM y Chaqueta 3 bar.
  • Presión mínima de trabajo: Recipiente ATM y Chaqueta ATM.
  • Presión máxima de trabajo: Recipiente ATM y Chaqueta 3 bar.
  • Presión de prueba: Recipiente totalmente hermético y Chaqueta 4,5 bar.
  • Camisa de vapor y caldera interna de 309 litros de volumen.
  • Montado sobre 4 patas tubulares de acero inoxidable.
  • 3000mm T/T.
  • Cono superior 400 mm de altura.
  • Cono inferior 700mm.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Meura


    Year:
    2005
    2005

    Serial Number:
    1791.24.21
    1791.24.21

    CE Marked:
    YES
    YES

    Capacity Size:
    5020.94 gal
    19000 L

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    118.90 x 118.90 x 161.42 in - 9369.55 lb
    3020 x 3020 x 4100 MM - 4250 KGS

  • Meura Stainless Steel 304 Tank With 12000 Liter Of Capacity



  • Back to Top
    Multi-Listing #822771

    Meura Stainless Steel 304 Tank With 12000 Liter Of Capacity



    Equipment Description
    Meura Stainless Steel Tank With 12000 Liter Of Capacity
  • Underdriven agitation.
  • Mounted on 4 stainless steel tubular legs.
  • Gross 18300 litres.
  • Net 12000 litres.
  • 117HL.
  • Top cone 0.42 m, bottom cone 0.9 m.

    Tanque De Acero Inoxidable Meura Con Capacidad De 12000 Litros
  • Agitación subimpulsada.
  • Montado sobre 4 patas tubulares de acero inoxidable.
  • 18300 litros bruto.
  • 12000 litros neto.
  • 117 HL.
  • Medida cono Superior 0,42 m, cono inferior 0,9 m.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Meura


    Year:
    2005
    2005

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    125.98 x 125.98 x 128.74 in - 13227.60 lb
    3200 x 3200 x 3270 MM - 6000 KGS

  • PN Stainless Steel Whirlpool With 20000 Liter Of Capacity



  • Back to Top
    Multi-Listing #822767

    PN Stainless Steel Whirlpool With 20000 Liter Of Capacity



    Equipment Description
    PN Stainless Steel Whirlpool With 20000 Liter Of Capacity
  • Oval manway to side.
  • 6 x support legs on circumference and one in centre.
  • Rated at 95 degC.

    Torbellino De Acero Inoxidable Con Capacidad De 20000 Litros PN
  • Manhole ovalado al lado.
  • 6 patas de apoyo en la circunferencia y una en el centro.
  • Clasificado a 95 ° C.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Planungsburo und Anlagenbau Niemann Brauerei


    Year:
    1997
    1997

    Serial Number:
    42736
    42736

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    118.11 x 118.11 x 137.80 in - 6613.80 lb
    3000 x 3000 x 3500 MM - 3000 KGS

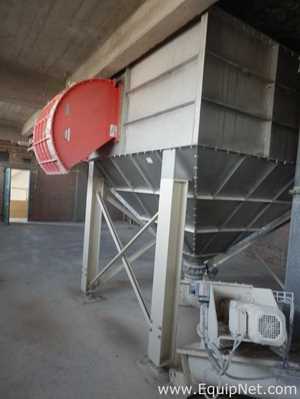

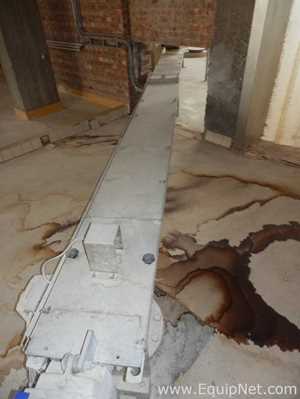

  • Stainless Steel Trough And Pondorff Conveyor



  • Back to Top
    Multi-Listing #823851

    Stainless Steel Trough And Pondorff Conveyor



    Equipment Description
    Stainless Steel Trough And Pondorff Conveyor
  • Stainless steel trough and Pondorff conveyor to discharge solids collected from the brewhouse filterpress above.

    Canal de Acero Inoxidable Y Transportador Pondorff
  • Canaleta de acero inoxidable y transportador Pondorff para descargar los sólidos recolectados del filtro prensa de la sala de cocción.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Ponndorf


    Year:
    2005
    2005

    Serial Number:
    24828
    24828

    CE Marked:
    YES
    YES

    Model:
    180/5XBV
    180/5XBV

    Voltage:
    415 VOLTS
    415 VOLTS

    Frequency:
    50 HERTZ
    50 HERTZ

    Phase:
    3
    3

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    See all item dimensions

    Item #1:
    185.04 x 118.11 x 90.55 IN - 13,227.73 LBS
    4700.00 x 3000.00 x 2300.00 MM - 6,000.00 KGS

    Item #2:
    118.11 x 19.69 x 31.50 IN - 4,409.24 LBS
    3000.00 x 500.00 x 800.00 MM - 2,000.00 KGS

    Overall:
    303.15 x 118.11 x 90.55 in - 17636.80 lb
    7700 x 3000 x 2300 MM - 8000 KGS

  • Meura polypropylene Plate And Frame Filter Press



  • Back to Top
    Multi-Listing #822802

    Meura polypropylene Plate And Frame Filter Press



    Equipment Description
    Meura polypropylene Plate And Frame Filter Press
  • Pneumatic diaphragm plates to squeeze cake within frames.
  • 20 x plates and 19 frames 1800mm x 1800mm with one spare plate and one spare frame.
  • Chain driven plate shifter.

    Filtro Prensa De Paca Y Marco De Polipropileno Meura
  • Placas de diafragma neumáticas para exprimir la torta dentro de los marcos.
  • 20 placas y 19 marcos de 1800 mm x 1800 mm con una placa de repuesto y un marco de repuesto.
  • Palanca de cambios accionada por cadena.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Meura


    Year:
    2001
    2001

    CE Marked:
    YES
    YES

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    275.59 x 98.43 x 98.43 in - 11023.00 lb
    7000 x 2500 x 2500 MM - 5000 KGS

  • Meura Hop Dosing Tank 90 Liter Of Capacity



  • Back to Top
    Multi-Listing #822769

    Meura Hop Dosing Tank 90 Liter Of Capacity



    Equipment Description
    Meura Hop Dosing Tank 90 Liter Of Capacity
  • Design capacity: 90 liter.
  • Max Capacity: 105 Liter.
  • Desig temperature: 100C.
  • Min working temperature: 20C.
  • Max working temperature: 105C.
  • Test temperature: 20C.
  • Design pressure: 2 bar.
  • Min working pressure: Atm.
  • Max working temperature: 2 bar.
  • Test pressure: 3.1 bar.
  • Material: 1.431 (AISI/SAE: 304).
  • Corrosion allowance: 0 mm.

    Depósito Dosificador De Lúpulo Meura De 90 Litros De Capacidad
  • Capacidad de diseño: 90 litros.
  • Capacidad máxima: 105 litros.
  • Temperatura de diseño: 100C.
  • Temperatura mínima de trabajo: 20C.
  • Temperatura máxima de trabajo: 105C.
  • Temperatura de prueba: 20C.
  • Presión de diseño: 2 bar.
  • Presión de trabajo mínima: Atm.
  • Temperatura máxima de trabajo: 2 bar.
  • Presión de prueba: 3,1 bar.
  • Material: 1.431 (AISI/SAE: 304).
  • Margen de corrosión: 0 mm.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Meura


    Year:
    2005
    2005

    CE Marked:
    YES
    YES

    Capacity Size:
    23.78 gal
    90 L

    Model:
    Hop Dosing Tank
    Hop Dosing Tank

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    51.18 x 43.31 x 66.93 in - 330.69 lb
    1300 x 1100 x 1700 MM - 150 KGS

  • Meura Hop Dosing Tank 90 Liter Of Capacity



  • Back to Top
    Multi-Listing #822768

    Meura Hop Dosing Tank 90 Liter Of Capacity



    Equipment Description
    Meura Hop Dosing Tank 90 Liter Of Capacity
  • Design capacity: 90 liter.
  • Max Capacity: 105 Liter.
  • Desig temperature: 100C.
  • Min working temperature: 20C.
  • Max working temperature: 105C.
  • Test temperature: 20C.
  • Design pressure: 2 bar.
  • Min working pressure: Atm.
  • Max working temperature: 2 bar.
  • Test pressure: 3.1 bar.
  • Material: 1.431 (AISI/SAE: 304).
  • Corrosion allowance: 0 mm.

    Depósito Dosificador De Lúpulo Meura De 90 Litros De Capacidad
  • Capacidad de diseño: 90 litros.
  • Capacidad máxima: 105 litros.
  • Temperatura de diseño: 100C.
  • Temperatura mínima de trabajo: 20C.
  • Temperatura máxima de trabajo: 105C.
  • Temperatura de prueba: 20C.
  • Presión de diseño: 2 bar.
  • Presión de trabajo mínima: Atm.
  • Temperatura máxima de trabajo: 2 bar.
  • Presión de prueba: 3,1 bar.
  • Material: 1.431 (AISI/SAE: 304).
  • Margen de corrosión: 0 mm.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Meura


    Year:
    2005
    2005

    Serial Number:
    1791.24.25
    1791.24.25

    CE Marked:
    YES
    YES

    Capacity Size:
    23.78 gal
    90 L

    Model:
    Hop Dosing Tank
    Hop Dosing Tank

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    51.18 x 43.31 x 66.93 in - 330.69 lb
    1300 x 1100 x 1700 MM - 150 KGS

  • Meura Vertical Stainless Steel 304 Tank With 23800 Liter Of Capacity



  • Back to Top
    Multi-Listing #823687

    Meura Vertical Stainless Steel 304 Tank With 23800 Liter Of Capacity



    Equipment Description
    Meura Vertical Stainless Steel 304 Tank With 23800 Liter Of Capacity
  • Minimum operating temp: 20C.
  • Max operating temp: 100C.
  • Test pressure: 0.
  • Mounted on 4 tubular legs.
  • Cone top and bottom.
  • NB built in situ and only recoverable for resale during demolition of the building.

    Tanque Vertical Meura De Acero Inoxidable 304 Con 23800 Litros De Capacidad
  • Temperatura mínima de funcionamiento: 20C.
  • Temperatura máxima de funcionamiento: 100C.
  • Presión de prueba: 0.
  • Montado sobre 4 patas tubulares.
  • Cono superior e inferior.
  • NB lo construyo en sitio y solo es recuperable para su reventa durante la demolición del edificio.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Meura


    Year:
    2016
    2016

    Serial Number:
    4303 24 21
    4303 24 21

    Capacity Size:
    6289.39 gal
    23800 L

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    118.11 x 118.11 x 0.04 in - 5511.50 lb
    3000 x 3000 x 1 MM - 2500 KGS

  • Vertical Stainless Steel 304 Tank Tejszolg Szentes Kft With 6000 Liter Of Capacity



  • Back to Top
    Multi-Listing #822911

    Vertical Stainless Steel 304 Tank Tejszolg Szentes Kft With 6000 Liter Of Capacity



    Equipment Description
    Vertical Stainless Steel 304 Tank Tejszolg Szentes Kft With 6000 Liter Of Capacity
  • Mounted on 4 legs
  • Rated atmospheric.
  • Manway on top dish.
  • Centre bottom outlet 50mm diameter.
  • Insulated and clad in SS.

    Tanque Vertical Tejszolg Szentes Kft De Acero Inoxidable 304 Con Capacidad De 6000 Litros
  • Montado en 4 patas.
  • Clasificado: atmosfera.
  • Manhole en el plato superior.
  • Salida inferior central de 50 mm de diámetro.
  • Aislado y revestido en Acero inoxidable.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Tejszolg Szentes Kft


    Year:
    2007
    2007

    Serial Number:
    071147-2
    071147-2

    CE Marked:
    YES
    YES

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    70.87 x 70.87 x 196.85 in - 1763.68 lb
    1800 x 1800 x 5000 MM - 800 KGS

  • Vertical Stainless Steel 304 Tank Tejszolg Szentes Kft With 4000 liter Of Capacity



  • Back to Top
    Multi-Listing #822912

    Vertical Stainless Steel 304 Tank Tejszolg Szentes Kft With 4000 liter Of Capacity



    Equipment Description
    Vertical Stainless Steel 304 Tank Tejszolg Szentes Kft With 4000 liter Of Capacity
  • Working pressure: atmospheric.
  • Centre bottom discharge 50mm diameter.
  • Mounted on 4 legs.

    Tanque Vertical De Acero Inoxidable 304 Tejszolg Szentes Kft Con Capacidad De 4000 Litros
  • Presión de trabajo: atmosférica.
  • Centro de descarga inferior de 50 mm de diámetro.
  • Montado sobre 4 patas.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Tejszolg Szentes Kft


    Year:
    2007
    2007

    Serial Number:
    071147-3
    071147-3

    CE Marked:
    YES
    YES

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    70.87 x 70.87 x 118.11 in - 1102.30 lb
    1800 x 1800 x 3000 MM - 500 KGS

  • Vertical Stainless Steel 304 Tank With 4000 Liter Of Capacity



  • Back to Top
    Multi-Listing #823363

    Vertical Stainless Steel 304 Tank With 4000 Liter Of Capacity



    Equipment Description
    Vertical Stainless Steel 304 Tank With 4000 Liter Of Capacity
  • Mounted on 4 legs.
  • Centre bottom outlet.
  • Insulated and clad in stainless steel.
  • Working pressure: Atmospheric.

    Tanque Vertical De Acero Inoxidable 304 Con 4000 Litros De Capacidad
  • Montado sobre 4 patas.
  • Salida inferior central.
  • Aislado y revestido en acero inoxidable.
  • Presión de trabajo: Atmosférica.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Tejszolg Szentes Kft


    Year:
    2007
    2007

    Serial Number:
    071147-1
    071147-1

    CE Marked:
    YES
    YES

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    70.87 x 70.87 x 118.11 in - 2204.60 lb
    1800 x 1800 x 3000 MM - 1000 KGS

  • Arsopi Thermal SA FHL 30 HP277 Plate Heat Exhanger



  • Back to Top
    Multi-Listing #823372

    Arsopi Thermal SA FHL 30 HP277 Plate Heat Exhanger



    Equipment Description
    Arsopi Thermal SA FHL 30 HP277 Plate Heat Exhanger
  • Max working pressure: 12,5 barG.
  • Max flow: 481 m3/h.

    Intercambiador De Calor De Placas Arsopi Thermal SA FHL 30 HP277
  • Presión máxima de trabajo: 12,5 barG.
  • Caudal máx.: 481 m3/h.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Arsopi Thermal SA


    Year:
    2016
    2016

    Serial Number:
    14370 TH
    14370 TH

    Model:
    FHL 30 HP277
    FHL 30 HP277

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    78.74 x 23.62 x 78.74 in - 2204.60 lb
    2000 x 600 x 2000 MM - 1000 KGS

  • Arsopi Thermal SA FHL 30 HP56 Plate Heat Exhanger



  • Back to Top
    Multi-Listing #823371

    Arsopi Thermal SA FHL 30 HP56 Plate Heat Exhanger



    Equipment Description
    Arsopi Thermal SA FHL 30 HP56 Plate Heat Exhanger
  • Max flow: 481 m3/h.
  • Max working pressure: 12,5barG.

    Intercambiador De Calor De Placas Arsopi Thermal SA FHL 30 HP56
  • Caudal máx.: 481 m3/h.
  • Presión máxima de trabajo: 12,5barG.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Arsopi Thermal SA


    Year:
    2016
    2016

    Model:
    FHL 30 HP56
    FHL 30 HP56

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    27.56 x 47.24 x 66.93 in - 1763.68 lb
    700 x 1200 x 1700 MM - 800 KGS

  • GEA VT40BC6 Plate Heat Exchanger With Stainless Steel Pressed Plates And Mild Steel Frame



  • Back to Top
    Multi-Listing #822763

    GEA VT40BC6 Plate Heat Exchanger With Stainless Steel Pressed Plates And Mild Steel Frame



    Equipment Description
    GEA VT40BC6 Plate Heat Exchanger With Stainless Steel Pressed Plates And Mild Steel Frame

    Intercambiador De Calor De Placas GEA VT40BC6 Con Placas Prensadas De Acero Ino Y Marco De Acero

    Specifications:
    Standard
    Metric
    Manufacturer Name
    GEA


    Year:
    2013
    2013

    Serial Number:
    171/7621
    171/7621

    CE Marked:
    YES
    YES

    Model:
    VT40BC6
    VT40BC6

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    23.62 x 59.06 x 74.80 in - 3071.01 lb
    600 x 1500 x 1900 MM - 1393 KGS

  • Stainless Steel Modular Bolted Conical Grain Hopper



  • Back to Top
    Multi-Listing #822804

    Stainless Steel Modular Bolted Conical Grain Hopper



    Equipment Description
    Stainless Steel Modular Bolted Conical Grain Hopper
  • Mounted on four steel legs and support frame.
  • Fitted with FIKE Flameless explosion venting, model Flamequench 1150.

    Tolva De Grano De Acero Inoxidable Modular Atornillada Cónica
  • Montado sobre cuatro patas de acero y estructura de soporte.
  • Equipado con venteo de explosión FIKE Flameless, modelo Flamequench 1150.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Unknown


    Capacity Size:
    lb
    KGS

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    110.24 x 110.24 x 125.98 in - 2645.52 lb
    2800 x 2800 x 3200 MM - 1200 KGS

  • Carbon Steel Screw Conveyor Elevator With 1.5 kW Drive Motor



  • Back to Top
    Multi-Listing #822806

    Carbon Steel Screw Conveyor Elevator With 1.5 kW Drive Motor



    Equipment Description
    Carbon Steel Screw Conveyor Elevator With 1.5 kW Drive Motor
  • SEW Eurodrive reduction gearbox.
  • Screw 200mm diameter x 1800 long x discharge port 200mm diameter.

    Elevador Transportador De Tornillo De Acero Al Carbono Con Motor De Accionamiento De 1,5 kW
  • Caja reductora SEW Eurodrive.
  • Tornillo de 200 mm de diámetro x 1800 mm de largo x puerto de descarga de 200 mm de diámetro.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Unknown


    Year:
    2016
    2016

    Voltage:
    415 VOLTS
    415 VOLTS

    Frequency:
    50 HERTZ
    50 HERTZ

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    23.62 x 23.62 x 137.80 in - 1322.76 lb
    600 x 600 x 3500 MM - 600 KGS

  • Carbon Steel Screw Conveyor Elevator



  • Back to Top
    Multi-Listing #822807

    Carbon Steel Screw Conveyor Elevator



    Equipment Description
    Carbon Steel Screw Conveyor Elevator
  • 200mm diameter screw.
  • SEW reduction gearbox.

    Elevador Transportador De Tornillo De Acero Al Carbono
  • Tornillo de 200 mm de diámetro.
  • Caja reductora SEW.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Unknown


    Year:
    2019
    2019

    Voltage:
    415 VOLTS
    415 VOLTS

    Frequency:
    50 HERTZ
    50 HERTZ

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    204.72 x 15.75 x 19.69 in - 1102.30 lb
    5200 x 400 x 500 MM - 500 KGS

  • Carbon Steel Screw Conveyor Elevator With 1.5 kW Drive Motor



  • Back to Top
    Multi-Listing #822808

    Carbon Steel Screw Conveyor Elevator With 1.5 kW Drive Motor



    Equipment Description
    Carbon Steel Screw Conveyor Elevator With 1.5 kW Drive Motor
  • SEW reduction gearbox.
  • 200mm diameter outlet port.

    Elevador Transportador De Tornillo De Acero Al Carbono Con Motor De Accionamiento De 1,5 kW
  • Caja reductora SEW.
  • Puerto de salida de 200 mm de diámetro.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Unknown


    Year:
    2019
    2019

    Voltage:
    230-400 VOLTS
    230-400 VOLTS

    Frequency:
    50/60 HERTZ
    50/60 HERTZ

    Phase:
    3
    3

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    137.80 x 23.62 x 23.62 in - 1102.30 lb
    3500 x 600 x 600 MM - 500 KGS

  • Asnong Carbon Steel Hammer Mill With 37 kW Drive Motor



  • Back to Top
    Multi-Listing #822811

    Asnong Carbon Steel Hammer Mill With 37 kW Drive Motor



    Equipment Description
    Asnong Carbon Steel Hammer Mill With 37 kW Drive Motor
  • 37KW drive motor (WEG 2965 RPM).
  • Mounted on steel baseplate.
  • Mounted over carbon steel collection hopper.
  • Dust filter vented to atmosphere.

    Molino De Martillos De Acero Al Carbono Asnong Con Motor De Accionamiento De 37 kW
  • Motor de accionamiento de 37KW (WEG 2965 RPM).
  • Montado sobre placa base de acero.
  • Montado sobre tolva de recogida de acero al carbono.
  • Filtro de polvo ventilado a la atmósfera.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    ASNONG


    Year:
    2005
    2005

    Serial Number:
    H230 AO - S410
    H230 AO - S410

    CE Marked:
    YES
    YES

    Model:
    1.2DB 320 Diameter x 164
    1.2DB 320 Diameter x 164

    Voltage:
    415 VOLTS
    415 VOLTS

    Frequency:
    50 HERTZ
    50 HERTZ

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    39.37 x 62.99 x 55.12 in - 4409.20 lb
    1000 x 1600 x 1400 MM - 2000 KGS

  • Asnong Dia200x200R Carbon Steel Hopper With Screw Discharge At Base



  • Back to Top
    Multi-Listing #822909

    Asnong Dia200x200R Carbon Steel Hopper With Screw Discharge At Base



    Equipment Description
    Asnong Dia200x200R Carbon Steel Hopper With Screw Discharge At Base
  • Modular bolted panels.

    Tolva De Acero Al Carbono Asnong Dia200x200R Con Descarga De Tornillo En La Base
  • Paneles modulares atornillados.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    ASNONG


    Year:
    2005
    2005

    Serial Number:
    TR2010AO
    TR2010AO

    Capacity Size:
    lb
    KGS

    Model:
    Dia200x200R
    Dia200x200R

    Voltage:
    415 VOLTS
    415 VOLTS

    Frequency:
    50 HERTZ
    50 HERTZ

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    204.72 x 78.74 x 98.43 in - 6613.80 lb
    5200 x 2000 x 2500 MM - 3000 KGS

  • Horizontal Asnong Screw Conveyor Galvanized Mild Steel



  • Back to Top
    Multi-Listing #823369

    Horizontal Asnong Screw Conveyor Galvanized Mild Steel



    Equipment Description
    Horizontal Asnong Screw Conveyor Galvanized Mild Steel
  • Galvanized mild steel.
  • 200 mm diameter screw x 9 m.
  • Discharge 200mm diameter.

    Transportador De Tornillo Horizontal Asnong De Acero Dulce Galvanizado
  • Acero dulce galvanizado.
  • Tornillo de 200 mm de diámetro x 9 m.
  • Descarga de 200 mm de diámetro.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    ASNONG


    Year:
    2004
    2004

    Serial Number:
    TR 1996 A0
    TR 1996 A0

    CE Marked:
    YES
    YES

    Model:
    250 Diameter
    250 Diameter

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    19.69 x 354.33 x 23.62 in - 2204.60 lb
    500 x 9000 x 600 MM - 1000 KGS

  • Tejszolg Szentes Kft Stainless Steel 304 Tank With 2000 Liter Of Capacity



  • Back to Top
    Multi-Listing #823849

    Tejszolg Szentes Kft Stainless Steel 304 Tank With 2000 Liter Of Capacity



    Equipment Description
    Tejszolg Szentes Kft Stainless Steel 304 Tank With 2000 Liter Of Capacity
  • Mounted on 3 legs.
  • Working pressure: Atmospheric.
  • Manhole on top.
  • Centre bottom outlet.

    Tanque De Acero Inoxidable 304 De Tejszolg Szentes Kft Con 2000 Litros De Capacidad
  • Montado sobre 3 patas.
  • Presión de trabajo: Atmosférica.
  • Boca de acceso en la parte superior.
  • Salida inferior central.

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Tejszolg Szentes Kft


    Year:
    2007
    2007

    Serial Number:
    071147-4
    071147-4

    CE Marked:
    YES
    YES

    Capacity of Tank:
    528.52 gal
    2000 L

    Tank Material of Construction:
    STAINLESS STEEL
    STAINLESS STEEL

    Jacketed:
    NO
    NO

    Type of Top Head:
    DISHED
    DISHED

    Type of Bottom Head:
    CONE
    CONE

    Vertical or Horizontal:
    VERTICAL
    VERTICAL

    Agitation:
    NO
    NO

    Inside Diameter:
    62.60 in
    1590 MM

    Overall Height:
    98.43 in
    2500 MM

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    62.99 x 62.99 x 98.43 in - 881.84 lb
    1600 x 1600 x 2500 MM - 400 KGS



Disclaimer

Certain sellers requires that we assess state sales tax where applicable. Sales tax can only be waived if a valid sales tax exemption certificate is provided.

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection.

This equipment is subject to a removal and loading charge.

The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

Any license associated with this equipment is non transferable.



Location:

Opwijk, , Belgium

Event Start Date:

6/13/2023

Invoices Will be Sent:

7/3/2023
** All invoices will be issued by the seller and will be available 2 weeks after the auction closes - Invoices must be paid within 5 days

Handling Fee:

€60,938.00 EUR

This is the cost to get the item from its location to an area where it can safely be loaded (unless otherwise noted). Packaging and shipping are additional and can be provided once your equipment invoice has been paid.
