Sealed Bid #1296 Complete Liquid Mud and Cement Casing Production and Distribution Plants For Sale in Wallis, TX

Lot 1 Listing# 888869 Fully Functional Drilling Cement Casing Plant


Sealed Bid

2/1/2023


Register


Bid Packets Must be Received by:  3/31/2023 4:00 PM

Location:   Wallis, TX, USA

Buyer Premium:   0.0%





Asset Documents
Equipment Description
Fully Functional Cement Plant Ready To Be Reassembled

  • The original plant was installed and put into service in late 2012
  • 94,100 cu3 of storage
  • The cement plant remained operational until 2019 when the facility was shut down due to production slowdowns in the states. It is now disassembled and can be professionally reassembled
  • The process involves the pneumatic transfer of cement and additives between enclosed tanks to produce specialty dry cement blends. All emissions generated in the blending process are vented to the atmosphere through baghouses. For more information about the process and capabilities, see attached file titled "more equipment detail" above.

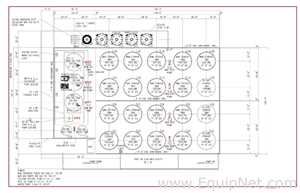

  • LIST OF CEMENT PLANT COMPONENTS

    QTY & DESCRIPTION
    (4) 12500 CU ft bolted silo with 45 degree hoppers
    (12) DST COLL ASSY, 30 BAG,WTH 22 IN
    (12) 410 P/V SCALE TANK
    (6) SKID PLANT COMPR 410SCFLP ELEC
    (2) TK ASSY WASTE 2560CF 12 D NON-P 60 IN FL
    (16) TK ASSY, STG, 2560CF, 12 D, NON-P W FLGS
    (2) DUST COLLECTOR ASSY - 37 BAG - C-PORT CM
    (2) DUST COLL AND EXTRTN UNIT,SACKCUT,10,000
    (2) BLOWER ASSY,280 ICFM,10 PSIG,20 HP ELEC,
    (2) COMPR ASSY, QUINCY, QR-25, F350, 10 HP
    (3) SAMPLER,DRY MATERIAL,PNEUMATIC
    (4) SAMPLER,DRY MATERIAL,PNEUMATIC
    (1) KIT,PLTFRMS,LDRS AND WLKWY,CMT PLT,SA TX
    (1) KIT,RDR LVL SNSR,LVL IND&SC,CMT PT,SA TX
    (1) KIT,PP,VLVS & CMPNTS,CEM PLANT,SA TX
    (1) KIT,CONT AIR VLVS & CMPNTS,CMT PLT,SA TX
    (1) KIT,RLF HATCHES,AERTN & DISCH,VIBR,CMT P
    (3) KIT,PLC ENCL & ELECL CMPNTS,CMT PLT,SA T

  • More photos and descriptive information available upon request

    Planta de cemento completamente funcional lista para ser ensamblada

  • La planta original fue instalada y puesta en servicio a finales de 2012
  • 94,100 cu3 de almacenamiento
  • La planta de cemento permaneció operativa hasta 2019, cuando se cerró debido a la desaceleración de la producción en los Estados Unidos. Ahora está desmontado y se puede volver a montar profesionalmente.
  • El proceso implica la transferencia neumática de cemento y aditivos entre tanques cerrados para producir mezclas especiales de cemento seco. Todas las emisiones generadas en el proceso de mezcla se ventilan a la atmósfera a través de cámaras de filtros. Para obtener más información sobre el proceso y las capacidades, consulte el archivo adjunto titulado "más detalles del equipo" arriba.

  • LISTA DE COMPONENTES DE LA PLANTA DE CEMENTO

    CANTIDAD Y DESCRIPCIÓN
    (4) SILO EMPERNADO DE 12500 CU FT CON TOLVAS DE 45 GRADOS
    (12) CONJUNTO DE COLECTOR DE POLVO, 30 BOLSAS, DE 22 PULGADAS
    (12) TANQUE A ESCALA DE 410 PIES CÚBICOS
    (6) SKID PLANT COMPRESOR 410SCFLP ELEC
    (2) CONJUNTO DE TANQUE DE RESIDUOS 2560CF 12 D NO P 60 IN FL
    (16) ENSAMBLE DE TANQUE, STG, 2560CF, 12 D, NO P W FLGS
    (2) CONJUNTO DE COLECTOR DE POLVO - BOLSA 37 - C-PORT CM
    (2) UNIDAD DE COLOCACION Y EXTRACCION DE POLVO,CORTE DE SACO,10,000
    (2) CONJUNTO DE SOPLADOR, 280 ICFM, 10 PSIG, 20 HP ELEC,
    (2) CONJUNTO DE COMPRESOR, QUINCY, QR-25, F350, 10 HP
    (3) MUESTREO, MATERIAL SECO, NEUMÁTICO
    (4) MUESTREO, MATERIAL SECO, NEUMÁTICO
    (1) KIT PLATAFORMAS, ESCALERAS Y PASARELAS, PLANTA DE CEMENTO, SA TX
    (1) KIT SENSOR DE NIVEL RDR, INDICADOR DE NIVEL Y SC, PLANTA DE CEMENTO, SA TX
    (1) KIT DE BOMBA, VÁLVULAS Y COMPONENTES, PLANTA DE CEMENTO, SA TX
    (1) KIT VÁLVULAS DE AIRE CONT Y COMPONENTES, PLANTA DE CEMENTO, SA TX
    (1) KIT ESCOTILLAS RLF, AERTN Y DISCO, VIBR, PLANTA DE CEMENTO
    (3) KIT CAJA DE PLC Y COMPONENTES ELÉCTRICOS, PLANTA DE CEMENTO, SA TX

  • Más fotos e información descriptiva disponibles bajo petición

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Varios



    Dimensions:
    Standard
    Metric

    Overall:
    1 x 1 x 1 IN - 1 LBS
    25.40 x 25.40 x 25.40 mm - 0.45 kg

    Disclaimer

    Certain sellers requires that we assess state sales tax where applicable. Sales tax can only be waived if a valid sales tax exemption certificate is provided.

    This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection.

    This equipment is subject to a removal and loading charge.

    The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

    Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

    Any license associated with this equipment is non transferable.



    Location:

    Wallis, TX, USA

    Event Start Date:

    2/1/2023

    Invoices Will be Sent:

    4/5/2023
    All invoices must be paid within (5) days.
