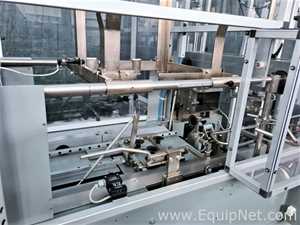

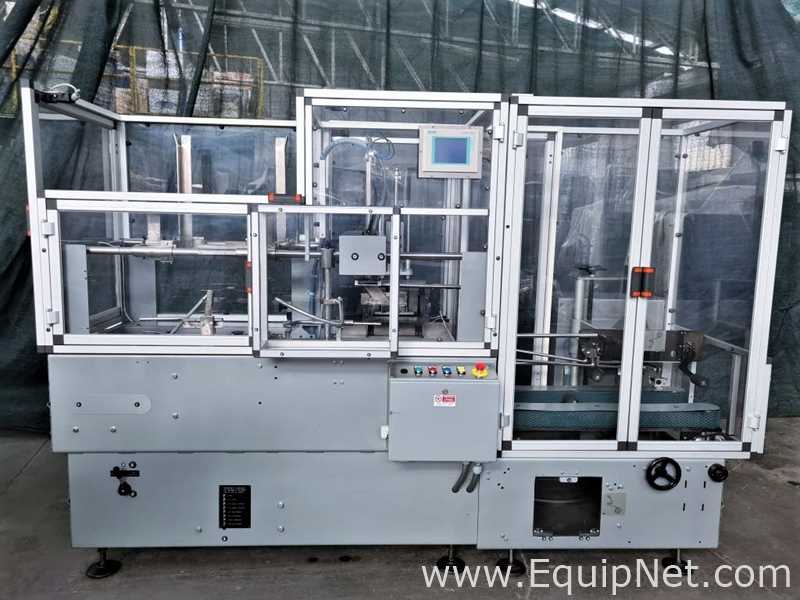

The case packer machine CAM brand model smash compact 1 / S, reconditioned in all his parts by APRIL FA.R.MA in 2014, is an alternating movements machine and has the function of stacking cartons and inserting them into shipping cases previously taken from the dedicated warehouse, formed and placed in front of the hopper.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
The machine consists of three main parts:
- automatic stacker: provides for the grouping of the products in the former according to the established arrangement.
- Case forming machine: provides for the unwinding of the carton and its transport to the hopper for insertion of the same to allow the subsequent introduction of the cartons or bundles inside the carton itself.
- Closing module - taping machine: closes the edges of the cardboard by applying tape and then transporting it to the exit.
The working speed depends on the type of product and the feeding possibilities. Speeds of up to 16 cartons per minute can be reached depending on the arrangement of the products. The format change is generally carried out in about 20/30 min. Complete with the recondition manuals.
Year of construction: 2014
Length mm 3150
Width mm 2050
Height mm 2300
Net weight Kg 940
Max power absorbed KW 1,72
Operating pressure atm 6 ÷ 7
Supply voltage Trifase 400V Hz. 50 +T
Free air consumption 150 + 200 Lt./1’
Dim. Carton (fig.13):
A 10 to 580 mm
B 10 to 130 mm
C 50 to 350 mm
Dim Case (fig.13):
A 120 to 580 mm
B 70 to 400 mm
C 70 to 425 mm
CAM - APRIL FA.R.MA
Recommended Packaging Form:
124.02 x 80.71 x 90.55 in - 2072.32 lb
3150 x 2050 x 2300 MM - 940 KGS
