Listing# 854862

CAM MOD. HF77 - Continuous motion horizontal cartoner


Make an Inquiry

Seller's Acceptable Currency:

€31,000.00 EUR

Make An Offer

Location:  Europe

Level of Removal:  Uncrated/Loose

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you




Equipment Description

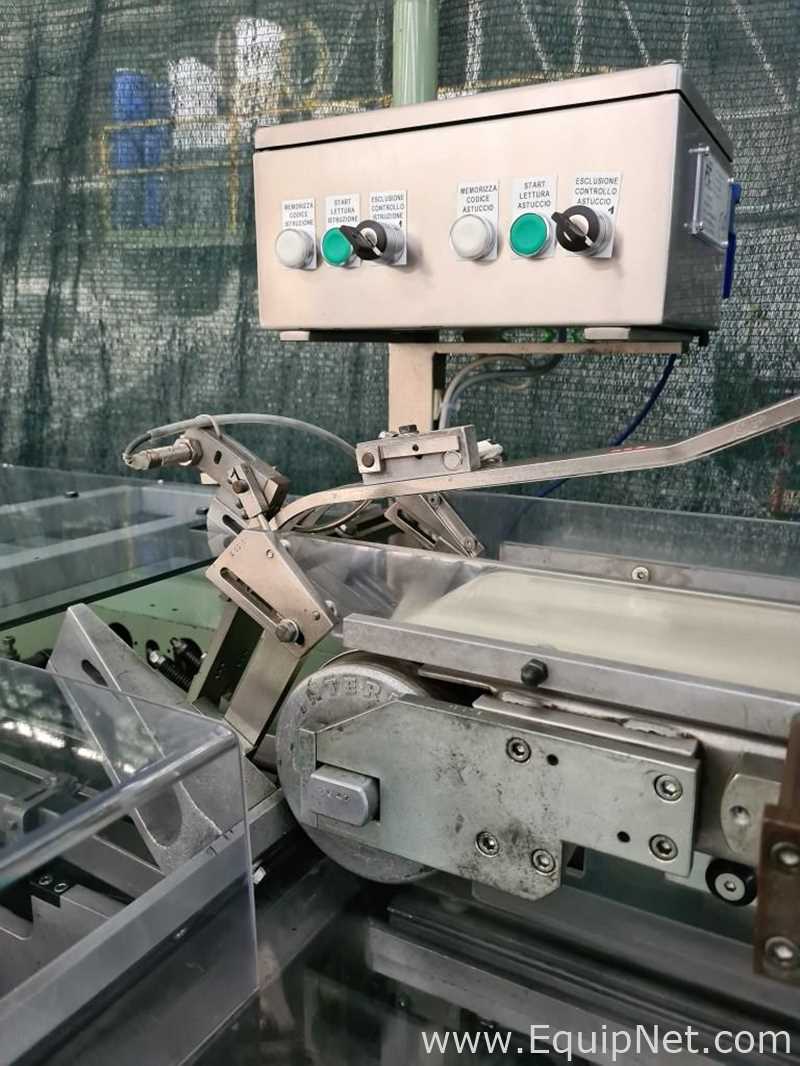

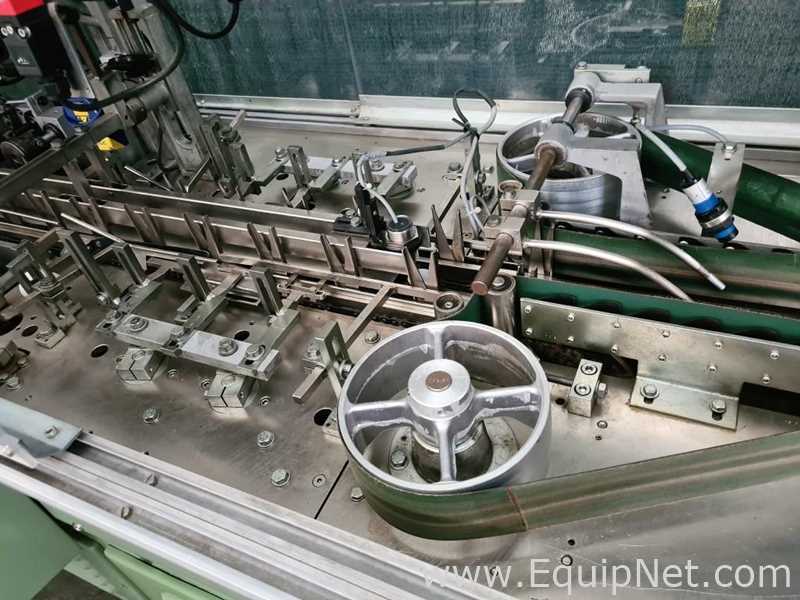

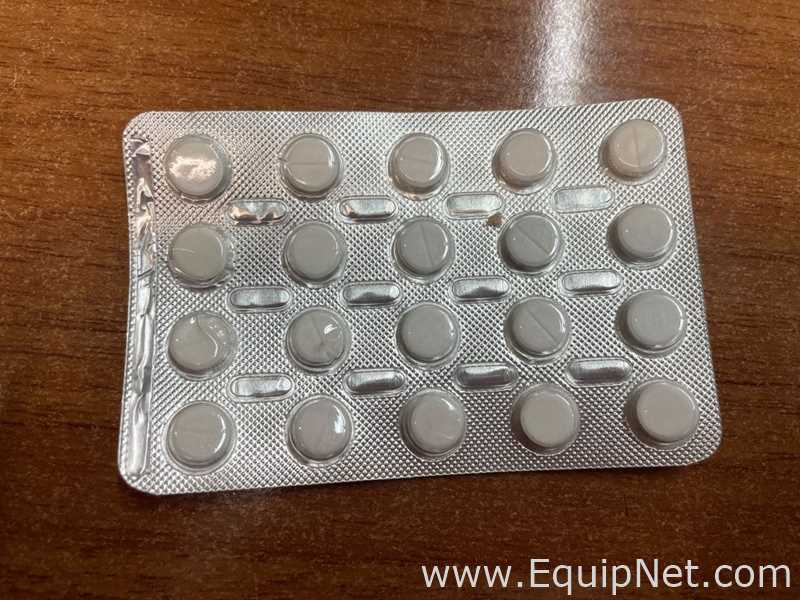

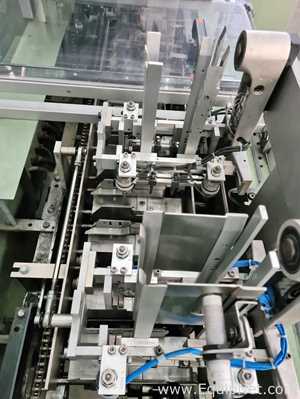

DESCRIPTION: Continuous motion cartoning machine with horizontal transport of cases and with the quick format change. The machine is equipped with displaying device for controlling material on tray, controlling presence of product, cases, and packed product. Electric security device on the product pusher. Plexiglas protection with electric security device. Easily accessible emergency buttons. Automatic stop display. SECTORS OF USE: Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, other. MAIN FEATURES: Cartoning machine suitable for the packing of a wide product range from single to multiple products, pilable and non, with sealing of case flaps at both ends. With simple parts replacement operations, it is also possible to pack cartons with alternating flaps. Compact size and high efficiency make this machine ideal for any packaging line of blisters, strips, boxes, bottles, bags, squeezable tubes or rigid, bags, soaps and other products of various kinds. Carton reject system. Mounted on height adjustable legs. The last processed product: blister packs. The unit is complete with GUK leaflet folder and Datalogic industrial scanner. PRODUCTION CHARACTERISTICS Format range min 20 x 12 x 55 mm Format range max 70 x 70 x 200 mm Max output 260 cartons/min

Specifications:
Standard
Metric
Manufacturer Name
CAM Packaging Systems


Carton Size or Range:
Format range min 20 x 12 x 55 mm; Format range max 70 x 70 x 200 mm
Format range min 20 x 12 x 55 mm; Format range max 70 x 70 x 200 mm

Speed:
Max output 260 cartons/min BPM
Max output 260 cartons/min BPM

Model:
HF77
HF77

Line Motion:
CONTINUOUS
CONTINUOUS

Product Handling:
HORIZONTAL
HORIZONTAL

Product Loading:
AUTOMATIC
AUTOMATIC

Recommended Packaging Form:
CUSTOM
CUSTOM


Dimensions:
Standard
Metric

Overall:
137.80 x 59.06 x 78.74 in - 3306.90 lb
3500 x 1500 x 2000 MM - 1500 KGS

Disclaimer

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

Europe.

This equipment is subject to a removal and loading charge.


The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

Any license associated with this equipment is non-transferable.
