Listing# 810035

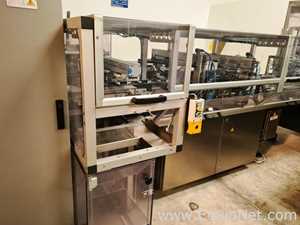

CAM Mod. HV 2 - Horizontal cartoner


Seller's Acceptable Currency:

€72,000.00 EUR

Make An Offer

Location:  Europe

Level of Removal:  Uncrated/Loose

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you




Equipment Description

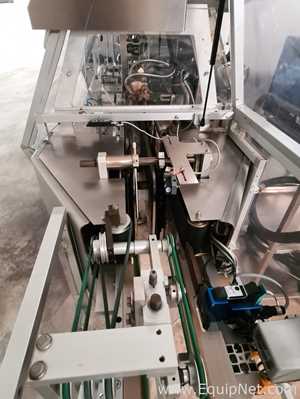

DESCRIPTION: High speed continuous motion horizontal cartoning machine suitable for packaging products in cartons closed with interlocking peer flaps. Displaying device for controlling material on tray, controlling presence of product, cases, and packed product. Electric security device on the product pusher. Plexiglas protection with electric security device. Easily accessible emergency buttons. Automatic stop display. SECTORS OF USE: For the packaging in cartons products like: blisters, strips, trays, tubes (rigid or squeezable), bottles, bags, soaps and other food products or cosmetics. MAIN FEATURES: Versatile cartoning machine. The products to be packed once transported to the introducer pusher are detected by a sensor that commands to pick up its carton. In this way, the product and the carton move forward in perfect synchronization to the filling station, both controlled by two sensors. Particular attention has been given to machine cleaning below the carton transport area, where possible product or packaging material residue is conveyed to easily accessible collection areas. Equipped with leaflet inserter, Nordson hotmelt unit, Wolke code printing unit. Year: 2006 TECHNICAL DATA Length mm 4950 Width mm 1650 Height mm 1700 Weight kg 2500 Carton length min-max mm 70-230 Carton width min-max mm 20-160 Carton height min-max mm 12-70 Power absorption Kw 5,2 Speed max strokes/min 260


Specifications:
Standard
Metric

Manufacturer Name
CAM


Carton Size or Range:
Carton length min-max mm 70-230 Carton width min-max mm 20-160 Carton height min-max mm 12-70
Carton length min-max mm 70-230 Carton width min-max mm 20-160 Carton height min-max mm 12-70

Speed:
260 CPM
260 CPM

Year:
2006
2006

Model:
HV 2
HV 2

Product Sizing:
Carton length min-max mm 70-230 Carton width min-max mm 20-160 Carton height min-max mm 12-70
Carton length min-max mm 70-230 Carton width min-max mm 20-160 Carton height min-max mm 12-70

Line Motion:
CONTINUOUS
CONTINUOUS

Product Handling:
HORIZONTAL
HORIZONTAL

Product Loading:
AUTOMATIC
AUTOMATIC

Current:
5,2 KW
5,2 KW

Recommended Packaging Form:
CUSTOM
CUSTOM


Dimensions:
Standard
Metric

Overall:
196.85 x 66.93 x 70.87 in - 5511.50 lb
5000 x 1700 x 1800 MM - 2500 KGS


Disclaimer

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

Europe.

This equipment is subject to a removal and loading charge.


The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

Any license associated with this equipment is non-transferable.
