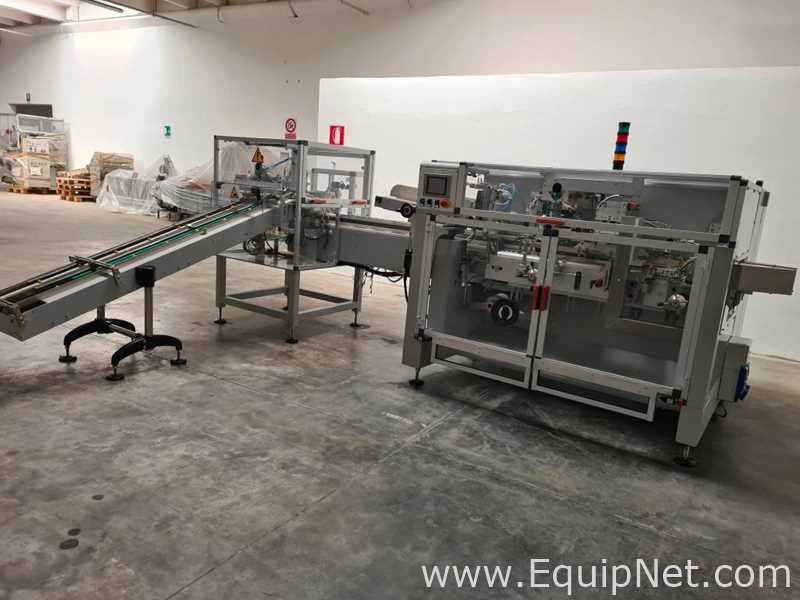

DESCRIPTION: Automatic horizontal cartoner with intermittent motion. The intermittent motion cartoners provide all the benefits of the most advanced production technology and constant research in this particular sector of automatic packaging. They combine the advantages of reduced overall dimensions with greater sturdiness and improved reliability presented in an attractive modern line. These cartoners have a completely enclosed structure with safety devices on all the opening parts to ensure overall protection and compliance with all the current safety regulations. SECTORS OF USE: Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing. MAIN FEATURES: The carton is picked up from the feeding area through a suction cup system, during translation it is splayed and opened and then placed on the chain equipped with transport teeth. The product fed by a dedicated belt is introduced inside the carton, the rear flaps of the box have been previously closed by contrast. The closure of the front flaps and the passage of the case through the side accompanying belts complete the operating cycle. The machine is equipped with sachet feeder. Year: 2009 TECHNICAL DATA Length mm 3560 Width mm 1700 Height mm 1450 Approx net weight Kg 2000 Feeder dimensions mm 3150 x 1250 x 1570 Frequency Hz 50 Voltage Volt 400 PRODUCTION CHARACTERISTICS Carton width mm, min max 15-150 Carton height mm, min max 15-50 Carton length mm, min max 55-250 Capacity speed 100 cycles/min Electric consumption 4 Kw/h Pneumatic supply 6 bar
