Listing# 416289

CarMatic Model CM 555 Cotton and Silica Gel Inserting Machine

Seller's Acceptable Currency:

€12,600.00 EUR

Make An Offer

Location:  Europe

Level of Removal:  Uncrated/Loose

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Equipment Description

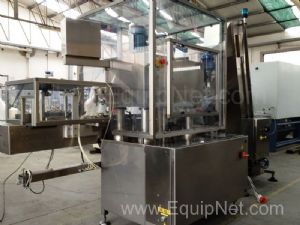

  • Car Matic Model CM 555 Cotton and Silica Gel Inserting Machine
  • Description: The CM555 inserts the silicon then the cotton in the bottles in arrival. The unit has worked in an automatic capsule packaging line with plastic bottles. The machine is equipped with a sorter/feeder for cylindrical silica gel cartridges. The cotton rope hank is fed automatically and is introduced in the bottles in folded pieces
  • SECTORS OF USE: Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing
  • MAIN FEATURES: The machine consists of the following parts: -Conveyor belt which transports the bottles in arrival until filling stages then towards the exit. -Silica gel station consists of a hopper and a conveyor belt for the containment and transportation of silica gel. -Cotton insertion station. The unit is equipped with safety devices and related reporting systems and control panel type CPU Siemens COROS OP15. Safety panels isolate the moving parts of the machine from the working area of the operator. The unit is provided with inspection windows
  • Complete with OZAF feeder elevator
  • Formats handled: Round plastic bottles - diam. 90 mm x height 190 mm, diam. 50 mm x height 105 mm, diam. 50 mm x height 70 mm, diam. mm x 50 mm height from 52.2 to 56.6; Silica cells - diam. 14 to 14.2 mm x Height 17.7 to 18 mm
  • Maximum Production: 60 pieces/min

  • Specifications:
    Manufacturer Name


    380 VOLTS
    380 VOLTS

    50 HERTZ
    50 HERTZ


    138 x 56 x 87 IN - 2205 LBS
    3505.20 x 1422.40 x 2209.80 mm - 1000.19 kg


    This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in


    This equipment is subject to a removal and loading charge.

    The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

    Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

    Any license associated with this equipment is non-transferable.
