Circle Packaging Machinery H22X8SX Horizontal Form Fill Seal Machine

All Servo Machine

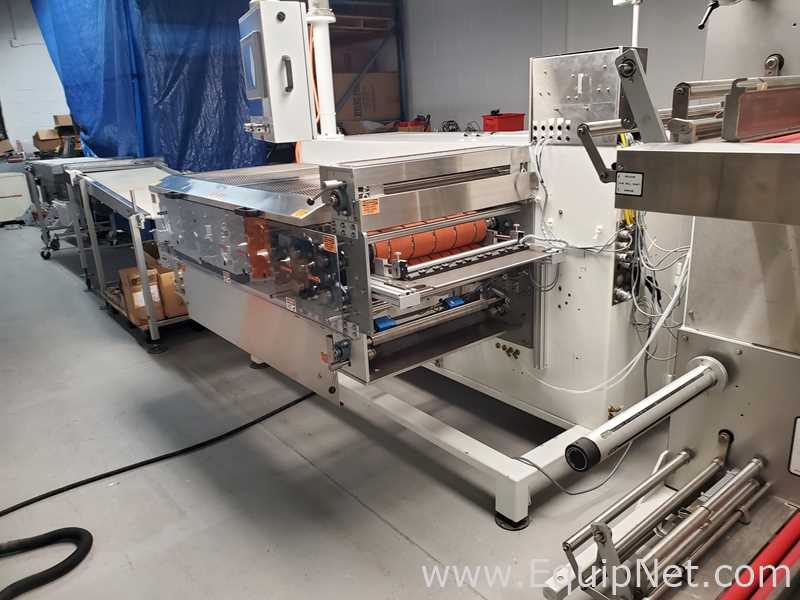

Four sided pouch form fill and seal horizontal wrapper

Product enters on a laned conveyor which is cut by an ultrasonic blade and then separated by a metering conveyor (not included) and is then wrapped. Wrapped product then travels through a series of two side sealers and a pull wheel.

Side sealers apply constant pressure with controlled heat. The first sealer applies a minimal amount of heat as to be sure not to scorch the wrap. The second sealer applies more heat to ensure the seal is made.

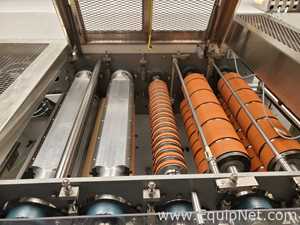

Pull wheels are used to pull and align film through the machine, while cooling and strengthening the side seals

The package then travels through a cross sealer which seals the remaining two sides. Once the four sides of the package have been sealed, the packages are then separated lengthwise by a slitter which cuts along the seal. The packages then travel through another pull wheel and through the cut-off knife which separates the packages in the cross direction.

Dual film roll feeders for separate top and bottom roll feeding

Conveyor sections
Infeed section is 22 inches wide x 83 inches long
Outfeed section is 22.5 inches wide x 69 inches long
Smooth belt

(8) lanes
Adjustable lane width
Currently set to 1.5 inches wide

Adjustable height

Allen Bradley Panelview Plus 1000 color touchscreen interface

(7) cutting blades

Dual 23 inch long heated crimp

Adjustable product width

Cutter: (2) 10 1/2" wide

Adjustable lane width

Control: 24 Volts / 60 Hz

80/90/cfm

Personnel guarding

Adjustable height
