Equipment Description

Planta de Cogeneracion de Energias Completa - Electricidad Vapor y Agua de Enfriamiento -
Integrada por:

Un Generador de Energía Eléctrica marca Cummins modelo C1750N66 con Motor de Combustión Interna marca Cummins modelo QSV91-G para suministrar Energía Eléctrica a la Planta
Capacidad 1750 Kw, 440 VCA, 60 Hz, 3 fases mas Neutro
El motor de combustión interna del generador de energía eléctrica usa Gas Natural para operar y producir la energía eléctrica

Un Generador de Vapor marca Aningas Ergos con Economizador para suministrar Vapor Seco Saturado a la Planta
Capacidad 1,100 Kg/h a 7 bar
El generador de vapor utiliza los gases de salida del motor del generador para producir el vapor seco saturado

Un Enfriador de Agua de Absorción de Bromuro de Litio marca Broad X Non para suministrar Agua de Enfriamiento a la planta a 6°C
El enfriador de absorción utiliza el calor del sistema de enfriamiento de alta temperatura del motor del generador para producir agua de enfriamiento.

Un Sistema Solar marca Ensys Solutions con Capacidad de 405 Kw el cual consiste de varios paneles fotovoltaicos para suministrar Energía Eléctrica a la planta a 440 VCA, 6 Hz, 3 Fases mas Neutro
La Capacidad es variable dependiendo de la posición del sol durante el día y de la temporada del año

La Planta de Cogeneración de Energías fue diseñada como un sistema integral para AHORRAR, capaz de suministrar las diferentes energías necesaria (electricidad, vapor y agua de enfriamiento) y asegurar la operación de la fabrica en caso de la falta de energía eléctrica de la Red Municipal

¿Necesita más información?
o si desea realizar una oferta
y siga las instrucciones

Complete Power Cogeneration Plant - Electricity Steam and Cooling Water -
Integrated by:

One Cummins C1750N66 Electric Power Generator with Cummins QSV91-G Internal Combustion Engine for supplying Electric Power to the Plant
Capacity 1750 Kw, 440 VAC, 60 Hz, 3 Phase plus Neutral.
The internal combustion engine of the electric power generator uses Natural Gas for running and producing electric power

One Aningas Ergos Steam Generator with Economizer for supplying Saturated Dried Steam to the Plant
Capacity 1,100 Kg/h at 7 bar
The steam generator uses the exhaust gases from the engine of generator for producing saturated dry steam

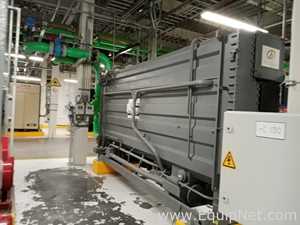

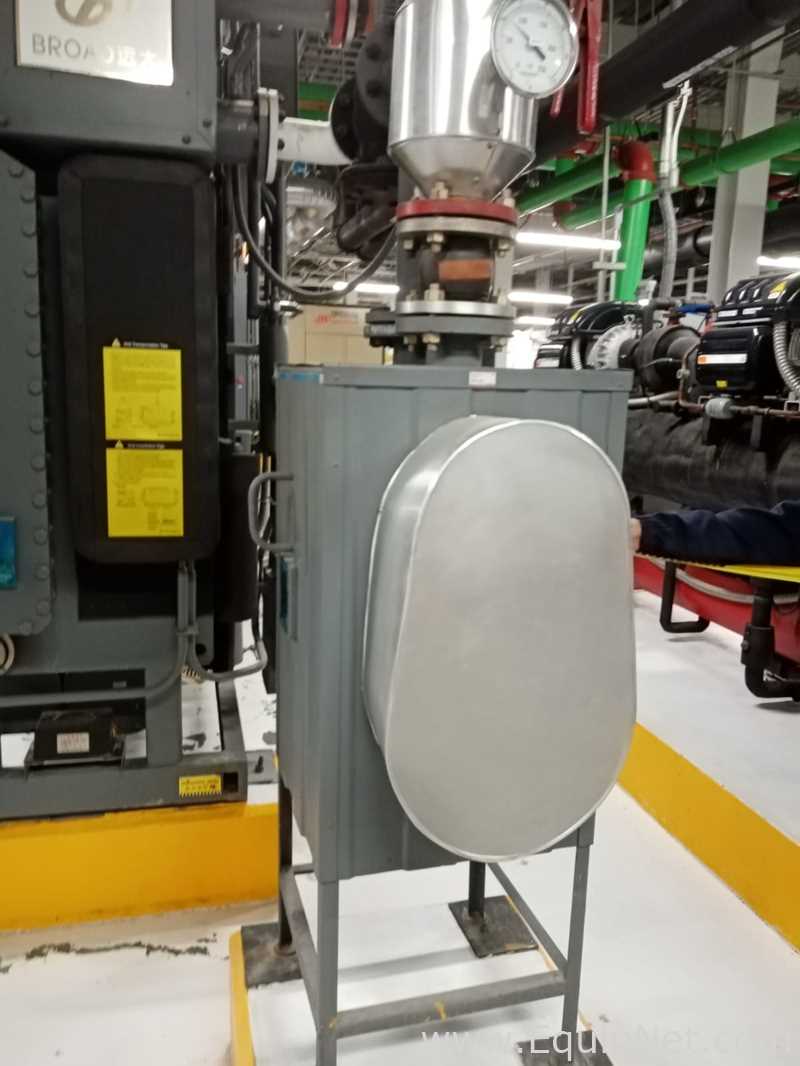

One Broad X Non Lithium Bromide Absorption Water Chiller for supplying Cooling Water to the Plant at 6°C
The Absorption Chiller uses heat from high temperature cooling system of the engine of the generator for producing the cooling water

One Ensys Solutions Solar System with Capacity 405 Kw which consists of several photovoltaic panels for supplying Electrical Power to the Plant at 440 VAC, 60 Hz, 3 Phase plus Neutral
Capacity is variable depending on the sun position during the day and the seasons of the year

The Power Cogeneration Plant was conceived as an integrated system, for SAVINGS, capable of supplying different energies needed at the factory (electricity, steam and cooling water) and ensure the factory operation in case of lack of electricity supply from the Municipal Net.

Specifications:

Standard

Metric

Manufacturer Name

Cummins Power Generation

Current:

1750 KW

Voltage:

440 VOLTS

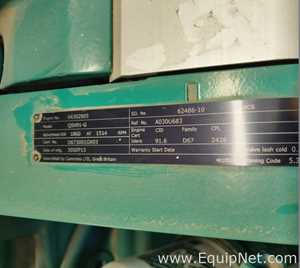

Year:

2013

Serial Number:

62486-10, J13K582066

CE Marked:

YES

Frequency:

60 HERTZ

Phase:

3+1

Recommended Packaging Form:

CUSTOM PALLET

Dimensions:

Standard

Metric

Overall:

0.04 x 0.04 x 0.04 in - 165345.00 lb

1 x 1 x 1 MM - 75000 KGS

Disclaimer

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

Guanajuato

This equipment is subject to a removal and loading charge.

The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

Any license associated with this equipment is non-transferable.
