Listing# 892167

DCI 110 Gallon Stainless Steel Jacketed Mixing Kettle


Seller's Acceptable Currency:

$7,500.00 USD

Make An Offer

Location:  MA, USA

Level of Removal:  Uncrated/Loose

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Click here to view the sales agreement.




Equipment Description

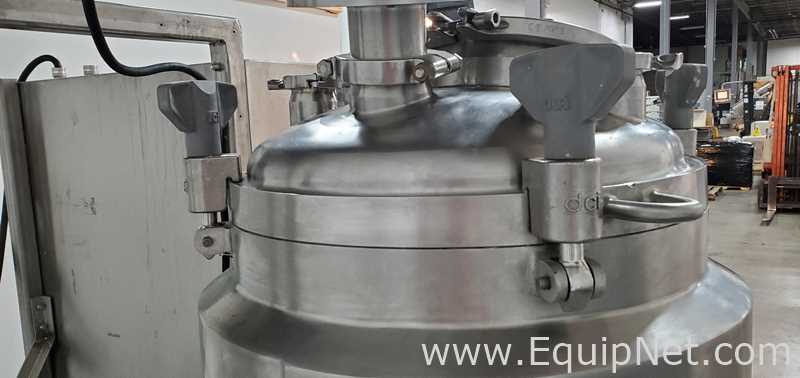

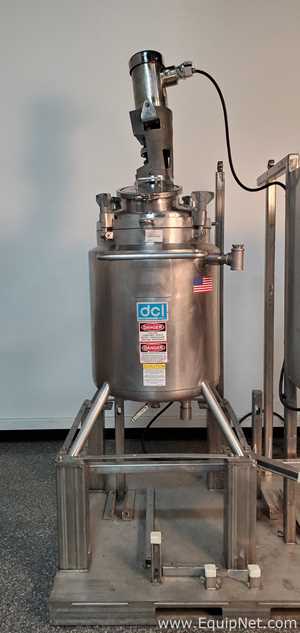

DCI 110 Gallon Stainless Steel Jacketed Mixing Kettle

  • Previously was stripped of parts so our engineers converted the unit to a simple variable speed overhead mix tank skid
  • All electrical safeties in place and operating
  • Tank jacket has been pressure tested and has no leaks

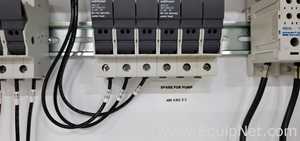

  • Extra circuit available if a pump is desired. There are plenty of open power distribution points if further expansion desired

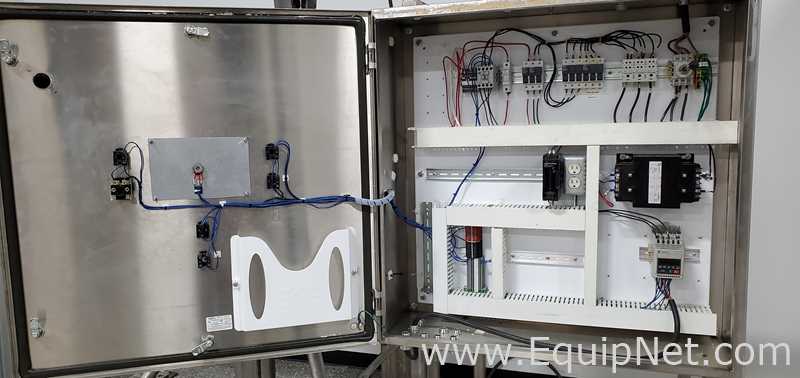

  • Wiring diagram included
  • Internal pressure 45 PSI @300 deg. F
  • Jacket pressure 142 PSI @300 deg. F

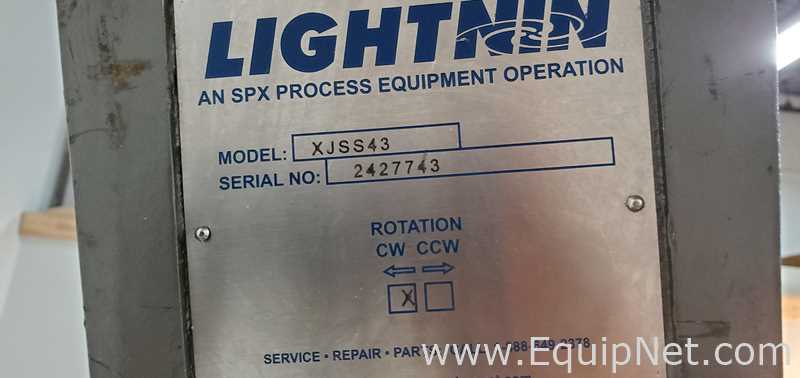

  • Top entering agitator-disassembled

    Test results: Seller reports that the mixer and electrical circuitry is fully functional. Jacket pressure tested good

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    DCI


    Year:
    2009
    2009

    Serial Number:
    JS4551
    JS4551

    CE Marked:
    NO
    NO

    Model:
    110 Gallon
    110 Gallon

    Capacity Size:
    110 GALS
    110 GALS

    Speed of Agitation :
    Variable
    Variable

    Agitation:
    YES
    YES

    Type of Agitation:
    PROP STYLE
    PROP STYLE

    How Many Types of Agitation :
    SINGLE
    SINGLE

    Style, Power and Speed of Agitation:
    1/2 HP Overhead variable speed
    1/2 HP Overhead variable speed

    Internal Pressure Rating:
    45 PSI
    45 PSI

    Internal Temperature Rating:
    300 DEG F
    300 DEG F

    Jacket Pressure Rating:
    142 PSI
    142 PSI

    Jacket Temperature Rating:
    300 DEG F
    300 DEG F

    Voltage:
    480 V VOLTS
    480 V VOLTS

    Frequency:
    60 HERTZ
    60 HERTZ

    Phase:
    3
    3

    Current:
    5 AMPS
    5 AMPS

    Recommended Packaging Form:
    PALLET
    PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    48 x 78 x 83 IN - 1500 LBS
    1219.20 x 1981.20 x 2108.20 mm - 680.40 kg
