Listing# 828488

Despatch CF-SL Metallization Firing Furnace


Seller's Acceptable Currency:

$135,000.00 USD

Make An Offer

Location:  North America

Level of Removal:  Uncrated/Loose

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you




Equipment Description

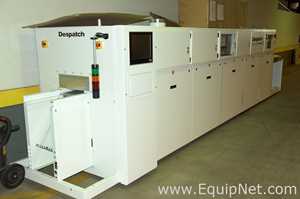

Despatch CF-SL Metallization Firing Furnace

This a low usage Despatch firing furnace for Photovoltaic Cells which was new in 2015. It was used for about 100 experiments lasting about 2 hours each in an R & D facility.

For highly efficient solar cells at the lowest possible cost use the Despatch model CF-SL

- Electrically heated, operates on 380 Volts, 3 Phase, 50/60 Hz. Transformer to operate on 460 volts is available.

- This is a production unit.

- Accurate temperature profile across the conveyor.

- Edge support for cells on conveyor belt provides more consistent heat without shielding by supports across the cells.

- Burnout

- Firing temperature: 1,000 ºC

- Heater Capacity: 52.9 KW Total

- Heater Amps: 3.9 Amps/Bulb Furnace

- Largest Motor Amps: 4.0 Amps

- Total Motor Amps: 8.9 Amps

- Full Load Amps: 45.9 Amps

- Main Switch Amps: 100.0 Amps

- Main Switch S.C.I.R.: 25.0 KA

- ENCLOSURE S.C.C.R.: 5.0 KA

- Air Supply: CDA: 60-70 PSIG


Specifications:
Standard
Metric
Manufacturer Name
Despatch


Year:
2015
2015

Model:
CF-SL
CF-SL

Capacity Size:
52.9 KW
52.9 KW

Voltage:
380/460 VOLTS
380/460 VOLTS

Frequency:
50/60 HERTZ
50/60 HERTZ

Phase:
3
3

Current:
45.9 AMPS
45.9 AMPS

Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET


Dimensions:
Standard
Metric

Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
