Listing# 662138

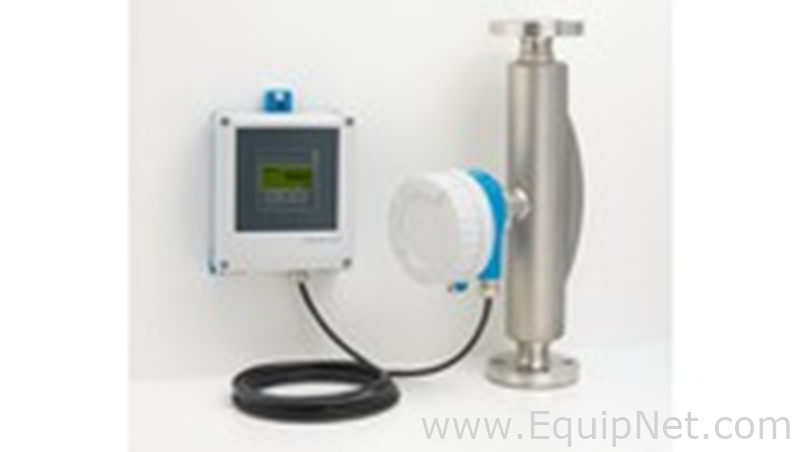

Endress Hauser Promass F500 Flow Meter NEW with optional heating jacket type F. DN50


Seller's Acceptable Currency:

£5,500.00 GBP

Make An Offer

Location:  Europe

Level of Removal:  Already Boxed

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you




Equipment Description

Endress Hauser Promass F500 Flow Meter NEW with optional heating jacket type F. DN50

Brand NEW 2017 model never used, old stock, not required. Reduced to clear.


Spec:
AA=?Approval; Transmitter; Sensor ; Non-Hazardous Area
B=?Power supply : 100-230V AC/24V DC
BA=?Output: Input 1: 4-20mA HART
D=?Output; Input 2: Configurable I/O default off
D=?Output; Input 3: Configurable I/O default off
H=?Output; Input 4: Relay
G=?Display; Operation; 4-line illum.; touch control WLAN
A=?Integrated ISEM Electronic: sensor
A=?Transmitter housing : Alu, coated
A=?Sensor junction housing: Alu, coated
B=?Cable, Sensor Connection: 20m/60ft digital
A=?Electrical connection: Gland M20
SA=?Meas. Tube Mat., wetted parts surface: stainless steel , not polished
D2S=?Process connection: PN40, 1.4404/316L, EN1092-1-B1 (DIN2501) flange
A=?Calibration flow: 0.10% mass
A1=?Device model: 1
CG=?" Sensor option: Extended neck for insulation
EB=?" Application Packacge: Heartbeat verification monitoring
PROMASS SENSOR HEATING JACKET
DK8HJ-50FSH0
50=?Diameter DN50 2"
F=?Sensor: Promass F, standard extended temperature
S=?Heating jacket material: stainless steel 316Ti
H=?heating fluid connection G3/4" ISO 228/1, Rp 3/4" ISO7/1 Female thread
0=?additional test , certificate: w/o
STAINLESS STEEL SPOOL PIECE




Specifications:
Standard
Metric

Manufacturer Name
Endress and Hauser


Current:
4 - 20 MILLIAMPS
4 - 20 MILLIAMPS

Heating Cooling Requirements:
N/A
N/A

Voltage:
100-230 VOLTS
100-230 VOLTS

Year:
2017
2017

Serial Number:
F500 8F5B50 DN50
F500 8F5B50 DN50

CE Marked:
YES
YES

Model:
Promass F500
Promass F500

Recommended Packaging Form:
CUSTOM
CUSTOM


Dimensions:
Standard
Metric

Overall:
19.69 x 19.69 x 15.75 in - 110.23 lb
500 x 500 x 400 MM - 50 KGS


Disclaimer

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

Europe.

This equipment is subject to a removal and loading charge.


The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

Any license associated with this equipment is non-transferable.
