Criveller 15 BBL Brew House

Pacific Brewery Systems Mash Tun and Kettle, s/n 409B1

Mash Tun Technical Characteristics:
Design capacity: grain bed of 10?-14? for optimum extraction
Material: 304 stainless steel shell, 2B finish
Conical top sloped at 27° complete with manway
Conical bottom sloped at 4°, (optional: flat bottom)
High density insulation, 2”
Side wall: stainless steel clad
Stainless steel adjustable legs for tank levelling
Steam dimpled jacket positioned on side of lauter tun
Total discharge 3? complete with valve
Thermowell for probe positioning
Vorlauf re-entry port, 1.5?
Multiple equidistant outlets culminating in the manifold
Airless Grant
Sparge arm
Water-jet cut false bottom (screen)
Side manway, rectangular outside opening, for the discharge of the spent grain (Optional: bottom knife valve)
CIP cleaning on 1.5” inlet
2 double elbow exhaust vent

Kettle Technical Characteristics:
Material: 304 stainless steel shell, 2B finish
Conical top sloped at 27° complete with manway, 400 mm diameter (16”)
Conical bottom sloped at 6°
Side wall and Bottom: stainless steel clad
High density insulation, 2”
Steam dimpled jacket positioned on the side of kettle
Steam dimpled jacket positioned on the bottom of kettle
Stainless steel adjustable legs for tank levelling
Total discharge 3”, complete with valve
Off-set wort outlet, 2”, complete with valve
Tangential wort inlet, 1.5” x 1”, to create whirlpool effect for trub separation
CIP spray ball on 1.5” inlet
Thermowell for probe positioning
Wort inlet, 1.5”
Exhaust outlet, 6”
Supplied with dipstick and ladle

Technical Characteristics:
Platform positioned between BK/WH and MLT (See NOTE below)
Non-slip walking surface c/w ladder and railing
Valves are sanitary, butterfly, manually operated type
H2O mixing station with thermometer in central location
Digital flow meter for brewing and sparging water
H2O outlet, 1.5? tri-clamp
0.75 hp mash pump, sanitary, open impeller, 1750 RPM
1.5 hp wort pump, sanitary, open impeller, 3600 RPM
Stainless steel heat exchanger to be sized according to local conditions
Stainless steel heat exchanger outlet with O2 stone, sight glass and thermometer ? NEW – Stainless steel control panels as described below
All valves and tubing throughout brewing system are included
All hard piping throughout brew house included
All connections are TRC clamps

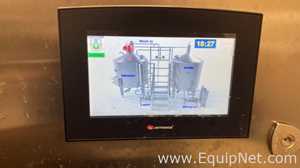

– 7” touch screen PLC standard on all brewhouses – Display of Mash in/Sparging flow meter rate and total – Lauter and Whirlpool pump control – Display of MLT and BKW temperatures – Visual and audible alarm – include additional 4.3” PLC on upper platform to display relevant data at a convenient level
