NO. de listado 916755

Línea de Máquina Verificadora Light House Instrument VISTA/THC IN-LINE


Divisa aceptada por el vendedor:

€80,000.00 EUR

Realizar Oferta

Ubicación:  Italia

Nivel de Remoción:

Por qué recomendamos una inspección

*Todas las ofertas se deben ingresar en la divisa aceptada del vendedor

¿No encuentra lo que está buscando? Lo encontramos por usted.




Descripción del equipo

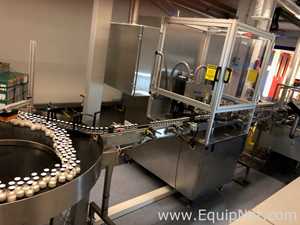

The vial inspection device is designed to automatically and synchronously feed individual vials to oxygen and pressure sensors for non-destructive inspection of the oxygen content and total pressure in the vial vapour space. The vials are loaded onto a turntable and fed into the system by a continuously running conveyor that also acts as a dispensing conveyor. The incoming flow of vials is controlled and metered by two pneumatic barriers that open and close according to the length of the incoming queue. After the vials have been taken over by the inspection star wheel, they are passed through the pressure sensor and then through the oxygen sensor. The result of each measurement is temporarily stored in the PLC scrolling register until the decision to accept or reject the vial is made. After inspection, the vials are released from the inspection starwheel to the exit conveyor or to one of the two rejection conveyors. The first rejection conveyor accepts vials that have not been inspected (not measured), while the second rejection conveyor accepts rejected vials based on measured values. The accepted vials are held in place by the vacuum in the inspection star wheel until they have passed the rejection belts. When the vial reaches the exit conveyor, it is released from the vacuum. If a vial is to be discarded, it is released from the vacuum into position above the correct rejection conveyor. The vial is then removed from the star wheel and transported to the rejection lane.

Especificaciones:
Estándar
Métrico
Fabricante
Light House Instrument


Frecuencia:
50 HERTZ
50 HERTZ

Fase:
3+1
3+1

Marca CE:

Modelo:
VISTA/THC IN-LINE
VISTA/THC IN-LINE


Dimensiones:
Estándar
Métrico

General:
000 x 000 x 000 IN - 000 LBS
0.00 x 0.00 x 0.00 mm - 0.00 kg

Aviso Legal

Este listado se vende "en el estado que está y en donde se encuentre". Le sugerimos que se comunique con un representante de ventas de EquipNet para programar una inspección. Este artículo se encuentra ubicado en

Europe

Este Listado está sujeto a costos por carga y remoción.


La descripción escrita que se ofrece para este artículo es EXACTAMENTE lo que usted recibirá si decide comprar este listado. Los artículos que no estén en la descripción pero que aparezcan en las representaciones visuales del listado, no estarán incluidos en la venta. Las fotos y videos se ofrecen únicamente como referencia y para dar una idea general de las condiciones del artículo.

Por favor tome en cuenta que el peso y las dimensiones de los equipos que EquipNet proporciona en los listados solo es un aproximado y que puede variar del peso y tamaño real. Los etimados de los Vendedores por lo general no son precisos especialmente cuando se compara el equipo instalado y el mismo equipo prerarado para su envio. Por tal motivo. por favor no se confíe de la exactitud de la información en los listados de EquipNet cuando realice cotizaciones de envío y/o requerimientos del tamaño del usuario.

No es transferible ningúna licencia relaacionada a este equipo.
