NO. de listado 922737

Línea de Línea de Llenado de Viales Bosch complete line


Divisa aceptada por el vendedor:

€785,000.00 EUR

Realizar Oferta

Ubicación:  Italia

Nivel de Remoción:

Por qué recomendamos una inspección

*Todas las ofertas se deben ingresar en la divisa aceptada del vendedor

¿No encuentra lo que está buscando? Lo encontramos por usted.




Descripción del equipo

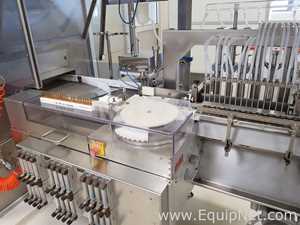

Bosch complete Filling Line for vials anBosch line for ampoules and vials from 2005 including the following machines : RRU 3043 +HQL 2440S +ALF 4060 +DRN 3010 +FLC 3060 + VRK 2005 1. bosch vials washing machine RRU 3043 technical specifications Length 2240 mm Width mm 2130 Height 1700 mm Net weight Kg 2000 Maximum container diameter 52 mm Maximum container height 128 mm Maximum output 12000 / hour 2. Depyrogenation Tunnel Bosch HQL 2440S HQL installations are ideal for the sterilisation of vials. This model is exceptional because of the low throughput in the tunnel, which is the result of the laminar hot air flow process with its high degree of efficiency. The cooling section operates with laminar flow. A fan in the cooling section exhausts the hot air under the conveyor belt. The exhaust air volume is automatically adjusted. The tunnel is equipped with an automatic overpressure control in the cooling section. Modular system for tunnel assembly suitable for the required power range with optimum energy consumption. GMP-compliant construction. Compatible container transport systems for stable and unstable containers. Safe conveyor belts on floor and side levels operated simultaneously. Excellent accessibility and ease of operation. 3. Filling/capping machine Bosch ALF 4060 - Output max. 18,000 ampoules/h - Pre/post gassing - Filling - Preheating - Capping via spit take-off, closing gassing - Manual in-process control (IPC) - Storage of containers in discharge magazine • Included format sets (diameter): 1 ml, 10.75 ; 2 ml, 10.75 ; 5 ml, 14.75; 10 ml, 17.75 4. Color Ring Printer Bosch DRN 3010 This high-speed machine is design to mark ampoules with single or multiple ring codes. It is useful for identifying trial batches or for adding colour codes to standard batches of Ampoules for identification purposes or to avoid intermixing of batches. • Included format sets (diameter) : 1 ml, 10.75 ; 2 ml, 10.75 ; 5 ml, 14.75; 10 ml, 17.75 5. Bosch Vials Filler FLC 3060 The continuous motion machine provides a processing range with filling volumes of 0.5 - 500 ml. A “V-cleat” conveyor system offers advantages in ease of size changeover Filling programs can be stored and recalled via the control panel. Technical data : Containers: Injection vials and infusion bottles made of glass and plastic, up to 500 ml. Diameter 14 - 86 mm Height 30 - 180 mm Pharmaceutical liquids (e.g. hydrous solutions, suspensions). Closures:Rubber stoppers (siliconized or teflonized) in mushroom or freeze dry version Speed 12.000 vials per hour 6. Bosch Crimping Machine VRK 2005 The VRK 2005B works continuously and has a 5-head capping station with a separate drive for container rotation from the main transport drive and other functions. The VRK 2005 B is commonly implemented in-line with Bosch filling and closing machines such as the MLF, FLC and FLM machines, boasting a very high technology profile. Processing range: Container 0 (mm): 13.75-86 Container height (mm): 35-180 Max output per hour: 12.000 d ampoules

Especificaciones:
Estándar
Métrico
Fabricante
Bosch


Modelo:
complete line
complete line

Marca CE:


Dimensiones:
Estándar
Métrico

General:
000 x 000 x 000 IN - 000 LBS
0.00 x 0.00 x 0.00 mm - 0.00 kg

Aviso Legal

Este listado se vende "en el estado que está y en donde se encuentre". Le sugerimos que se comunique con un representante de ventas de EquipNet para programar una inspección. Este artículo se encuentra ubicado en

Europe

Este Listado está sujeto a costos por carga y remoción.


La descripción escrita que se ofrece para este artículo es EXACTAMENTE lo que usted recibirá si decide comprar este listado. Los artículos que no estén en la descripción pero que aparezcan en las representaciones visuales del listado, no estarán incluidos en la venta. Las fotos y videos se ofrecen únicamente como referencia y para dar una idea general de las condiciones del artículo.

Por favor tome en cuenta que el peso y las dimensiones de los equipos que EquipNet proporciona en los listados solo es un aproximado y que puede variar del peso y tamaño real. Los etimados de los Vendedores por lo general no son precisos especialmente cuando se compara el equipo instalado y el mismo equipo prerarado para su envio. Por tal motivo. por favor no se confíe de la exactitud de la información en los listados de EquipNet cuando realice cotizaciones de envío y/o requerimientos del tamaño del usuario.

No es transferible ningúna licencia relaacionada a este equipo.
