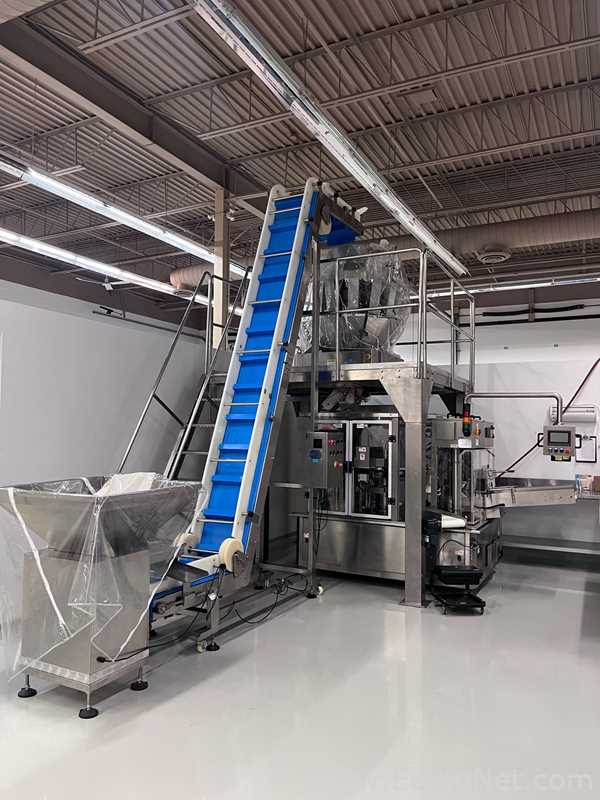

CAM Packaging Systems CR8-250Z Pre Made Pouch Filler with Rotary Scale and Infeed Elevator

INCLUDES:

CAM Rotary Pre-made Gusseted Pouch Filler with Zipper - 107" long x 76" wide x 76" high

CAM Flighted Incline Conveyor with Hopper and Feeder - Model CIC70, s/n 1809004IC, 220v 60 Hz 1 ph 9.5 A, 156" overall height, 152" discharge height, 14" wide belt, 3" flight 11" apart, 34" x 34" vibratory hopper

CAM 91" Square Bolted Mezzanine, 83" high platform

CAM 14 Head Rotary Weigher - Model CMW14, s/n 1809003MW14, 220v 60 Hz 1 ph 10 A

MORE DETAILS BELOW

Rotary Pre-made Bagging Machine with Zipper Opening Device - 150-350mm
Bag Length, 100-250mm Bag Width - Flat, gusset bags and stand up pouch
with gusset - Siemens PLC. Vacuum sensors also have filters. CAM Logo start
up screen, Full #304 SS + aluminum allow construction. -
Complete with:
Swing Arm & Guard Package -
Safety Relay and Pneumatic Dump Valve -
Bottom Bag Sensor -
Pendant Style Jog Control -
Vibration Settler Device -
Air Blow Device -
Noble Gas Injection
CAM UL Standard
3 phase, 220V, 60HZ, 11A/4KW

Printer Brackets for customer supplied printer
Thermal Transfer Overprinter
24mm, 200DPI, 24mm*40mm; Max120/min; W25mm L50mm;
AC220V-120W

Multi-Point Diverter with reject chute - System to create easy clean out, empty,
overweight items from the scale without having to drop though bagging
system. To include hidden hinge design.

Supporting Platform - with stairs and side rails to hold MHW with room to
walk around. (2300L*2250W*2100Hmm)

14 Head Weigher (1.6L HP/Dimpled Plate/SUS304) Include 9.7'' HMI
1 phase, 220V, 60HZ, 10A/2.2KW

Incline Conveyor- (70 degree convey height/SUS304) with large vibration
feeder separate pieces but communicate together. Includes removable side
guides. Large vibration feeder dimensions 881L x 881W mm
Flat belt design . 90 degree cleat/PU belt/
1 phase, 220V, 60HZ, 3A/.75KW

Sifter pan with removable tray for incline conveyor
