DESCRIPTION:
Consistent high quality codes, requiring minimal operator intervention. Reliable start-up, even after uncontrolled shut down. One button controls the complete start-up and shut down process. Rugged cabinet design in stainless steel. Flexible Applications. The A400 is designed for installation in the smallest possible area, and is ideal for applications where multiple printheads are required.

SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, other manufacturing industries.

MAIN FEATURES:

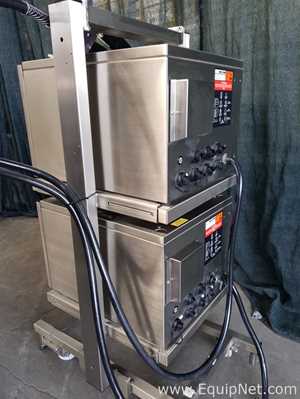

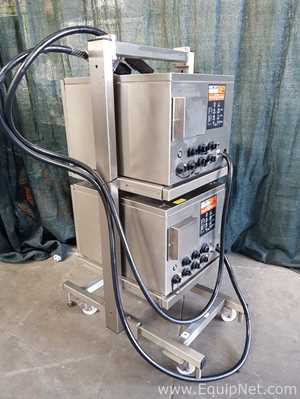

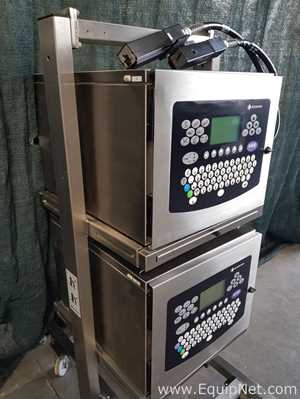

The printer consists of a print head connected to a stainless steel cabinet by way of a flexible conduit. The cabinet contains an ink system and a controlling electronic system operated via a panel on the cabinet front door. The ink system is mounted on a chassis, enabling it to be withdrawn from the cabinet. The print head components are mounted on a rigid chassis, with a fully enclosed top section containing the connections between the print head and the conduit wiring. Each printed character consists of a dot matrix made up of lines, or strokes of ink drops. The ink drops in each stroke are spaced apart by electronic deflection and the strokes are spaced apart by the movement of the print surface under the head. All operator control, maintenance and fault reporting is carried out via the front panel in communication with the electronic system. The ink system supplies the print head with ink at the correct pressure and viscosity.

TECHNICAL DATA
Length mm 900
Width mm 570
Height mm 1330
Net weight Kg 100
