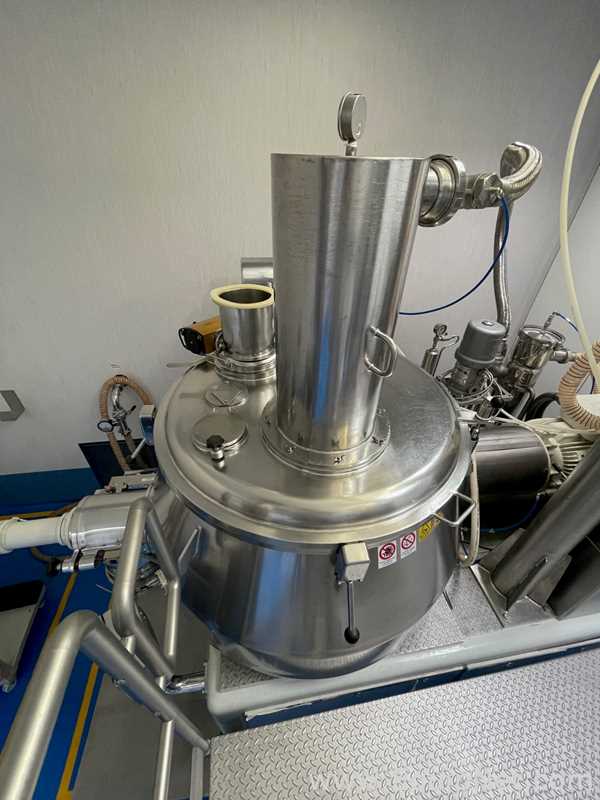

Two operations in one go. Premixing: The mixing tool, which rotates at 4 or 8 m/sec. near the bottom of the hopper, sets the mix in motion in the form of a drum. in a drum-shaped movement. This ensures fast and uniform distribution of all dry components. Smooth moist granulation: Uniform wetting of all grains. A loose build-up granulate of up to 2 mm is produced. Larger lumps are beaten with 10 or 20 m/sec. of the chopper tool. Discharge takes place while the mixing tool is running. Moisture screening is not necessary in most cases before drying. Pre-mixing approx. 2 min. Damp granulation 2 - 4 min. Discharge approx. 30 sec. Short premixing and granulation times. Uniform granulate. Particularly wide working range from light to very heavy masses. Low-noise operation and low wear. Low overall height, all parts easily accessible. Easy cleaning. Dead space-free mixing interior. Total capacity 800 l Batch size for moist granulation, depending on the consistency of the recipe 280-350 kg Main drive pole-changing 35/53 kW Mould speed 49/98 rpm Power transmission V-belt and worm gear Chopper drive pole-changing 10/12 kW Chopper speed 1460 / 2935 rpm Machine footprint Length Width mm 3085 x 1765 Height to upper edge of mixing container: 1550 mm Sep. control cabinet (incl. base) width/depth/height 800x400x1940 mm Weight of machine 3450 kg Weight of control cabinet 200 kg
