Forma Scientific Model 3110 Co2 Water Jacketed Stacked Incubator Series II

Product Description

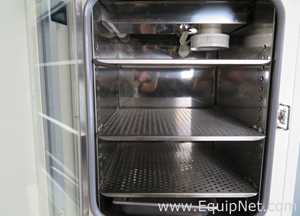

• 3 Stainless Steel Chamber Shelves
• Reversible Door Swing
• Thermal Conductivity CO2 Sensor
• CO2 Inlet
• HEPA Filter

The Thermo Forma 3110 Water-Jacketed CO2 Incubator combines precise CO2 control and temperature and is the most popular incubator on the market. The Forma Series II Water Jacketed CO2 Incubator, with its precise CO2 control, elevated RH, and a thermal conductivity sensor, is the first choice for many researchers. Some advantages included in this Series are an easy to clean (100% coved corners) electropolished incubator chamber, Enviroscan alphanumeric message center for easy programming, heated inner door to prevent condensation, and a highly uniform airflow system that scrubs 100% of incubator chamber air within 60 seconds, virtually eliminating airborne contamination These incubators feature unsurpassed temperature stability and superior parameter recovery characteristics, with innovative continuous contamination control technology. The Forma 3110’s 100% HEPA filtration quickly achieves Class 100 air quality. The HEPA filter entraps particulate air contaminants and prevents their escape, and filter efficiency increases as particulates and micro-organisms are entrapped.

Temperature retention and quick recovery are especially important for researchers working with critical cell cultures. The Thermo Forma 3110 Water Jacketed Incubator provides maximum thermal protection and quick recovery from swings in ambient temperature and power variations.

Technical Specifications

Capacity 6.5 cu. ft. (184L)
CO2 Concentration Range 0 to 20%
O2 Range 1 to 20%
Relative Humidity Ambient to 95% at 37°C
Humidity System 3L stainless-steel pan
Temperature Range Ambient +5°C to 55°C
Temperature Uniformity ±0.2°C at 37°C
Chamber Polished stainless-steel interior with coved corners
Interior Dimensions (D x W x H) 20.0 x 21.3 x 26.8 in. (50.8 x 54.1 x 68.1cm)
Exterior Dimensions (L x W x H) 25 x 26.0 x 39.5 in. (63.5 x 66.0 x 110.3cm)
Shelving Stainless steel
Port Chamber thru-wall access port with filter; RS-485 interface (optional)
