Listing #236144

Fryma Maschinen AG VME-12 Stainless Steel Vacuum Mixer

$30,955.00 USD Make An Offer
  • Seller's Acceptable Currency
  • * All offers are submitted in Seller's Acceptable Currency
  • Currency Calculator


Equipment Description

Please note: This equipment is currently in storage and not located at its original location.

To see buyer requirements click here

To See The Sales Agreement Click Here

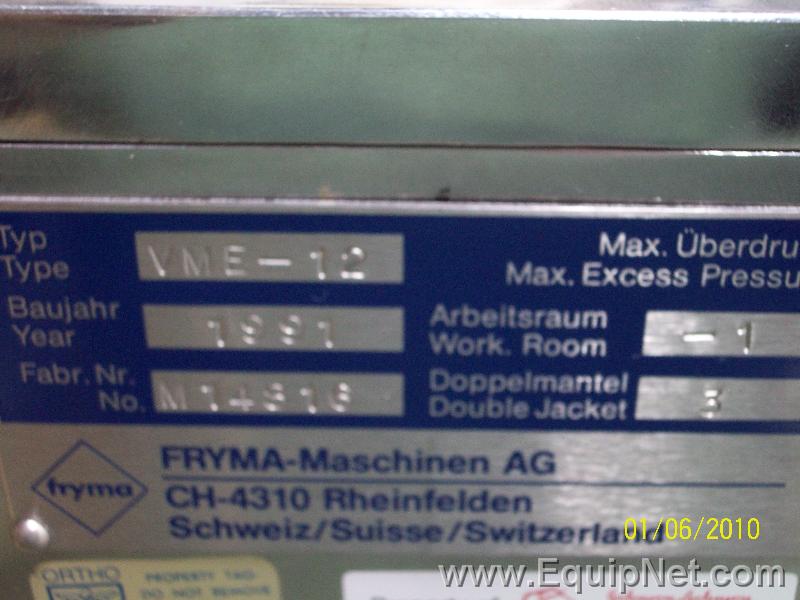

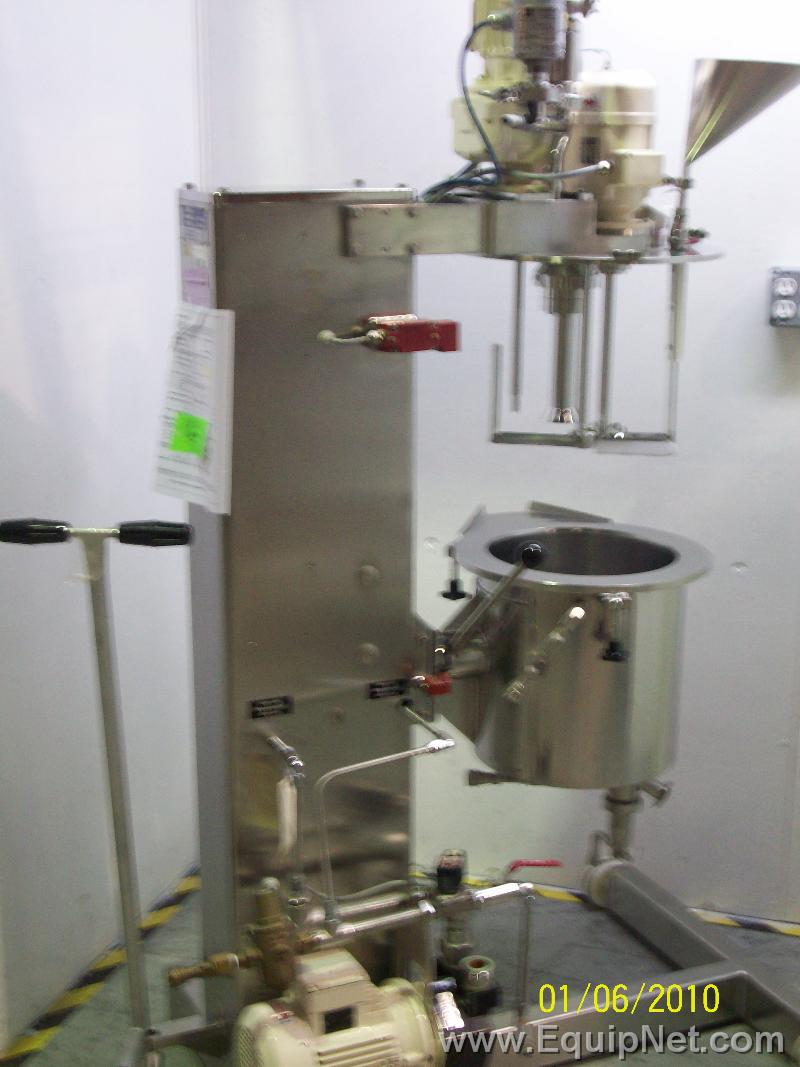

Fryma-Maschinen AG VME-12 Stainless Steel Processing Plant

  • Total capacity 37 liter(9.7 gal)
  • Working capacity 20 liter (5.2 gal)

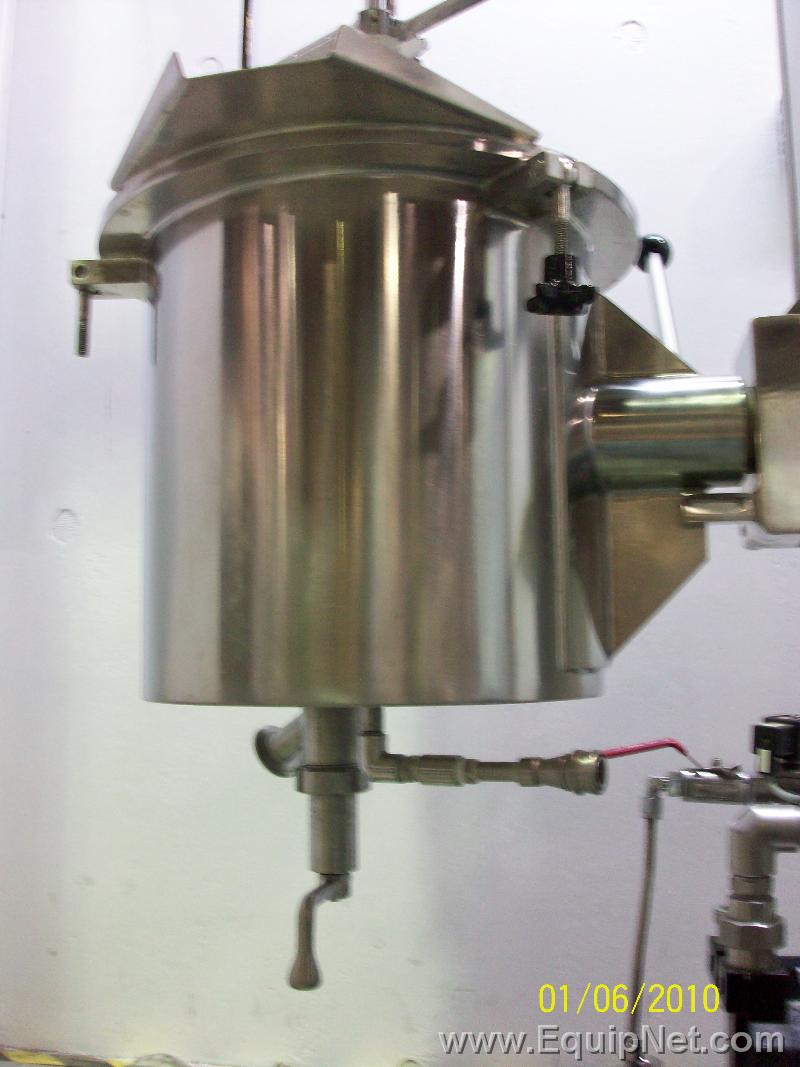

  • Jacketed mix tank rated: 3 bar (45psi)
  • Max. Excess Pressure 1 bar work room

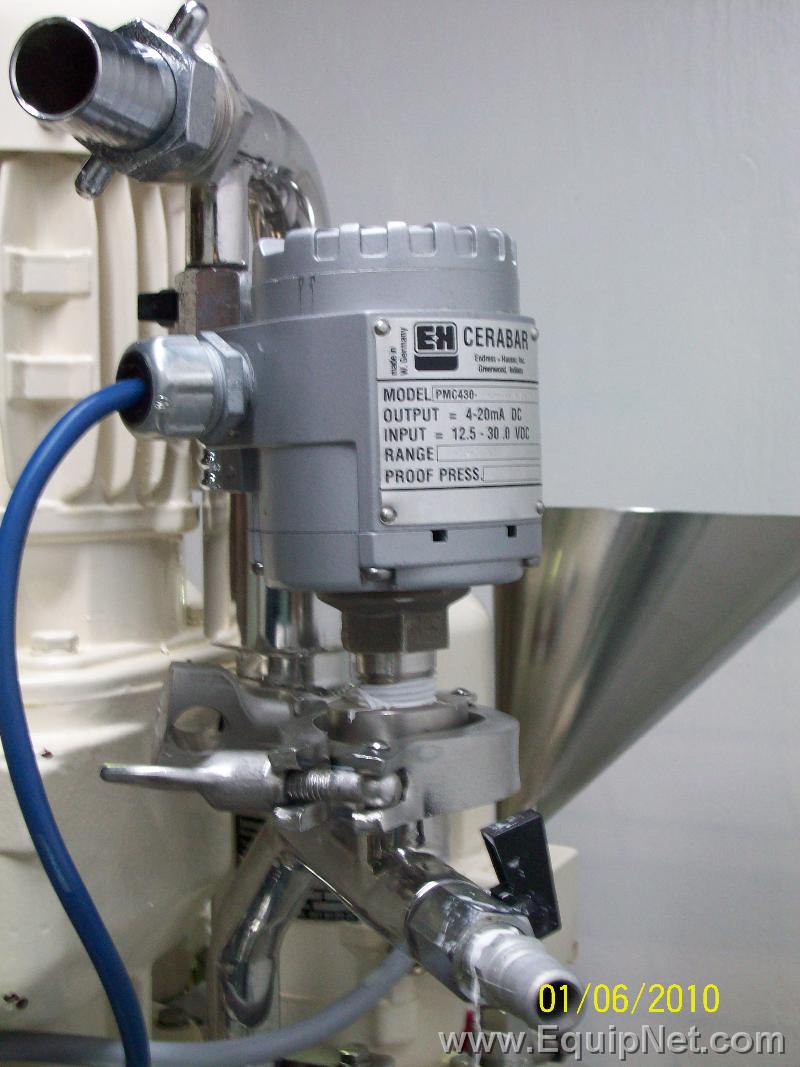

  • Cerebar Model PMC430-V-S-AH-V-VK-GP

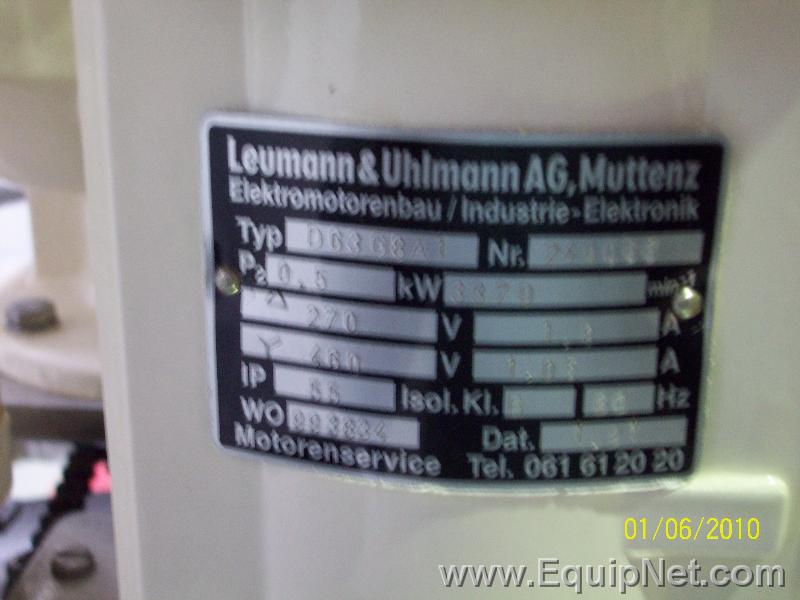

  • Leuman & Uhlman Output 4-2mmA DC Input D6368AL NR 249065 1.8A 5kw,249068 1.8A 5kw

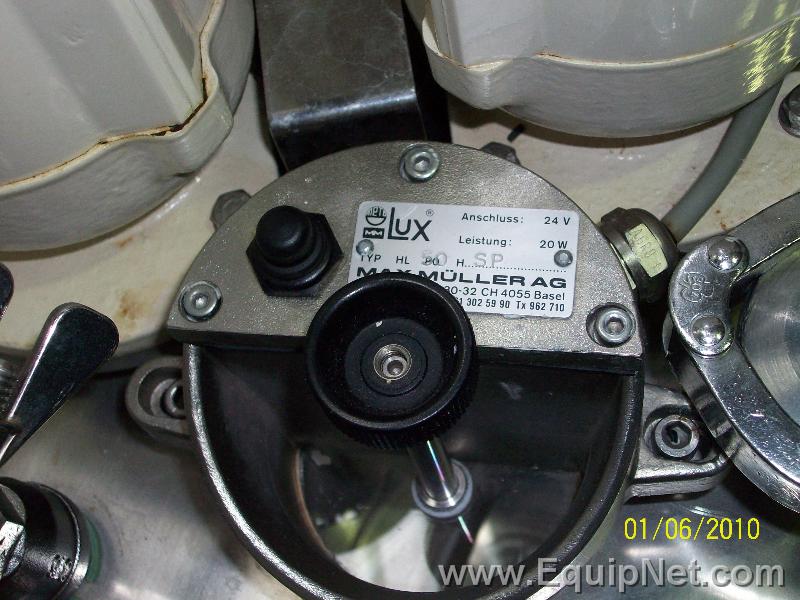

  • Lux Max Mueller 24V, 20w Type HL 50H-SP

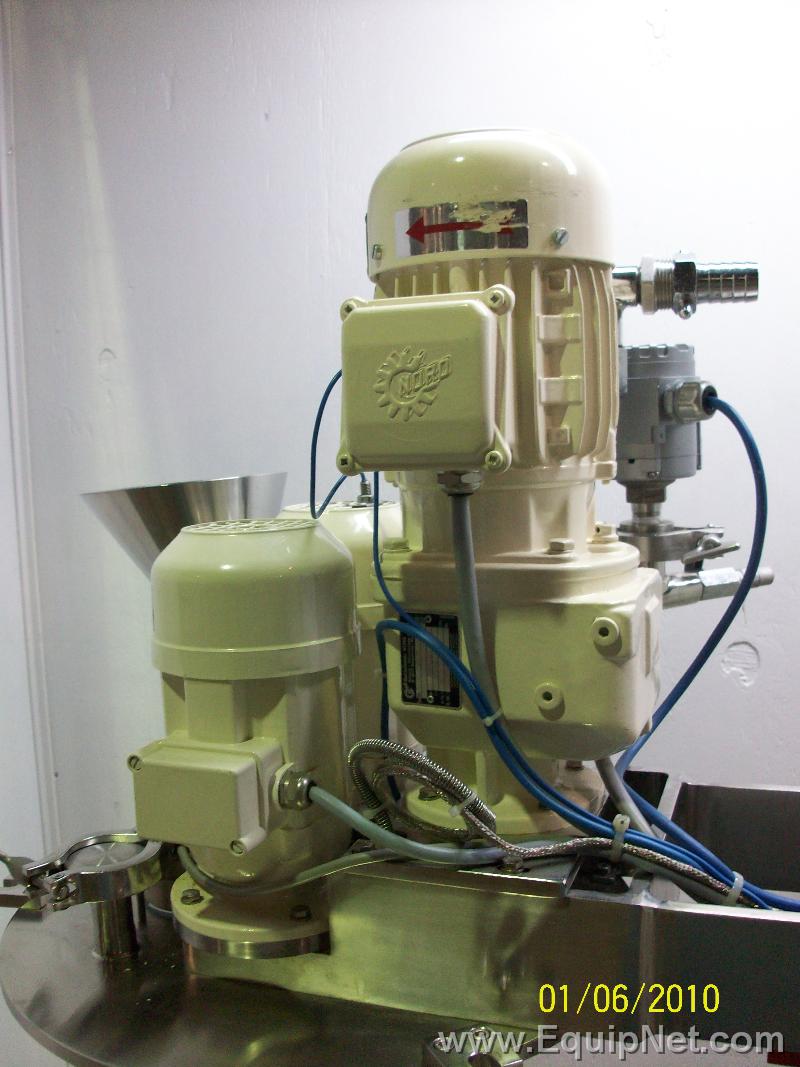

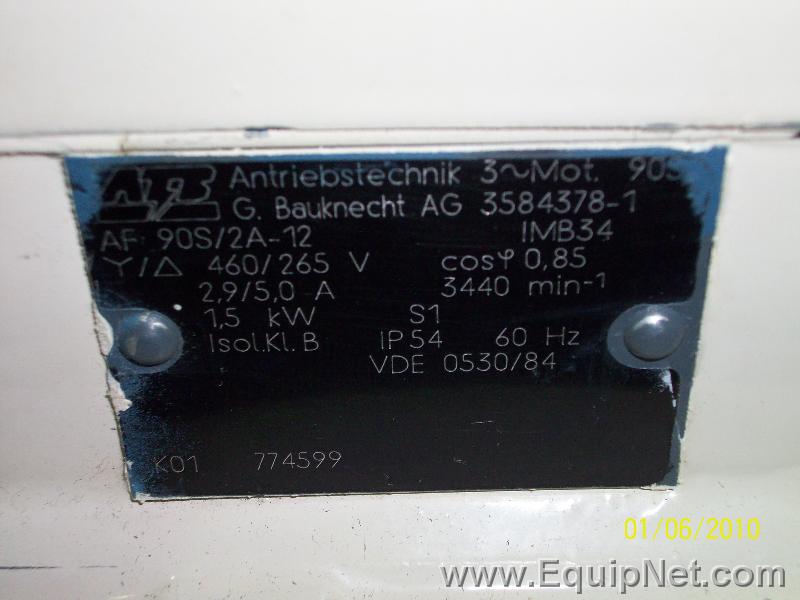

  • Antriebsteehnik 460-265v 2.9-5.0A 1.5 Kw 60HZ
  • Motor 90S

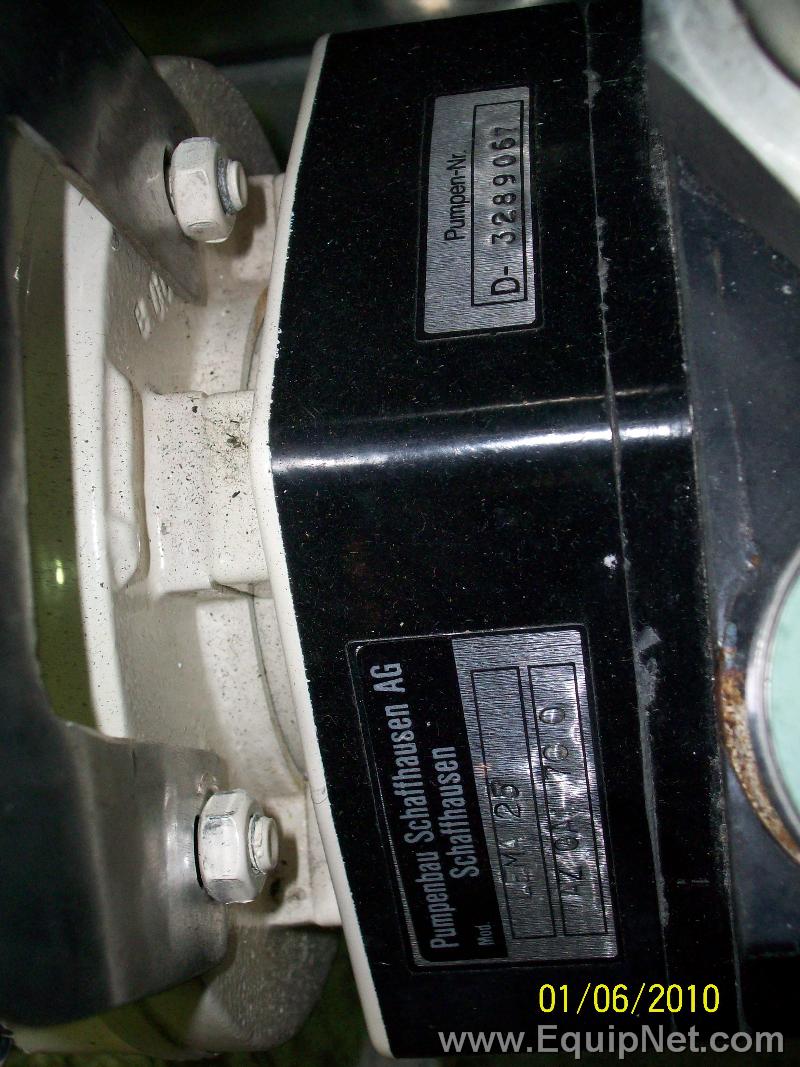

  • Pumpenbau Schffhausen Lema 25 AZGA1 700 Pump# D-3289057

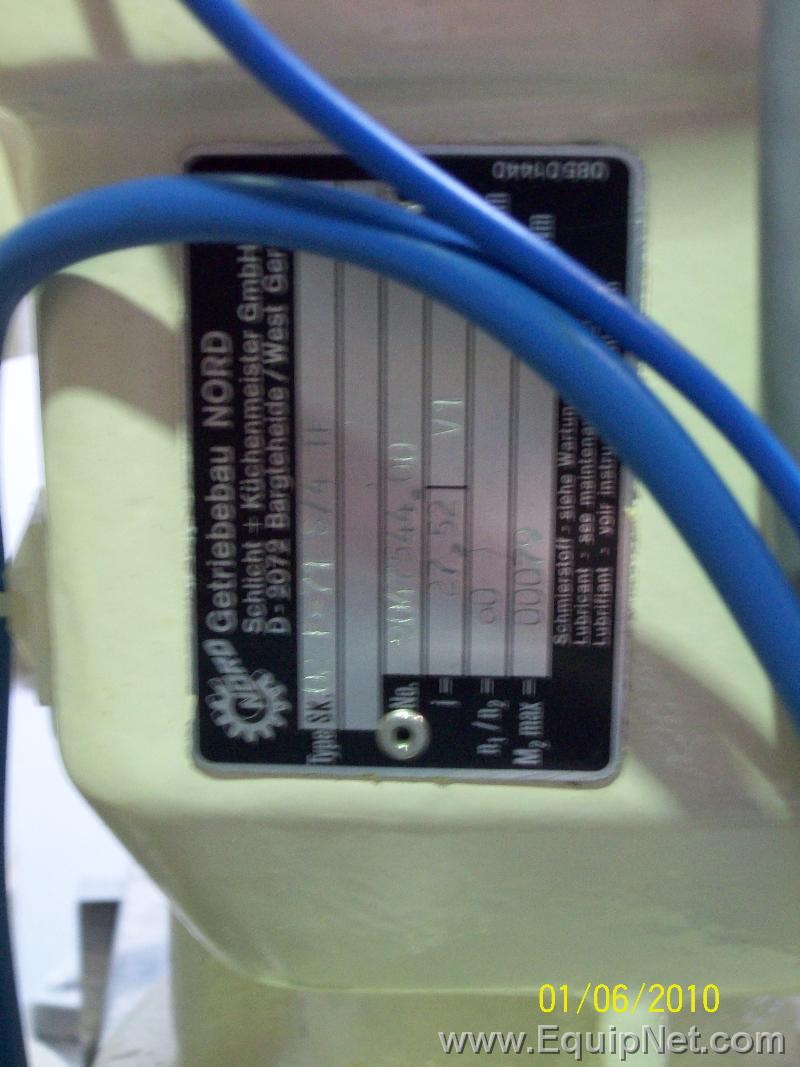

  • Getriebedau Nord Type 02 F-71 5/4 TF No.l 9047544.00

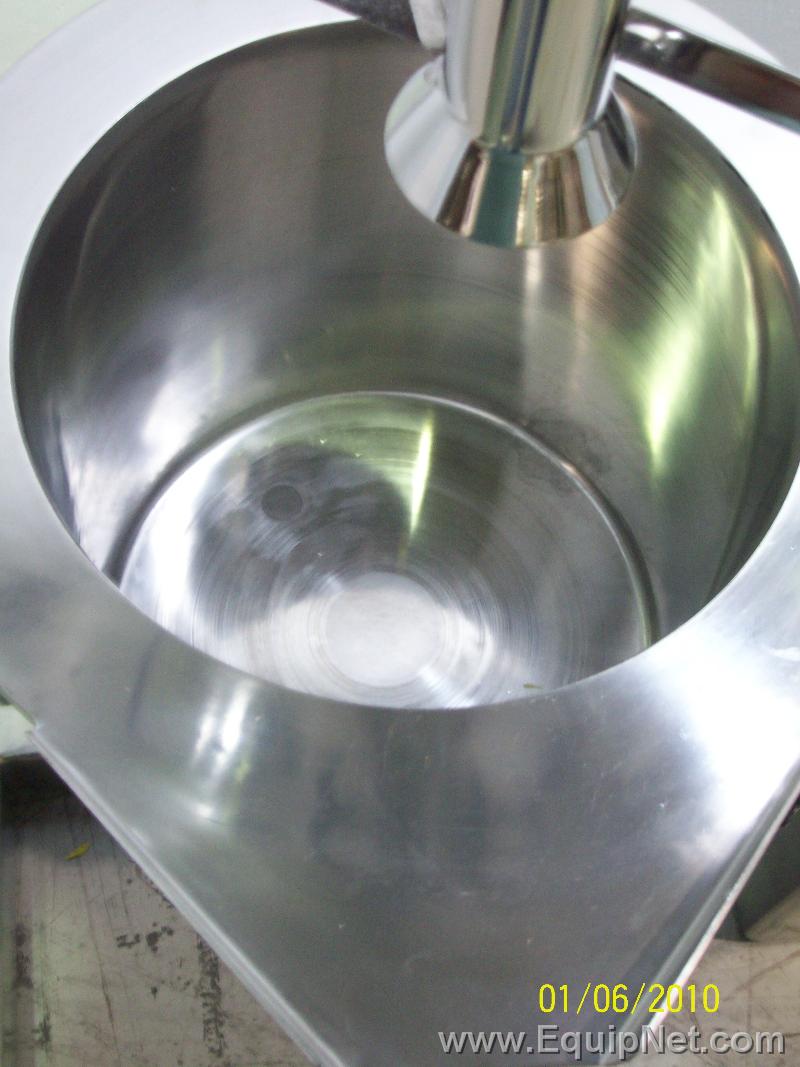

  • Internal dimension of mixing vessel 12"L x 12"W aprox .5 inch stainles(not exact)
  • Not tested due to non-availability of manufacturers power cord
  • 316 Stainless Steel contact parts

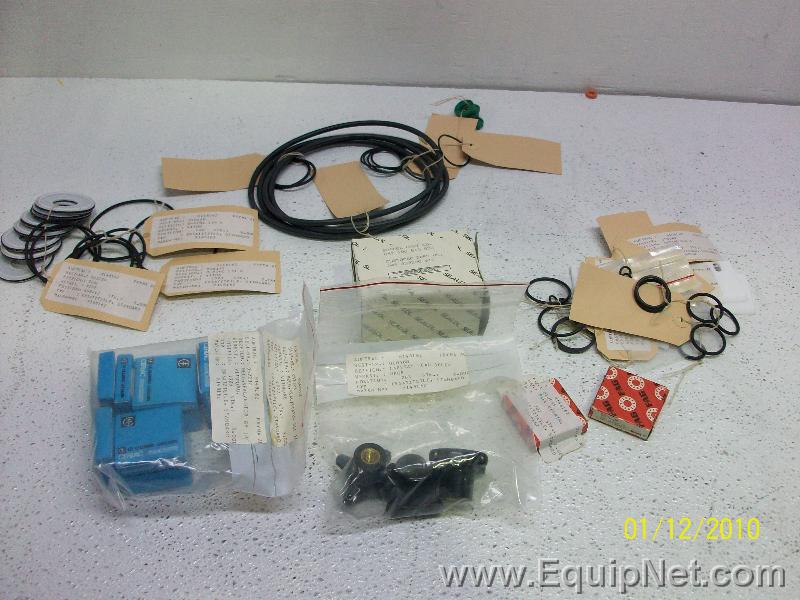

  • Fryma Valve balls, capstan Head Screws & Misc Items includes:
  • Fryma 050122 O-Ring 139R
  • 050120
  • 010555 Ball Bearing
  • 6002ZR
  • Mech Seal/Rotor GY18

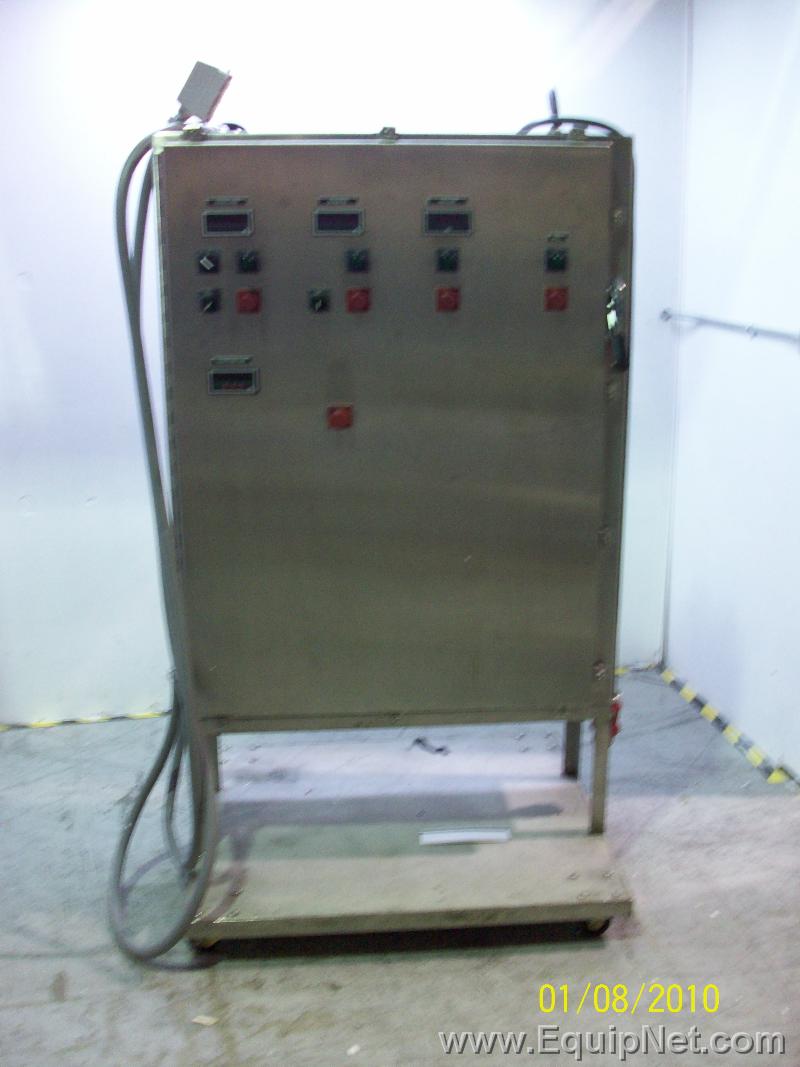

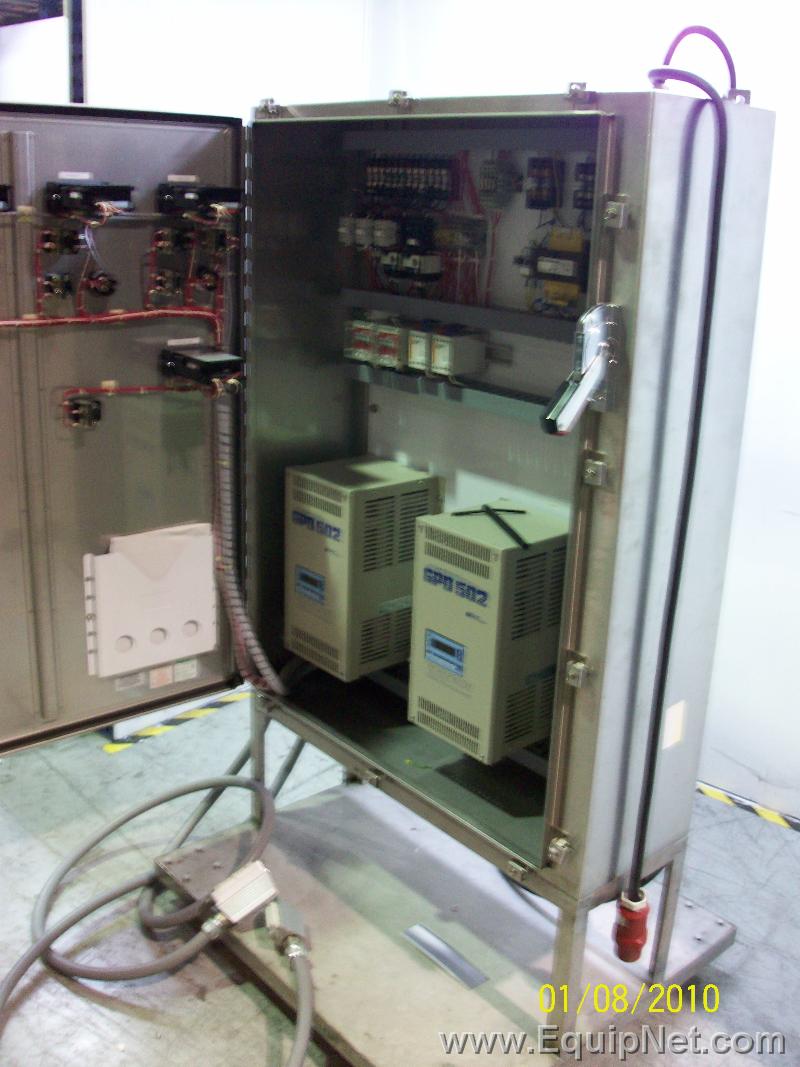

  • Drive Technology VME12 Fryma Pharmaceutical Control Panel model # VME-12
  • Not tested due to non availability of power supply and specialized power connector
  • Previous use tag: " Research use only non GLP/GMP Testing Only"

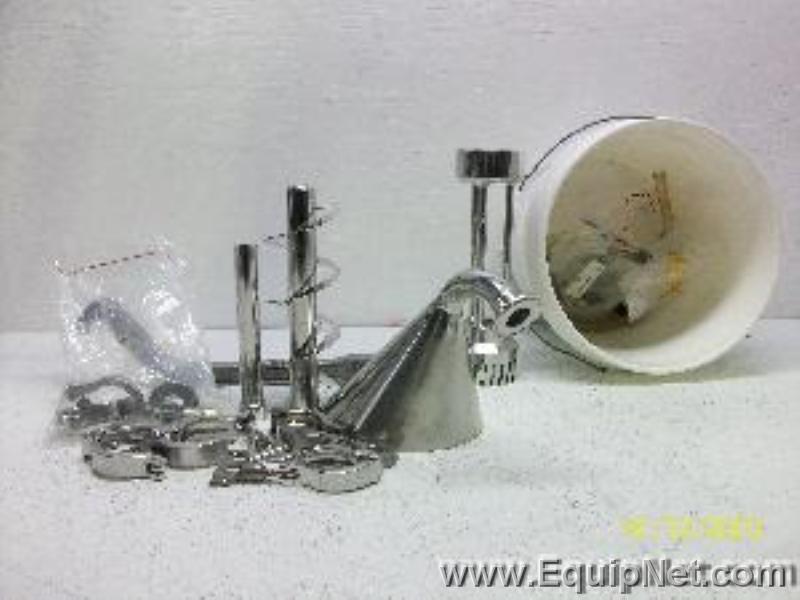

  • Inoco Misc Parts Homognizer Parts, Clamps, M-1 Pail Opener


    Test results:

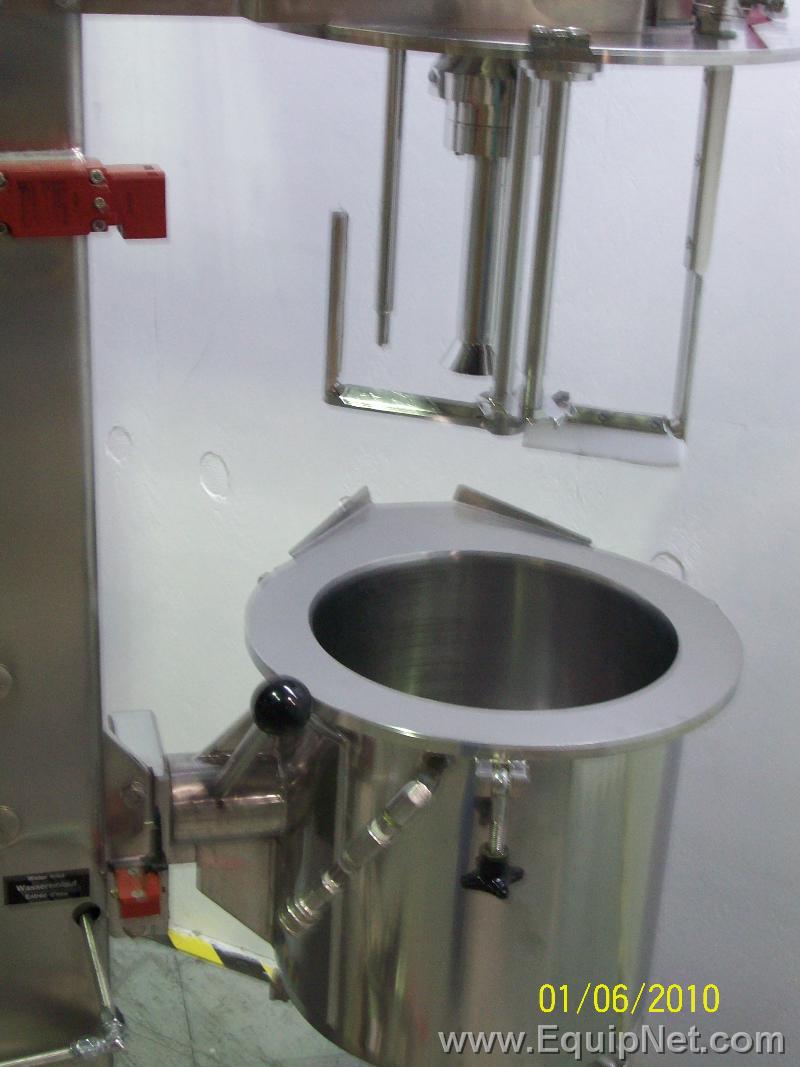

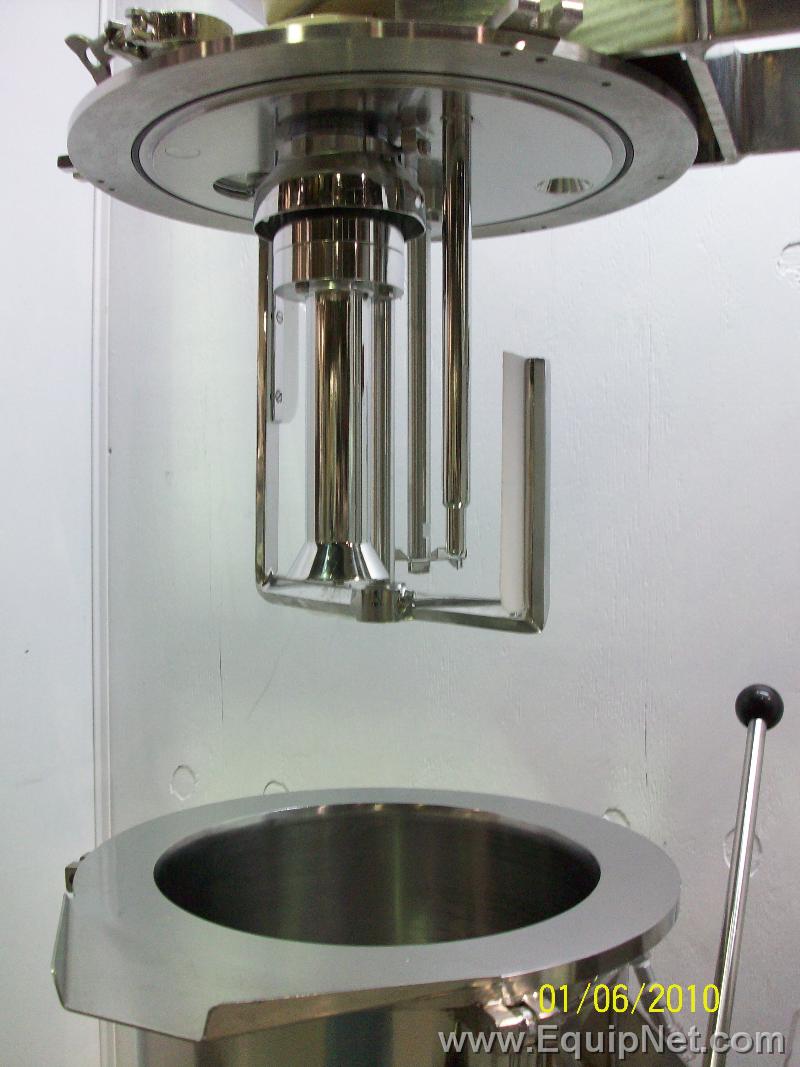

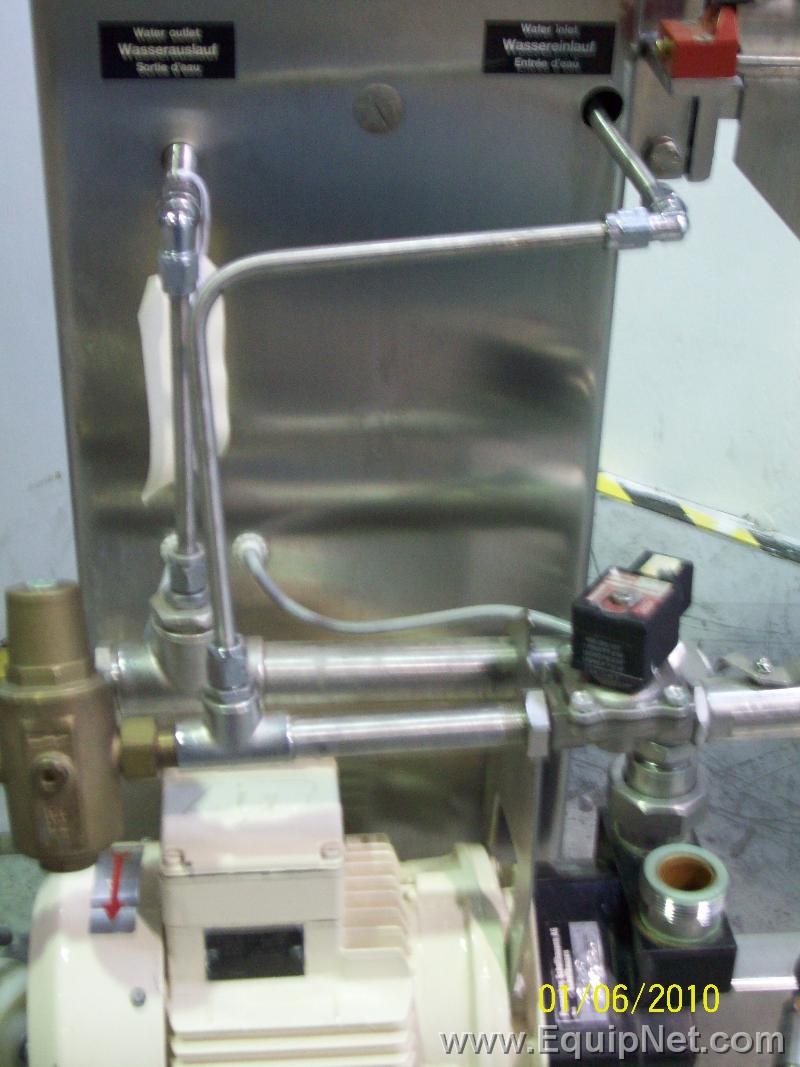

    Unable to get tank lifting mechanism to work. Machine powers up, mixing/Vacuum pump and control panel all operate normally. Lifting mechanism appears to use water pressure to lift tank We were unable to lift tank..

    Equipment Specifications

    Conversion Tools
     StandardMetric
    ModelVME-12
    Style of HomogenizerIN-LINE
    Capacity Speed0 RPM0 RPM
    Capacity DetailsNo
    Material of ConstructionSTAINLESS STEEL
    Voltage460 VOLTS460 VOLTS
    Frequency60 HERTZ60 HERTZ
    Phase3
    Recommended Packaging FormCUSTOM
    Estimated Shipping Weight572 LBS259.46 kg
    Estimated Shipping Length50 IN127.00 cm
    Estimated Shipping Width29 IN73.66 cm
    Estimated Shipping Height71 IN180.34 cm
    Disclaimers ▼
    This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Massachusetts.

    This equipment is subject to a removal and loading charge.

    The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

    Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

    Any license associated with this equipment is non transferable.
