Listing# 710489

IMA SAFE mod. FLEXA CSD - Automatic Horizontal Cartoner


Seller's Acceptable Currency:

€41,000.00 EUR

Make An Offer

Location:  Europe

Level of Removal:  Uncrated/Loose

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you




Equipment Description
DESCRIPTION:
The best selling model in the IMA cartoner range, Flexa is a high performing, reliable, efficient and modular cartoner. It offers product handling combined with fast changeovers, ensured by advanced computer-controlled technology.
It is extremely operator friendly. It offers best ergonomics for access, changeover, cleaning and trouble shooting.

SECTORS OF USE:
The principal sectors of application are those of the pharmaceutical, cosmetic and food.

MAIN FEATURES:

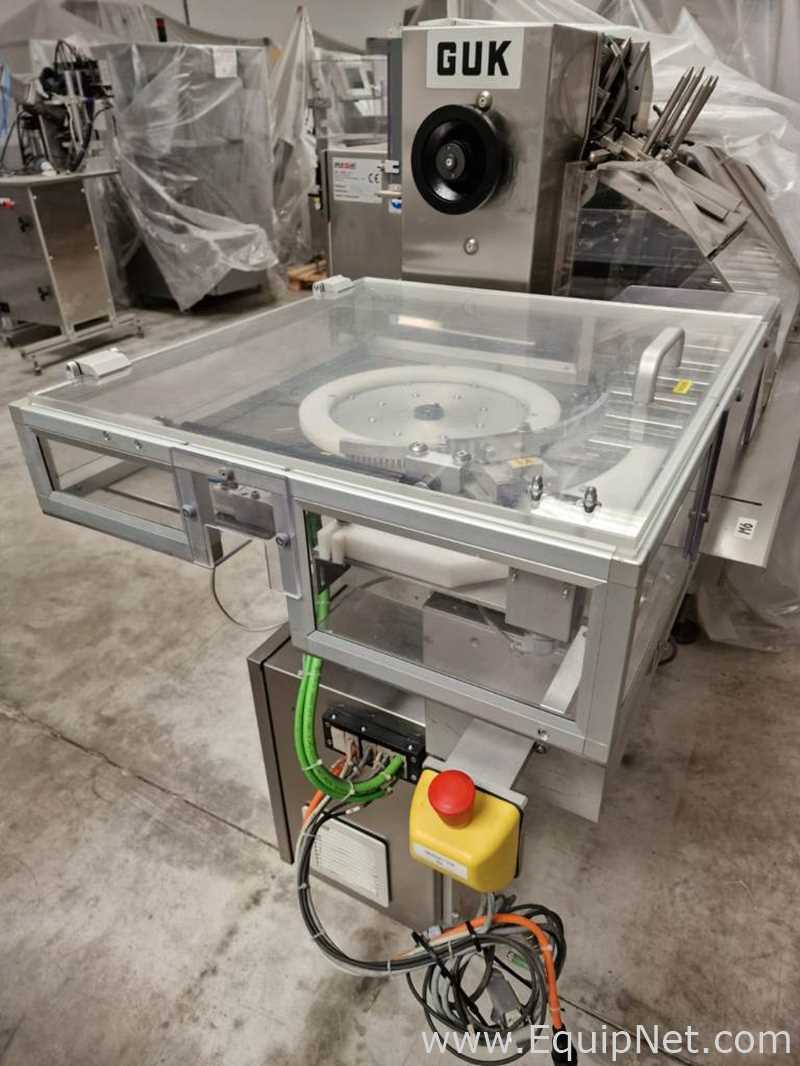

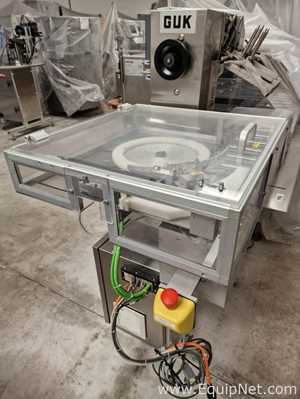

The cartoning cycle is completely automatic and continuous motion. The material handling parts the machine are protected by guards. Built in the operator panel is a touch and LCD display with function keys and numeric keypad. The cases are continuously checked in order to guarantee that quality packs are produced by the machine. Its working process is adaptable to the specific product thanks to advanced electronic technology applied to carton opening and product insertion. It can handle the cartoning of bottles (both plastic and glass), cosmetics, jars, inhalers, ampoules, vials and syringes etc. It will open any type of pack smoothly and efficiently, and place it into the conveyor system. The carton is taken individually by the suction pads and it is formed. Then the product to be packaged and the instructions leaflet are inserted into the carton. The carton is closed as the edges are tucked in by suitable devices. Equipped with GUK leaflet folder.

Year of construction: 2009

TECHNICAL DATA
Net weight ca. Kg 1580
Length mm 3650
Width mm 1750
Height mm 2000
Frequency Hz 50
Voltage Volt 400
Current A 23
pressure bar 6
Carton width 26-50 mm
Carton height 26-50 mm
Carton length 93-120 mm
Production speed 140 cartons/min
Compressed air consumption 134 NI/min
Installed power 5 Kw


Specifications:
Standard
Metric
Manufacturer Name
IMA


Year:
2009
2009

Model:
FLEXA CSD
FLEXA CSD

Product Sizing:
Carton width 15-90 mm Carton height 12-65 mm Carton length 55-190 mm
Carton width 15-90 mm Carton height 12-65 mm Carton length 55-190 mm

Line Motion:
CONTINUOUS
CONTINUOUS

Air Requirements:
6 BAR
6 BAR

Product Handling:
HORIZONTAL
HORIZONTAL

Product Loading:
AUTOMATIC
AUTOMATIC

Voltage:
400 VOLTS
400 VOLTS

Frequency:
50 HERTZ
50 HERTZ

Current:
23 AMPS
23 AMPS

Recommended Packaging Form:
CUSTOM
CUSTOM


Dimensions:
Standard
Metric

Overall:
143.70 x 68.90 x 78.74 in - 3086.44 lb
3650 x 1750 x 2000 MM - 1400 KGS

Disclaimer

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

Europe.

This equipment is subject to a removal and loading charge.


The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

Any license associated with this equipment is non-transferable.
