Listing# 1060282

Inox Tech Canada 430 HL Unitank Fermenter Tank


Make an Inquiry

Seller's Acceptable Currency:

$30,000.00 USD

Make An Offer

Location:  ON, Canada

Level of Removal:  Still Installed

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you




Equipment Description

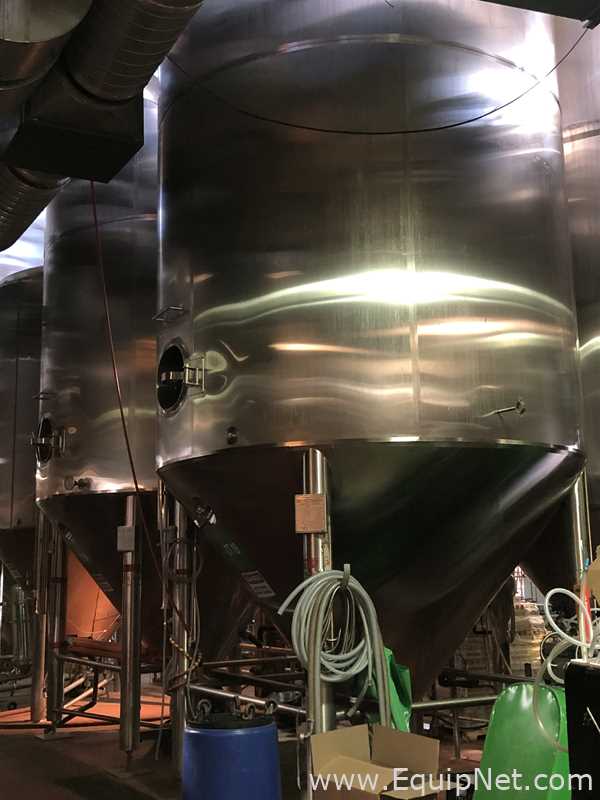

Inox Tech Canada 430 HL Unitank Fermenter Tank

Specifications:
Standard
Metric
Manufacturer Name
Inox Tech Canada Inc


Year:
2006
2006

Serial Number:
6915-01
6915-01

CE Marked:
NO
NO

Capacity of Tank:
11363.18 gal
43000 L

Tank Material of Construction:
STAINLESS STEEL
STAINLESS STEEL

Grade of Stainless Steel:
304
304

Internal Pressure Rating:
15 PSI
15 PSI

Internal Temperature Rating:
200 DEG F
200 DEG F

Jacketed:
YES
YES

Jacket Pressure Rating:
75 PSI
75 PSI

Jacket Temperature Rating:
200 DEG F
200 DEG F

Type of Top Head:
DISHED
DISHED

Type of Bottom Head:
CONE
CONE

Vertical or Horizontal:
VERTICAL
VERTICAL

Agitation:
NO
NO

Installation Type:
LEGS
LEGS

Outside Diameter:
121 IN
3073.40 mm

Inside Diameter:
114 IN
2895.60 mm

Overall Height:
328 IN
8331.20 mm

Straight Side:
220 IN
5588.00 mm

Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET

Model:
430 HL
430 HL


Dimensions:
Standard
Metric

Overall:
121 x 121 x 328 IN - 11000 LBS
3073.40 x 3073.40 x 8331.20 mm - 4989.60 kg

Disclaimer

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

ON

This equipment is subject to a removal and loading charge.


The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

Any license associated with this equipment is non-transferable.
