Listing# 925324

Lift O Flex 19500S Ergonomic Lift


You must be logged in to participate in Own It Now

Please Log In





Asset Documents
Equipment Description

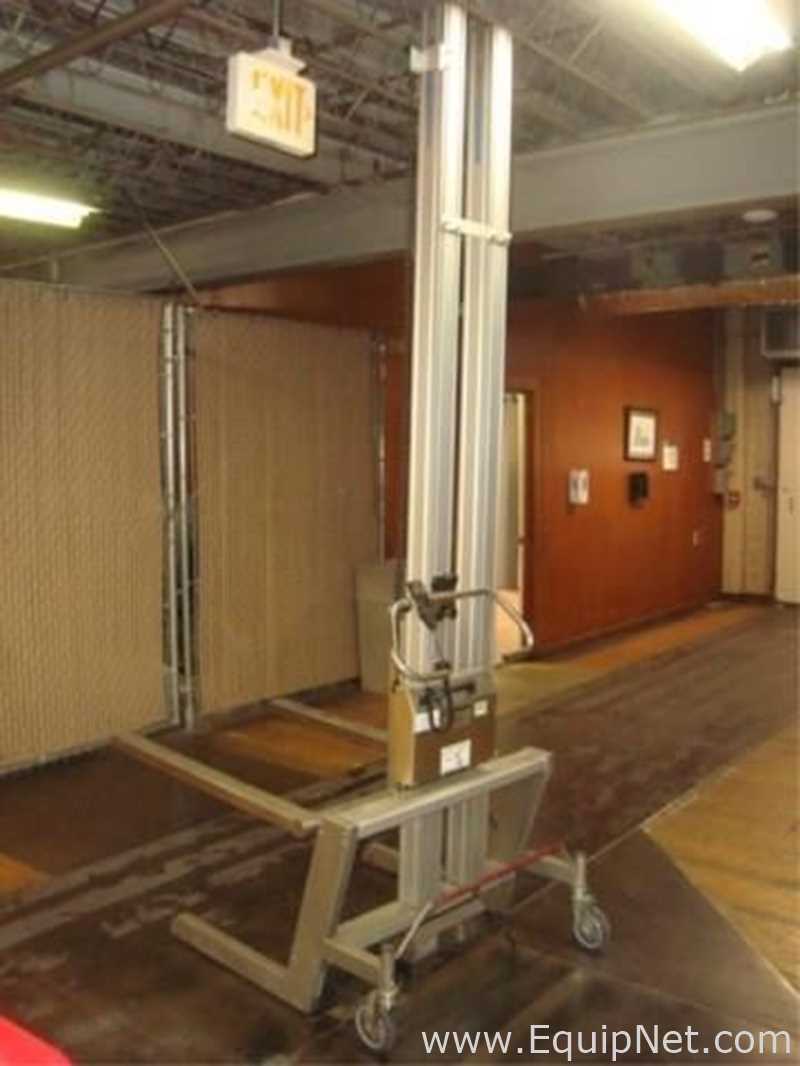

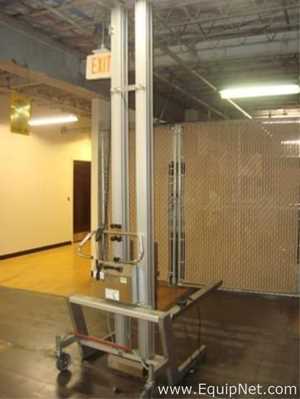

Lift O Flex 19500S Ergonomic Lift

Built-in Charger

The 19500S (Auxiliary Non-Powered Mast) Series LIFT-OFLEX ergonomic lifter offers dynamic load handling
characteristics for heavy load capacities. The 19500S series has a lift capacity of 525-lbs. This product provides expanded
flexibility in equipment selection to better fill your ergonomic lifting requirements.

The 19000 series lifters use many of the same basic lifter components. This allows for inter-changeability between lifters
permitting the customer to satisfy ergonomic lifter requirements while maintaining the ability to adapt the lifter to meet the
challenge of meeting tomorrow’s lifter needs today without incurring the cost of complete replacement.

Features and Benefits:
Anodized Aluminum Profileso Intermediate Sections-Standard and custom lengths
Dual Masts-One Power/One Non-Powered for increased stability at extended heights
Steel (Powder Coated Paint-Optional SS)
Legs-Bolted to Intermediate
Handlebar-Height Adjustable
Power Pack Cover
Standard and custom leg configurations and heightsSwivel and fixed casters-
Standard and custom length lift masts
Foot operated 3-position central brake system on rear casters
Brake, free-wheeling and center lock (trailing)
Lift mast slip clutch on the down movement provides for safe load handling
Current limiting (no limit switches) provide for load limiting and stops
Totally enclosed lift mast w/ball screw for smooth up and down DC powered movement
Electronic power pack can be provided with either standard or heavy-duty batteries
Power packs are also exchangeable allowing for multi-shift operation
Detachable remote controller (Plug-in to Electronic Power Pack)
Provides the operator with control over load handling functions.
Handlebar is adjustable by the operators to achieve ergonomic operation

Specifications:
Standard
Metric
Manufacturer Name
Lift O Flex


Model:
19500S
19500S

Capacity Size:
525 Pounds
238.14 kg

Type of Lift:
DRUM
DRUM

Voltage:
120 VOLTS
120 VOLTS

Frequency:
60 HERTZ
60 HERTZ

Phase:
1
1


Dimensions:
Standard
Metric

Overall:
37 x 34 x 79 IN - 230 Pounds
939.80 x 863.60 x 2006.60 mm - 104.33 kg

Disclaimer

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This equipment is subject to a removal and loading charge.

The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

Any license associated with this equipment is non transferable.
