Listing# 891090

Thermo Fisher Scientific MBF-700LSAO Freezer

Download High Res Photos

Add To Watch List

You must be logged in to participate in Own It Now

Please Log In

Equipment Description

Thermo Fisher Scientific MBF-700LSAO Freezer

Used Excellent Condition.

Key Features:
Large capacity of over 32 cu. ft., a high cooling capacity and two independent refrigeration systems for critical samples.
Four 1.5hp air-cooled compressors for high capacity and maximum reliability.
Three modes of operation, including normal and accelerated pulldown, plus long-term storage.
Redundant controls in case of controller failure.

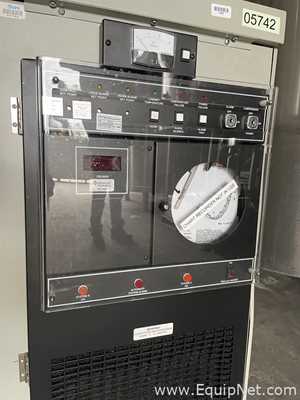

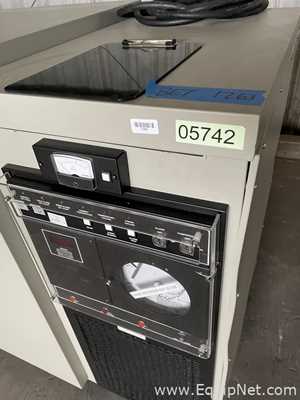

Control System:
Keyed master power switch for operating security.
Independent refrigeration controls selectable for systems “A” and “B”.
Adjustable, integrated temperature control.
Toggle between display setpoint, actual operating temperature and alarm limits.
Independent adjustable cold and warm alarm setpoints with key-activated switch, audible warning and alarm silence button.
Power failure alarm with 24-hour battery back-up.
Indicator lights for all control and operational functions.
Standard 6 in. (15.2cm) circular chart recorder for permanent record of cabinet performance.
Battery meter for easy check of backup charge.

Refrigeration System:.
Two cascade systems operate separately or together depending on system loading.
Thermal expansion valve increases refrigeration BTU removal capacity, increases temperature pulldown rate, improves temperature recovery following lid openings and warm product insertion, and automatically reacts to changing ambient temperatures.
Gravity feed evaporator design assures temperature uniformity within chamber interior, enhances refrigerant flow and oil return, and increases overall efficiency.
System includes CFC-free refrigerants.

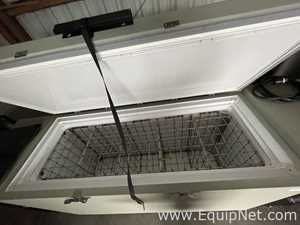

Cabinet Design:
Freezers uses standard ultra-low temperature inventory racks with boxes.
Coved-corner interior design improves refrigeration efficiency and accelerates heat removal from stored product.
Laboratory-grade construction includes minimum 5 in. (12.7cm) CFC-free foamed-in-place urethane insulation. surrounding interior chamber, plus 3 in. (8.9cm) insulation in lid.
Fully insulated lid has two cam-action latches which compress against multiseal gasket to protect against frost build-up.
High-density sublids provide additional protection to stored product during lid openings.
Heavy-gauge, reinforced, cold-rolled steel interior chamber has 50% greater thermal efficiency than stainless steel.
Exterior and interior surfaces are finished with high-impact powder coat paint.
Design includes 1 in. diameter thru-wall access port with plug.

Recommended for:
Long-term storage of biological and chemical samples.

Specifications:

Standard

Metric

Manufacturer Name

Thermo Fisher Scientific

Serial Number:

N05X-301565-NX

CE Marked:

UNKNOWN

Capacity Size:

32 CU FT

0.91 cu m

Model:

MBF-700LSAO

Temperature Range:

-65 to -80 DEG C

Chamber Dimensions:

22.6 x 71 x 35.4 IN

22.6 x 71 x 35.4 mm

Voltage:

220 VOLTS

Frequency:

60 HERTZ

Phase:

Current:

24 AMPS

Type of Freezer:

CHEST

Recommended Packaging Form:

CUSTOM PALLET

Dimensions:

Standard

Metric

Overall:

119 x 35 x 48 IN - 1800 LBS

3022.60 x 889.00 x 1219.20 mm - 816.48 kg

Disclaimer

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This equipment is subject to a removal and loading charge.

The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

Any license associated with this equipment is non transferable.
