Listing# 1011942
PRB Packaging Systems Mod. FAR 2001 Overwrapper
Seller's Acceptable Currency:
€22,600.00 EUR
Make An OfferLocation: Europe
Level of Removal:
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Equipment Description

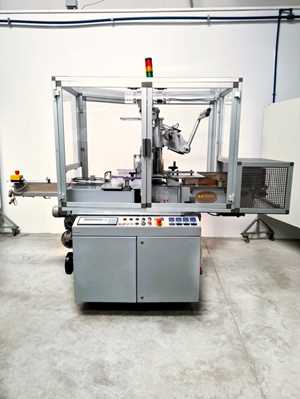

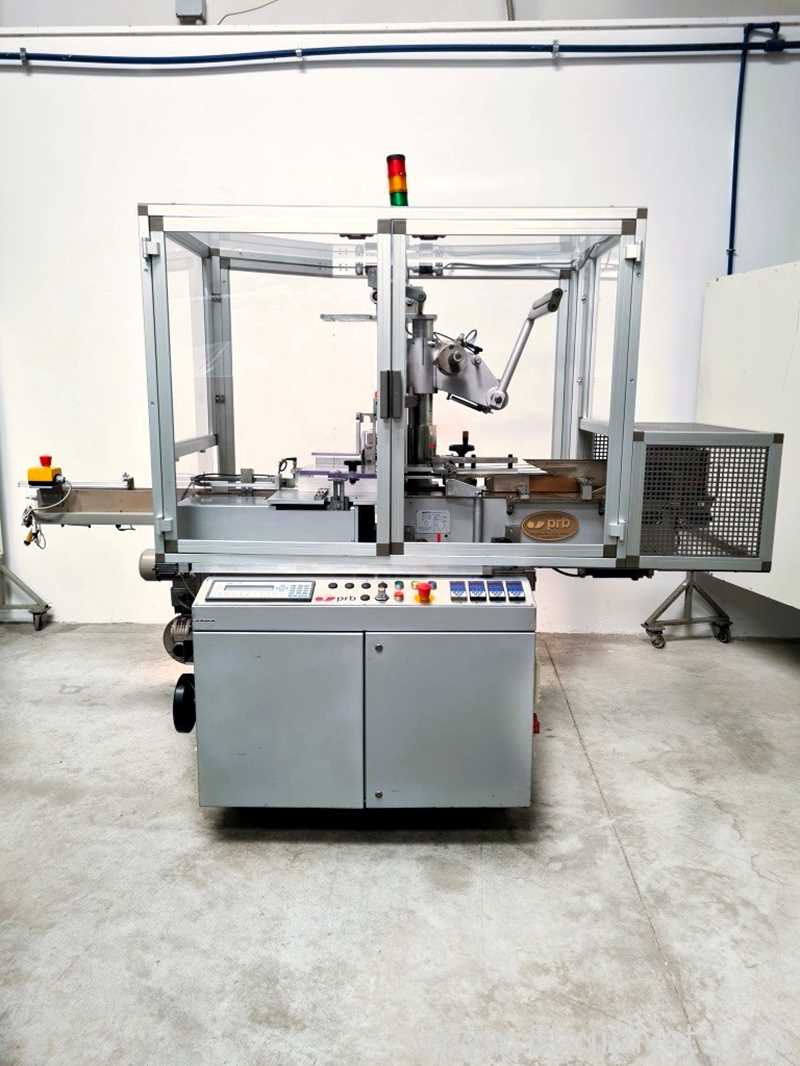

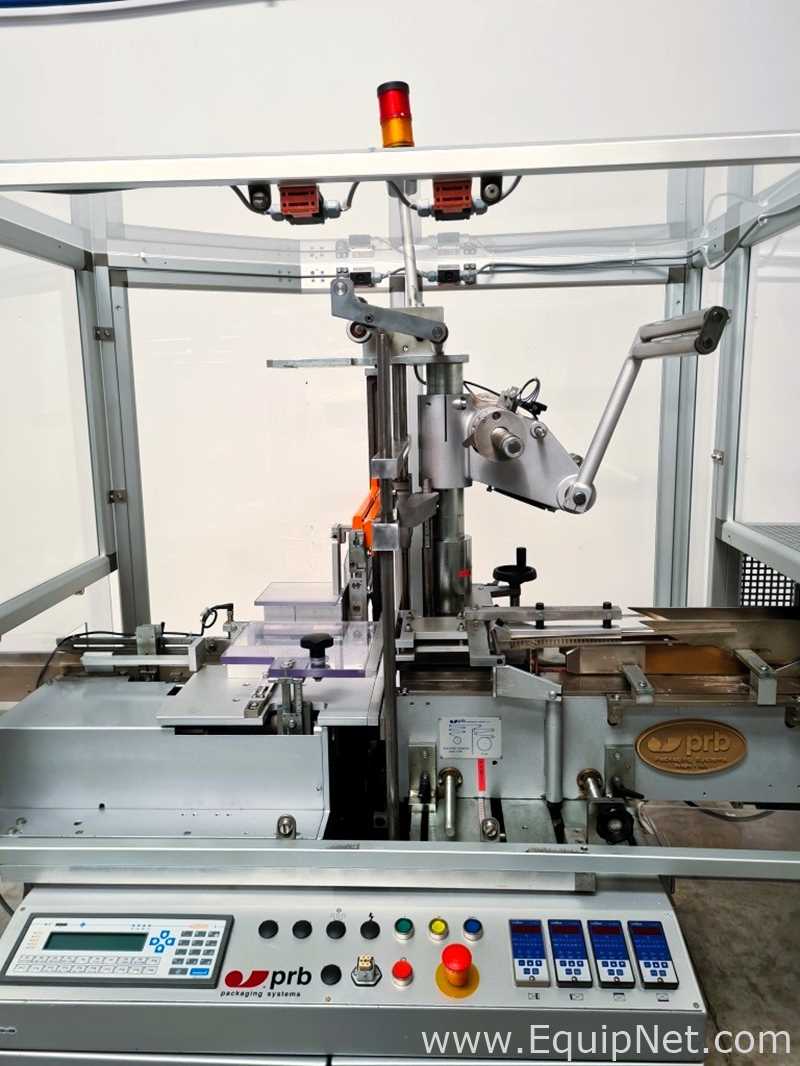

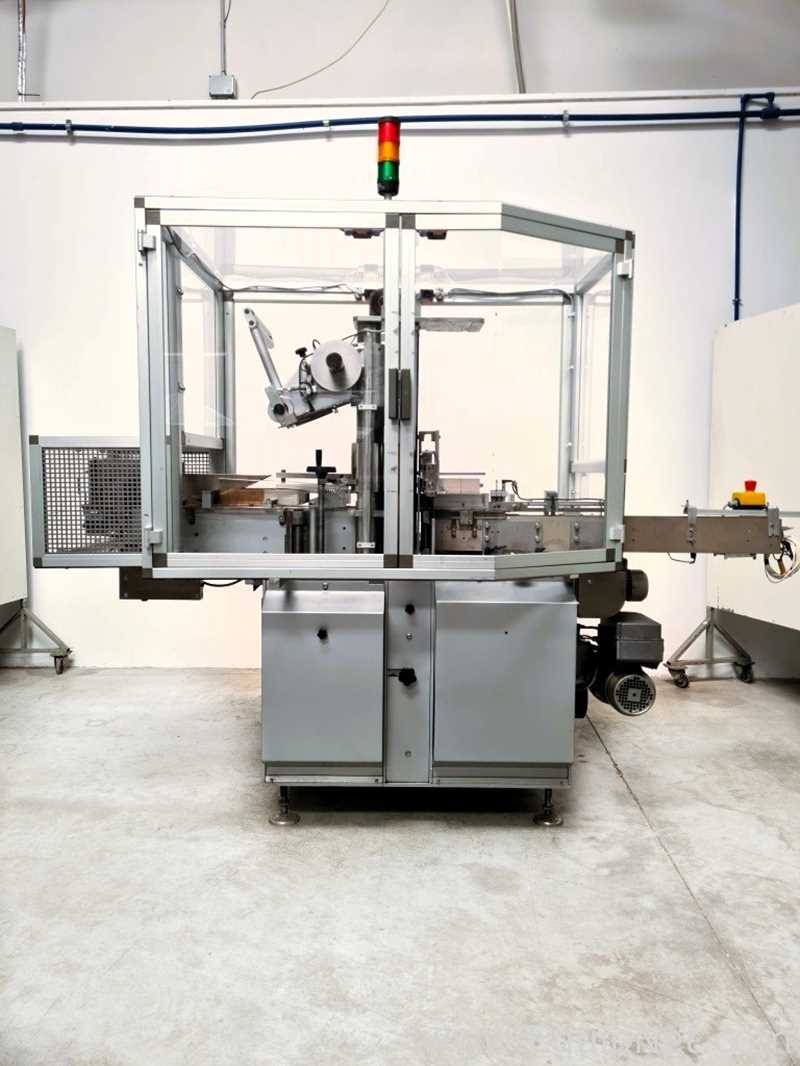

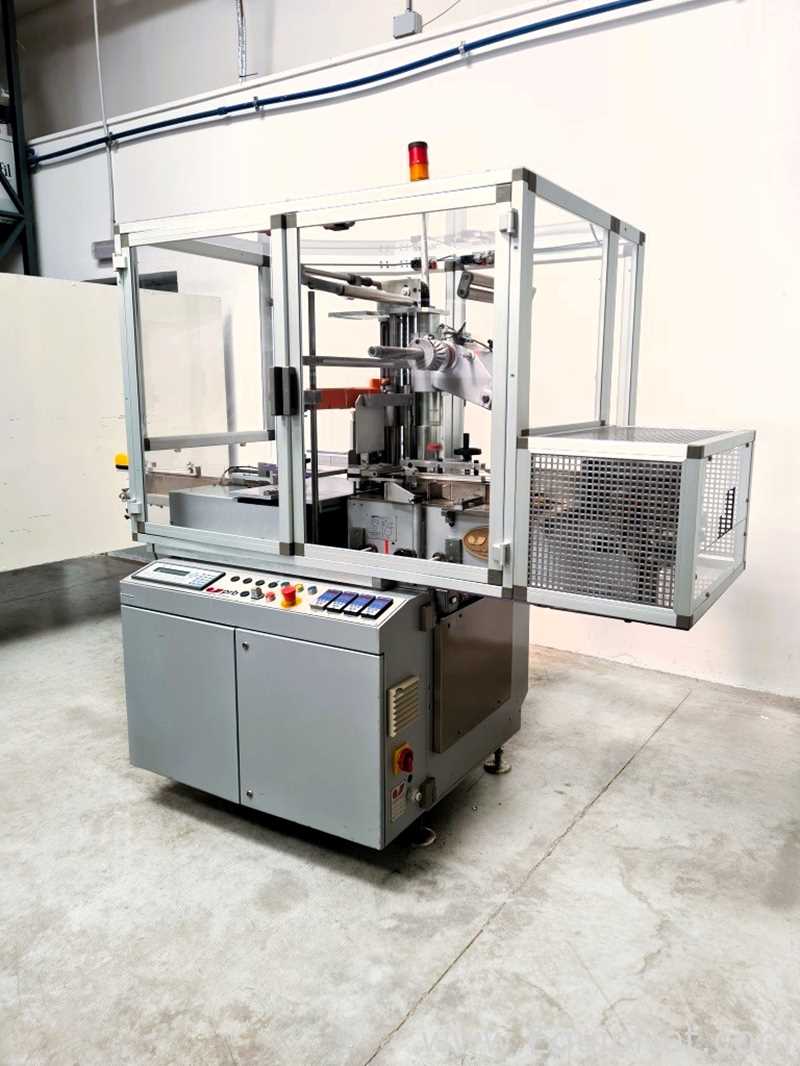

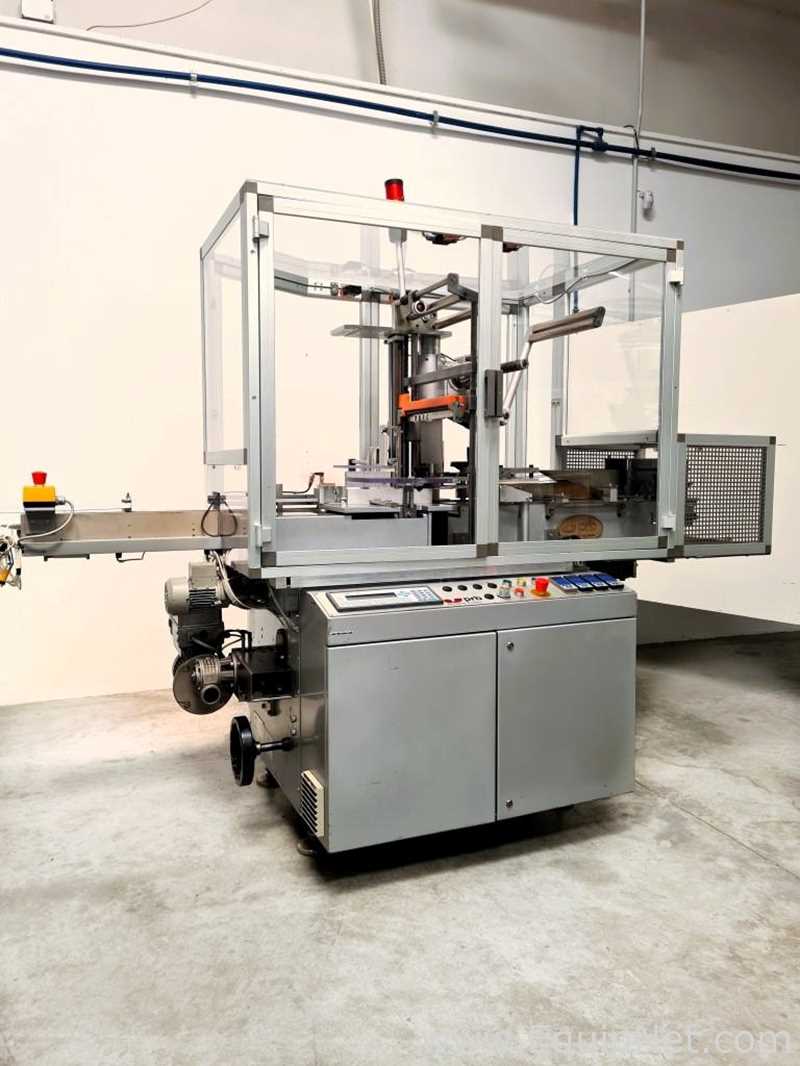

PRB PACKAGING SYSTEMS MOD. FAR 2001 - Overwrapper bundler
DESCRIPTION:

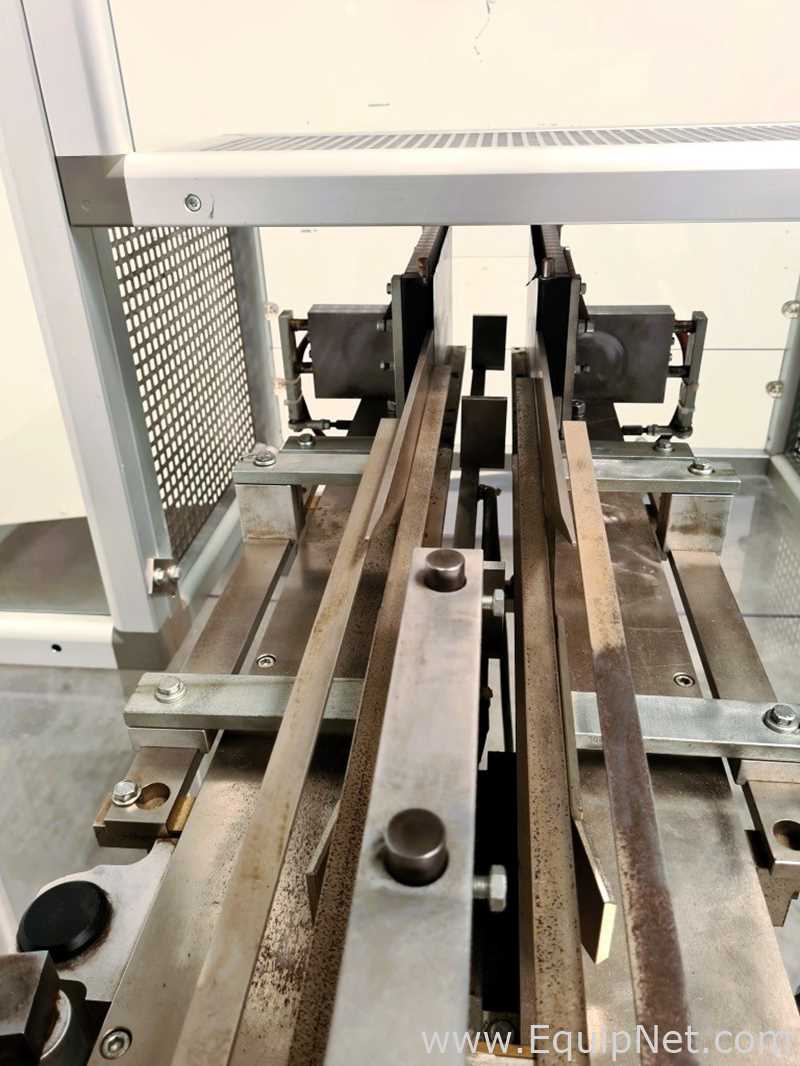

The PRB FAR 2001 automatic bundler was designed for the wrapping and packaging of various products for different market sectors. High reliability combined with great format flexibility. The positive film unwinding system and the transport of the products with a mechanical comb allow excellent packaging quality.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:

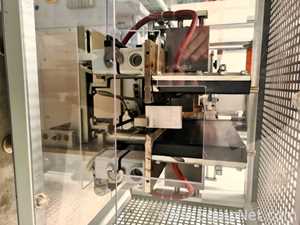

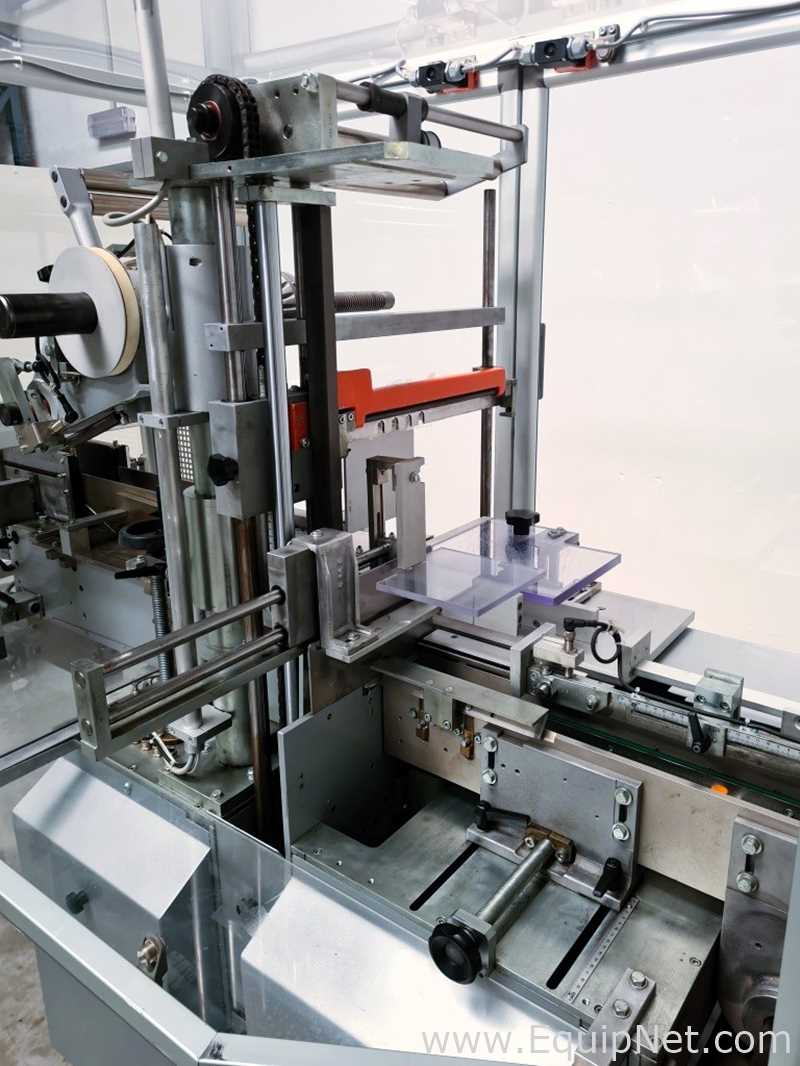

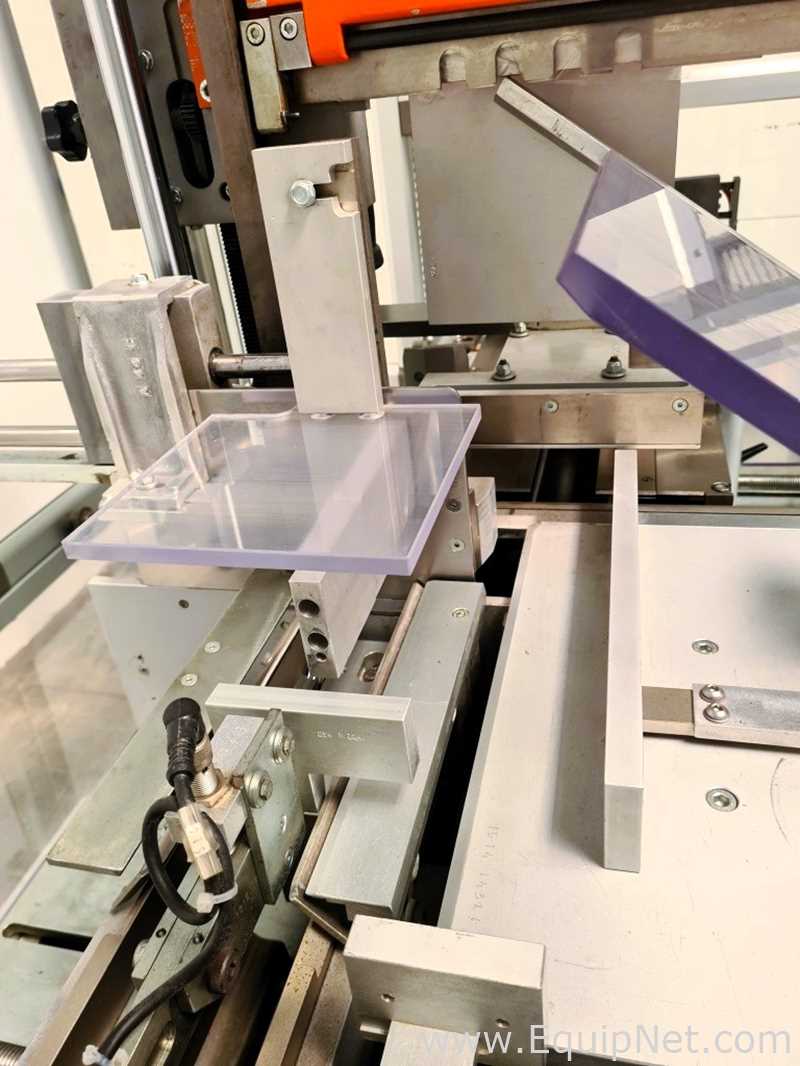

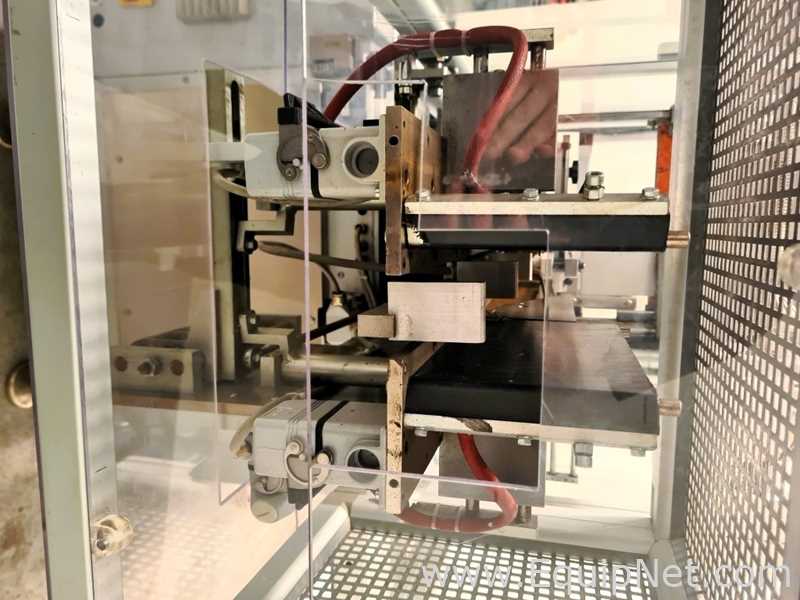

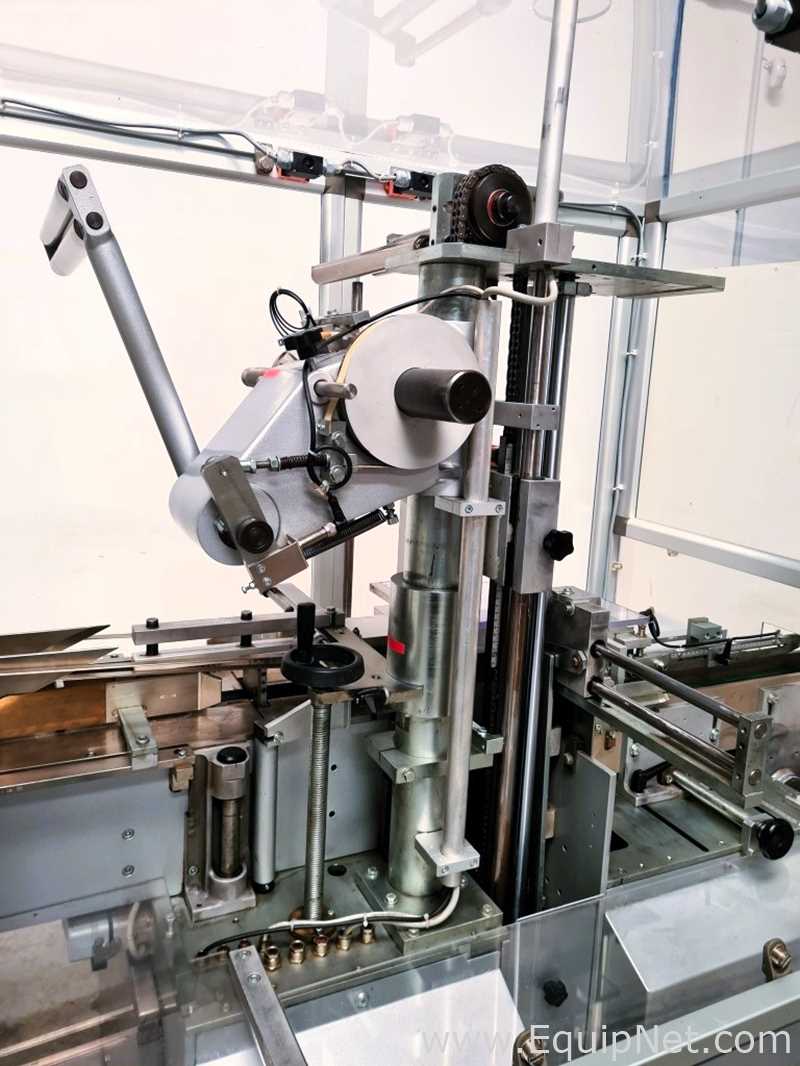

The wrapping machine FAR 2001 has only mechanical cam movements with complete automatic operation. This machine is able to execute the grouping of cartons in bundles and to wrap or band them completely. The work cycle is defined by the following operations: carton feeding, bundle forming, spool unwinding and film cutting, bundle winding, film folding and sealing. The film is heat sealed and the operation is controlled by temperature controllers. The carton stratification system is mechanic and in direct, synchronized pick-up. The strata number, for machine cycle, is determined by a couple of gears which changes in relation of the format. Recommended films: Cellophane MST 350 e XST 350 – 40 gr./mq., Polypropylene PP bipositioned, bisealing 26 ÷ 32 micron, Retractable thermosealing PVC 8 – 10% antistatic 30 micron, Cellophane 630 MS enameled Hotmelt, for tear tape. The machine is designed for the tear-off tape system (not present).
Year of construction: 2009
TECHNICAL DATA
Length mm 2160
Width mm 2230
Height mm 1200
Weight Kg 1000
Power Kw 3
Voltage Volt 400
Frequency Hz 50
PRODUCTION CHARACTERISTICS
Max production 75 cycle/min
Max production 4200 bundles/hour
Product size min. 50 x 15 x 10 mm
Product size max. 210 x 250 x 60 mm
Bundle size min. 50 x 60 x 20 mm
Bundle size max. 210 x 250 x 150 mm
DESCRIPTION:
The PRB FAR 2001 automatic bundler was designed for the wrapping and packaging of various products for different market sectors. High reliability combined with great format flexibility. The positive film unwinding system and the transport of the products with a mechanical comb allow excellent packaging quality.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:
The wrapping machine FAR 2001 has only mechanical cam movements with complete automatic operation. This machine is able to execute the grouping of cartons in bundles and to wrap or band them completely. The work cycle is defined by the following operations: carton feeding, bundle forming, spool unwinding and film cutting, bundle winding, film folding and sealing. The film is heat sealed and the operation is controlled by temperature controllers. The carton stratification system is mechanic and in direct, synchronized pick-up. The strata number, for machine cycle, is determined by a couple of gears which changes in relation of the format. Recommended films: Cellophane MST 350 e XST 350 – 40 gr./mq., Polypropylene PP bipositioned, bisealing 26 ÷ 32 micron, Retractable thermosealing PVC 8 – 10% antistatic 30 micron, Cellophane 630 MS enameled Hotmelt, for tear tape. The machine is designed for the tear-off tape system (not present).
Year of construction: 2009
TECHNICAL DATA
Length mm 2160
Width mm 2230
Height mm 1200
Weight Kg 1000
Power Kw 3
Voltage Volt 400
Frequency Hz 50
PRODUCTION CHARACTERISTICS
Max production 75 cycle/min
Max production 4200 bundles/hour
Product size min. 50 x 15 x 10 mm
Product size max. 210 x 250 x 60 mm
Bundle size min. 50 x 60 x 20 mm
Bundle size max. 210 x 250 x 150 mm
Specifications:
Standard
Metric
Manufacturer Name
PRB Packaging Systems
Year:
2009
2009
Model:
FAR 2001
FAR 2001
