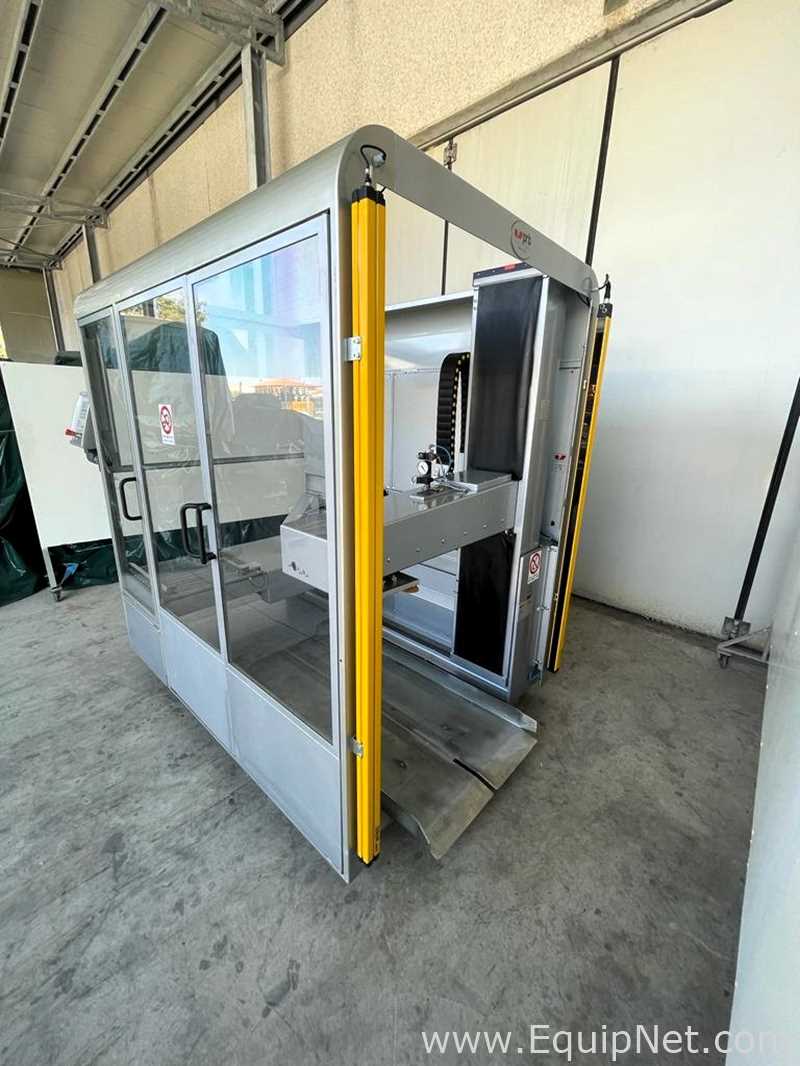

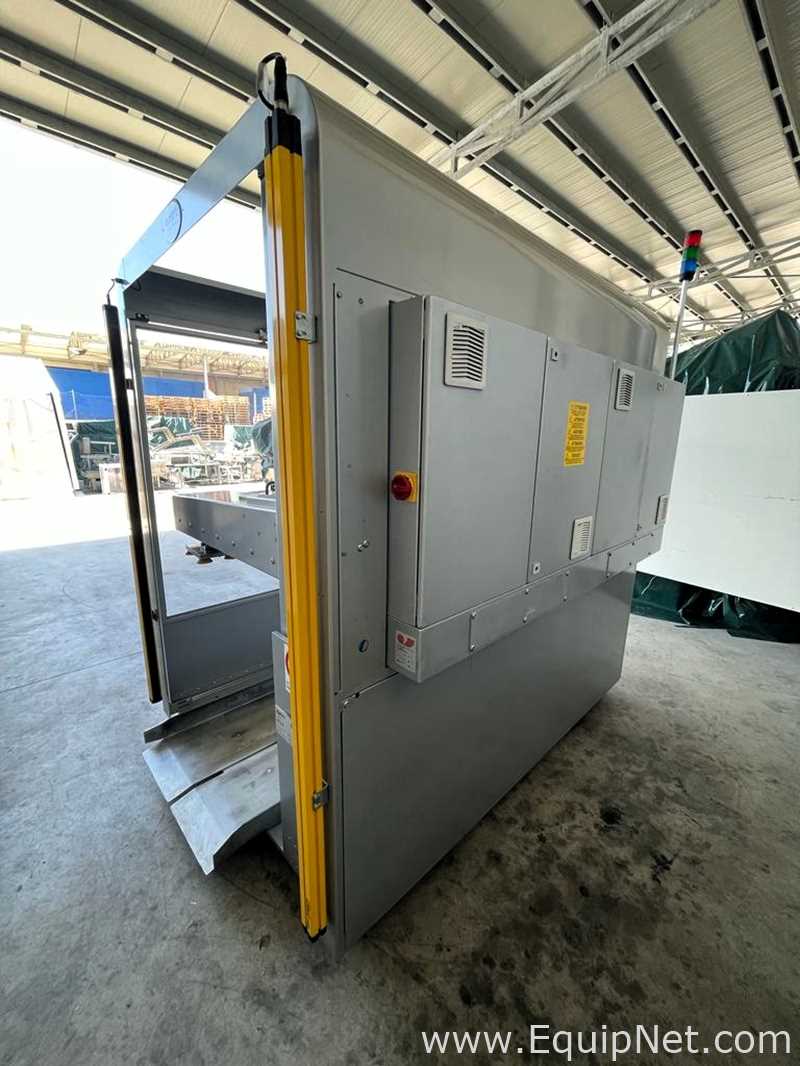

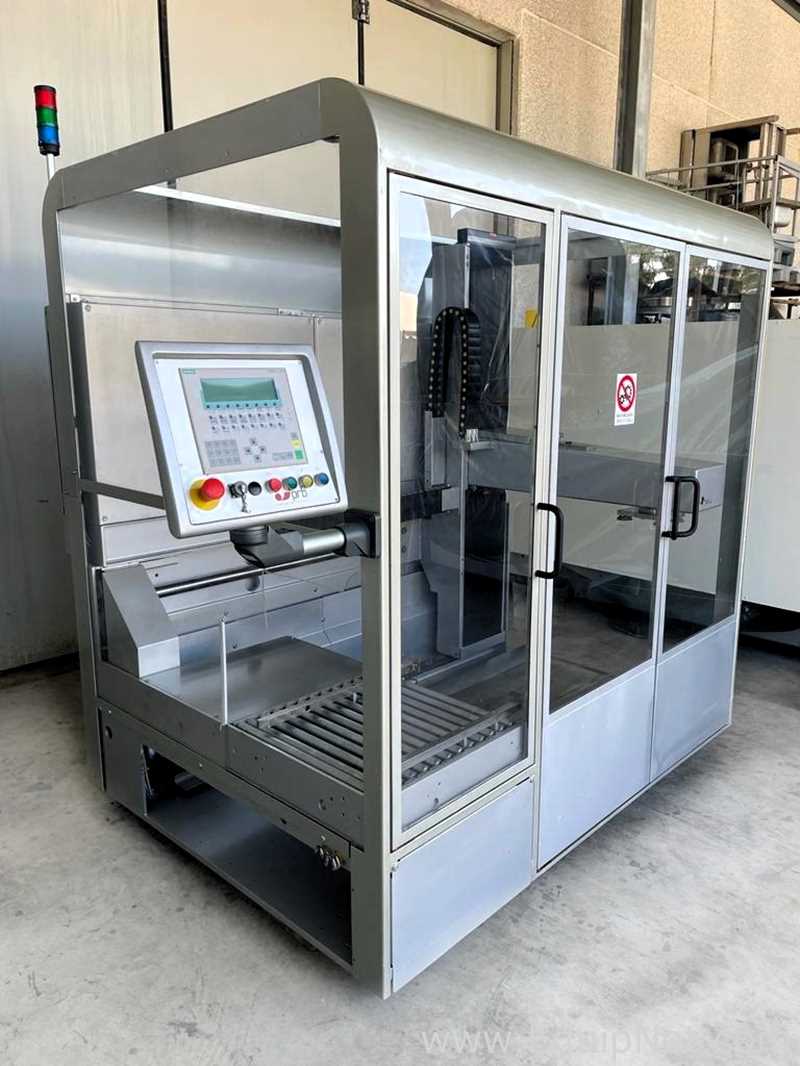

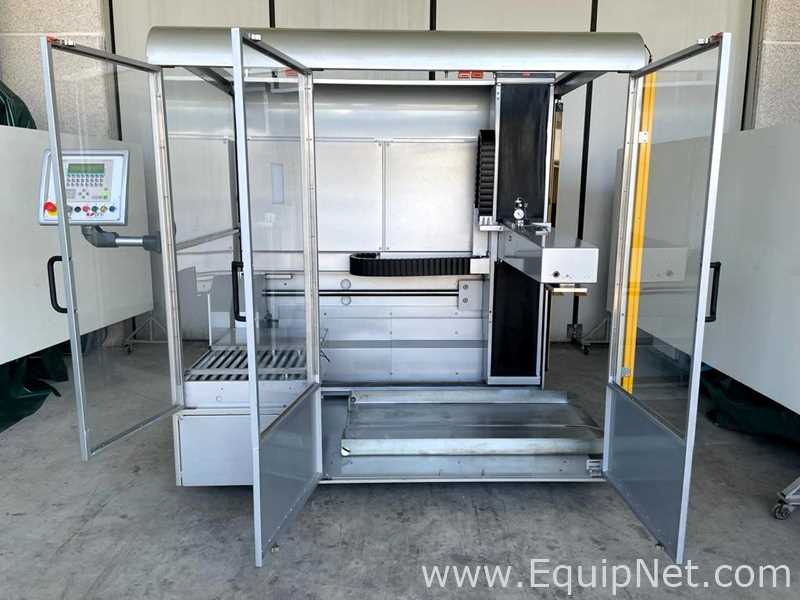

PRB PACKAGING SYSTEMS MOD. MINISTRATUS - Palletizer

DESCRIPTION:
MINISTRATUS is able to satisfy the request for quick automatic palletizing of cartons on EURO-pallets, the final step of every production process. Completely mechanical construction. The equipment is very clear and simple in its design. The MINISTRATUS handles single or multiple products at high working speed which makes it suitable for serving several quick packaging lines.

SECTORS OF USE:
Food, Confectionery, Pharmaceutical, Cosmetic, Chemical, Magnetic, Paper, Tobacco

MAIN FEATURES:

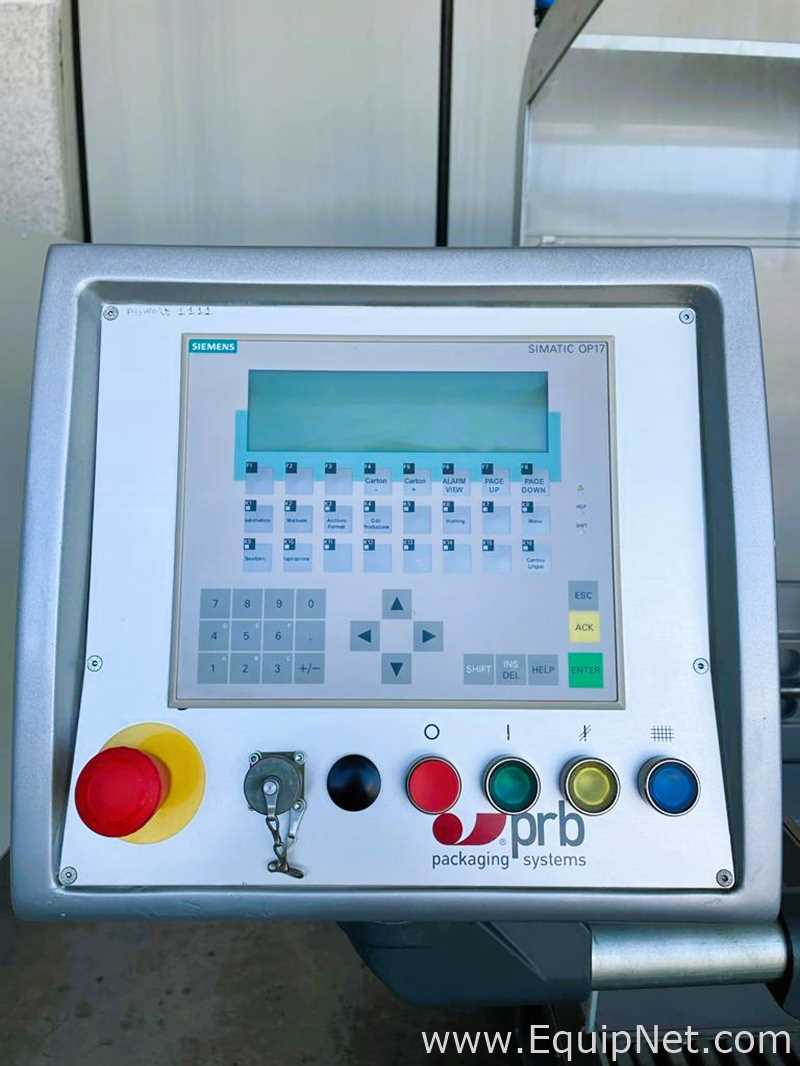

Automatc palletizer for packaging lines, of the type: for Europallets 800 x 1200 and 1000 x 1200 mm. Balcony construction for easy access, product visibility, maintenance and cleaning. Reliable and robust mechanical construction to reduce maintenance and prolong machine life. Compact-sized machine, with small footprint. Control panel for machine management, with format size parameter set-up. Easy and fast changeover. A wide range of personalization options available. Each pick up operation is checked during every cycle to guarantee correct case composition.

Year: 2008

TECHNICAL DATA
Length mm 2800
Width mm 1820
Height mm 2600
Net weight Kg 1750
Frequency Hz 50
Voltage Volt 400
Power Kw 6

PRODUCTION CHARACTERISTICS
Mechanical speed 12 cycles/min
Format size min. mm 150 x 80 x 100 h
Format size max. mm 600 x 610 x 400 h

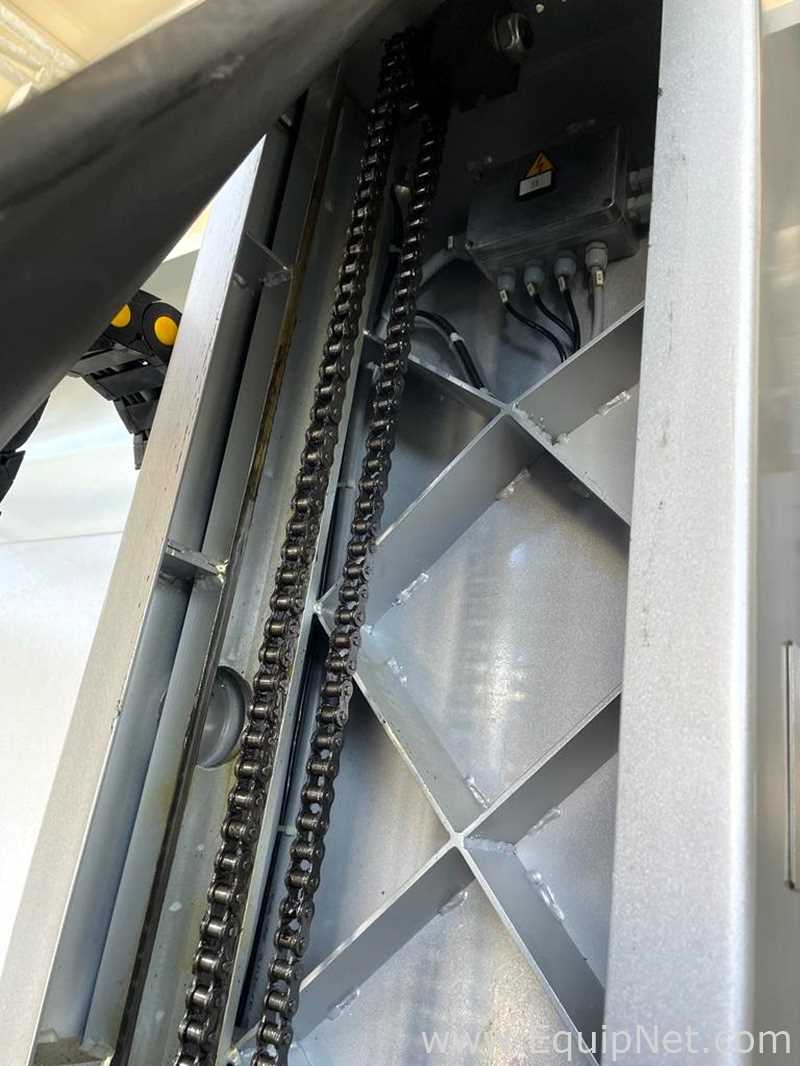

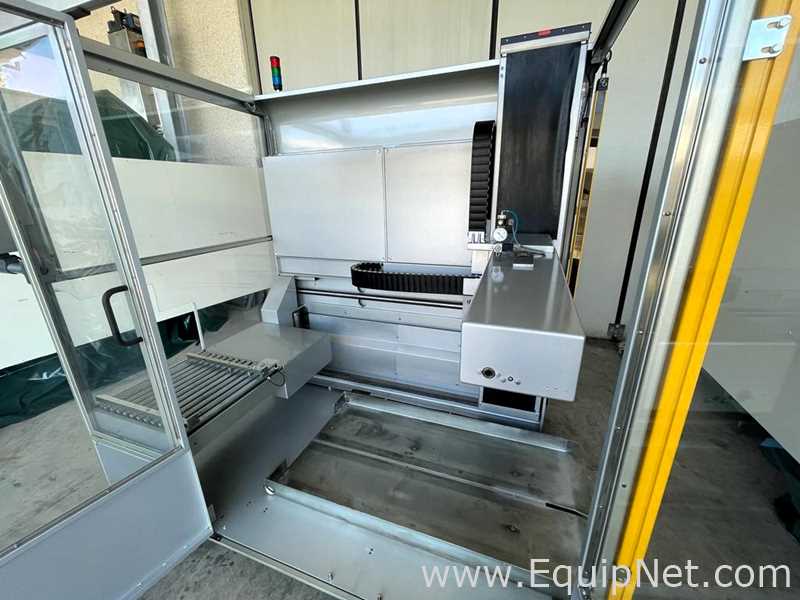

PRB Packaging Systems Ministratus Palletizer
