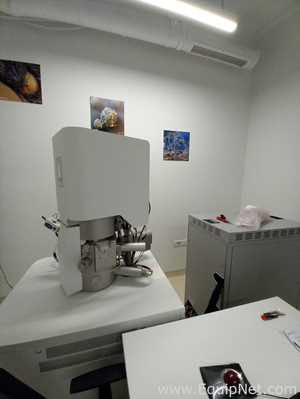

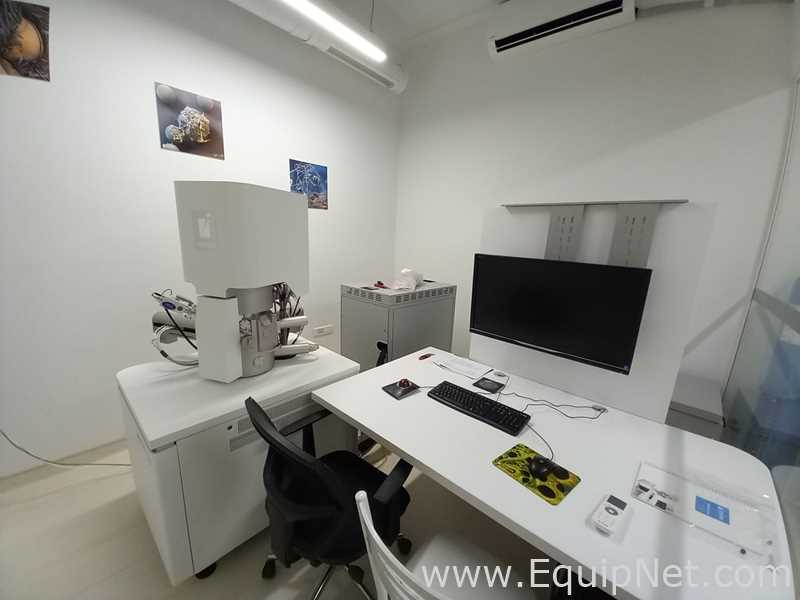

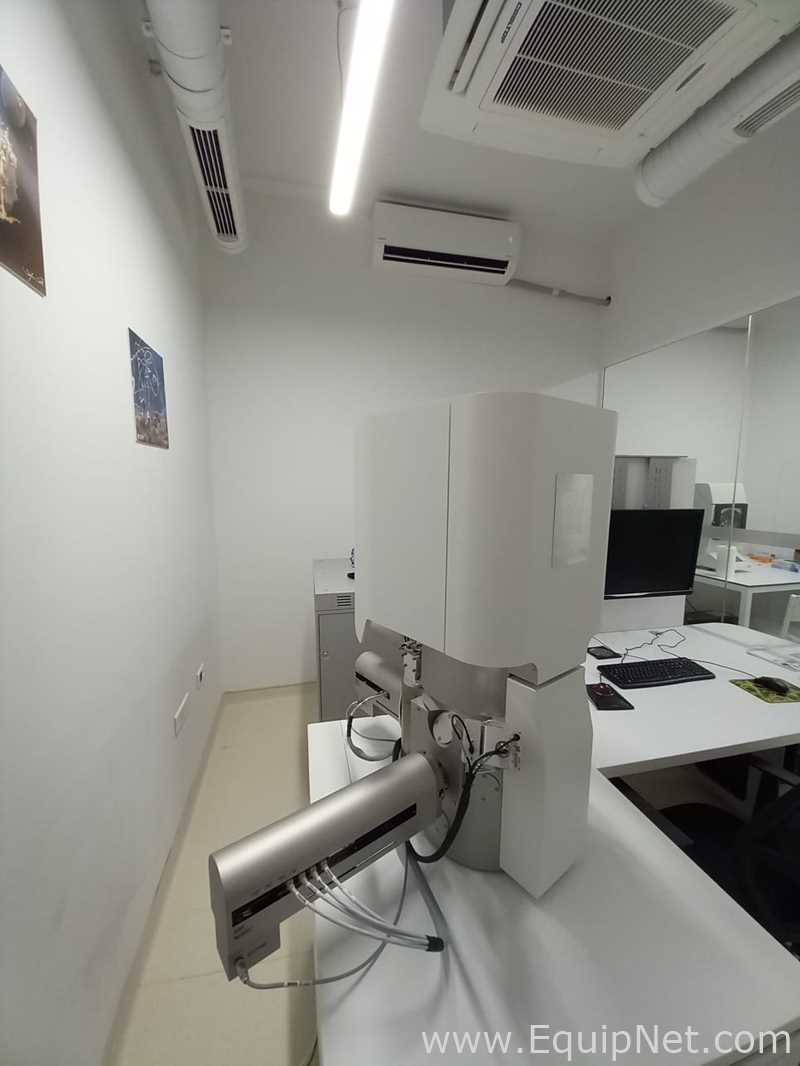

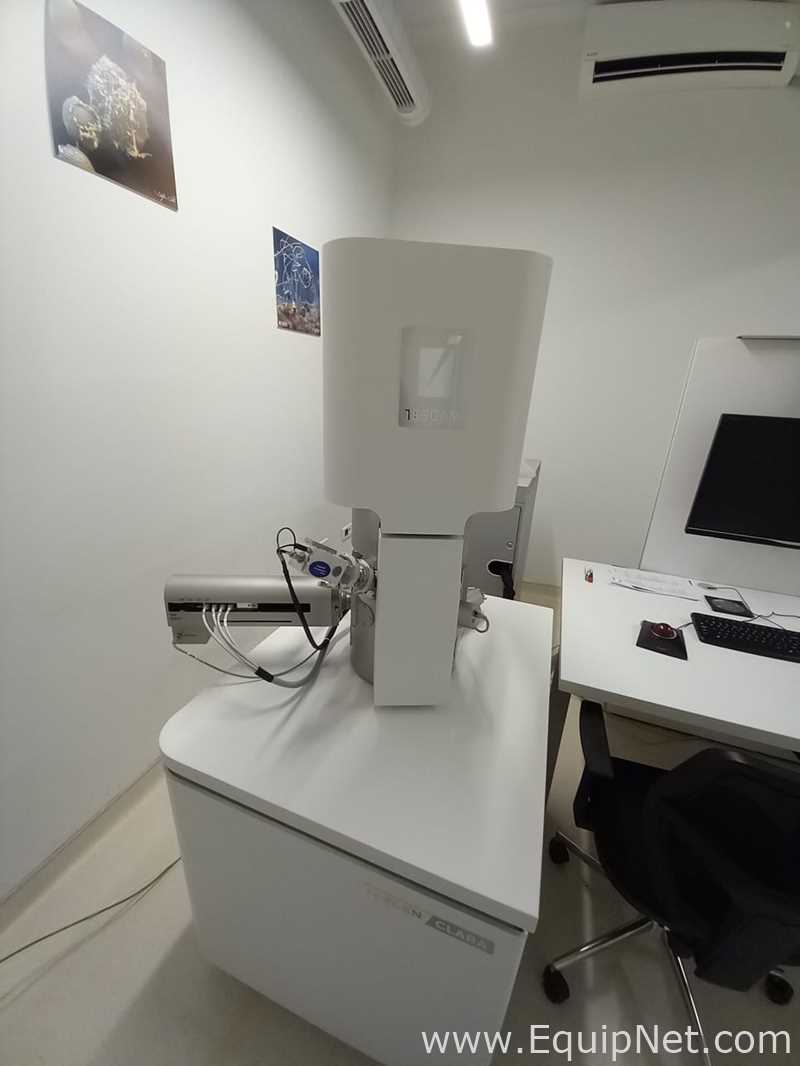

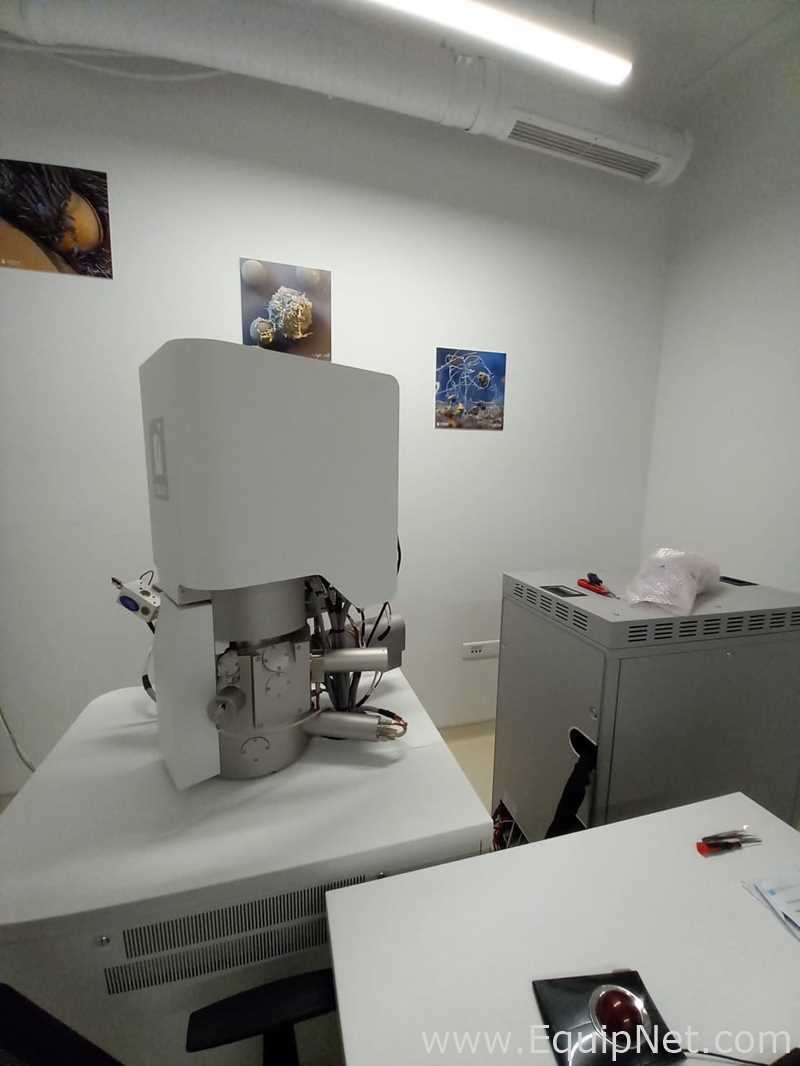

Tescan Company TESCAN CLARA LMU Microscope,

TESCAN CLARA is a Scanning Electron Microscope (SEM)
that satisfies the demands for high quality images and
microanalysis that routinely arise in different fields of
research and technology. TESCAN CLARA features the
TESCAN BrightBeam™ SEM column technology, which
utilizes a combined electrostatic-magnetic objective.
This provides ultra-high-resolution capabilities at low
accelerating voltages in a field-free fashion – an essential
feature for uncompromised imaging of all kinds of samples,
including those which are magnetic.
TESCAN CLARA is fitted with unique in-column multidetector system that allows selective collection of electrons
according to their take-off angle and energy. This results
in maximum topographic and compositional information
from the sample. The Multidetector, which is equipped
with a filtering grid, gives access to selectively filter SE and
BSE energies and enhances materials contrast, as well as
the ability to live-switch between SE and BSE signal. The
second in-column detector, the Axial detector, is designed
to collect SE signal at maximum efficiency and any landing
voltages without palpable loss of SE signal. This makes
UHR-SE observation very easy and routine, even at low
landing voltages.
Additionally, TESCAN CLARA can be equipped with two
In-chamber detectors and an E-T detector as standard, to
provide excellent high signal and topographical contrast
from the sample. The optional retractable low energy
BSE detector collects wide-angle BSEs and provides
high material contrast, even at low accelerating voltages.
TESCAN CLARA is also designed for analytical purposes,
thanks to In Flight Beam Tracing™ and Intermediate Lens™
utilities. TESCAN CLARA can maintain high resolution even
at high beam currents (up to 400?nA), which is beneficial
for daily analytical work. TESCAN CLARA is truly a versatile
instrument, ideal for the characterization of nanomaterials,
rigorous quality control in the high-end manufacturing
industry, as well as for Research and Development
