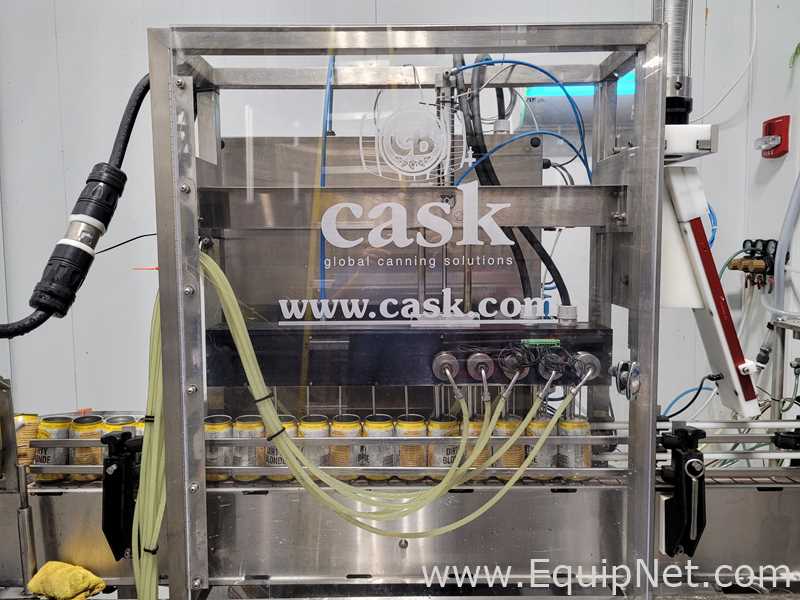

Cask Global Canning Solutions ACS V4.1 Can Filling and Seaming Line with Cask Depalletizer

5 spout filler - flow control filling
Touch Screen Controls
Single Head Seamer with Angelus tooling
+/- 5 ml fill level per package
30 CPM, 2 person operation
Cask Depalletizer with pallet list, auto tier sheet removal, 15 minute cycle
Gravity pre-rinser
Gravity collection table
Post rinser dryer

Complete Grain Handling and Milling System for a Brewery

SYSTEM IS COMPRISED OF:

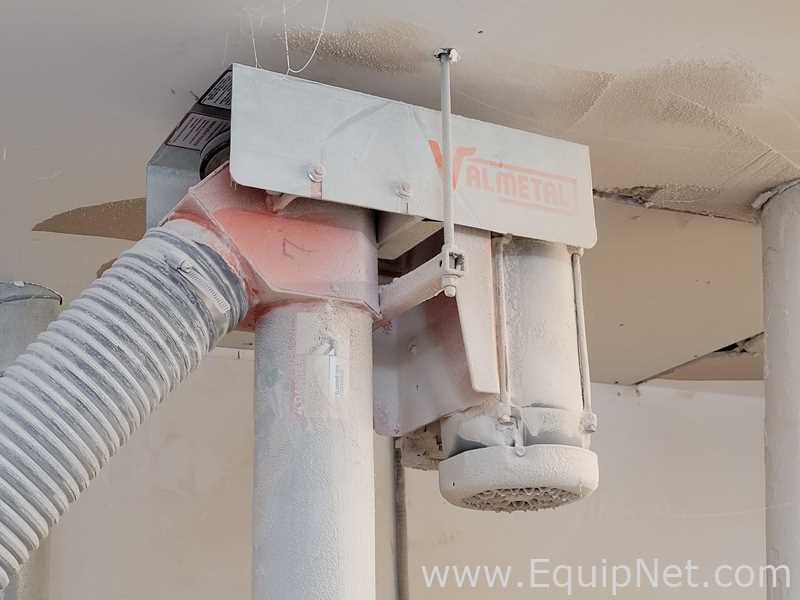

Flex Auger 350 -UNLOADER AND BEARING
Required to connect flex auger inlet to mill or grist case
16" rubber boot
Straight boot or 30 degree boot available

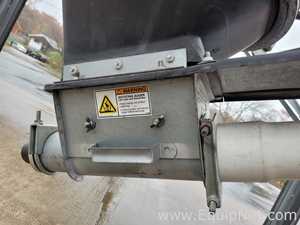

Single-out unloader
Flex auger anchor bearing
Flex auger bearing assembly

350 Flex Auger
Drive motor and control unit is included
Body is rugged PVC Tubing for long service life
Can be customized to meet most site conditions.
Grist capacity up to 3000 lbs/hr (1360 kg/hr)
Malt capacity up to 4500 lbs/hr (2041 kg/hr)

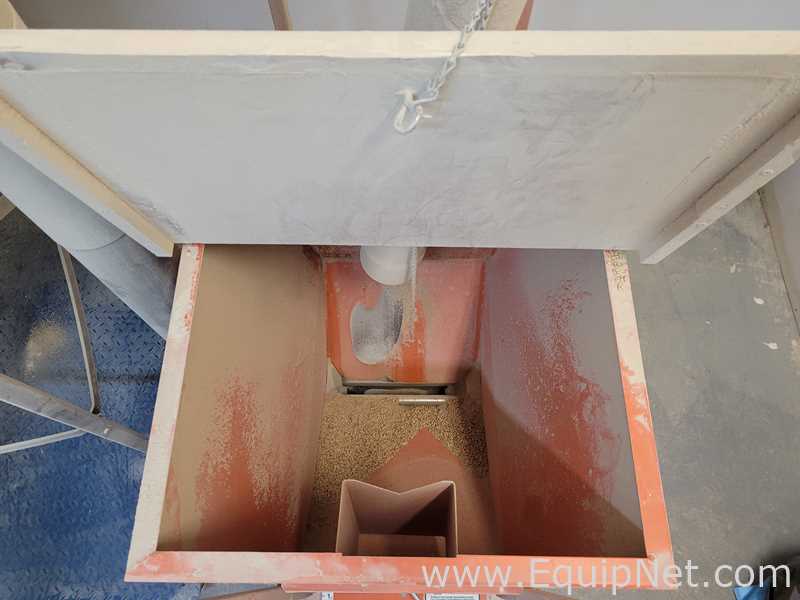

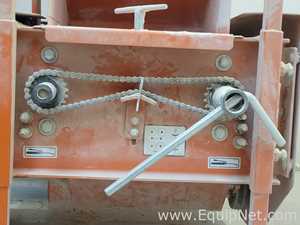

Malt Mill
4400 lbs/hr (2000 Kg/hr)
Adjustable legs
6 1/2" (165mm) diameter solid steel rolls
A single lever setting for rolls
Rolls grooved and hardened to 60 Rockwell C
Roller spacing and pressure are easily adjustable
Large Capacity hopper c/w tramp metal magnet
Adjustable slide gate for controlling input
1.75" shafts to withstand pressure from cracking malt
EXPLOSION PROOF 3 HP MOTOR INCLUDED
51" (130 cm) long x 128" (71 cm) wide x 51" (130 cm) high
Weighs 620 lbs (281 kg)

Malt Mill - Vertical Discharge Auger
5" galvanized auger
Mill exit adapter kit
Horizontal discharge from centerline of mill
Up to 15 ft vertical height
Complete with drive motor
Compact connection between mill and floor mounted grist case
Does not require a flex auger unloader

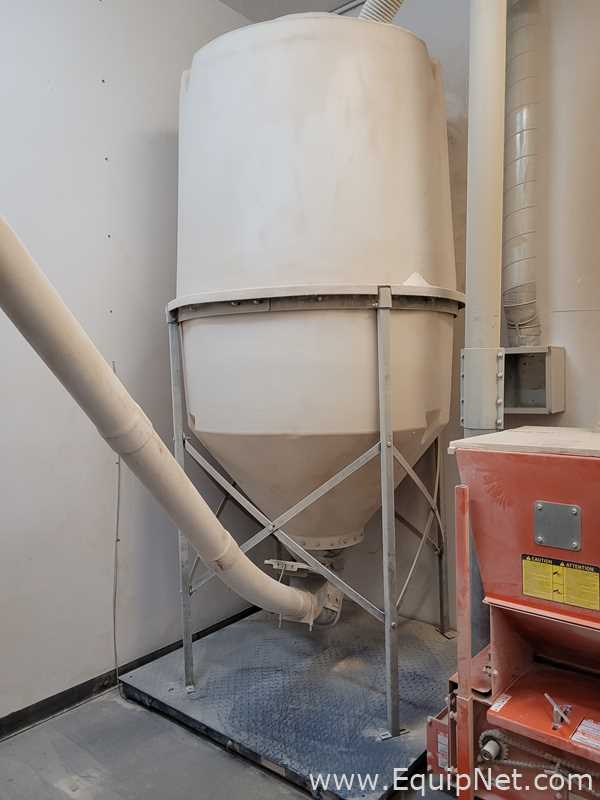

Poly Grist Case
Polyethylene hopper for malt or grist
Semi transparent for level indication
Complete with frame, hopper and roof
Includes floor mount kit
Gross capacity of 70 cu ft
1400 lbs of milled grist at 20 lbs/cu ft
2100 lbs of unmilled malt at 30 lbs/cu ft
Standard 16" opening
60" diameter
109" overall height

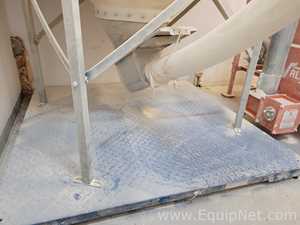

Weight scale for Grist Case
Measures up to 1000 KG
Remote readout to report weight

500 Flex Auger 40 ft , 5" Model
To convey malt from grist case to Mash / Lauter
Drive motor and control unit is included
Body is rugged PVC Tubing for long service life
Can be customized to meet most site conditions.
5" (127mm) AUGER
Up to 40 ft long
Grist capacity up to 6600 lbs/hr (2994 kg/hr)
Malt capacity up to 9900 lbs/hr (4490 kg/hr)

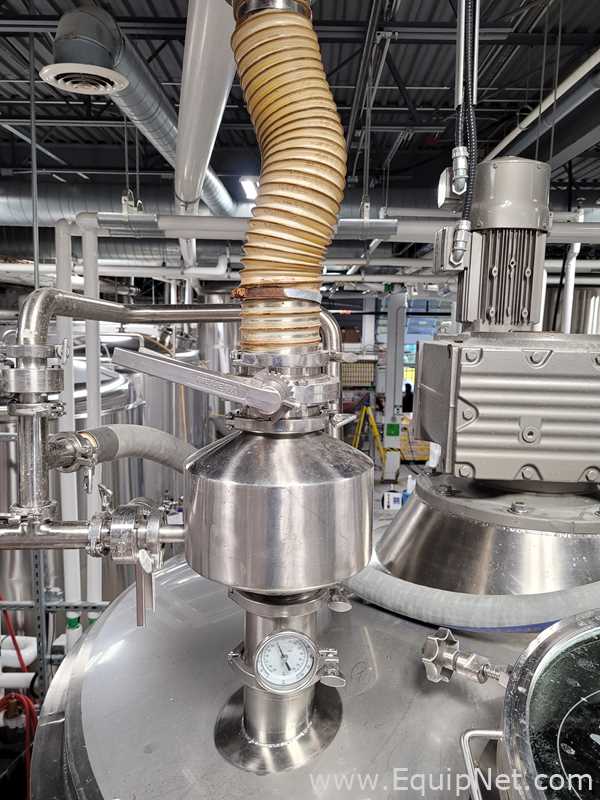

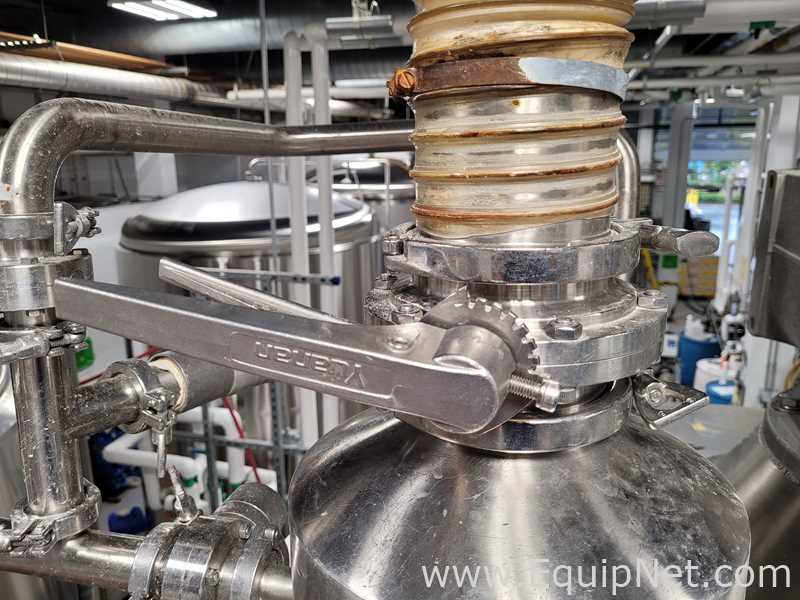

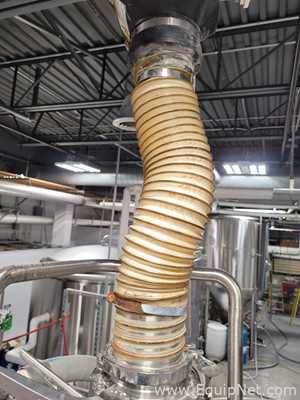

Grist Hydrator 4" (102 mm) (C/W Thermometer)
Ureathane flex hose above valve
4" butterfly valve directly above hydrator
S/S construction
T/C connection to Mash/Lauter Tun
T/C water inlet connection
Sleeve for connection to grist auger
Combines grist and water entering Mash/Lauter Tun
3" (76 mm) dual scale dial thermometer installed in 1/2" (13mm) CPLG for
reading outlet temperature
5,000 lb/hr

DME Brewing Solutions 20 BBL Brewhouse

SYSTEM INCLUDES:

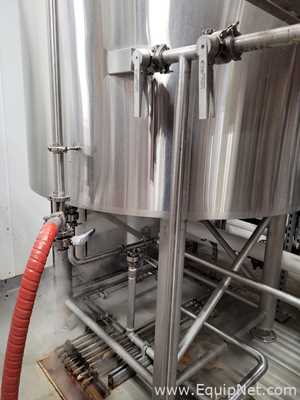

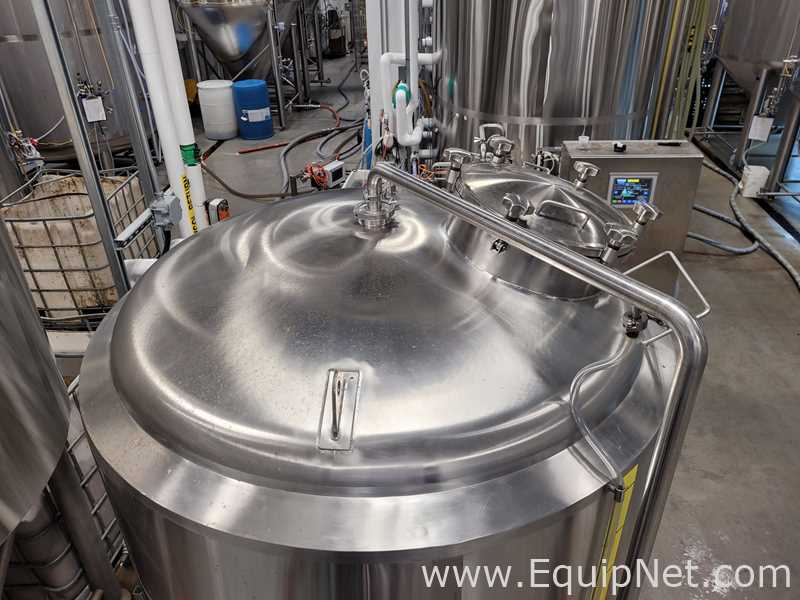

20 BBL Mash/Lauter Tun (Rakes, Underflush, WCH)
Design pressure: Atmospheric,
4 of 4" (100mm) Legs c/w adjustable footpads. 3/4"(19mm) thread
Shell material t304 2b s/s, Cladding material t304 #4 s/s
Interior weld finish = stain removed and brightened on a regular margin.
Exterior weld finish = stain removed and brightened on a regular margin.
Cladding penetrations are stain removed and brightened on a regular
margin.
Formed top head, flat bottom, Insulation on sides.
Top fittings: Atmospheric manway, 1" (25mm) CIP, sparge piping c/w
nozzles

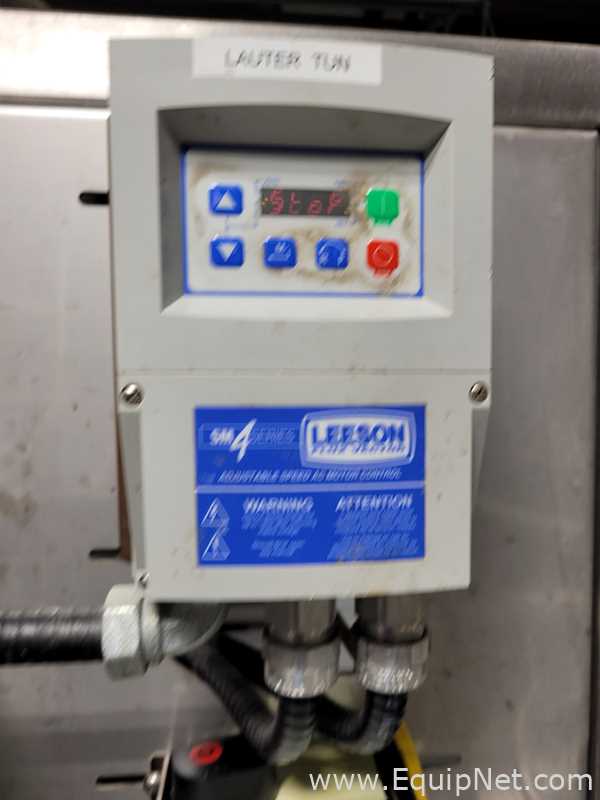

VFD Controlled top mounted motor for stirring rakes.
Side fittings: Thermowell
Bottom fittings: Wort outlets, Wedge-wire false bottom, 1.5"(38mm) wort
collection header 12" (305mm) clamp-style manway spent grain removal
port.
Design parameters: 12 deg Plato original gravity, 95% brewhouse
efficiency, 77% available extract, 180 kg/sq meter plate loading.
70" ID, 5' SIDE

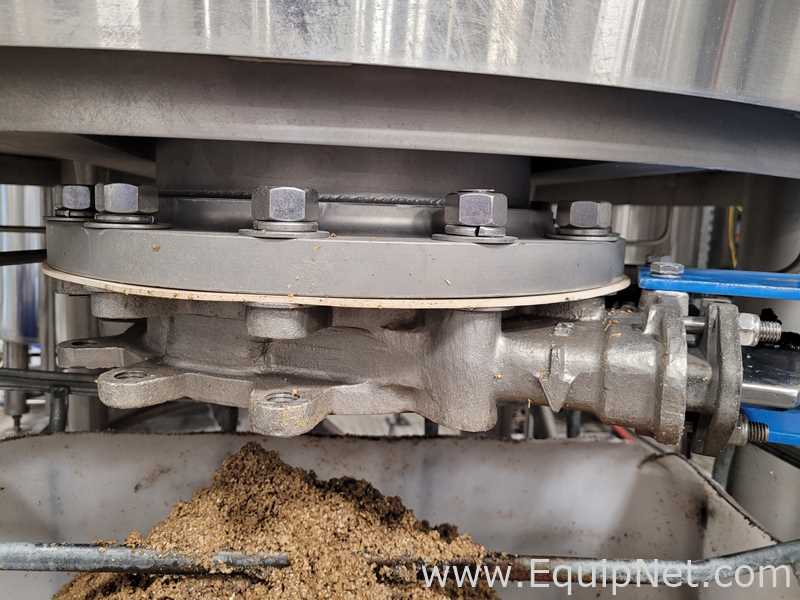

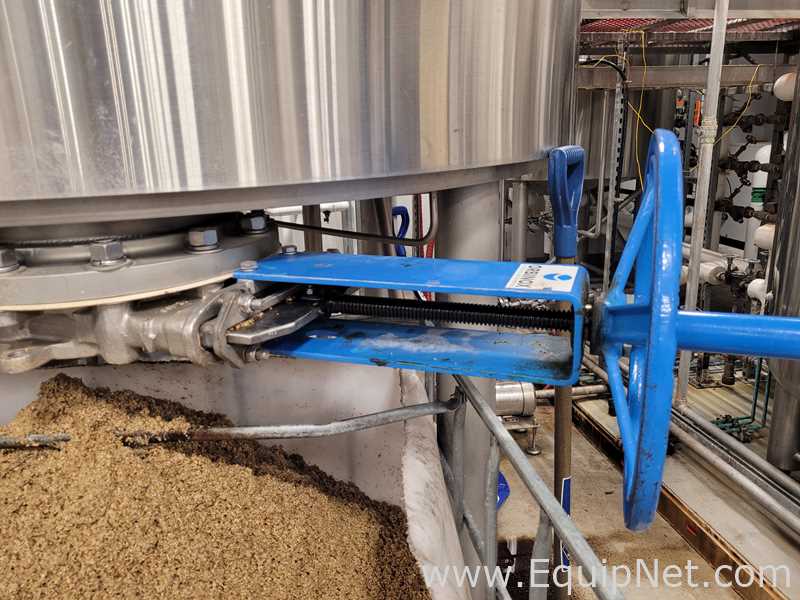

12" (300 mm) Knife Valve (Wheel)
12" (300 mm) stainless steel knife valve
Upgrade lauter tun spent grain bottom manway to knife valve
Stainless steel wetted parts
0-ring elastomer sea

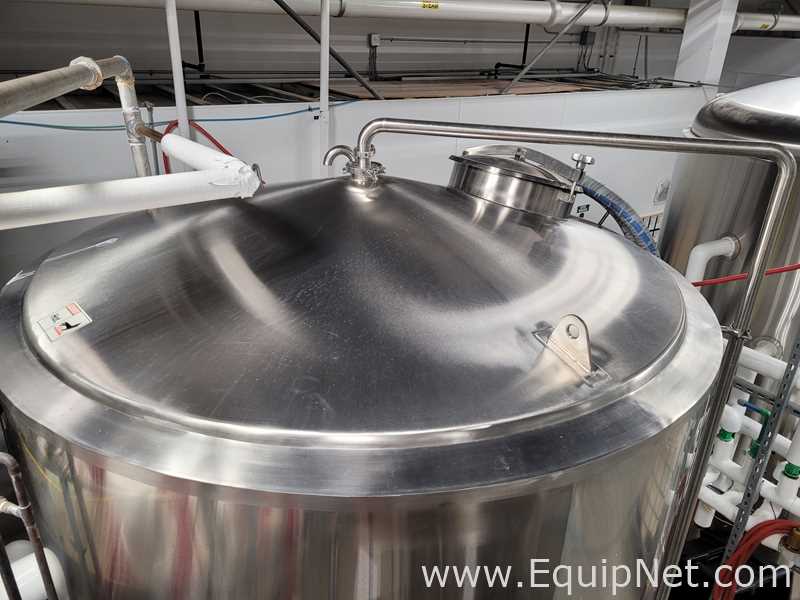

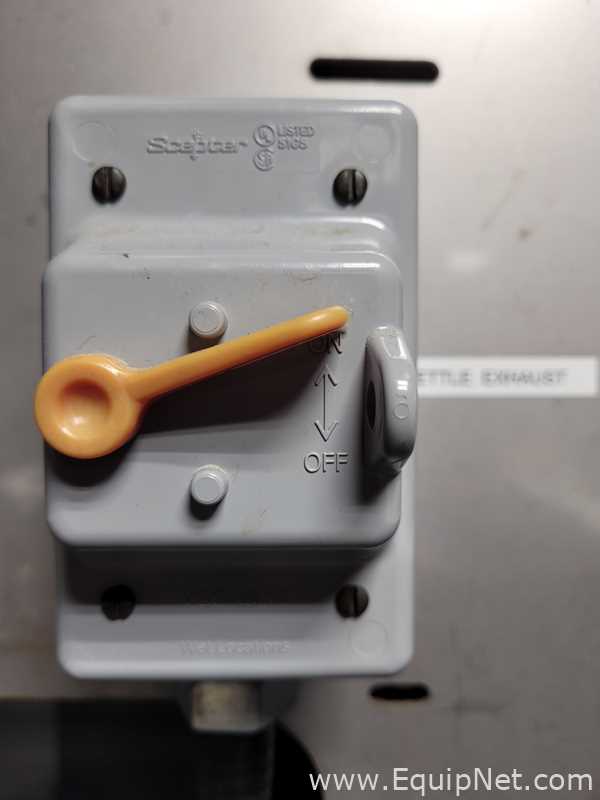

20 BBL Steam Kettle / Whirlpool
Design pressure: Atmospheric
4 Legs c/w adjustable Footpads.
Shell material t304 2b s/s
Cladding material t304 #4 s/s
Flat bottom cladding T304 2B s/s
Interior weld finish = stain removed,, polished to #4 on a regular margin
Exterior weld finish = stain removed and brightened on a regular margin.
Cladding penetrations are stain removed and brightened on a regular
margin.
Formed conical head, shallow cone bottom.
1.5"(38mm) Mineral Wool Insulation on sides and bottom.
Steam jackets for low pressure steam.
Top fittings: 8"(204mm) vapor vent, 1"(25mm) water inlet, condensate
drain
18"(458m) manway, 1"(25mm) CIP
Side fittings: whirlpool inlet, thermowell, steam jackets
Bottom fittings: drain, wort draw -off, steam jacket
Approximate Dimensions: 66"(1679mm) ID, 6'(1.8M) SIDE

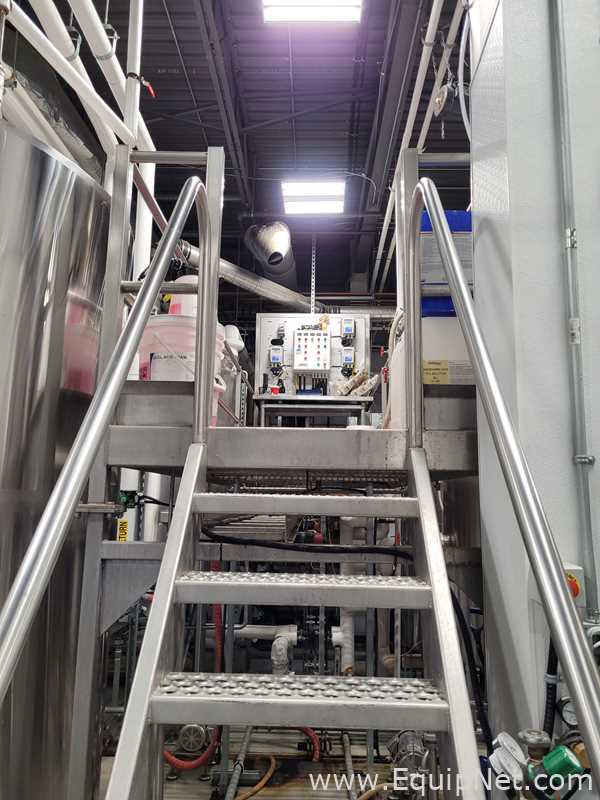

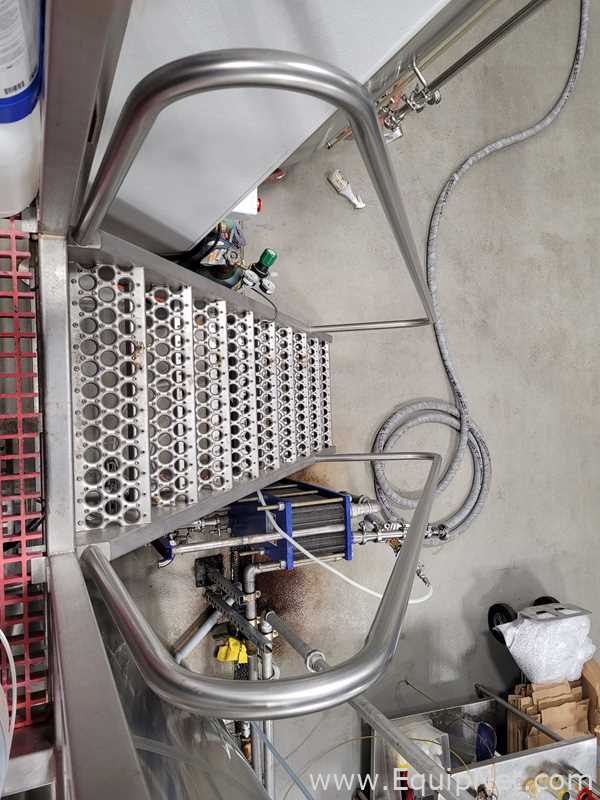

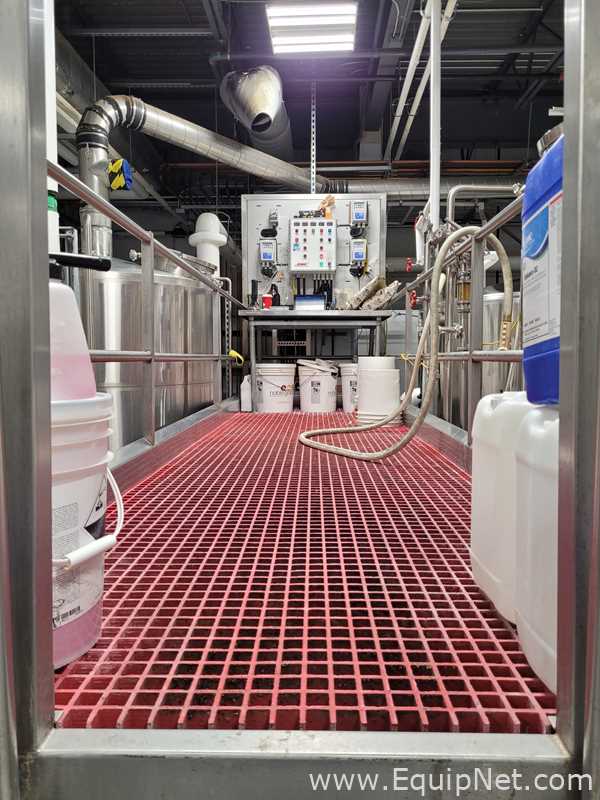

Work Platform 4 vessels - 4 ft x 16 ft
Stainless steel construction throughout
Slip resistant fiberglass grating
Handrails on stairs and platform
Convenient working height for brewhouse vessels
Control panel mounted to frame or handrail
Liquor Blending Station can be mounted on the rear hand rail.
Approximate dimensions 4 ft x 16 ft c/w stairs.

Control Panel Mounting Bracket
Stainless steel construction throughout, Glass Beaded Finish.
1.5" tube frame holds control panel and up to 3 VFD's
Frame mounts to the work platform railings using tube hangers

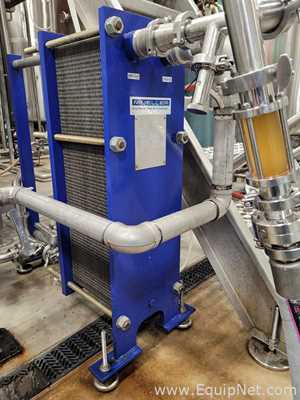

20 BBL Heat Exchanger cold liquor/wort
10 FG LF -150 72 plates
High efficiency plate and frame heat exchanger
Sanitary Design
316 stainless steel plates and connections
EPDM/FDA gaskets
Sanitary Tri-clamp product connection
NPT threaded for non product connection
75 psi (5 bar) design pressure
Efficient heat recovery to hot liquor tank
Wort from 212 F (100 C) to 56 F (13 C)
Cold liquor from 40 F (4 C) to 175 F (79 C)
30 minute transfer time
Empty weight 465 lb (211 kg)
22.7 USBBL (26.6 HL) cold liquor volume

Wort Aeration Assembly
Comes complete with a sanitary stainless steel thermometer,
Sintered stainless steel aerating stone
1 1/2 " Sight glass, shutoff and check valves


Piping ( 2 vessels)
All sanitary piping is made of T304 s/s, pre-fitted, then disassembled for
shipping. All fittings, gaskets and s/s butterfly valves are included.
The piping interconnects the vessels

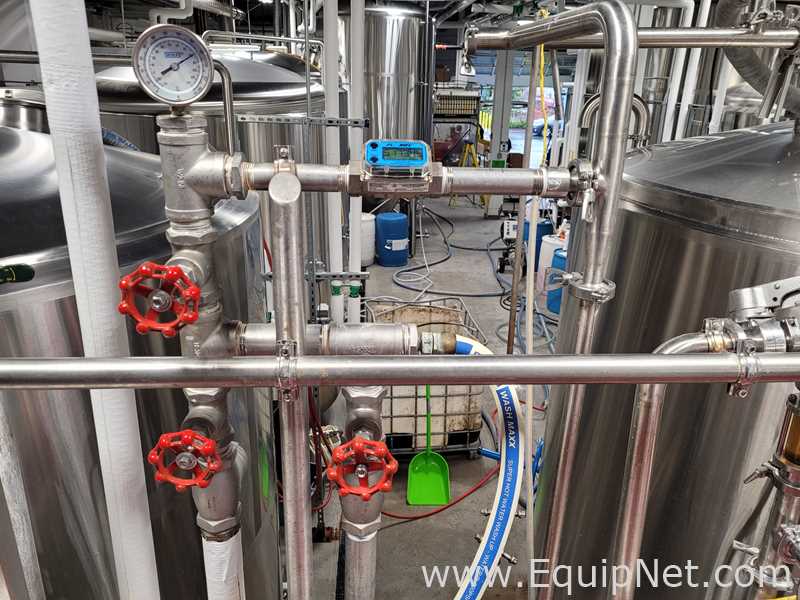

Liquor Blending System
Temperature indicator and mixing valves allow brewer to adjust brewing
liquor temperature.
System includes Thermometer and inline thermometer mount, manual
valve for hot liquor, manual valve for cooling water, check valves, flow
meter, and pipe-work combining hot liquor and cooling water lines. Stainless
steel tubing and valve to kettle fill, sparge and grist hydrator

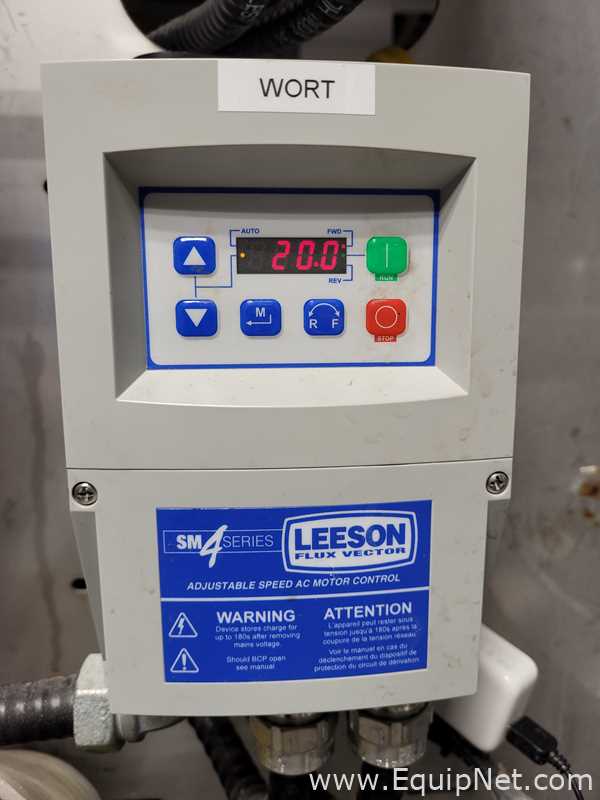

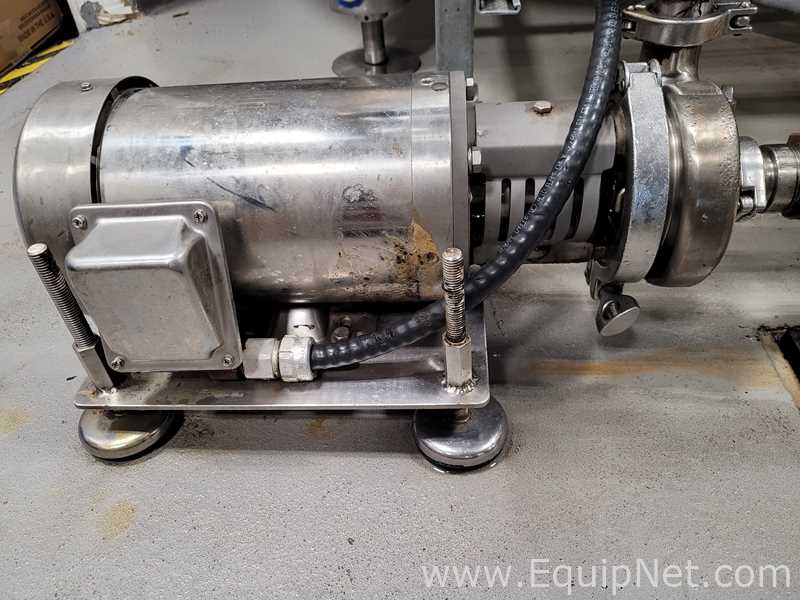

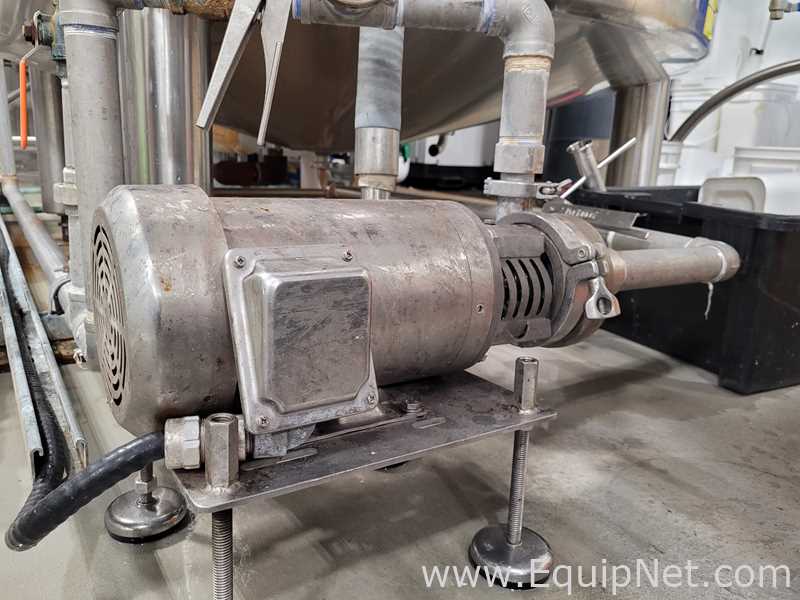

Wort Pump C/W VFD
2 HP TEFC motor
#6 Pump Sanitary s/s head, t/c inlet and outlet
This option provides a frequency inverter which is used to vary the r.p.m. of
the pump. This allows the operator to match the pump curve to the system
curve with a reduced requirement for throttling of control valves. The lower
r.p.m. of the pump means the shear forces imparted on the wort by the
pump impeller are also reduced. Inverter is mounted in a Wash Down
Enclosure with digital display.

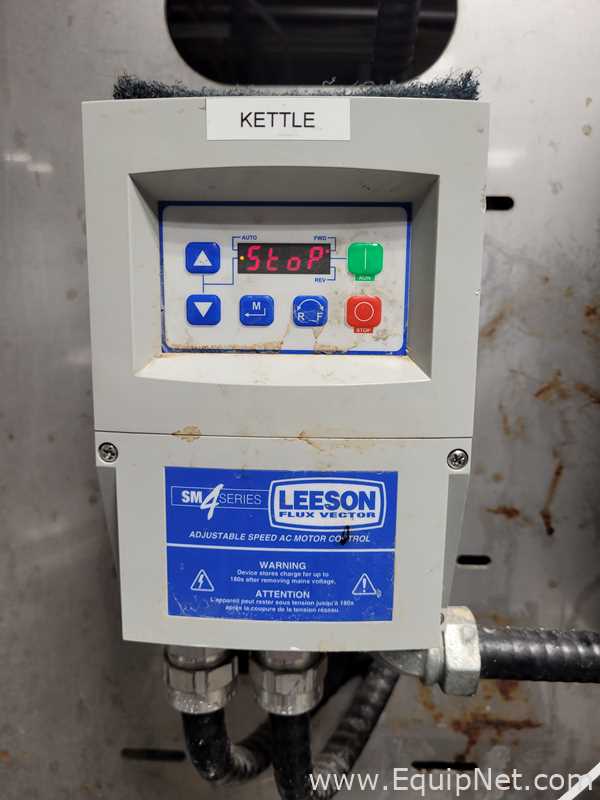

Kettle Pump C/W VFD
#4 Pump Sanitary s/s head, t/c inlet and outlet
This option provides a frequency inverter which is used to vary the r.p.m. of
the pump. This allows the operator to match the pump curve to the system
curve with a reduced requirement for throttling of control valves. The lower
r.p.m. of the pump means the shear forces imparted on the wort by the
pump impeller are also reduced. Inverter is mounted in a Wash Down
Enclosure with digital display.

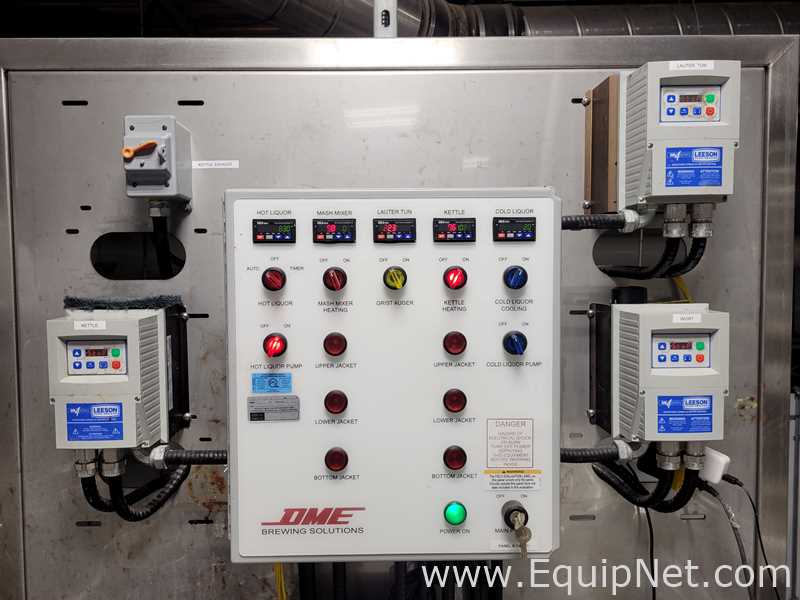

Brewhouse Control Panel (4 vessel, steam)
Sturdy, Watertight, Nema 4 cabinet
Unit comes complete with pump switches, and run lights for product
transfer, temperature read outs for brewhouse vessels, 24 hour timer,
manual/automatic switch for heating, and steam controls for heating jackets.
(steam solenoids not included).
Pre-mounted on work platform.
Provides a single location for most brewhouse operations.
Complete with a graphic overlay
Certification to local codes is available at an additional cost.
Customer is to supply any Glycol Solenoids required for cold liquor control.

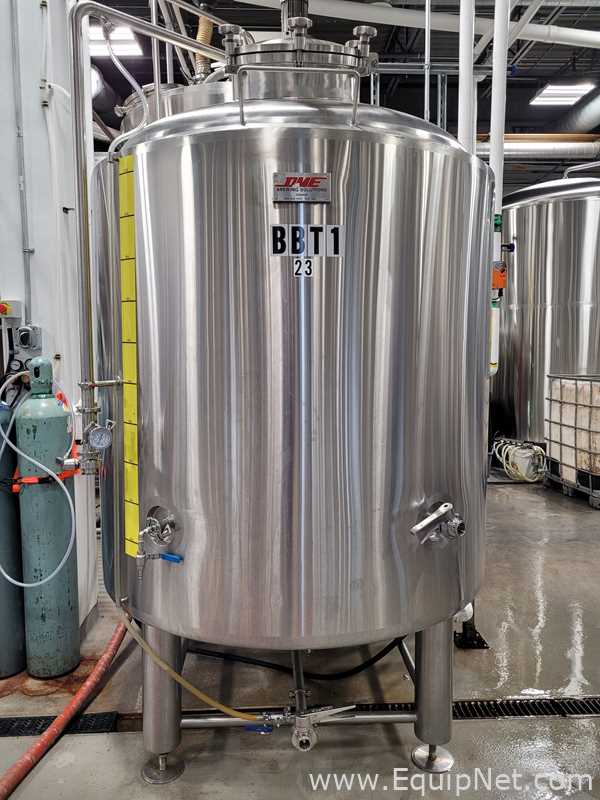

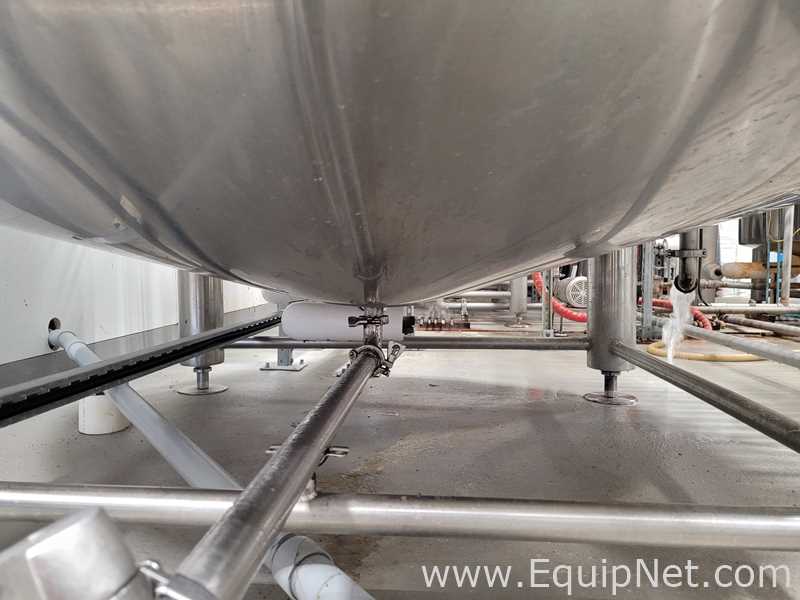

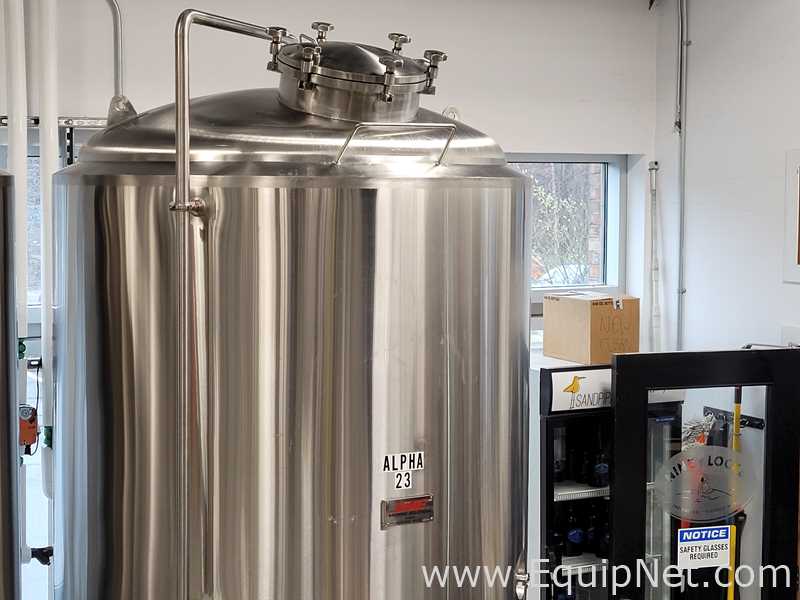

DME Brewing Solutions 20 BBL Bright Beer Tank

Insulation on sides and bottom
Top Fitting: CIP c/w 1.5" side arm and spray ball, 2.5" PVRV manway
Side Fittings: Glycol jacket designed to cool the tank volume from 65F to 55F in 10 hours using glycol at 28F, thermowell, sample pot, carbonating ferrule and stone.
Botton Fittings: 1.5" drain c/w B/F valve

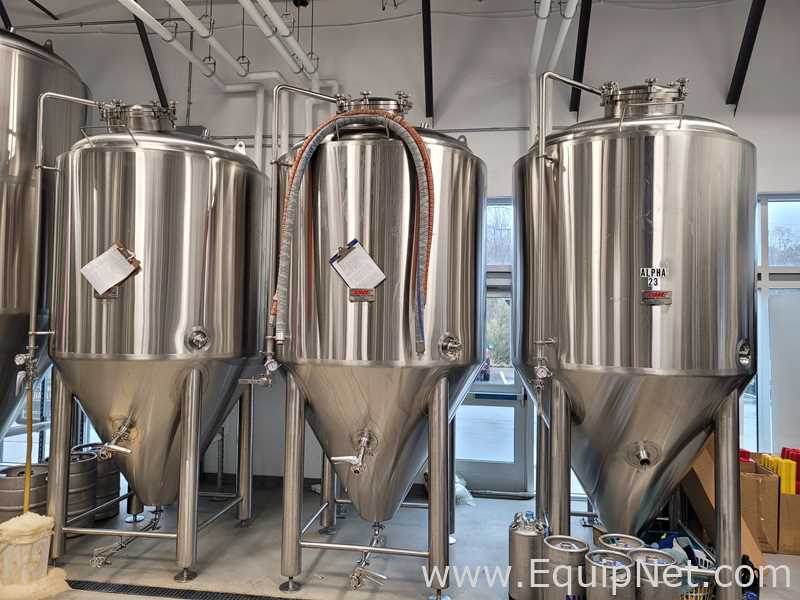

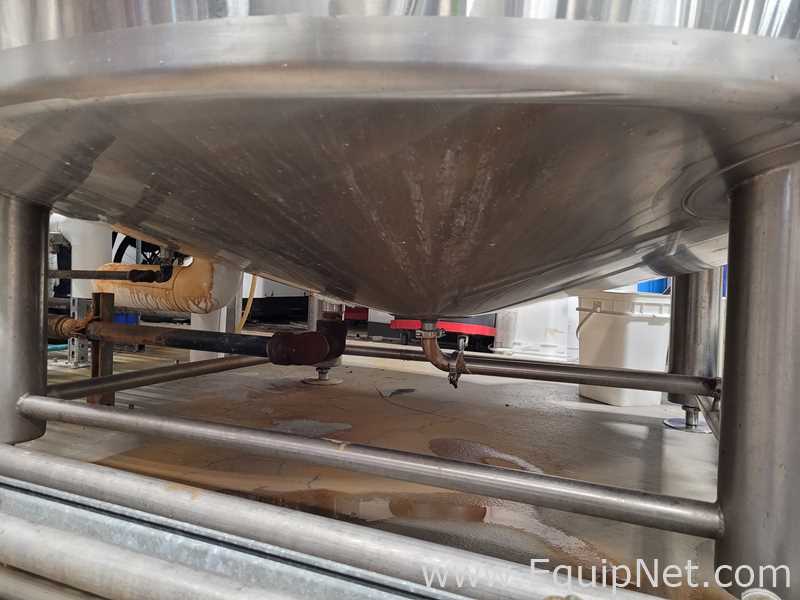

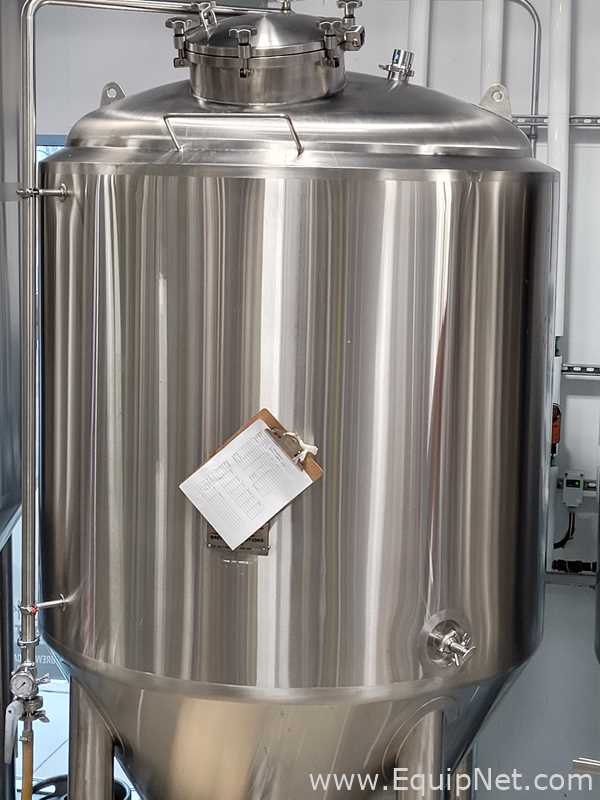

DME Brewing Solutions 20 BBL Unitank

3 AVAILABLE - PRICE PER EACH

60 degree cone bottom
Insulation sides and bottom
Top Fittings: CIP c/w 1.5" side arm, spray ball, 2.5" PVRV, manway
Side Fittings: glycol couplings, thermo-well, sample port, manway
Jackets are sized to cool the working volume from 65F to 34F in 24 hours using a glycol inlet temperature = 30F
Bottom Fittings: Drain & valve, racking ferrule & valve, glycol couplings
Minimum additional head space 25%
Racking arm and valve
CIP arm end piece including gauge, ball valve, quick disconnects
PVRV valve

DME Brewing Solutions 20 BBL Unitank

3 AVAILABLE - PRICE PER EACH

60 degree cone bottom
Insulation sides and bottom
Top Fittings: CIP c/w 1.5" side arm, spray ball, 2.5" PVRV, manway
Side Fittings: glycol couplings, thermo-well, sample port, manway
Jackets are sized to cool the working volume from 65F to 34F in 24 hours using a glycol inlet temperature = 30F
Bottom Fittings: Drain & valve, racking ferrule & valve, glycol couplings
Minimum additional head space 25%
Racking arm and valve
CIP arm end piece including gauge, ball valve, quick disconnects
PVRV valve

DME Brewing Solutions 20 BBL Unitank

3 AVAILABLE - PRICE PER EACH

60 degree cone bottom
Insulation sides and bottom
Top Fittings: CIP c/w 1.5" side arm, spray ball, 2.5" PVRV, manway
Side Fittings: glycol couplings, thermo-well, sample port, manway
Jackets are sized to cool the working volume from 65F to 34F in 24 hours using a glycol inlet temperature = 30F
Bottom Fittings: Drain & valve, racking ferrule & valve, glycol couplings
Minimum additional head space 25%
Racking arm and valve
CIP arm end piece including gauge, ball valve, quick disconnects
PVRV valve

DME Brewing Solutions 40 BBL Bright Beer Tank

Vessel working pressure: 15 PSI (1 BAR)
Jacket working pressure: 29 PSI (2 BAR)
Working pressures are subject to local codes
4 Legs c/w adjustable Footpads.
Shell material t304 2b s/s
Cladding material t304 #4 s/s
Interior weld finish = stain removed, polished on a regular margin and acid cleaned.
Exterior weld finish = stain removed and brightened on a regular margin.
Cladding penetrations are stain removed and brightened on a regular margin.
Formed heads top and bottom.
Insulation on sides and bottom.
Top fittings: CIP c/w 1.5" side arm and sprayball ( top sight tube, ball valve for top pressure, pressure gauge), 2.5" PVRV manway (Top or side).
Side fittings: Glycol jackets designed to cool the tank volume from 65F to 55F in 10 hours using glycol at 28F, thermowell, sample port, carbonating ferrule and stone
Bottom fittings: 1.5" drain c/w B/F valve
Relief pressure 15 psi, Relief vacuum 1psi.
PVRV Valve.

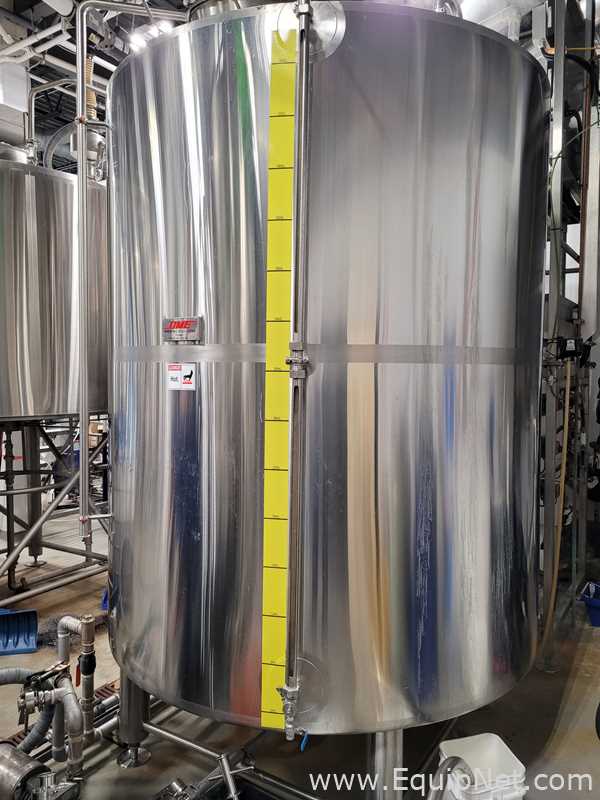

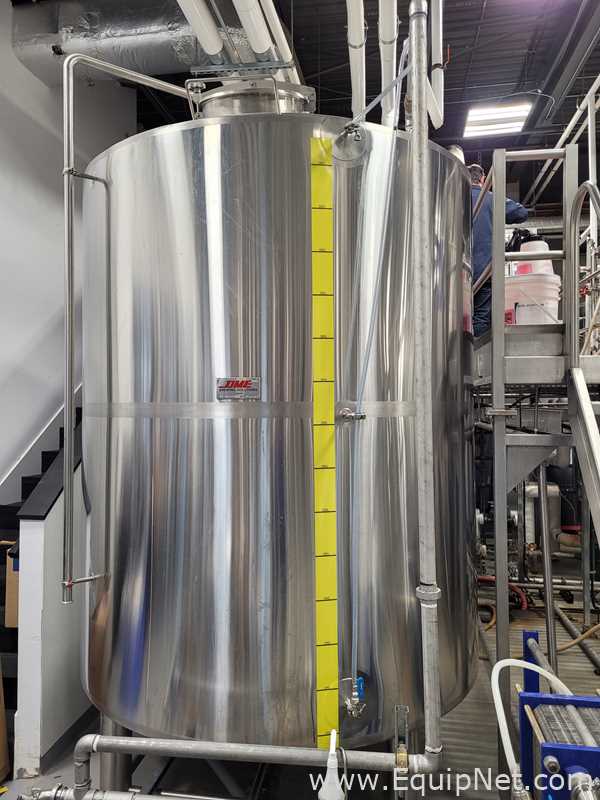

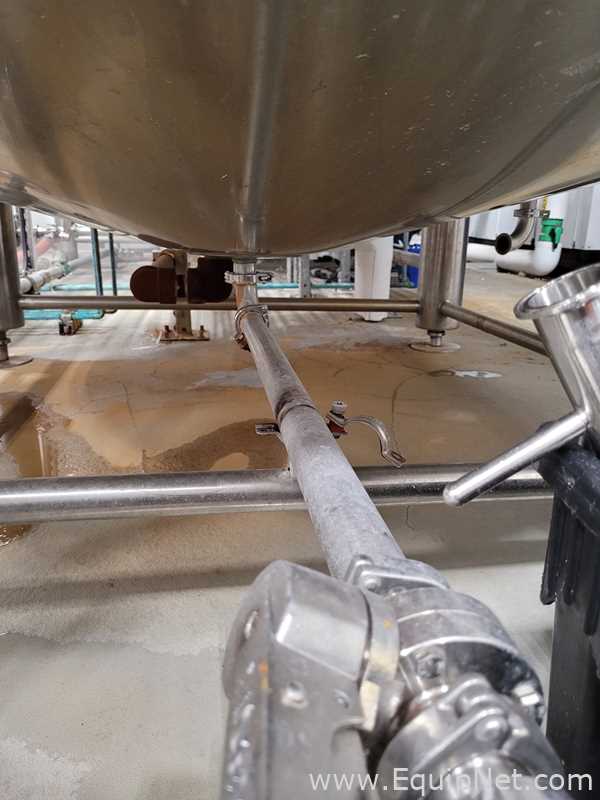

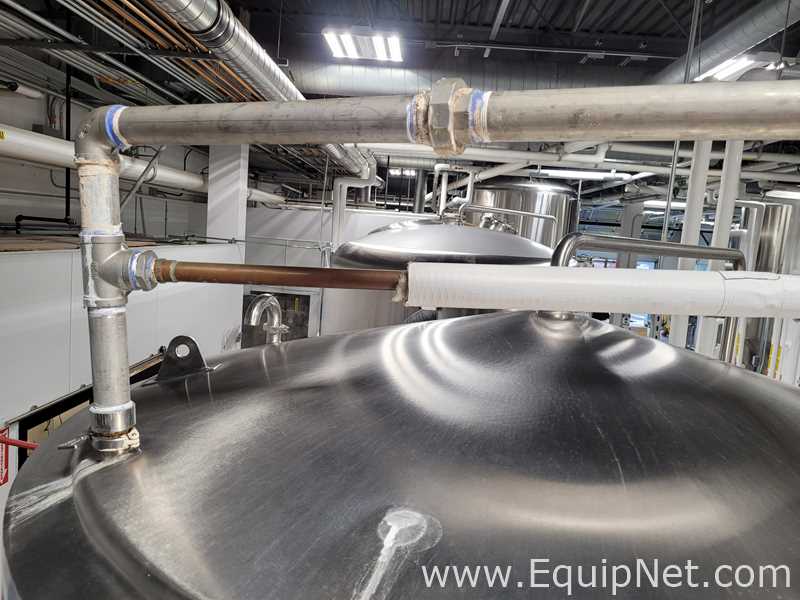

DME Brewing Solutions 40 BBL Cold Liquor Tank with Pump

Design pressure: Atmospheric
4 Legs c/w adjustable Footpads.
Shell material t304 2b s/s
Cladding material t304 #4 s/s
Interior weld finish = stain removed and brightened on a regular margin and acid cleaned.
Exterior weld finish = stain removed and brightened on a regular margin.
Cladding penetrations are stain removed and brightened on a regular margin.
Shallow cone top, Shallow cone bottom
Insulation & cladding on sides and bottom.

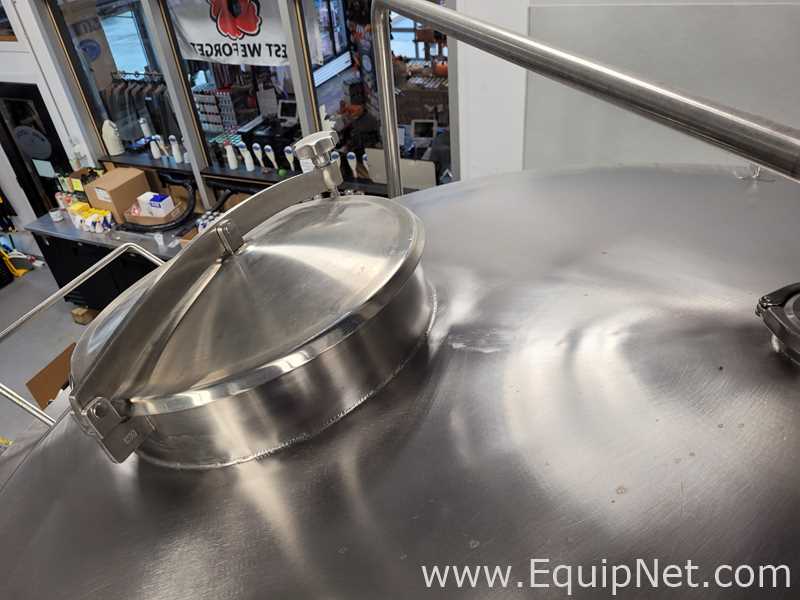

Top fittings: Atmospheric manway, CIP c/w 1.5" (38 mm) side arm & sprayball, 1.5" (38 mm) water inlet
Side fittings: Liquid level sight tube.
Glycol Jacket to cool 130% of the volume from 65F to 34F in 12 hours using glycol at 28F.
Bottom fittings: 1.5" (38 mm) triclamp Drain, thermowell, 1.5" (38mm) overflow.
approximately 30% Head Space.

Cold Liquor Pump
Stainless steel pump
Washdown duty motor

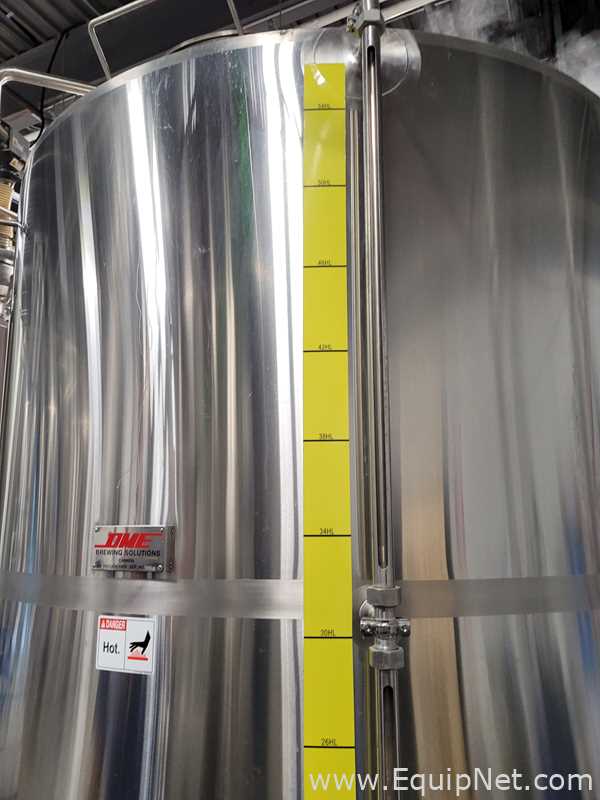

DME Brewing Solutions 40 BBL Hot Liquor Tank with Pump

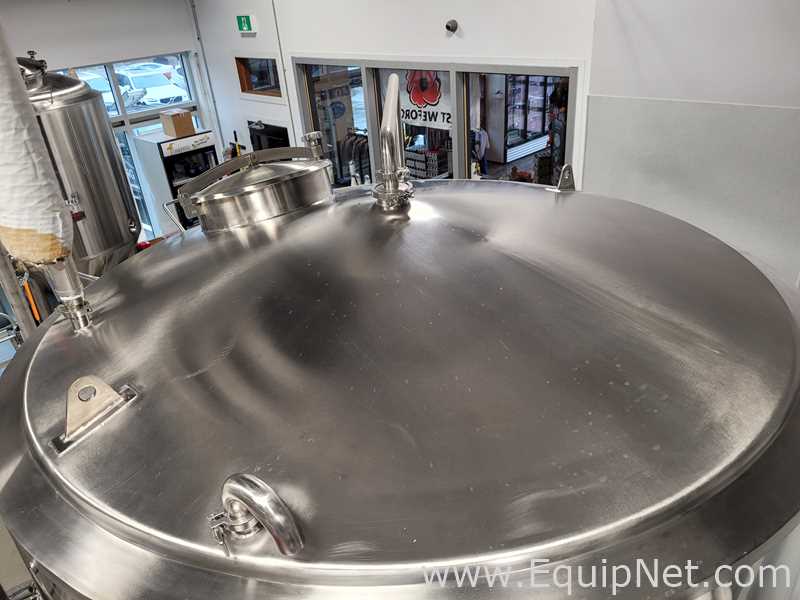

Masterbrew 40BBL Hot Liquor Tank
Design pressure: Atmospheric
4 Legs c/w adjustable Footpads.
Shell material t304 2b s/s
Cladding material t304 #4 s/s
Interior weld finish = stain removed and brightened on a regular margin and Acid Cleaned.
Exterior weld finish = stain removed and brightened on a regular margin.
Cladding penetrations are stain removed and brightened on a regular margin.
Shallow cone top, Shallow cone bottom
Insulation & cladding on sides and bottom
Top fittings: Atmospheric manway, CIP c/w 1" (25mm) side arm & sprayball, 1" (25mm) water inlet
Side fittings: Liquid level sight tube..
Bottom fittings: 1.5" (38mm) Triclamp Drain, thermowell, 1.5" (38mm) overflow.
approximately 30% Head Space.
15PSI (1.0 BAR) steam jackets designed to heat vessel full (130%) of water from 140F TO 180F in 6 hours

Hot Liquor Pump
Stainless steel pump
Washdown duty motor

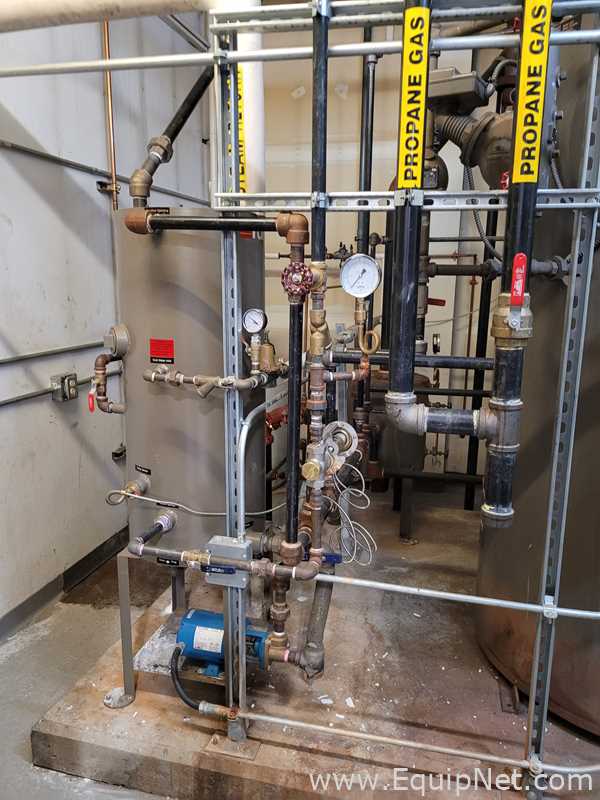

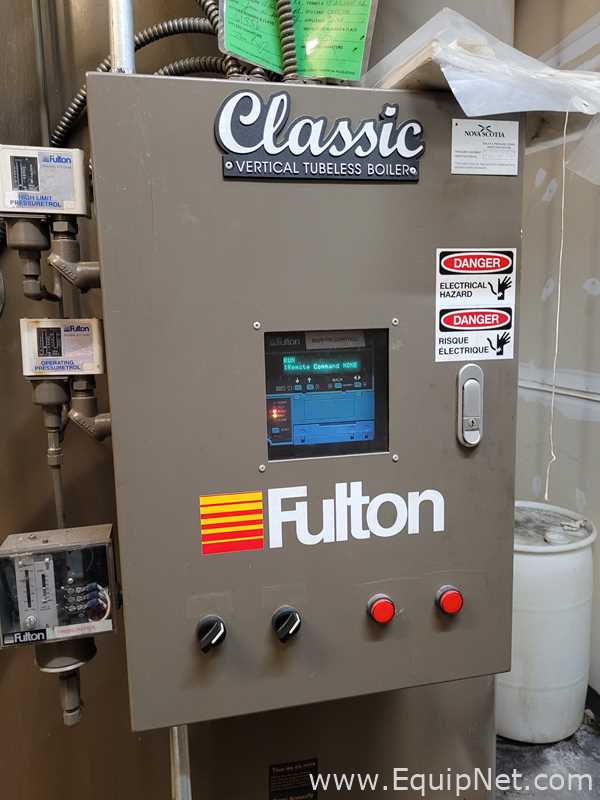

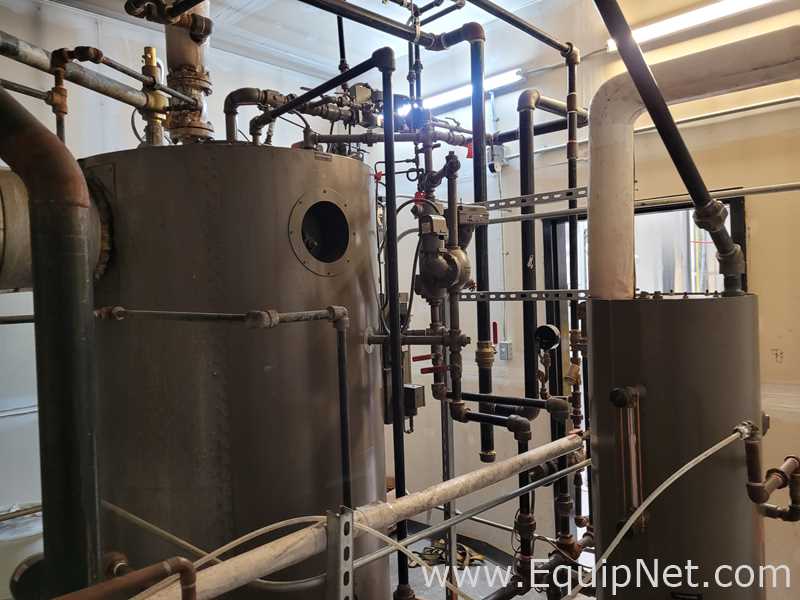

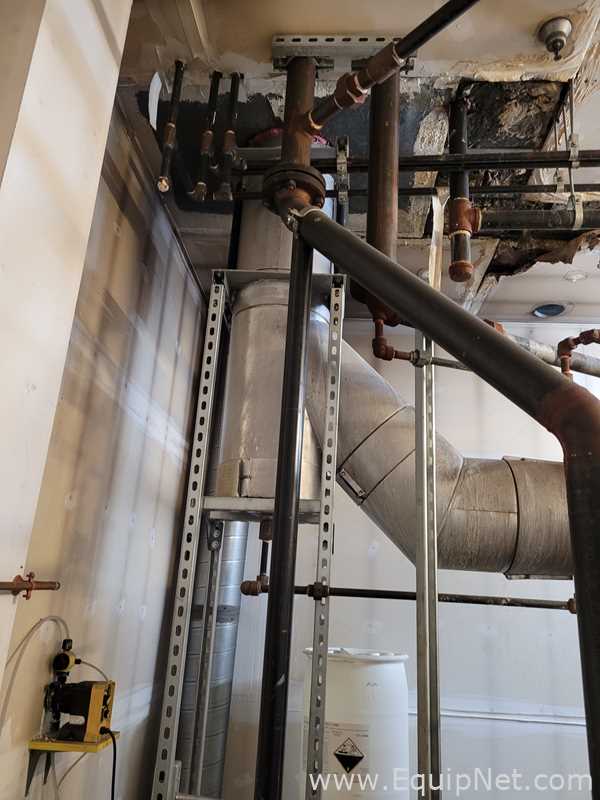

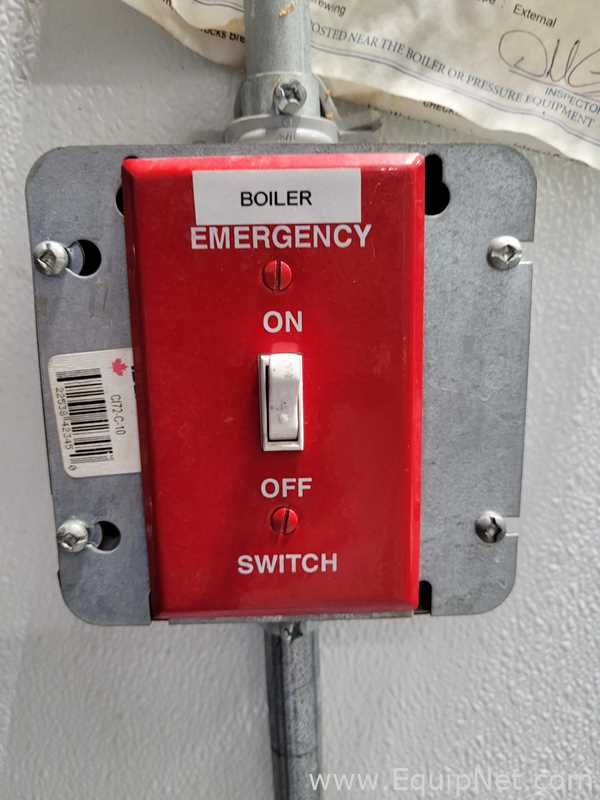

Fulton Boiler Works FB-030-A Classic Vertical Tubeless Boiler

Low Pressure
Propane
1035 MD LBS Steam/Hr

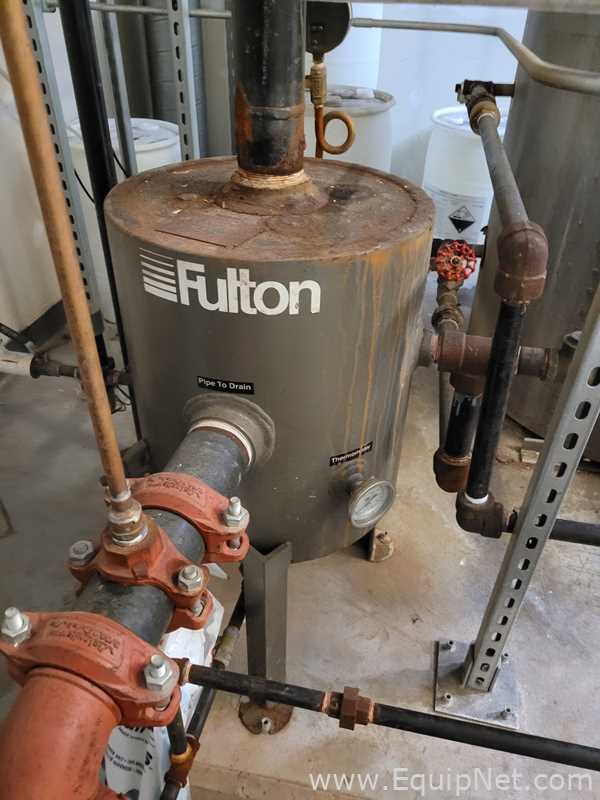

includes condensate return tank and blowdown tank

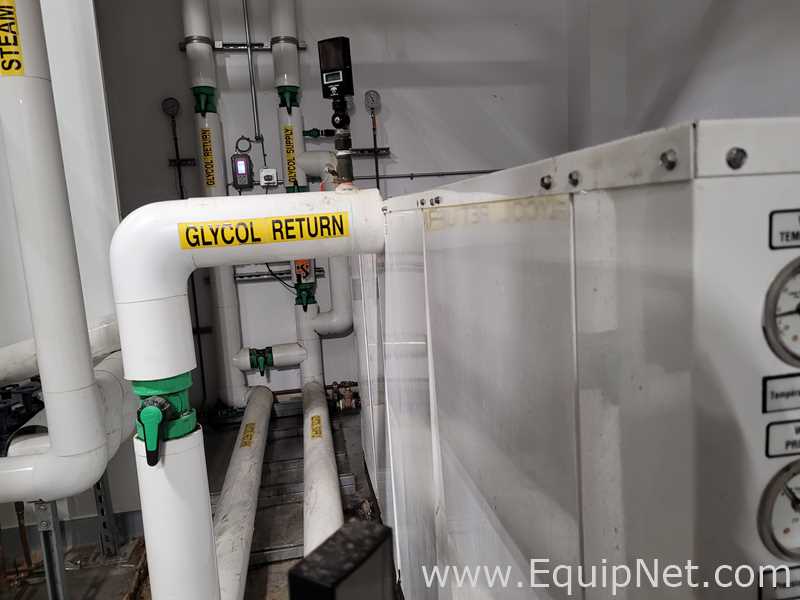

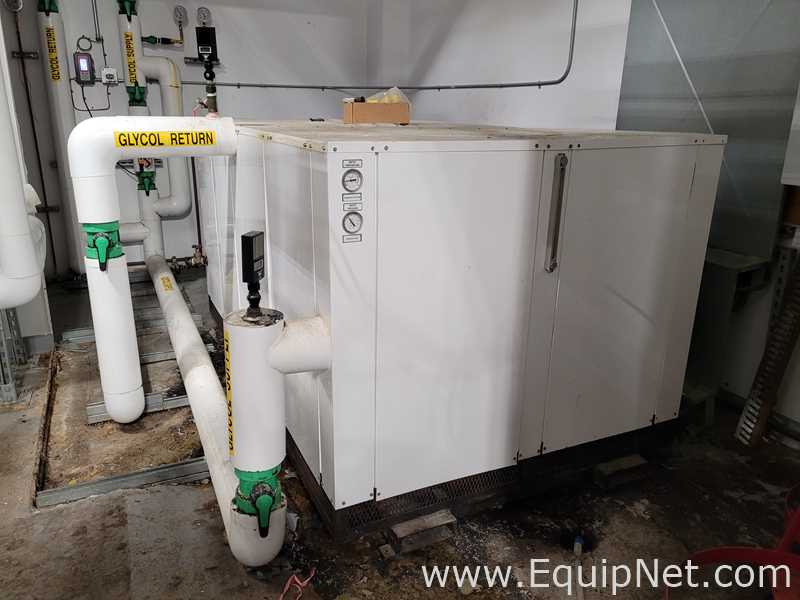

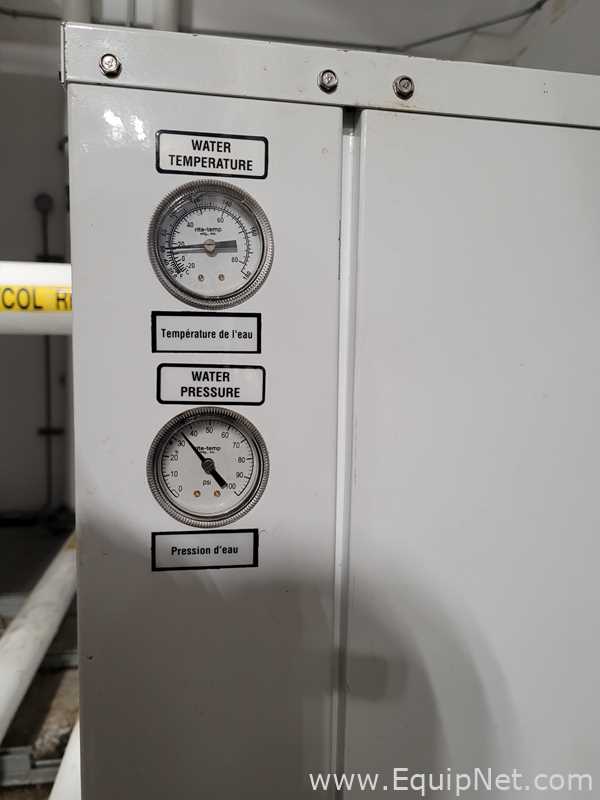

Rite Temp RTR 3604 Chiller - Evaporator

The utmost in design flexibility. The cooling system has been separated into two parts - the condensing and evaporating units. The condensing unit consists of the condenser coil and fan. The evaporating unit is made up of the evaporator tank and coil, compressor, water pump, electrical and control panels. Separating the two units and placing the condensing unit outside allows the condensing unit to operate more efficiently.
Condensor
