Listing# 696239

Shimadzu ELSD LT II Low Temperature Evaporative Light Scattering Detector

Seller's Acceptable Currency:

$9,000.00 USD

Make An Offer

Location:  North America

Level of Removal:  Uncrated/Loose

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Equipment Description

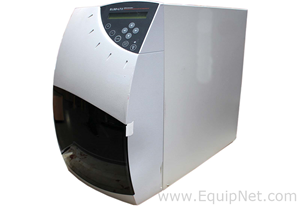

Shimadzu ELSD-LT II Low Temperature-Evaporative Light Scattering Detector

This�Shimadzu ELSD-LT II Low Temperature-Evaporative Light Scattering Detector�is in excellent condition.


Low Temperature Evaporative Light Scattering Detector

Enhanced Sensitivity for Trace Analysis

The ELSD-LTII utilizes a high-efficiency LED and enhanced digital signal treatment to minimize noise and deliver optimum sensitivity for trace analysis. An innovative cell design also reduces band broadening and allows sensitivity levels below 200 picograms. The high-performance optical detection system can also be used for combinatorial chemistry and high-throughput screening applications.

The new Low Temperature Evaporative Light Scattering Detector (ELSD-LTII) is an easy-to-operate, universal detector that identifies analytes with uniform sensitivity regardless of their spectroscopic properties. It is not a spectroscopic detector. Instead, it removes the mobile phase through evaporation and then makes a light scattering measurement of the dried analyte particles.


The ELSD-LTII is ideally suited for such applications as drug discovery, natural products development, combinatorial chemistry, and food and beverage. It will enable you to see all sample components, even semi-volatile compounds, down to the high picogram level.

The ELSD-LTII provides excellent performance during gradients for optimized separations and reduced run times. A unique cell design reduces band broadening to a level similar to UV-Vis detectors while its single mode, low-temperature operation (user defined from ambient 80�C) optimizes sensitivity for those analytes that are easily missed at higher evaporation temperatures typical of competing detectors.


A Universal DetectorDetects all semi- and non-volatile analytes in your sample, including those transparent to other detectors.
Fully Gradient CompatibleHandles any combination of volatile mobile phases and gradients for powerful separations and minimized run times.
Higher Sensitivity than RI and other ELSDs on the marketThe ELSD-LTII is 10 - 100X more sensitive than RI detectors for all samples and under all mobile phase conditions.
Detects all analytes, including semi-volatiles, at near-ambient evaporation temperaturesAbsolute temperature range (Ambient - 80�C) Commonly used working range (Ambient - 40�C) Semi-volatile analytes and compounds that thermally decompose are easily missed with competing detectors.
Accepts a wide range of mobile phase flowsThe ELSD-LTII displays excellent signal/noise characteristics over solvent flows from 100�L/min. to 4.0 mL/min.
Single-Mode operationLow temperature operation without accessories, separate operating modes. Most analyses are done using a common set of conditions (Gain 5; Temp 40�C; P 350kPa).
Time program air/nitrogen shutoffA time program method may be used to shut off the inlet gas, ending the problem of wasted gas after work is done.
Unique nebulizer/drift tube design offers protection from "fouling"The nebulizer and drift tube are separated by a glass chamber which protects the evaporation and detection stages from particle buildup. In competing detectors, such buildup contributes to background noise that cannot be solved without maintenance.
Stack other detectors on top of the ELSD-LTIIThe ELSD-LTII fits perfectly into the modular design of Shimadzu Prominence HPLC hardware. Dimensions: W250 x H450 x D550mm

***See more information:

Shimadzu ELSD-LT II Low Temperature-Evaporative Light Scattering Detector

Manufacturer Name


Type of Detector for HPLC:

Type of Pump for HPLC:

Recommended Packaging Form:


36 x 36 x 36 IN - 250 LBS
914.40 x 914.40 x 914.40 mm - 113.40 kg


This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

the USA.

This equipment is subject to a removal and loading charge.

The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

Any license associated with this equipment is non-transferable.
