Listing# 1055665

Sodick AQ535L EDM Machine

Download High Res Photos

Make an Inquiry

Seller's Acceptable Currency:

$30,000.00 USD

Make An Offer

Location: East Asia/Pacific

Level of Removal: Still Installed

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Equipment Description

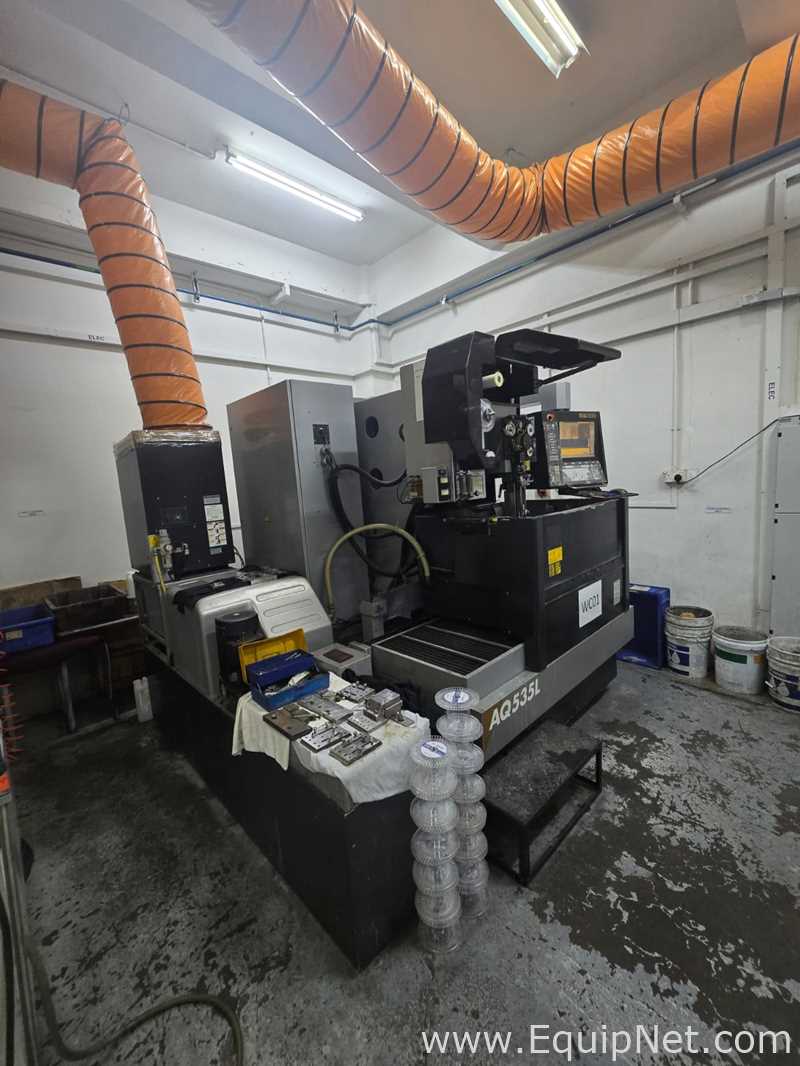

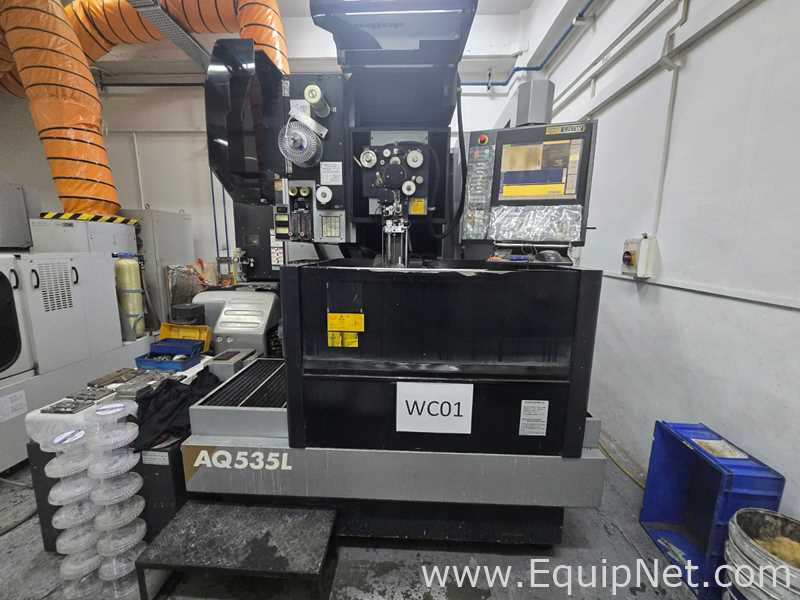

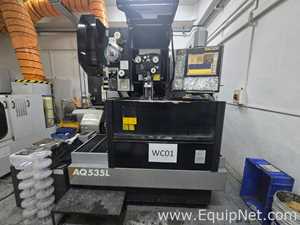

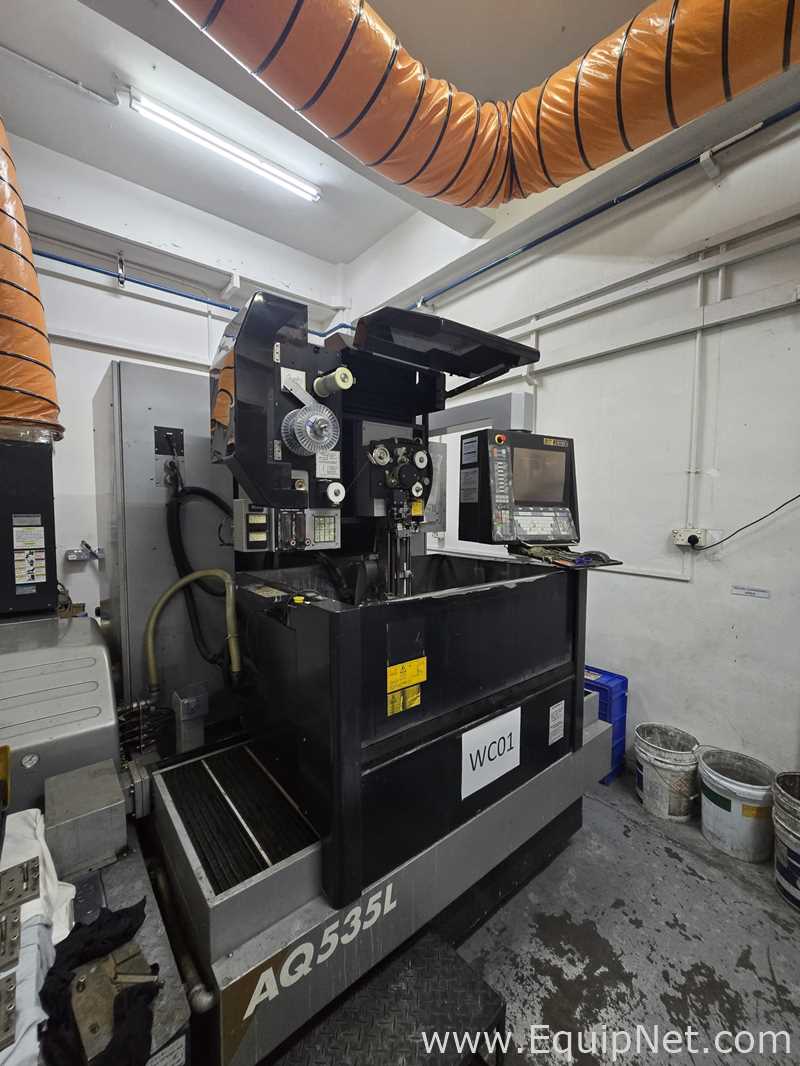

You are making an offer on a Sodick AQ535L EDM Machine located in Singapore.

Sodick AQ535L EDM Machine

Key Specifications:

X/Y/Z Axis Travel: 550 x 350 x 300 mm (21.6" x 13.7" x 11.8")

U/V Axis Travel: ±80 mm (±3.1")

Maximum Workpiece Dimensions: 1100 x 720 x 270 mm (43.3" x 28.3" x 10.6")

Maximum Workpiece Weight: 680 kg (1,499 lbs) submerged

Wire Diameter Range: 0.1 - 0.3 mm (0.004" - 0.012")

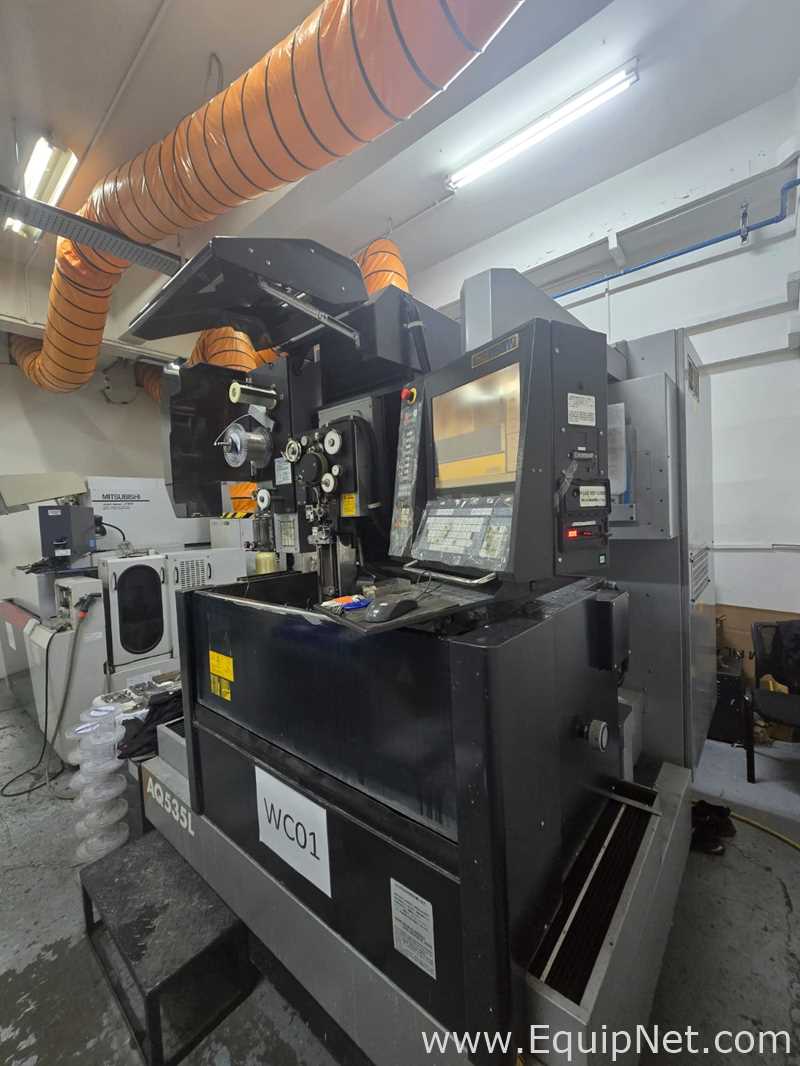

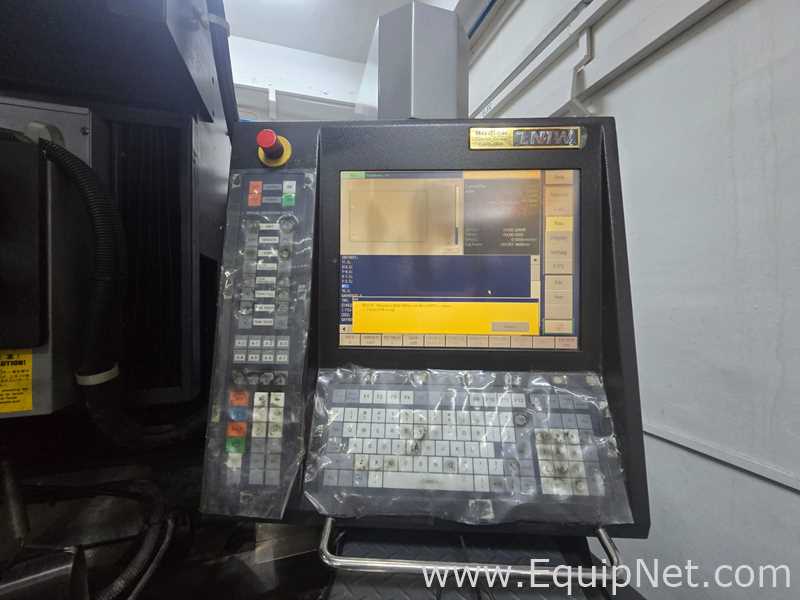

CNC Control System: Sodick LN1W

Machine Features:

Linear Motor Drives for high-speed, high-accuracy movement

Automatic Wire Threading system

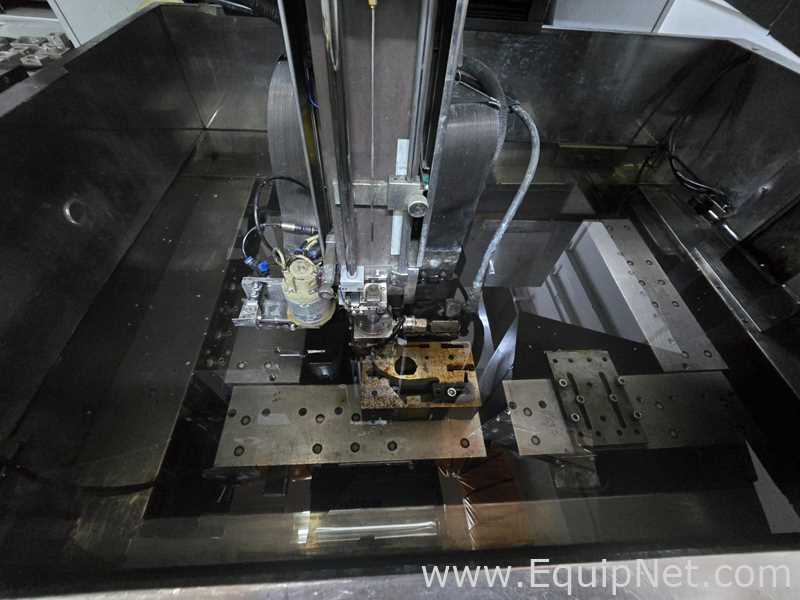

Submerged cutting capability

Dielectric tank capacity: 730 L (192.8 gallons)

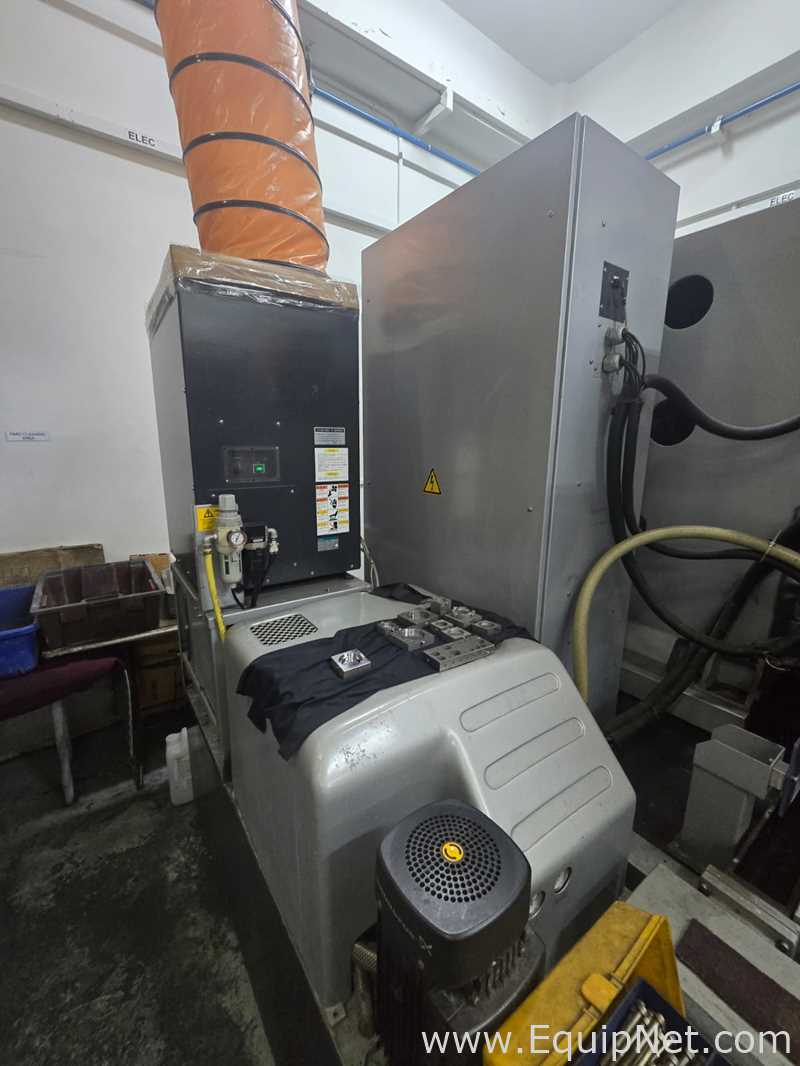

Filtering system with 2 replaceable paper filters

Machine Dimensions and Weight:

Dimensions (L x W x H): 2175 x 1750 x 2260 mm (85.6" x 68.9" x 89")

Machine Weight: Approximately 4,000 kg (8,818 lbs)

Machine is in good working condition.
Operatin Manual is available

Specifications:

Standard

Metric

Manufacturer Name

Sodick

Year:

2004

Model:

AQ535L

Frequency:

50 HERTZ

Phase:

Recommended Packaging Form:

CRATE

Dimensions:

Standard

Metric

Overall:

85.63 x 68.90 x 88.98 in - 8818.40 lb

2175 x 1750 x 2260 MM - 4000 KGS

Disclaimer

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

East Asia/Pacific.

This equipment is subject to a removal and loading charge.

The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

Any license associated with this equipment is non-transferable.
