Listing# 1027658
Tinarelli TVR-60A Vertical Cartoner
Seller's Acceptable Currency:
€99,000.00 EUR
Make An OfferLocation: Europe
Level of Removal: Uncrated/Loose
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Asset Documents
More Equipment Detail (1)Equipment Description

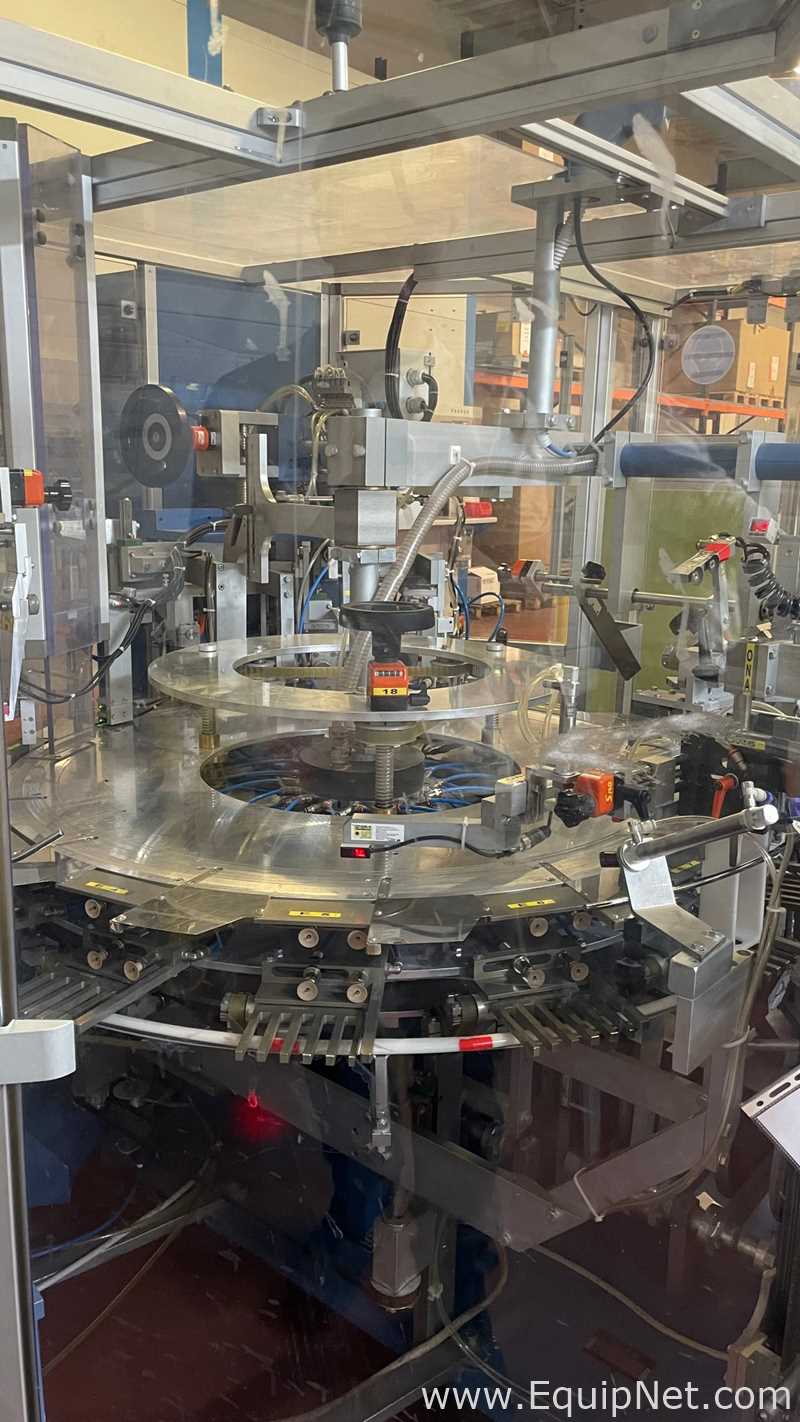

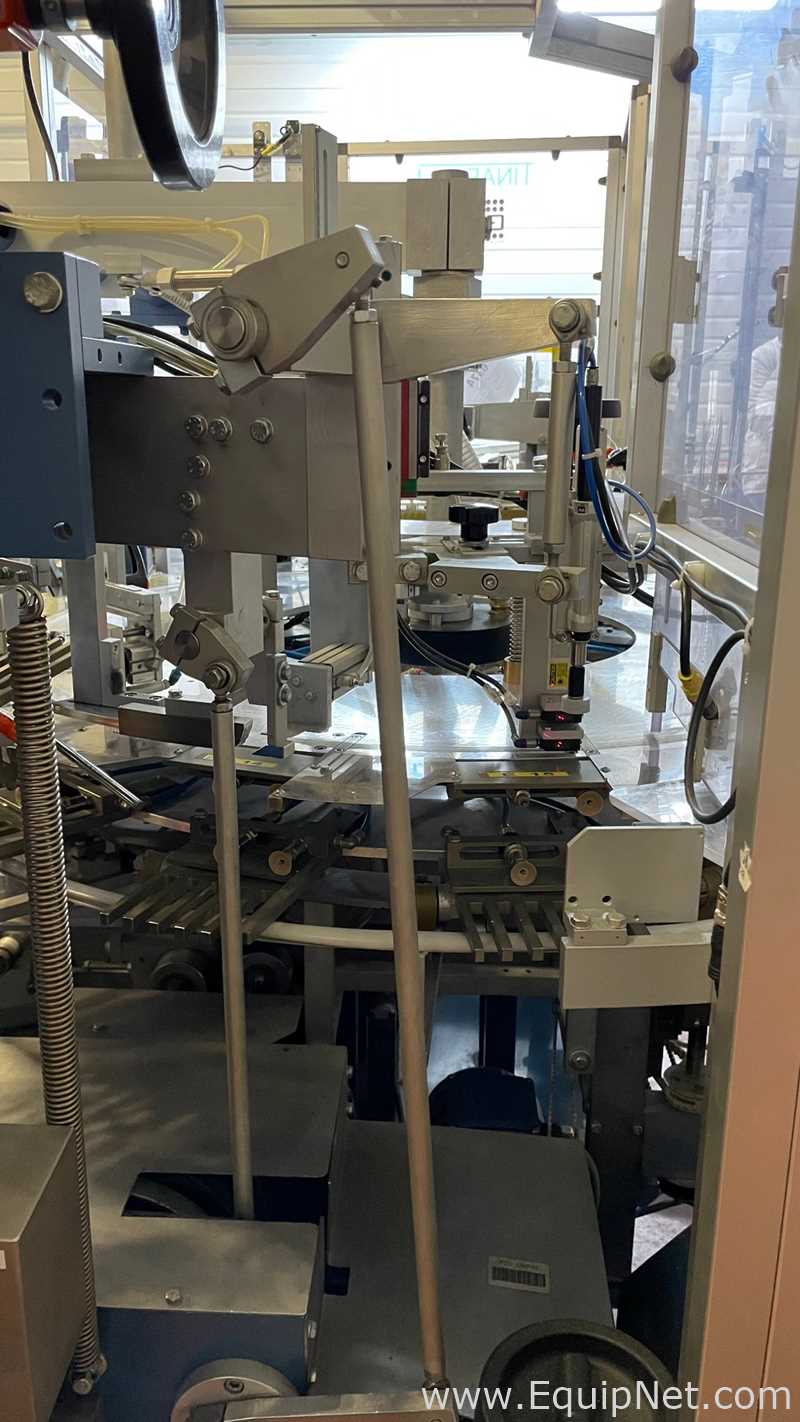

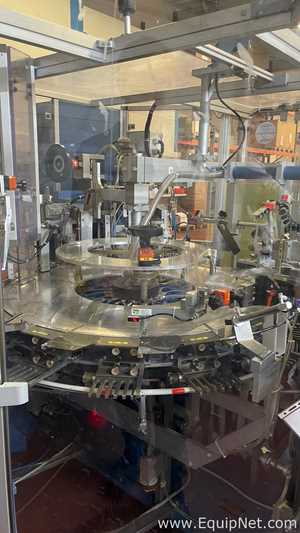

Tinarelli TVR-60A Vertical Cartoner
Manufacturer: Tinarelli
Model: TVR 60 A
Year : 2015
Type : vertical
For vials / jars or other, via loading manipulator
Max. output: 32 CPM
Case size range :
A: from 44 to 120 mm
B: from 30 to 100 mm
C: from 70 to 180 mm
A + B MAX 200
10 pre-set formats (see photos for details)

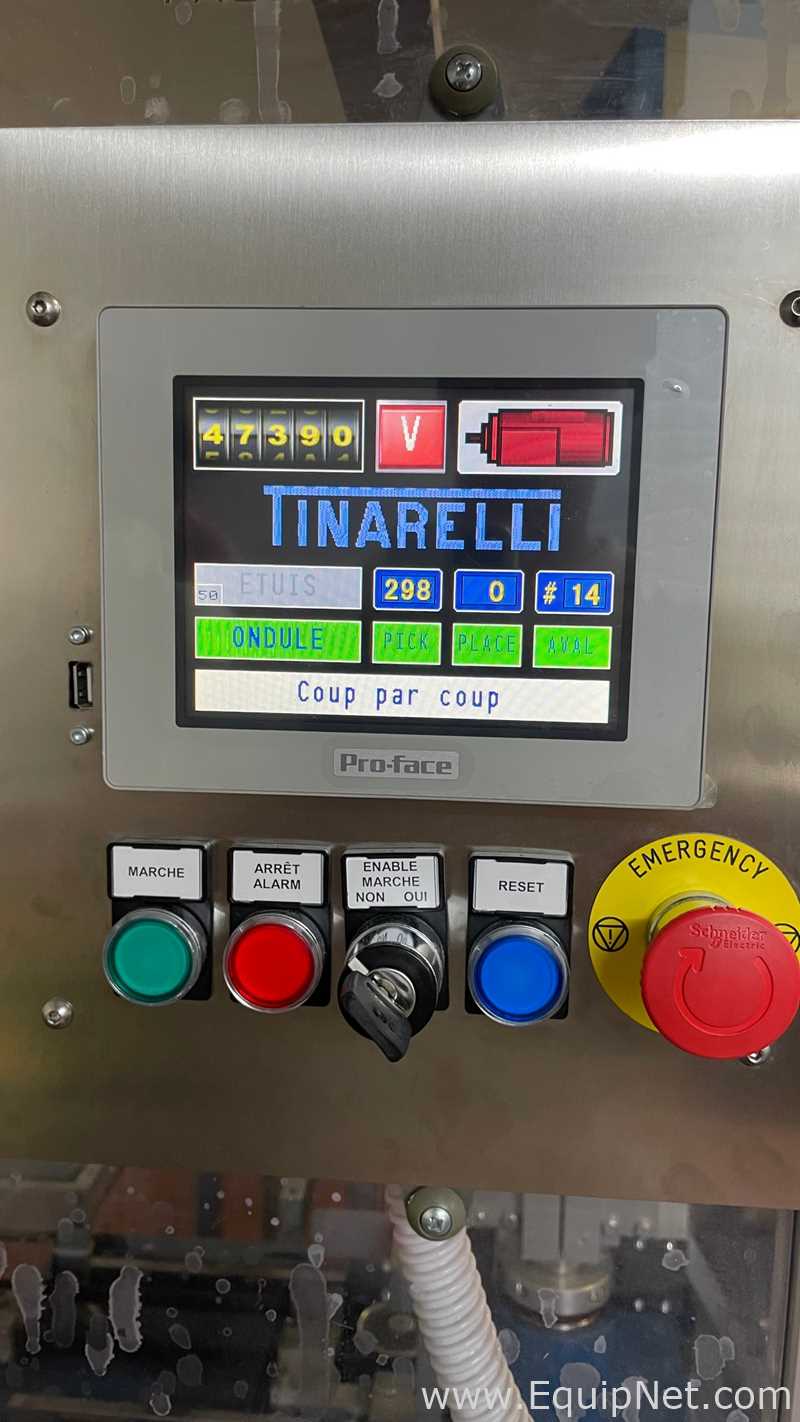

PLC: Omron Sysmac
CE-compliant
Technical documentation: available, details on request
Cartoning machine including :
A flat carton loading station
A wedge loading station (optional)
A vial/cup de-bottling station (without bucket conveyor)
An "operator" station
A full carton exit station with turner
A: from 44 to 120 mm
B: from 30 to 100 mm
C: from 70 to 180 mm
A + B MAX 200
Specifications:
Standard
Metric
Manufacturer Name
Tinarelli
Year:
2015
2015
Model:
TVR-60A
TVR-60A
CE Marked:
YES
YES
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
0.00 x 0.00 x 0.00 in - 0.00 lb
0 x 0 x 0 MM - 0 KGS
